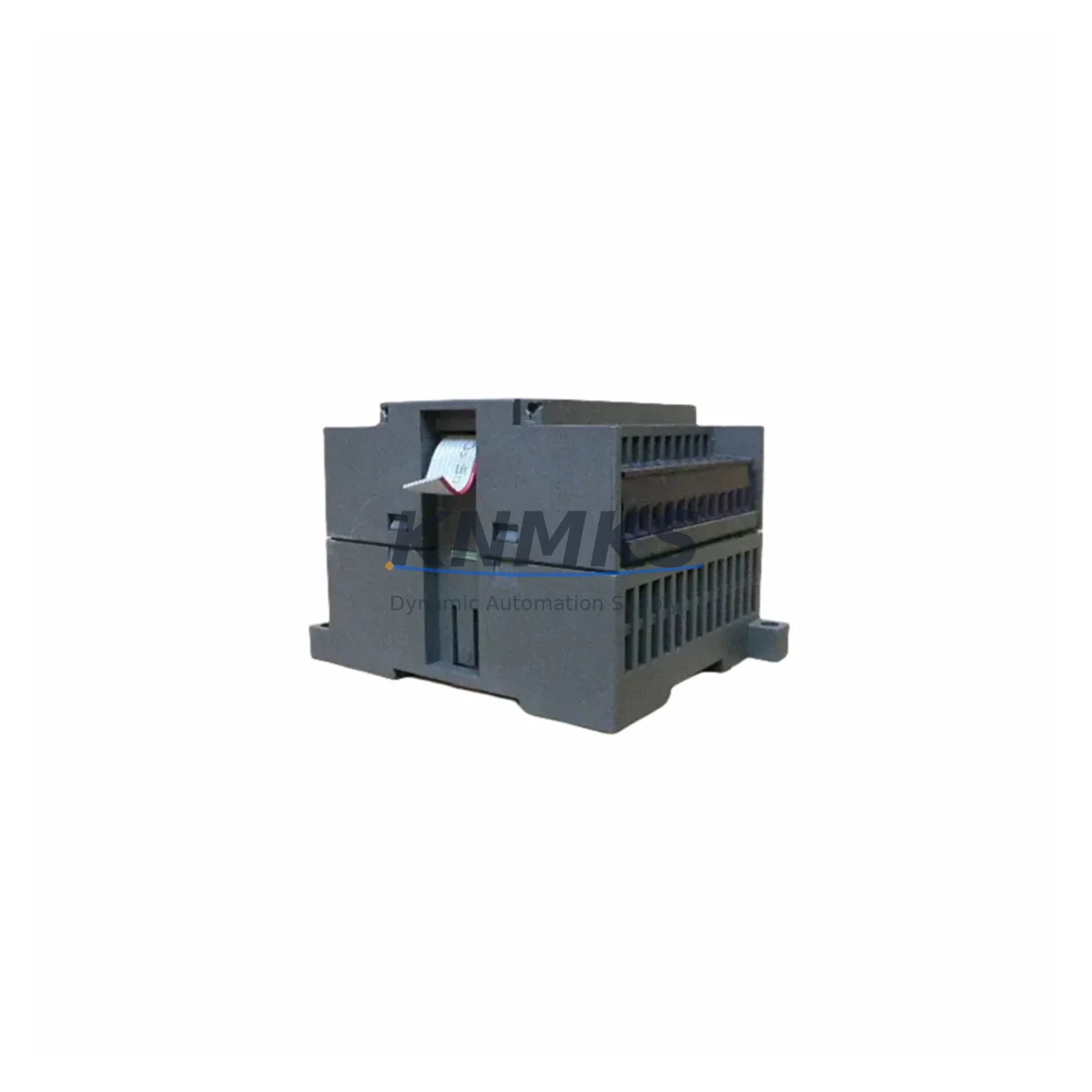

Siemens 6ES7253-1AA22-0XA0 Migration-Ready Position Control

Overview

Siemens 6ES7253-1AA22-0XA0 Migration-Ready Position Control for Legacy Control Systems

The Siemens 6ES7253-1AA22-0XA0 is the EM 253 Position Control Module designed for the SIMATIC S7-200 Micro PLC platform. As the S7-200 series reaches end-of-life and production lines continue to rely on legacy positioning logic, this module remains a critical spare for retrofit projects, emergency replacements, and controlled system migrations. Whether you are maintaining an existing S7-200 installation or planning a phased upgrade, the 6ES7253-1AA22-0XA0 provides a verified drop-in solution with full compatibility across the S7-200 expansion bus architecture.

This module supports open-loop stepper motor and servo drive control via pulse and direction output signals, making it suitable for single-axis positioning tasks in packaging lines, conveyor systems, CNC-adjacent applications, and material handling equipment. Its compact DIN rail form factor and direct integration with the S7-200 CPU — including the CPU 224, CPU 226, and CPU 224XP — allow it to slot into existing control cabinets without structural modification. For sites running STEP 7-Micro/WIN programming software, the module is fully supported without firmware changes or additional licensing.

When sourcing a replacement 6ES7253-1AA22-0XA0, engineers must confirm several critical parameters before installation. Power supply capacity on the existing S7-200 rack must be verified — the EM 253 draws from the 5 VDC bus provided by the CPU, and total expansion current budget must not be exceeded when other modules such as the EM 221 digital input module or EM 222 digital output module are already installed. Terminal wiring for pulse output, direction signal, and reference point input must be mapped against the existing field wiring diagram before powering the system.

Backplane interface compatibility is confirmed for all standard S7-200 expansion connectors. Module addressing is automatic within the S7-200 I/O configuration — no manual DIP switch setting is required, but the physical slot order must match the configuration stored in the CPU program. If the original program was compiled with the EM 253 in a specific expansion slot, the replacement unit must occupy the same position to avoid I/O address conflicts that would require program modification.

For sites also running TP 177 or OP 77 HMI panels connected via PPI or MPI protocol, the positioning status bits and axis feedback data mapped in the HMI project must be validated after module swap. Communication links between the S7-200 CPU and upstream SCADA or supervisory systems using the CP 243-1 Ethernet module or CP 243-2 AS-Interface module should be tested under live conditions before returning the line to production. Firmware version compatibility between the CPU and the EM 253 should be confirmed using the STEP 7-Micro/WIN version matrix — older CPU firmware revisions may not support all EM 253 diagnostic functions.

Installation space in the control cabinet should be measured against the EM 253 housing dimensions. The module connects directly to the right side of the S7-200 CPU or the preceding expansion module using the integrated bus connector. No additional mounting rail space beyond the standard EM footprint is required. Field commissioning involves referencing the axis home position, verifying pulse count accuracy at target speed, and confirming deceleration ramp behavior under load before signing off on the replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6ES7253-1AA22-0XA0 begins with a full audit of the existing S7-200 expansion rack. Sites commonly run mixed expansion configurations that include the EM 231 analog input module for process feedback, the EM 235 analog combination module for PID loop integration, and the EM 277 PROFIBUS DP module for upstream network connectivity. Each of these modules consumes current from the CPU bus, and the total expansion current budget must be recalculated when adding or replacing the EM 253.

For lines where the original positioning logic was developed using the STEP 7-Micro/WIN Position Control Wizard, the existing project file should be archived before any hardware change. The wizard-generated subroutines and interrupt routines are tied to the specific module slot and output configuration — any change in slot order or output wiring will require re-running the wizard and recompiling the program block. Engineers should also verify that the existing CPU 224 or CPU 226 has sufficient free program memory to accommodate any wizard-generated code additions during the retrofit.

Where the control cabinet also houses a SIMATIC S7-200 Smart or a third-party motion controller as part of a parallel upgrade path, signal isolation between the EM 253 pulse output and the drive input should be confirmed. Signal isolators or optocoupler-based interface modules are recommended when cable runs exceed 10 meters or when the drive input impedance differs from the EM 253 output specification. This is particularly relevant in retrofit scenarios where the original stepper driver is being replaced with a newer servo drive as part of a broader modernization effort.

Downtime Control During System Migration

Minimizing downtime during an EM 253 replacement requires preparation before the maintenance window begins. The existing S7-200 program should be uploaded and saved to the programming device using STEP 7-Micro/WIN before the CPU is powered down. All current data block values, including axis parameters and reference position offsets stored in V memory, should be documented or exported, as these values may be lost if the CPU battery is depleted or if the program is inadvertently cleared during the swap.

Physical replacement of the EM 253 is straightforward — the module disconnects from the expansion bus connector and the terminal block wiring can be transferred directly if the terminal layout is identical. After reinstalling the replacement 6ES7253-1AA22-0XA0 in the same slot position, the program should be downloaded to the CPU and the axis reference procedure executed before enabling automatic mode. A dry-run cycle at reduced speed is recommended to confirm pulse count accuracy and direction signal polarity before returning the axis to full production speed.

For sites where the S7-200 CPU communicates with a supervisory system via the CP 243-1 Ethernet module, the network connection should be verified after the CPU restart to confirm that the IP configuration and data exchange tables are intact. HMI screens connected via PPI should be tested for correct status display of positioning feedback bits before the line is released to operators. Maintaining a spare 6ES7253-1AA22-0XA0 in local inventory reduces future replacement windows to under two hours for experienced maintenance teams.

Retrofit Support FAQ

Q: Is the 6ES7253-1AA22-0XA0 a direct replacement for earlier EM 253 revisions?
A: Yes. The 6ES7253-1AA22-0XA0 is compatible with all S7-200 CPUs that support the EM 253 function. Terminal wiring and slot position must match the original configuration. No program modification is required if the module occupies the same expansion slot.

Q: What commissioning steps are required after installing the replacement module?
A: After installation, execute the axis home reference procedure, verify pulse output frequency at target speed, confirm direction signal polarity, and validate deceleration ramp behavior. Test all HMI status displays and SCADA data exchange before returning to automatic mode.

Q: Is pre-shipment testing performed on this module?
A: Yes. Every 6ES7253-1AA22-0XA0 unit is tested prior to shipment to verify pulse output function, bus communication, and terminal integrity. A support terms confirmed by quotation is included from the date of dispatch.

Q: What is the stock availability and lead time?
A: Units are available from multi-region stock with rapid global dispatch. Contact our team for current inventory status and lead time confirmation for your project timeline.
