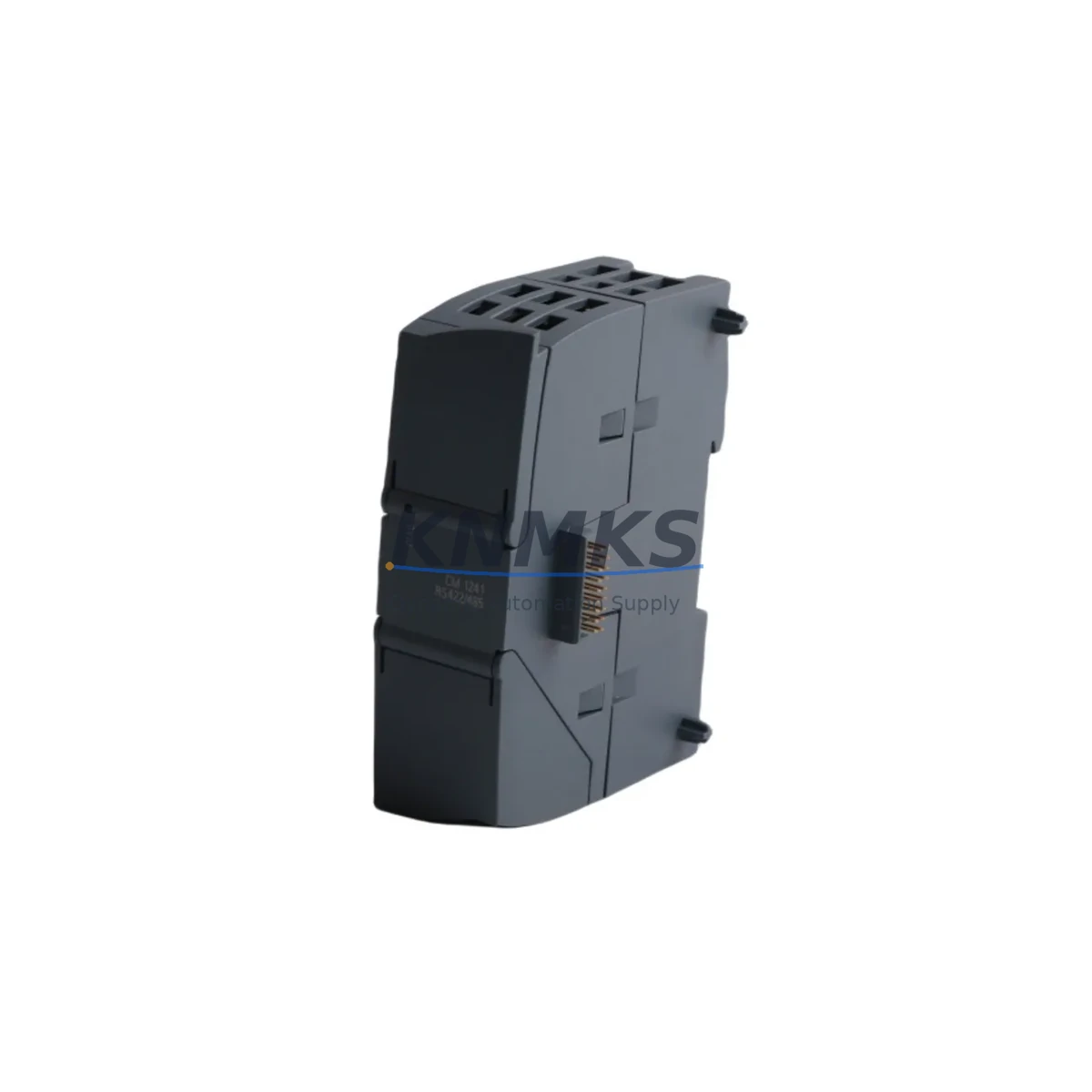

Siemens 6ES7241-1CH32-0XB0 Fail-Safe RS422/485 Serial Comm Module

Overview

Siemens 6ES7241-1CH32-0XB0 Fail-Safe RS422/485 Serial Comm Module: Fail-Safe Protection and Critical Industrial Field Reliability

The Siemens 6ES7241-1CH32-0XB0 (CM1241 RS422/485) is a high-performance serial communication module engineered for the S7-1200 PLC platform, purpose-built to deliver uninterrupted, fail-safe data exchange in the most demanding industrial environments. Whether deployed in continuous process manufacturing, critical interlock circuits, or high-EMI control cabinets, this module provides the communication backbone that keeps your automation system running safely and reliably — 24 hours a day, 365 days a year.

In industries where a single communication dropout can trigger unplanned shutdowns, product loss, or safety incidents, the 6ES7241-1CH32-0XB0 stands as a proven defense. Its RS422/485 interface supports both point-to-point and multi-drop network topologies, enabling robust serial communication with drives, HMIs, meters, analyzers, and third-party field devices — all within a single compact module that slots directly into the S7-1200 signal board expansion rail.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 6ES7241-1CH32-0XB0 does not operate in isolation — it is one critical node in a layered protection architecture. When paired with the Siemens S7-1200 CPU 1214C DC/DC/DC (6ES7214-1AG40-0XB0), the CM1241 module extends the CPU’s communication reach to legacy serial field devices without compromising the deterministic scan cycle of the main controller. This is especially important in interlock-critical applications where communication latency or dropout could mask a fault condition.

Power quality is equally vital. Deploying the Siemens SITOP PSU100S 24V/5A (6EP1333-2BA20) regulated power supply alongside the S7-1200 rack ensures that voltage fluctuations, brownouts, and transient spikes on the incoming AC supply do not propagate into the PLC backplane or the CM1241’s signal lines. Unstable supply voltage is one of the leading causes of spurious communication errors and module resets in field installations — a high-quality SITOP supply eliminates this risk at the source.

For applications requiring distributed I/O over longer cable runs, the Siemens ET 200SP IM155-6 PN ST (6ES7155-6AU01-0BN0) interface module can be integrated into the same PROFINET architecture, with the CM1241 handling the RS485 serial bridge to legacy instruments or third-party drives. In high-vibration environments such as compressor stations or heavy press lines, the Siemens SM 1223 Digital I/O module (6ES7223-1BL32-0XB0) provides additional discrete I/O capacity while sharing the same ruggedized S7-1200 backplane, reducing the number of inter-cabinet cable connections that are vulnerable to vibration-induced loosening.

Where communication network redundancy is required — such as in power generation or water treatment SCADA systems — the Siemens CP 1243-1 Ethernet communication processor (6GK7243-1BX30-0XE0) can be installed alongside the CM1241 to provide simultaneous PROFINET/Industrial Ethernet connectivity, ensuring that a failure on the serial network does not isolate the CPU from the supervisory control layer. This dual-path communication strategy is a recognized best practice in IEC 62443-compliant industrial cybersecurity architectures.

Finally, for cabinet thermal management — a frequently overlooked reliability factor — pairing the control cabinet with a Siemens SINAMICS G120 series drive that includes integrated thermal monitoring, combined with proper cabinet ventilation or a Rittal TopTherm cooling unit, ensures that the CM1241 and its neighboring modules operate within their rated temperature envelope even during summer peak loads or in poorly ventilated plant rooms.

Critical Industrial Safety Applications

The Siemens 6ES7241-1CH32-0XB0 has earned its place in safety-critical and continuous-process installations across multiple heavy industries:

Petrochemical and Refining: In distillation column control and reactor interlock systems, the CM1241 provides the serial communication link between the S7-1200 safety controller and Modbus RTU-based pressure transmitters, flow analyzers, and emergency shutdown valve positioners. Its galvanic isolation prevents ground loop currents — a common source of signal corruption in large petrochemical plants with multiple earthing points — from introducing false readings into the safety loop.

Electric Power Generation and Substation Automation: In coal-fired, gas turbine, and hydroelectric generating stations, the module interfaces the S7-1200 with IEC 60870-5-101 serial SCADA masters and legacy protection relays via RS485, maintaining real-time telemetry even during grid disturbances that produce severe conducted EMI on control cables.

Mining and Mineral Processing: Conveyor belt interlock systems, crusher control panels, and ventilation fan controllers in underground and open-cut mines rely on RS485 multi-drop networks to connect dozens of field devices over cable runs exceeding 1,000 meters. The CM1241’s robust line driver and receiver circuitry maintains signal integrity at the maximum RS485 cable length, preventing the communication timeouts that could trigger nuisance trips or, worse, mask a genuine fault.

Water and Wastewater Treatment: Municipal water treatment SCADA systems frequently use Modbus RTU over RS485 to poll chlorination dosing pumps, UV disinfection units, and effluent quality analyzers. The 6ES7241-1CH32-0XB0 provides the reliable serial gateway that ensures dosing accuracy and regulatory compliance data are continuously available to the SCADA historian.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting environments, where electromagnetic interference from high-current bus bars and induction heating equipment is extreme, the CM1241’s EMC-hardened design and isolated RS422 full-duplex mode provide a stable communication channel for pyrometer data, hydraulic press position feedback, and cooling water flow monitoring.

Port Logistics and Ship-to-Shore Equipment: Container crane PLCs and ship loader control systems use RS485 serial networks to communicate with weighing systems, anti-sway sensors, and drive controllers. The CM1241 module’s wide operating temperature range and vibration tolerance make it suitable for outdoor crane control cabinets exposed to coastal humidity, salt air, and mechanical shock.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7241-1CH32-0XB0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified RS422/485 communication functions within the confirmed support period due to a manufacturing or component defect, we will provide a replacement or documented resolution support. The support terms does not cover damage caused by incorrect installation, overvoltage beyond rated limits, or physical mishandling.

Q2: How is each unit tested before shipment?
Every 6ES7241-1CH32-0XB0 unit undergoes a 100% functional pre-shipment test. This includes power-on verification, RS422 and RS485 communication loop-back testing at multiple baud rates (including 9600, 19200, and 115200 bps), isolation resistance measurement, and visual inspection for physical integrity. A test record is maintained for each unit. We do not ship untested stock.

Q3: Is this module compatible with all S7-1200 CPU variants, and can it run Modbus RTU natively?
Yes. The CM1241 (6ES7241-1CH32-0XB0) is compatible with all S7-1200 CPU variants (CPU 1211C through CPU 1217C) running TIA Portal V13 SP1 or later firmware. It supports Modbus RTU master and slave modes natively via the Modbus_Comm_Load and Modbus_Master/Slave instruction blocks in TIA Portal, as well as USS protocol for Siemens drive communication and Freeport mode for custom ASCII/binary protocols. No additional hardware or license is required.

Q4: Can you guarantee long-term supply and spare parts availability for this module?
We maintain dedicated stock of the 6ES7241-1CH32-0XB0 to support both immediate project requirements and long-term maintenance contracts. For facilities with critical uptime requirements, we recommend holding at least one spare module on-site. Our team can provide volume pricing for spare parts programs and can source modules from multiple supply channels to protect against single-source availability risk. Contact us to discuss a tailored supply agreement for your plant’s maintenance strategy.
