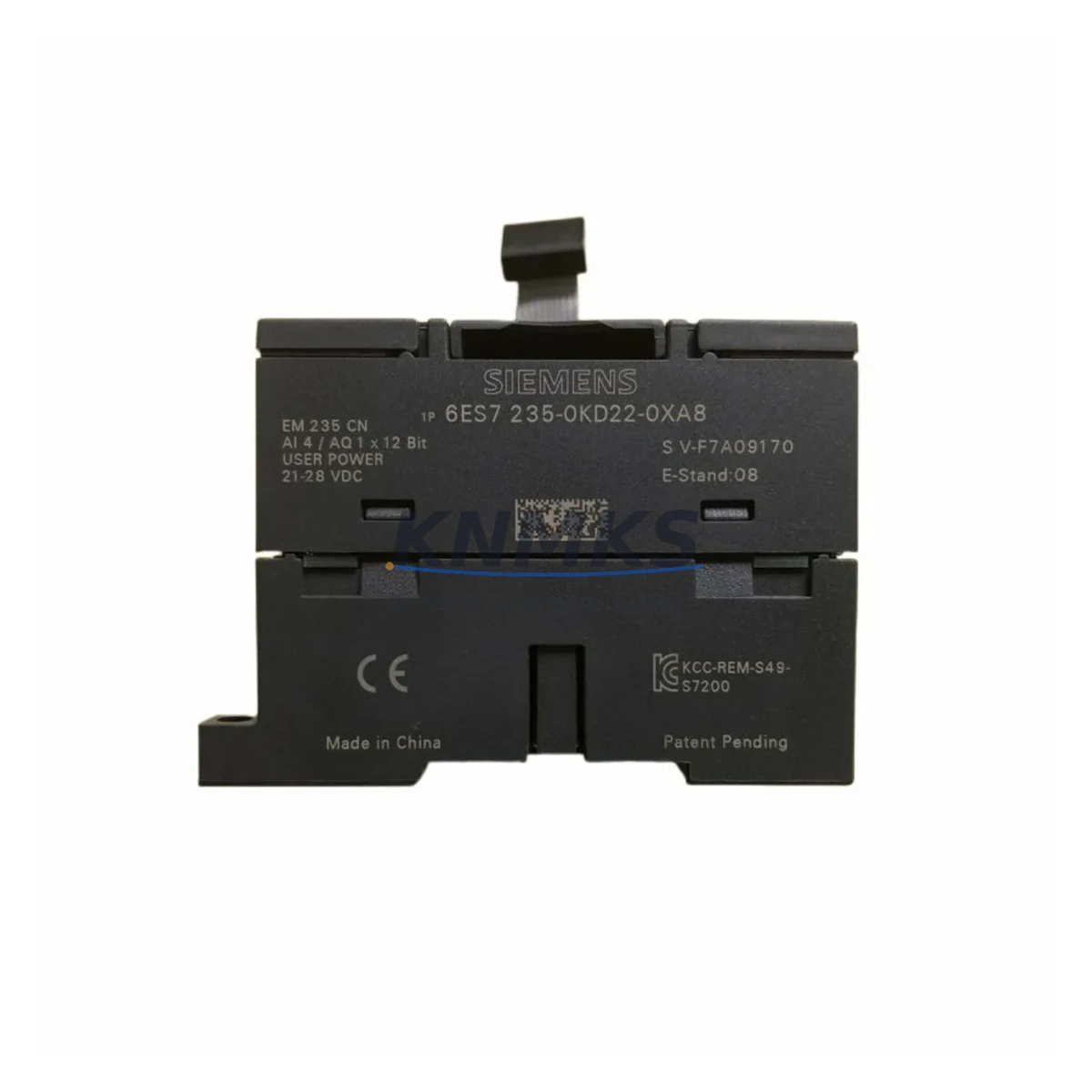

Siemens 6ES7235-0KD22-0XA8 Fail-Safe Analog I/O Module

Overview

Siemens 6ES7235-0KD22-0XA8 Fail-Safe Analog I/O Module: Fault Protection for Critical Industrial Control Reliability

The Siemens 6ES7235-0KD22-0XA8 is a high-performance EM 235 analog expansion module designed for the SIMATIC S7-200 PLC platform. Engineered for demanding industrial environments, this module delivers four analog inputs and one analog output with precision signal conditioning, making it the backbone of reliable process measurement and closed-loop control in continuous production facilities. Whether deployed in petrochemical plants, power generation substations, mining extraction systems, or water treatment infrastructure, the 6ES7235-0KD22-0XA8 provides the signal integrity and fault tolerance that safety-critical applications demand.

In high-electromagnetic-interference (EMI) environments — such as heavy motor drive cabinets, arc furnace control rooms, or variable-frequency drive (VFD) enclosures — analog signal drift and noise-induced misreadings are among the leading causes of unplanned shutdowns and process upsets. The 6ES7235-0KD22-0XA8 addresses this with built-in EMC hardening, shielded signal paths, and surge-protected I/O terminals that guard against transient voltage spikes from inductive load switching. When paired with a SIMATIC S7-200 CPU — such as the CPU 224XP or CPU 226 — this module maintains stable 12-bit resolution across its full operating temperature range, ensuring that control loops remain accurate even under thermal stress or vibration.

For control cabinet integrators, the 6ES7235-0KD22-0XA8 slots directly onto the S7-200 expansion bus without additional interface hardware, reducing wiring complexity and minimizing potential failure points. In safety interlock circuits where analog feedback from pressure transmitters, temperature sensors, or flow meters must be continuously validated, signal loss or out-of-range readings can trigger costly emergency shutdowns. This module’s configurable input ranges — supporting 0–10 V, ±5 V, 0–20 mA, and 4–20 mA — allow engineers to match field instrument outputs precisely, eliminating range mismatch errors that can cause false alarms or missed fault conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet architecture for S7-200-based systems extends well beyond the CPU and analog module. To protect the 6ES7235-0KD22-0XA8 and the broader control loop from power quality issues, engineers typically deploy a SITOP PSU100S 24 V DC power supply upstream, which provides regulated, low-ripple DC power that prevents analog reference drift caused by supply voltage fluctuations. For surge and lightning protection on field signal cables entering the cabinet, Phoenix Contact TRABTECH surge protection devices are commonly installed at the terminal strip, clamping transient spikes before they reach sensitive analog input circuits.

In safety interlock architectures, the analog feedback from the 6ES7235-0KD22-0XA8 is often cross-validated against discrete safety signals processed by a Siemens 3SK1 safety relay or a dedicated SIMATIC S7-200 EM 221 digital input module, ensuring that both analog and digital fault conditions are captured independently. For communication-intensive installations where the S7-200 must exchange process data with SCADA systems or HMI panels, a Siemens CP 243-1 Ethernet communication module provides reliable TCP/IP connectivity without introducing noise onto the analog signal bus. In high-vibration environments such as mining conveyors or offshore platforms, all modules — including the 6ES7235-0KD22-0XA8 — should be secured with DIN rail locking clips and vibration-damping mounts to prevent connector fatigue and intermittent signal loss.

Critical Industrial Safety Applications

Petrochemical & Refining: In continuous distillation and reactor control, the 6ES7235-0KD22-0XA8 monitors pressure and temperature transmitter outputs in real time. Any signal deviation beyond configured thresholds triggers interlock sequences via the S7-200 CPU, preventing runaway reactions and protecting downstream equipment from overpressure events.

Power Generation & Substations: Analog feedback from current transformers and voltage sensors is processed through the EM 235 module to maintain generator excitation control and transformer tap-changer positioning. The module’s EMC hardening is essential in high-voltage switchgear environments where electromagnetic interference is severe.

Mining & Mineral Processing: Conveyor belt tension monitoring, crusher load feedback, and slurry pump flow measurement all rely on stable 4–20 mA signal transmission. The 6ES7235-0KD22-0XA8 maintains signal accuracy in dusty, high-vibration underground and surface mining environments where lesser modules fail prematurely.

Water & Wastewater Treatment: Dosing pump control, pH monitoring, and flow regulation in water treatment plants require precise analog output signals. The module’s configurable output range ensures compatibility with a wide range of actuator and valve positioner input specifications, reducing commissioning time and eliminating field calibration errors.

Metallurgy & Steel Production: In electric arc furnace (EAF) and rolling mill control systems, the 6ES7235-0KD22-0XA8 handles temperature feedback from pyrometers and load cells, operating reliably in the extreme thermal and electromagnetic environment of steelmaking facilities.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7235-0KD22-0XA8?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions from the date of shipment. This includes analog input/output accuracy failures, bus communication faults, and component-level defects. Support requests are processed with full replacement or repair support.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7235-0KD22-0XA8 unit undergoes functional verification prior to dispatch, including analog I/O accuracy testing across all configured ranges, bus communication integrity checks, and visual inspection for connector and housing integrity. Test records are available upon request for quality-critical procurement.

Q3: Is this module compatible with all S7-200 CPU variants?
The 6ES7235-0KD22-0XA8 is compatible with all SIMATIC S7-200 CPU models that support analog expansion modules, including CPU 221, CPU 222, CPU 224, CPU 224XP, and CPU 226. It connects via the standard S7-200 expansion bus and is configured through STEP 7-Micro/WIN software without additional drivers.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated inventory of the 6ES7235-0KD22-0XA8 to support ongoing MRO (maintenance, repair, and operations) procurement for installed S7-200 systems. For facilities running legacy S7-200 infrastructure, we provide replacement sourcing, compatibility verification, and technical support to minimize downtime during unplanned module failures.
