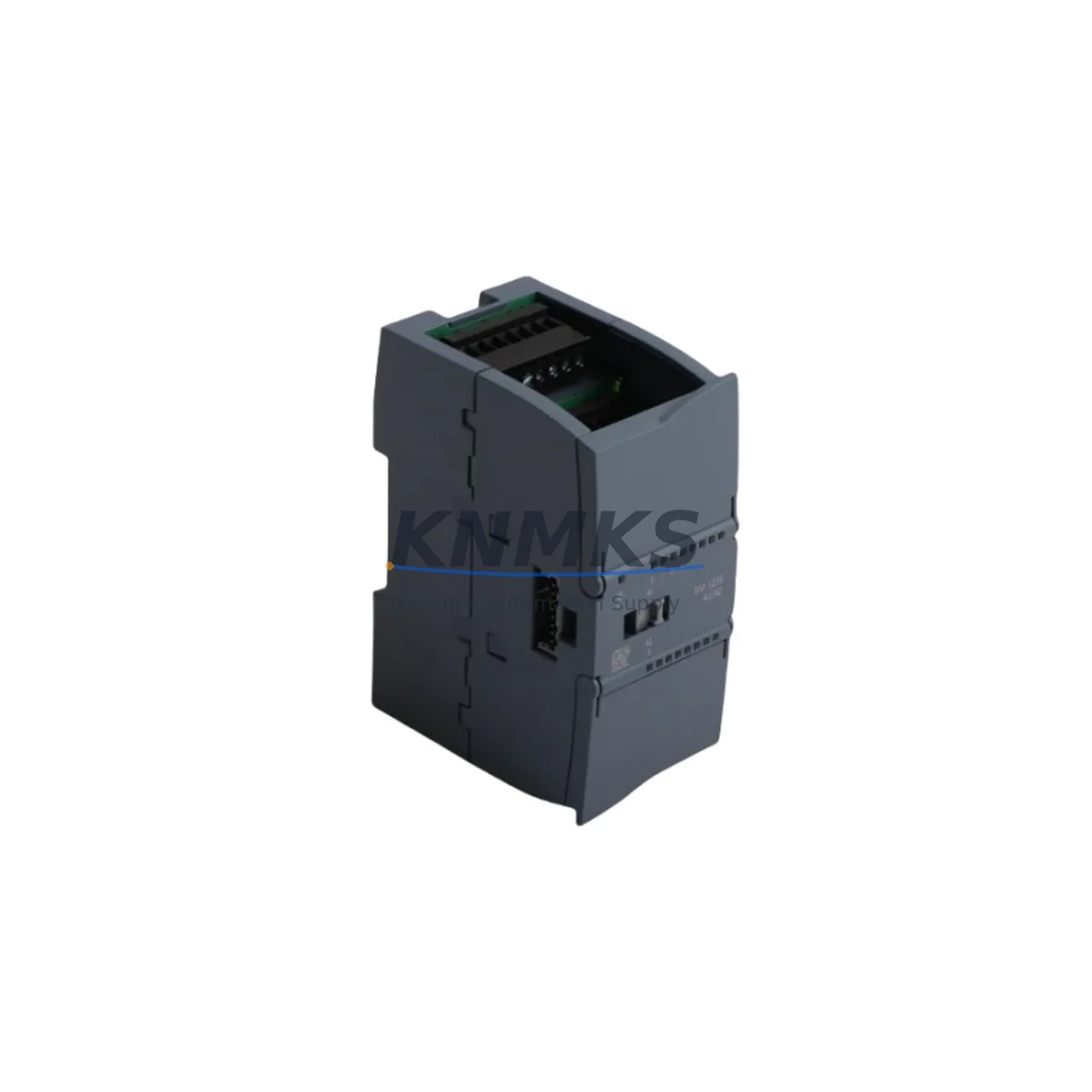

Siemens 6ES7234-4HE32-0XB0 Fail-Safe Analog I/O Module

Overview

Siemens 6ES7234-4HE32-0XB0 Fail-Safe Analog I/O Module for Industrial Control Reliability

The Siemens 6ES7234-4HE32-0XB0 is a high-performance SM 1234 Analog I/O Module designed for the SIMATIC S7-1200 PLC platform. Engineered to deliver fail-safe signal acquisition and output control in demanding industrial environments, this module is a critical component in continuous production lines, critical interlock circuits, and high-load control cabinets where signal integrity and system uptime are non-negotiable. Whether deployed in petrochemical processing, power distribution, metallurgical plants, or water treatment facilities, the 6ES7234-4HE32-0XB0 provides the analog signal reliability that modern industrial automation demands.

With 4 analog inputs and 2 analog outputs, this module supports both voltage and current signal modes, making it adaptable across a wide range of field instrumentation — from pressure transmitters and flow meters to control valves and variable frequency drives. Its robust EMI shielding and surge protection architecture ensure stable signal transmission even in environments with heavy electromagnetic interference, high-frequency switching noise, or proximity to large motor drives. For maintenance engineers managing aging S7-1200 systems or expanding automation capacity, the 6ES7234-4HE32-0XB0 represents a proven, drop-in replacement that eliminates compatibility risk and reduces commissioning time.

Every unit supplied by KNMKS undergoes pre-shipment functional testing covering analog input accuracy, output linearity, channel isolation, and communication handshake with the S7-1200 CPU. This testing protocol ensures that the module arrives site-ready, minimizing the risk of installation delays or unexpected faults during commissioning. Backed by a support terms confirmed by quotation and long-term supply commitment, this spare part is suitable for both emergency replacement and planned inventory stocking programs.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

When replacing or commissioning the 6ES7234-4HE32-0XB0 in an S7-1200 control cabinet, a comprehensive protection review of the surrounding electrical environment is essential to prevent recurrence of signal faults or module failure. Maintenance engineers should begin by inspecting the SIMATIC S7-1200 CPU module (such as the CPU 1214C or CPU 1215C) for firmware version compatibility and backplane bus integrity, as analog signal modules are sensitive to bus voltage fluctuations caused by aging CPU power stages.

The SM 1221 Digital Input Module and SM 1222 Digital Output Module installed in the same rack should be checked for loose terminal connections and ground continuity, as shared cabinet grounding faults are a common source of analog signal drift. If the control cabinet includes a SITOP PSU100S 24 VDC power supply, verify output voltage stability under full load — voltage sag below 23.5 VDC can cause analog output offset errors in the SM 1234 module.

For cabinets operating near variable frequency drives or large contactors, the installation of a signal isolator or analog signal conditioner between field transmitters and the 6ES7234-4HE32-0XB0 inputs is strongly recommended to suppress common-mode noise and protect input channels from induced transients. Additionally, inspect the CM 1241 RS485 Communication Module or CB 1241 RS485 Communication Board if the S7-1200 system communicates with field devices via Modbus RTU — communication errors during analog-intensive scan cycles can indicate CPU overload or backplane power issues that indirectly affect analog module performance.

Terminal block condition on the SM 1234 signal wiring side should be verified using a torque screwdriver to the manufacturer’s specified 0.5 Nm, and shielded cables should be grounded at a single point to prevent ground loops. Where fuse protection is installed on analog input circuits, replace any 2A fast-blow fuses on signal lines as a precautionary measure during planned maintenance intervals.

Critical Industrial Safety Applications

The 6ES7234-4HE32-0XB0 is deployed across a broad spectrum of critical industrial sectors where analog signal accuracy directly impacts process safety and production continuity.

In petrochemical and refinery plants, this module monitors pressure, temperature, and flow transmitters in hazardous process loops. Its channel isolation and surge protection prevent a single field fault from cascading into a full control system shutdown, supporting safe and continuous operation of distillation columns, compressor trains, and heat exchanger networks.

In power generation and distribution facilities, the SM 1234 module is used in turbine governor control, transformer monitoring, and substation automation panels. The module’s stable analog output performance is critical for precise excitation control and load-sharing applications where signal drift of even a few millivolts can trigger protective relay actions.

In metallurgical and steel production environments, the module operates in high-vibration, high-temperature control cabinets managing rolling mill drives, furnace temperature regulation, and hydraulic press control. Its wide operating temperature range and robust mechanical design make it suitable for installation in cabinets located close to process equipment.

In water treatment and municipal infrastructure, the 6ES7234-4HE32-0XB0 controls dosing pump outputs and monitors flow and level sensors in continuous treatment processes. Unplanned module failure in these applications can result in regulatory non-compliance and service interruption, making pre-stocked spare units a standard risk mitigation practice for facility maintenance teams.

In port, shipboard, and marine automation systems, where vibration, humidity, and salt-laden air accelerate component aging, having a tested and warranted replacement module available on-site is essential for maintaining cargo handling, ballast control, and engine room automation without extended vessel downtime.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7234-4HE32-0XB0?
The support terms confirmed by quotation cover all functional defects identified under normal operating conditions, including analog input accuracy failure, output channel malfunction, bus communication errors, and physical defects attributable to manufacturing. Support requests are supported by KNMKS with replacement dispatch and technical documentation. Contact [email protected] to initiate a support terms claim.

Q2: How is the module tested before shipment?
Every 6ES7234-4HE32-0XB0 unit undergoes a structured pre-shipment test protocol that includes analog input signal accuracy verification across all four channels, analog output linearity check across the full voltage and current range, channel-to-channel isolation resistance measurement, and S7-1200 CPU backplane communication handshake confirmation. Test records are available upon request for quality-critical procurement programs.

Q3: Is this module compatible with all S7-1200 CPU variants?
The 6ES7234-4HE32-0XB0 is compatible with all standard SIMATIC S7-1200 CPU models including the CPU 1211C, 1212C, 1214C, 1215C, and 1217C. It is supported under TIA Portal V13 SP1 and all subsequent versions. For systems running older firmware, a CPU firmware update to V4.x or later is recommended to ensure full SM 1234 feature support, including extended diagnostic functions.

Q4: Can KNMKS support long-term supply for planned maintenance programs?
Yes. KNMKS maintains dedicated inventory for SIMATIC S7-1200 series modules including the 6ES7234-4HE32-0XB0 to support annual maintenance contracts, multi-site spare parts programs, and emergency replacement requirements. Long-term supply agreements with fixed pricing and priority allocation are available for industrial facilities with recurring procurement needs. Contact our team at [email protected] or +86 18359268345 to discuss supply terms.
