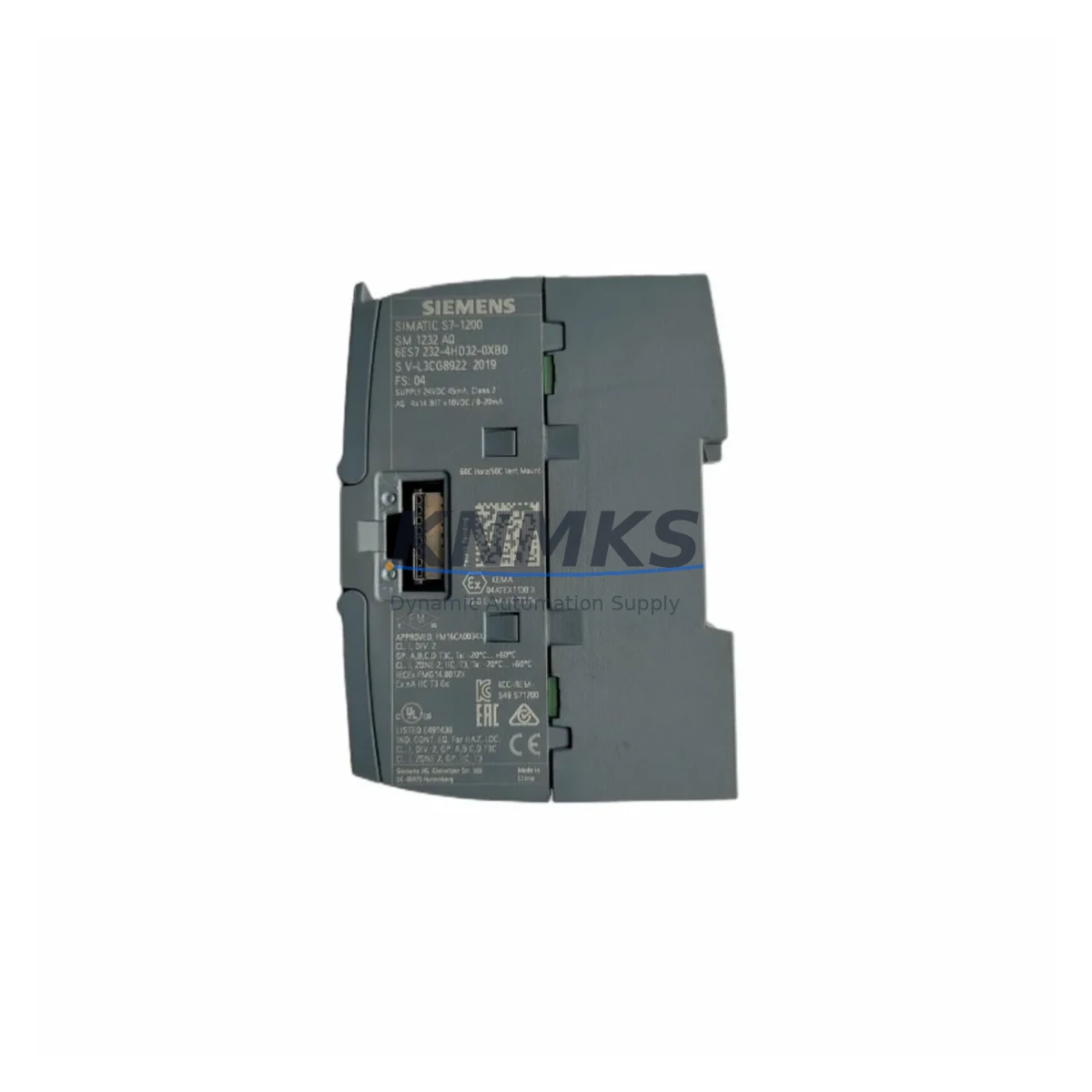

Siemens 6ES7232-4HD32-0XB0 Fail-Safe 4AO Analog Output

Overview

Siemens 6ES7232-4HD32-0XB0 Fail-Safe 4AO Analog Output for Industrial Control Reliability

The Siemens 6ES7232-4HD32-0XB0 is a high-precision SM 1232 4-channel analog output module engineered for the S7-1200 PLC platform. Designed to deliver stable, fail-safe signal output in demanding industrial environments, this module is a critical component in control cabinets where signal integrity, loop continuity, and protection against unplanned downtime are non-negotiable. Whether deployed in continuous process manufacturing, critical interlock circuits, or high-load control panels, the 6ES7232-4HD32-0XB0 provides the output reliability that modern industrial safety architectures demand.

In field installations subject to high electromagnetic interference, voltage fluctuations, surge events, or thermal stress, analog output modules are among the most vulnerable points in a control loop. The 6ES7232-4HD32-0XB0 addresses these risks through robust internal signal conditioning, tight output accuracy, and compatibility with the S7-1200 CPU’s integrated diagnostic framework — enabling early fault detection before a process deviation escalates into a safety incident or production loss.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S7-1200 control cabinet, the 6ES7232-4HD32-0XB0 analog output module operates as part of a layered protection architecture. Upstream power quality is typically managed by a Siemens SITOP PSU100S 24 V DC power supply unit, which provides regulated, filtered DC power to the entire backplane — directly reducing the risk of output signal drift caused by supply ripple or transient voltage spikes. For applications requiring uninterrupted control during brief power interruptions, a SITOP UPS1600 buffer module can be integrated to maintain output continuity across the 6ES7232-4HD32-0XB0 and connected CPU modules.

On the signal side, the 6ES7232-4HD32-0XB0 drives field devices such as control valves, variable frequency drives, and electro-pneumatic positioners. In high-EMI environments — common in motor control centers, arc furnace facilities, and heavy-load switching panels — pairing this module with shielded signal cables and Siemens SM 1231 analog input modules on the feedback loop ensures closed-loop integrity. The SM 1231 AI series provides the corresponding current or voltage input channels needed to verify actuator response and detect loop faults in real time.

For cabinet-level communication reliability, the S7-1200 CPU 1214C or CPU 1215C hosting this module is typically connected to a PROFINET network via a Siemens CSM 1277 compact switch module, which provides managed Ethernet connectivity with diagnostic capability. In safety-critical interlocks, the Siemens SM 1226 F-DQ digital output module may be deployed alongside the 6ES7232-4HD32-0XB0 to handle discrete safety shutdown commands, while the analog module continues to manage modulating control outputs — ensuring that both discrete and continuous control functions remain protected under a unified S7-1200 safety architecture.

Critical Industrial Safety Applications

The 6ES7232-4HD32-0XB0 is deployed across a wide range of critical industrial sectors where analog output accuracy and fail-safe behavior directly impact process safety and operational continuity.

In petrochemical and refinery facilities, this module controls the analog setpoints of pressure control valves and flow regulators in hazardous process loops. Signal drift or output failure in these environments can trigger emergency shutdowns or, in worst cases, process upsets with safety implications. The module’s tight output accuracy and diagnostic integration with the S7-1200 CPU allow operators to detect output deviations before they propagate to the field device.

In power generation and substation automation, the 6ES7232-4HD32-0XB0 is used to modulate excitation control signals and cooling system actuators. Its compliance with IEC 60068 vibration and shock standards makes it suitable for installation in environments with continuous mechanical stress from rotating machinery.

In mining and mineral processing, where dust ingress, humidity, and high-vibration conditions are constant, the module is mounted in sealed IP54 or IP65 enclosures with internal climate control. Its stable 4–20 mA output is used to drive variable speed drives on conveyor systems and slurry pump controls, where signal interruption would result in immediate production loss.

In water and wastewater treatment plants, the module controls dosing pump rates and valve positions in chemical feed systems. The support terms confirmed by quotation and pre-shipment functional testing provide plant operators with confidence in long-term reliability without requiring immediate on-site spare stock.

In metallurgical and steel production environments, where furnace temperature control and rolling mill speed regulation depend on precise analog output, the 6ES7232-4HD32-0XB0 provides the resolution and repeatability required for tight process control under high-temperature and high-EMI conditions.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7232-4HD32-0XB0?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, output calibration failures, and hardware faults under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: Is pre-shipment functional testing performed on each unit?
Yes. Every 6ES7232-4HD32-0XB0 unit undergoes full output channel verification prior to dispatch, including voltage and current output accuracy checks across all four channels. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all S7-1200 CPU variants?
The 6ES7232-4HD32-0XB0 is compatible with the full SIMATIC S7-1200 CPU range, including CPU 1211C, 1212C, 1214C, 1215C, and 1217C. It connects via the standard S7-1200 signal board expansion interface and is configured through TIA Portal V13 SP1 or later. Firmware compatibility should be verified against the installed CPU firmware version prior to installation.

Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
Stock availability is maintained for this SKU to support planned maintenance cycles, emergency replacements, and multi-unit spare parts programs. For facilities requiring guaranteed supply commitments over 12–36 months, volume reservation arrangements are available. Contact the sales team to discuss scheduled delivery and consignment stock options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7232-4HD32-0XB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7232-4HD32-0XB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
