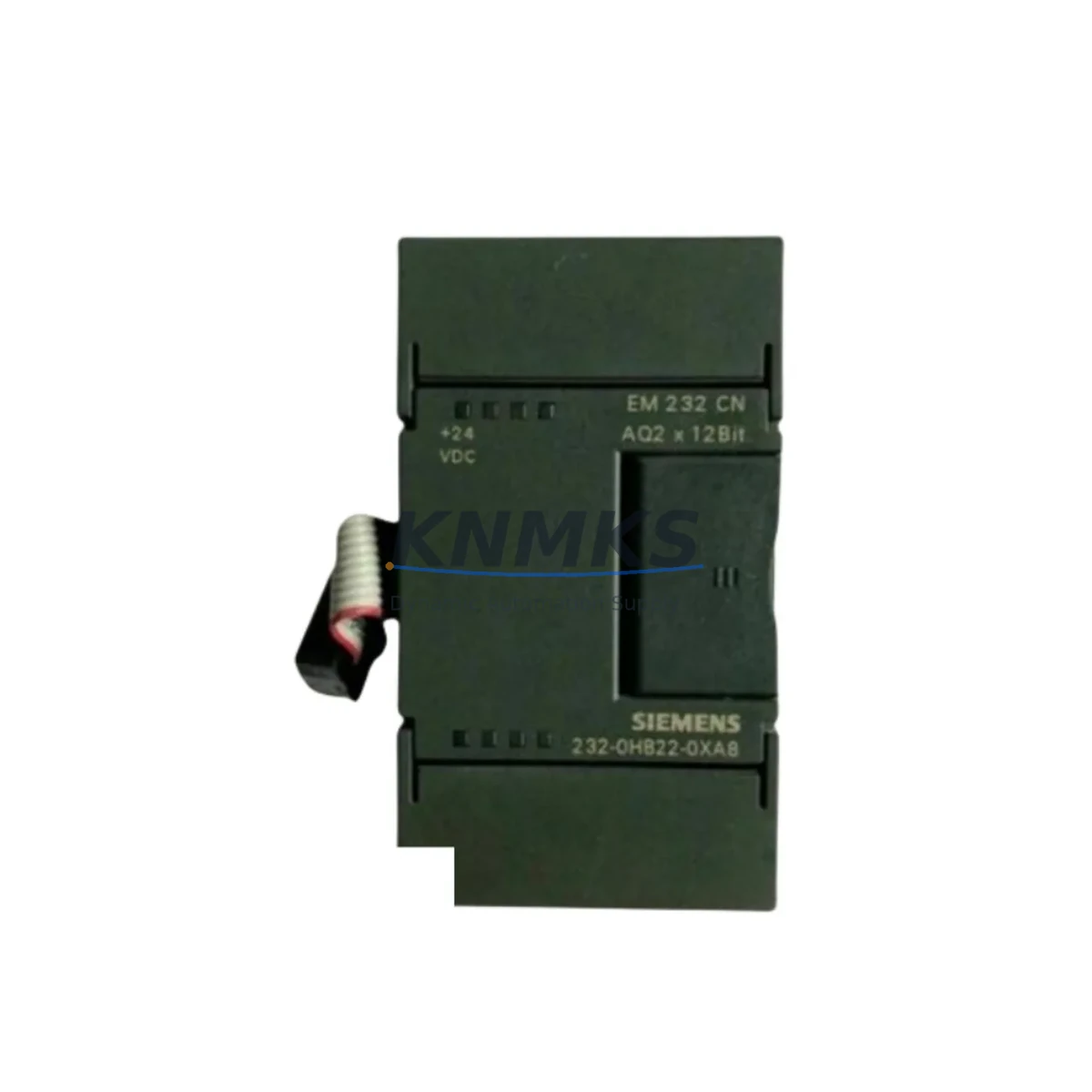

Siemens 6ES7232-0HB22-0XA8 Migration-Ready 2AO Module

Overview

Siemens 6ES7232-0HB22-0XA8 Migration-Ready 2AO Module: Legacy S7-200 System Retrofit and Compatibility Upgrade

The Siemens 6ES7232-0HB22-0XA8 is a 2-channel analog output module (SM 232) designed for the SIMATIC S7-200 compact PLC platform. As S7-200 systems approach end-of-life and spare parts become increasingly scarce, this module remains a critical component for engineers managing legacy control panels, retrofit projects, and phased migration strategies. Whether you are replacing a failed output card in an aging production line or planning a structured upgrade to a modern control architecture, the 6ES7232-0HB22-0XA8 provides a reliable, wiring-compatible solution that minimizes downtime and preserves existing field wiring investments.

Each unit is sourced from verified supply channels, pre-tested before shipment, and backed by a support terms confirmed by quotation — giving maintenance teams and system integrators the confidence to deploy with minimal risk.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 6ES7232-0HB22-0XA8 into an existing S7-200 control system, a structured retrofit plan is essential to avoid configuration errors and unplanned downtime. Begin by auditing the current expansion chain: the S7-200 CPU supports up to seven expansion modules, and the position of the SM 232 in the chain directly determines its AQW (Analog Output Word) address assignment. Misidentifying the module slot will result in incorrect output addressing and potential process upsets.

Power budget verification is a mandatory first step. The 6ES7232-0HB22-0XA8 draws current from the CPU’s 24 VDC sensor supply. When combined with digital I/O modules such as the SM 321 (digital input) or SM 322 (digital output), and additional analog input modules like the SM 331 4AI or SM 331 8AI, the total current draw must remain within the CPU’s rated expansion bus capacity. Exceeding this limit requires adding an external 24 VDC power supply module to the panel.

Terminal wiring compatibility should be confirmed before removal of the legacy module. The 6ES7232-0HB22-0XA8 uses a removable screw-terminal connector, which simplifies field replacement without rewiring. However, engineers should verify that existing field cables — particularly those connected to control valves, variable frequency drives, or positioners — are correctly labeled and that the output signal type (voltage or current) matches the field device input specification.

For systems where the S7-200 CPU itself is being replaced as part of a broader migration to the SIMATIC S7-1200 or S7-1500 platform, the SM 232 module cannot be reused directly. In this scenario, the equivalent analog output functionality is provided by Signal Board SB 1232 (for S7-1200 single-channel AO) or SM 1232 2AO (for S7-1200 two-channel AO). Program logic migration from STEP 7 Micro/WIN to TIA Portal will require remapping all AQW references and reviewing PID control blocks, motion control sequences, and HMI screen tag bindings on any connected SIMATIC HMI panels.

Communication link integrity must also be assessed. If the S7-200 system communicates with upstream SCADA or DCS via a CP 243-1 Ethernet module or a USS/Modbus RTU protocol adapter, these communication modules must be reconfigured or replaced as part of the migration. Maintaining the existing communication architecture during a phased upgrade — where the S7-200 remains operational while new hardware is staged — is a common strategy to reduce risk and preserve production continuity.

Downtime Control During System Migration

Minimizing control system downtime during a module replacement or full platform migration requires careful pre-staging and a disciplined commissioning sequence. For a like-for-like SM 232 replacement, the recommended procedure is to upload and archive the current CPU program using STEP 7 Micro/WIN before any hardware is disturbed. This ensures that the program logic, data block values, and system configuration can be restored immediately if the replacement module exhibits unexpected behavior.

Before powering down the panel, document all current analog output values and confirm with the process team that the controlled equipment — valves, drives, heaters — can tolerate a brief loss of analog signal without triggering a process fault or safety interlock. Where possible, switch the process to manual control mode at the field level before initiating the module swap.

After installing the 6ES7232-0HB22-0XA8, power up the system and verify that the CPU recognizes the module without configuration errors. Use the STEP 7 Micro/WIN system block to confirm the module type and address. Perform a forced output test on each channel to verify signal integrity at the field device before returning the system to automatic control. Total replacement time for an experienced technician is typically under 30 minutes, making this one of the lowest-risk interventions in S7-200 maintenance practice.

For larger migration projects involving multiple expansion modules, a phased approach — replacing one module at a time while keeping the CPU and remaining I/O operational — is strongly recommended. This strategy preserves field control continuity, allows incremental commissioning, and reduces the blast radius of any single configuration error.

Retrofit Support FAQ

Q: Is the 6ES7232-0HB22-0XA8 a direct replacement for an existing SM 232 module in my S7-200 system?
A: Yes. The 6ES7232-0HB22-0XA8 is a direct, wiring-compatible replacement for any SM 232 2AO module in the S7-200 expansion chain. No hardware modifications are required. Confirm the AQW address in your STEP 7 Micro/WIN program matches the module’s physical slot position before returning to automatic operation.

Q: What commissioning steps are required after installation?
A: After installing the module, power up the CPU and verify no configuration fault LEDs are active. Use STEP 7 Micro/WIN to confirm the module is recognized in the system block. Perform a forced output test on both channels (AQW0 and AQW2, or as addressed in your configuration) and verify the correct signal level at the connected field device. Check output scaling in your program’s analog output conversion routines.

Q: Has this unit been tested before shipment?
A: Yes. Every 6ES7232-0HB22-0XA8 unit undergoes pre-shipment functional testing to verify analog output accuracy, channel isolation, and bus communication integrity. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the lead time and stock availability?
A: We maintain in-stock inventory of the 6ES7232-0HB22-0XA8 to support urgent maintenance and retrofit requirements. Standard orders ship within 1–3 business days. For long-term spare parts agreements or multi-site supply contracts (12–36 month horizon), contact our sales team to discuss dedicated stock allocation and pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7232-0HB22-0XA8
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7232-0HB22-0XA8
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
