Siemens 6ES7232-0HB22-0XA0 Fail-Safe Analog Output: Protecting Critical Industrial Control Loops

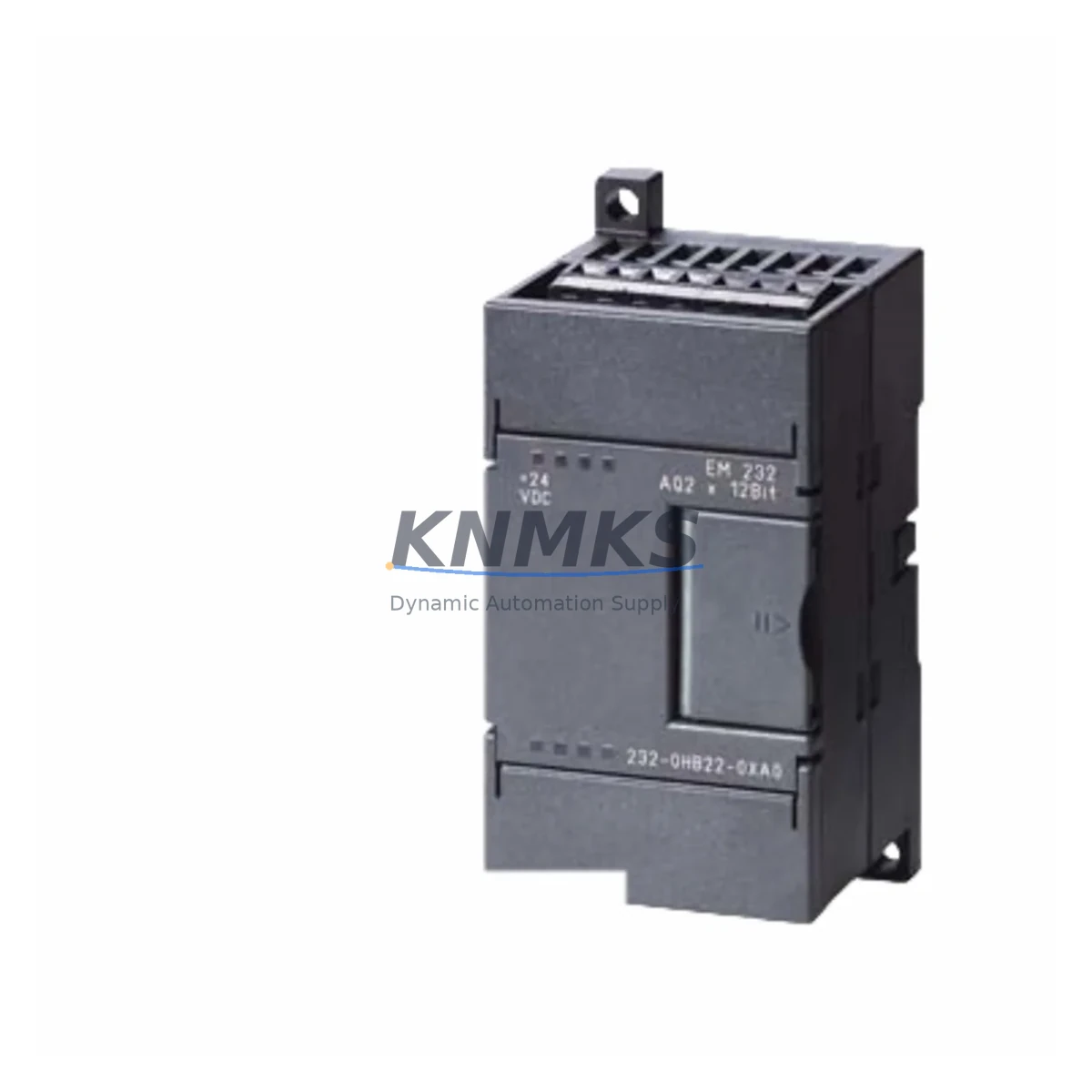

The Siemens 6ES7232-0HB22-0XA0 is a 2-channel analog output expansion module (EM232) engineered for the SIMATIC S7-200 compact PLC platform. In continuous production environments — petrochemical reactors, power generation auxiliaries, mineral processing lines, and water treatment dosing systems — unplanned signal interruptions or output drift can cascade into costly shutdowns, equipment damage, or safety incidents. The 6ES7232-0HB22-0XA0 addresses these risks through robust output signal integrity, wide operating temperature tolerance, and proven EMI immunity, making it a dependable backbone for analog control loops that must not fail.

Each channel delivers a configurable voltage (±10 V) or current (0–20 mA / 4–20 mA) output with 12-bit resolution, ensuring precise actuator positioning for control valves, variable-speed drives, and proportional solenoids. The module’s galvanic isolation architecture suppresses ground loops and common-mode noise — a critical advantage in heavy-industry cabinets where large motor starters, frequency converters such as the Siemens MICROMASTER 440, and high-current bus bars generate significant electromagnetic interference. Signal drift under thermal cycling is minimized by the module’s wide ambient operating range (0 °C to +55 °C), supporting reliable performance in outdoor substations, foundry control rooms, and marine engine control panels exposed to vibration and humidity.

In safety-critical interlock architectures, the 6ES7232-0HB22-0XA0 pairs directly with the S7-200 CPU 226 or CPU 224XP as the analog command output stage for emergency shutdown (ESD) valve positioners and burner management actuators. When integrated alongside the Siemens EM231 analog input module for closed-loop PID feedback, the system achieves tight process control with deterministic scan-cycle response. For applications requiring digital safety interlocks in the same cabinet, the EM223 digital I/O expansion module provides complementary discrete signal handling without introducing additional communication latency.

Power supply stability is equally essential to output reliability. The 6ES7232-0HB22-0XA0 operates from the S7-200 system bus (5 VDC internal) and a separate 24 VDC field supply. Pairing it with a Siemens SITOP PSU100S 24 V stabilized power supply unit ensures that voltage sags, micro-interruptions, and surge transients from inductive loads do not propagate into the analog output signal chain. In high-dust or high-moisture environments — grain handling facilities, wastewater pump stations, offshore platforms — the module’s IP20-rated housing should be installed within an IP54 or IP65 control enclosure, supplemented by cabinet-level surge protection devices on the 24 VDC rail to guard against lightning-induced transients.

For communication-intensive architectures where the S7-200 exchanges process data with SCADA systems or distributed I/O via PROFIBUS DP, the EM277 PROFIBUS DP slave module extends the S7-200’s network reach without burdening the CPU’s serial port. This is particularly relevant in port automation and metallurgical plant applications where multiple PLCs share a common fieldbus backbone and analog output accuracy must be maintained across long cable runs. Proper cable shielding, grounded at one end at the control cabinet, further reduces susceptibility to radiated interference from variable-frequency drives and high-voltage switchgear.

KNMKS maintains verified multi-region stock of the 6ES7232-0HB22-0XA0 to support both emergency replacement scenarios and scheduled maintenance outages. Every unit undergoes pre-shipment functional testing — output accuracy verification across the full signal range, insulation resistance check, and visual inspection for connector integrity — before dispatch. A support terms confirmed by quotation cover all supplied modules against manufacturing defects, with technical support available for installation guidance and compatibility confirmation with existing S7-200 system configurations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust S7-200 analog output cabinet deployment centers on the 6ES7232-0HB22-0XA0 as the precision signal source, but its reliability depends on the integrity of the surrounding system. The Siemens CPU 226 serves as the primary controller, executing the PID loop and safety interlock logic that drives the EM232 outputs. Closed-loop accuracy is maintained by pairing the EM232 output with the Siemens EM231 analog input module, which feeds back process variable signals — pressure transmitter outputs, flow meter signals, or temperature sensor readings — into the CPU for real-time correction.

On the power side, a Siemens SITOP PSU100S 24 VDC power supply provides a regulated, surge-tolerant field supply rail, preventing output signal corruption during load switching events. Digital safety interlocks — emergency stop circuits, motor protection relay feedback, and valve position confirmation — are handled by the Siemens EM223 digital I/O module, which operates in the same expansion bus without introducing scan-cycle delays. In networked plant architectures, the Siemens EM277 PROFIBUS DP module bridges the S7-200 to the plant SCADA or DCS backbone, enabling remote analog setpoint updates and diagnostic monitoring without interrupting the local control loop. Cabinet-level transient voltage suppression devices on the 24 VDC rail complete the protection strategy, ensuring that inductive load switching from contactors and solenoid valves does not reach the sensitive analog output circuitry.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6ES7232-0HB22-0XA0 drives control valve positioners in feed flow regulation and pressure letdown stations, where output signal integrity directly affects process safety and product quality. In power generation auxiliary systems — boiler feedwater control, turbine lube oil pressure regulation — the module’s deterministic output response supports tight PID loop performance under variable load conditions.

In mining and mineral processing, the module controls variable-speed conveyor drives and slurry pump VFDs via 4–20 mA speed reference signals, operating reliably in high-dust, high-vibration environments when properly enclosed. Water and wastewater treatment facilities use the EM232 to modulate chemical dosing pump speeds and aeration blower outputs, where consistent analog accuracy prevents overdosing events and regulatory compliance failures.

In metallurgical and foundry applications, the module provides precise temperature setpoint commands to furnace zone controllers, maintaining thermal profiles critical to product metallurgy. Port and marine automation systems deploy the 6ES7232-0HB22-0XA0 in crane load control and ballast pump regulation, where the module’s wide temperature range and vibration tolerance support reliable operation in shipboard and quayside environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7232-0HB22-0XA0?
The support terms confirmed by quotation cover manufacturing defects, output signal accuracy failures, and connector integrity issues identified under normal operating conditions. KNMKS provides replacement or repair support with technical documentation to minimize site downtime.

Q2: What pre-shipment tests are performed before dispatch?
Every 6ES7232-0HB22-0XA0 unit undergoes output accuracy verification across the full voltage and current signal range, insulation resistance testing, and physical inspection of the expansion bus connector and terminal blocks before shipment.

Q3: Is the 6ES7232-0HB22-0XA0 compatible with all S7-200 CPU variants?
The EM232 is compatible with all S7-200 CPU models that support analog expansion modules, including the CPU 221, CPU 222, CPU 224, CPU 224XP, and CPU 226. Compatibility with the specific firmware version of the host CPU should be confirmed against the Siemens S7-200 system manual prior to installation.

Q4: Can KNMKS support long-term or scheduled supply agreements for this module?
Yes. KNMKS maintains multi-region stock of the 6ES7232-0HB22-0XA0 and can support both emergency single-unit replacements and scheduled bulk supply agreements for planned maintenance outages or fleet-wide upgrades. Contact the sales team to discuss lead times and volume pricing.
