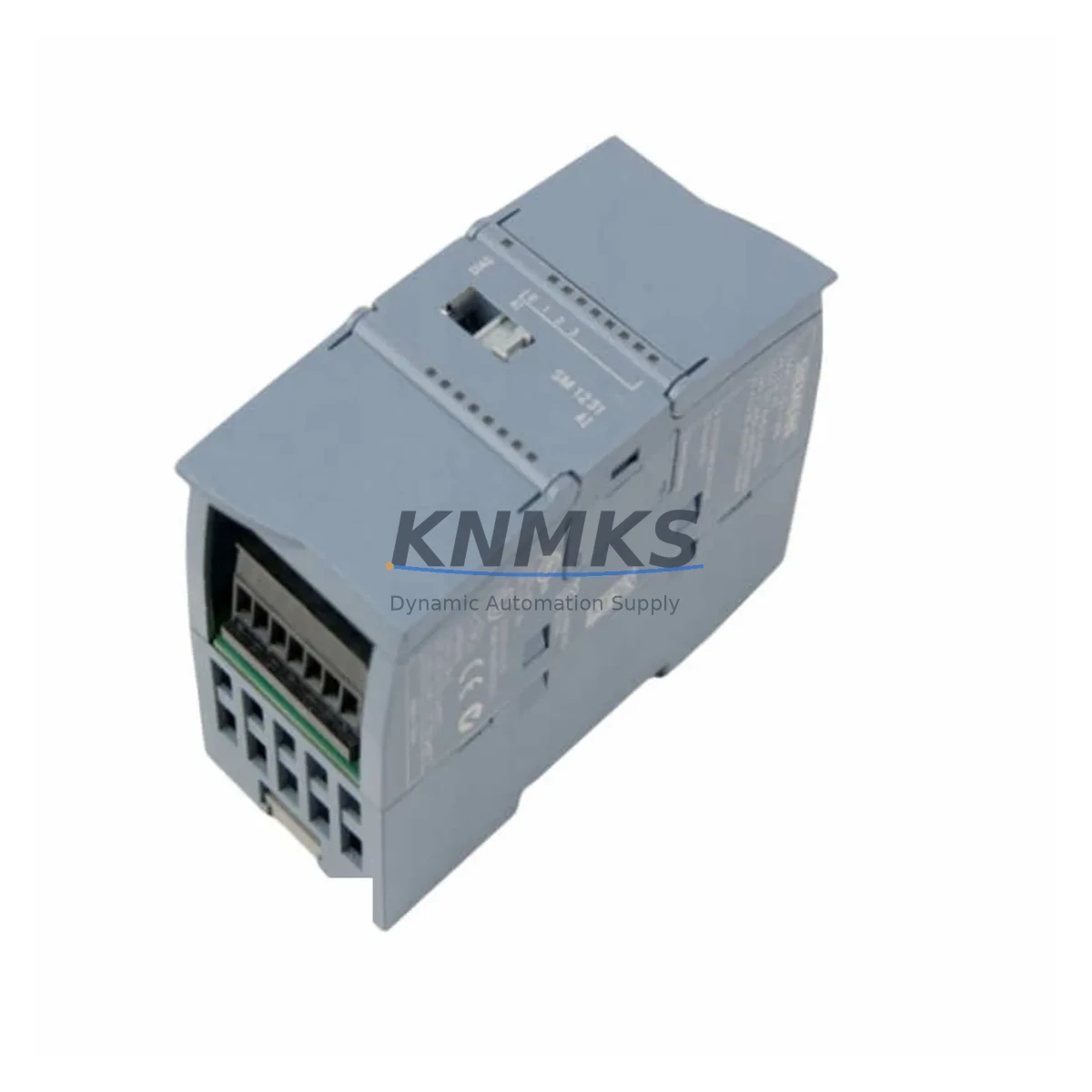

Siemens 6ES7231-4HD32-0XB0 SM 1231 AI Migration-Ready Analog Input

Overview

Siemens 6ES7231-4HD32-0XB0 SM 1231 AI Migration-Ready Analog Input for Legacy Control Systems

The Siemens 6ES7231-4HD32-0XB0 is a high-resolution SM 1231 Analog Input module designed for the S7-1200 PLC platform, delivering 4 channels of 16-bit analog signal acquisition. As legacy S7-200 and S7-300 systems approach end-of-life, this module serves as the cornerstone of a structured migration path — enabling engineers to preserve existing field wiring, reuse terminal block layouts, and maintain process continuity without a full control cabinet overhaul. Whether you are upgrading a standalone machine controller or modernizing a distributed I/O network, the 6ES7231-4HD32-0XB0 provides the signal fidelity and backplane compatibility required for reliable retrofit execution.

In retrofit projects, this module is commonly paired with the Siemens CPU 1214C DC/DC/DC (6ES7214-1AG40-0XB0) as the host controller, mounted on a standard S7-1200 rail assembly. Engineers migrating from S7-300 EM 231 analog input modules will find that terminal wiring assignments for 4–20 mA and 0–10 V signals follow a comparable layout, significantly reducing re-termination time during cutover. When the legacy system includes a Siemens EM 231 CN (6ES7231-0HC22-0XA8) or similar S7-200 analog expansion, the 6ES7231-4HD32-0XB0 provides a direct functional replacement with enhanced resolution and STEP 7 Basic / TIA Portal programming compatibility.

For installations requiring expanded I/O density, the SM 1231 AI module integrates seamlessly alongside the SM 1223 Digital I/O module (6ES7223-1BL32-0XB0) and the SM 1232 Analog Output module (6ES7232-4HB32-0XB0) on the same S7-1200 backplane, supporting up to 8 signal modules per CPU. Communication continuity is maintained through the CM 1241 RS485 communication module (6ES7241-1CH32-0XB0) when legacy PROFIBUS or Modbus RTU links must be preserved during phased migration. Signal isolation requirements for long-cable runs or electrically noisy environments are addressed by incorporating DIN-rail-mounted signal isolators between field transmitters and the analog input terminals.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a thorough audit of the existing control cabinet. Before removing the legacy EM 231 or SM 331 module, document all terminal wiring assignments, signal types (voltage vs. current), and shielding connections. The 6ES7231-4HD32-0XB0 uses a 20-pin removable terminal block; confirm that the replacement terminal block pitch matches your existing cable ferrule sizes to avoid re-termination delays on the day of cutover.

Power budget verification is critical. The SM 1231 AI draws up to 80 mA from the S7-1200 5 VDC backplane bus. When planning a multi-module expansion — for example, combining the 6ES7231-4HD32-0XB0 with an SM 1232 Analog Output module and an SM 1223 Digital I/O module — calculate the total backplane current draw against the CPU’s rated bus current capacity. Exceeding this limit requires adding a PM 1207 power module (6EP1332-1SH71) to supplement backplane power.

Module address assignment in TIA Portal is handled automatically through the hardware configuration tool; however, engineers migrating from STEP 7 Classic must manually verify that analog input addresses (e.g., IW64, IW66) do not conflict with existing program blocks. If the legacy program uses absolute addressing for analog values, a structured address remapping session should be scheduled before the first live test. For systems with HMI panels — such as a Siemens KTP700 Basic or TP1200 Comfort — update all analog tag addresses in the HMI project to reflect the new S7-1200 I/O map before commissioning.

Where the legacy system relied on PROFIBUS DP for distributed I/O communication, the migration path typically involves introducing a CM 1243-5 PROFIBUS master module alongside the new S7-1200 CPU, allowing existing PROFIBUS field devices to remain online while the controller platform is upgraded. This phased approach preserves field instrument investments and limits the scope of each cutover window.

Downtime Control During System Migration

Minimizing production downtime during a control system migration requires a structured cutover plan. For the 6ES7231-4HD32-0XB0 retrofit, the recommended approach is a parallel installation strategy: mount the new S7-1200 rack alongside the existing controller, configure and test all analog input channels in simulation mode using TIA Portal’s online monitoring tools, and validate signal scaling against live field transmitter outputs before switching control authority.

Program logic migration from STEP 7 Micro/WIN or STEP 7 Classic to TIA Portal should be completed and bench-tested prior to the cutover window. Pay particular attention to analog normalization and scaling function blocks — the NORM_X and SCALE_X instructions in TIA Portal replace the legacy analog scaling routines and must be configured with the correct engineering unit ranges to maintain process accuracy. Retain a backup copy of the original program on a dedicated programming cable (PC Adapter USB A2, 6ES7972-0CB20-0XA0) connected to the legacy CPU until the new system has completed a full production cycle without alarms.

Field control continuity is maintained by sequencing the analog input channel switchover one loop at a time, beginning with non-critical monitoring signals before transitioning primary process control loops. This loop-by-loop approach allows the process operator to verify each analog reading against the legacy system display before the old module is decommissioned, reducing the risk of undetected signal errors during the transition period. All units supplied are functionally tested prior to shipment, with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial service conditions.

Retrofit Support FAQ

Q1: Is the 6ES7231-4HD32-0XB0 a direct drop-in replacement for the Siemens EM 231 used in S7-200 systems?
Functionally yes — both modules provide 4-channel analog input with 4–20 mA and voltage input support. However, the backplane interface differs: the SM 1231 connects to the S7-1200 signal module bus rather than the S7-200 expansion bus. A new S7-1200 CPU and rail assembly are required as part of the migration. Terminal wiring can typically be reused after verifying pin assignments against the SM 1231 wiring diagram.

Q2: What firmware version is required on the S7-1200 CPU to support this module?
The 6ES7231-4HD32-0XB0 is supported from S7-1200 CPU firmware V2.0 and above, with full feature support (including high-speed analog sampling) available from V4.1. TIA Portal V13 SP1 or later is required for hardware configuration. Always verify firmware compatibility in the TIA Portal hardware catalog before finalizing the project configuration.

Q3: Can this module be commissioned without removing the legacy system from service?
Yes. Using a parallel installation approach, the SM 1231 AI module can be configured, wired, and tested on the new S7-1200 rack while the legacy controller remains in control. Signal sources can be temporarily split using passive signal splitters or loop-powered distributors to feed both the old and new analog inputs simultaneously during the validation phase. This approach is strongly recommended for critical process loops.

Q4: What does the support terms confirmed by quotation cover, and how is stock availability managed?
All 6ES7231-4HD32-0XB0 units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and component failures under normal industrial operating conditions. Each unit undergoes functional verification testing — including analog channel accuracy, input range switching, and backplane communication — before dispatch. Stock is maintained to support both immediate replacement orders and planned retrofit projects. For volume procurement or long-term spare parts agreements, contact [email protected] to confirm lead times and reservation options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7231-4HD32-0XB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7231-4HD32-0XB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
