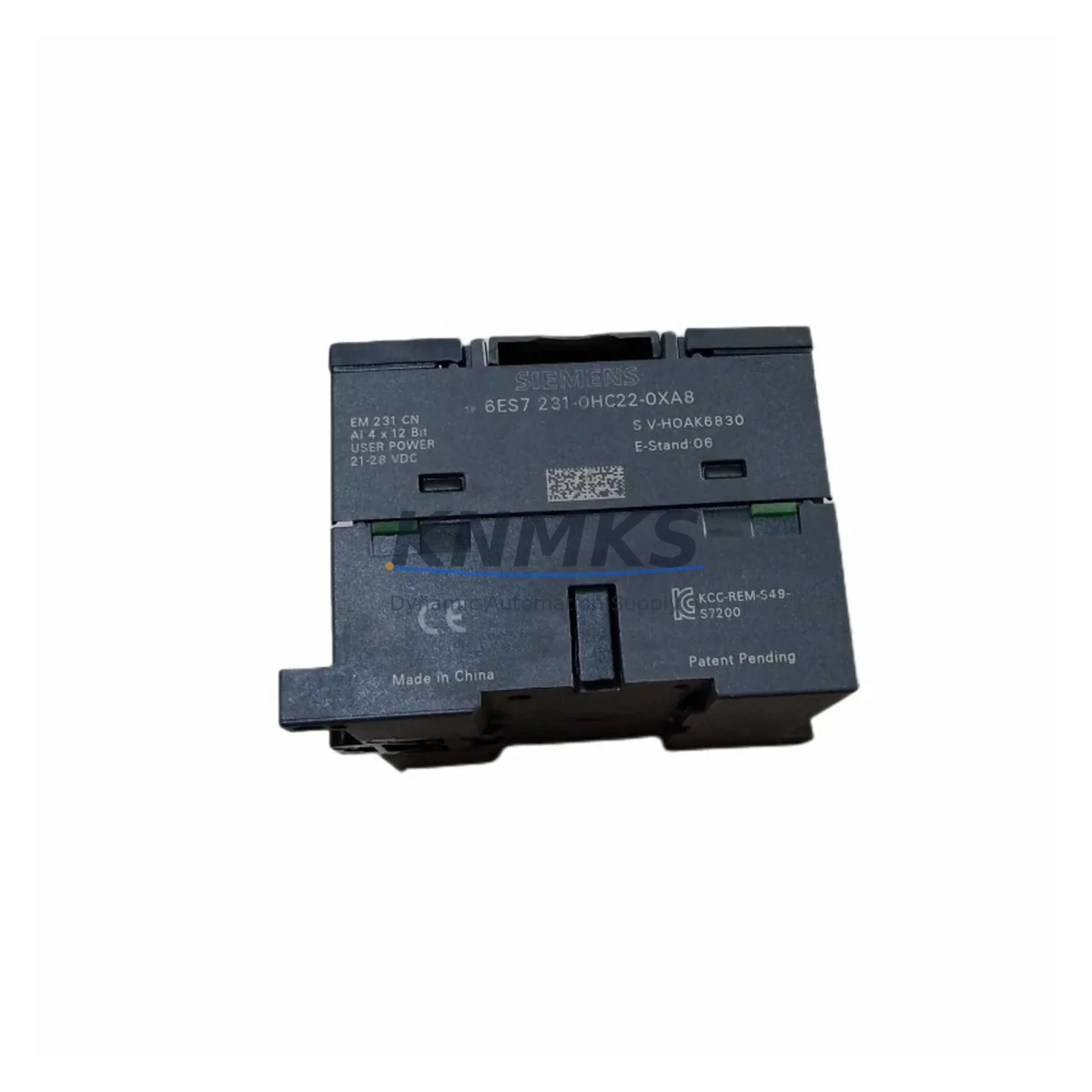

Siemens 6ES7231-0HC22-0XA8 Fail-Safe Analog Input S7-200 SMART

Overview

Siemens 6ES7231-0HC22-0XA8 Fail-Safe Analog Input S7-200 SMART: Fail-Safe Protection for Critical Industrial Control Reliability

The Siemens 6ES7231-0HC22-0XA8 is a 4-channel analog input expansion module engineered for the S7-200 SMART programmable logic controller platform. Designed to meet the demanding requirements of continuous industrial production environments, this module delivers stable, high-accuracy analog signal acquisition in applications where control interruption, signal drift, or measurement error can result in process failure, equipment damage, or personnel safety incidents.

In modern industrial control cabinets — particularly those deployed in high electromagnetic interference (EMI) environments such as variable frequency drive (VFD) panels, motor control centers (MCC), and high-power switching systems — analog input modules are among the most vulnerable components to signal noise, ground loops, and surge transients. The 6ES7231-0HC22-0XA8 addresses these risks through its robust hardware design, providing reliable 4-channel analog acquisition with voltage and current input compatibility, making it suitable for interfacing with field transmitters, pressure sensors, temperature transducers, and flow measurement devices across a wide range of industrial processes.

Sourced directly from authorized supply chains and subject to pre-shipment functional testing, every unit shipped by KNMKS is verified for signal accuracy, channel isolation integrity, and communication handshake with the S7-200 SMART CPU before dispatch. This ensures that replacement modules arrive ready for immediate installation, minimizing unplanned downtime during critical maintenance windows.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S7-200 SMART control cabinet, the 6ES7231-0HC22-0XA8 analog input module operates as part of a layered protection architecture. Its signal acquisition reliability depends on — and contributes to — the stability of surrounding components. For example, the Siemens SMART LINE CPU ST40 or SR60 serves as the central processing unit, executing the PID loops and interlock logic that rely on accurate analog feedback from this module. Any signal drift or channel fault at the input stage propagates directly into control decisions, making module quality non-negotiable in closed-loop control applications.

On the power supply side, a dedicated Siemens SITOP PSU100S 24V DC power supply provides the stable, low-ripple DC bus that analog circuits require. Voltage fluctuations exceeding ±5% on the 24V rail can introduce measurement offset errors in analog input modules, particularly in 4–20mA current loop configurations. Pairing the 6ES7231-0HC22-0XA8 with a regulated SITOP power supply is a standard best practice for high-reliability installations.

For digital interlock and safety relay integration, the Siemens 6ES7222-1BF22-0XA8 digital output expansion module is commonly deployed alongside analog input modules in the same cabinet, handling actuator commands triggered by analog threshold breaches — such as high-pressure shutdowns or over-temperature trips. This combination of analog sensing and digital actuation forms the backbone of basic process safety loops in non-SIL-rated applications.

In environments with significant surge risk — such as substations, outdoor pump stations, or facilities near high-voltage switching equipment — supplementary Phoenix Contact or Weidmüller signal surge protection terminals are recommended on the analog input wiring before it enters the module. These DIN-rail-mounted surge arresters clamp transient voltages that could otherwise damage the module’s input circuitry or corrupt measurement data during lightning events or capacitor bank switching.

For communication redundancy and remote diagnostics, the S7-200 SMART platform supports Siemens SMART EM AE04 analog expansion modules and Ethernet-based SCADA connectivity via the CPU’s built-in Ethernet port, enabling real-time monitoring of analog channel values, fault flags, and module health from a central control room — a critical capability for unmanned remote stations in water treatment, oil pipeline, and power distribution applications.

Critical Industrial Safety Applications

The Siemens 6ES7231-0HC22-0XA8 is deployed across a broad spectrum of safety-critical and continuous-process industrial environments where analog signal integrity is directly linked to operational safety and production continuity.

In petrochemical and refinery facilities, this module interfaces with pressure transmitters and temperature sensors on reactor vessels, heat exchangers, and distillation columns. Accurate analog feedback is essential for maintaining process variables within safe operating limits and triggering emergency shutdown sequences when threshold values are exceeded. A failed or drifting analog input in this context can delay a safety interlock response by seconds — an unacceptable risk in high-hazard processes.

In electric power generation and substation automation, the module is used to monitor transformer oil temperatures, generator winding temperatures, and bus voltage levels via transducer outputs. The module’s EMI resistance is particularly valuable in high-voltage switchgear environments where electromagnetic fields from bus bars and circuit breakers can induce noise on low-level analog signal cables.

In mining and mineral processing, the 6ES7231-0HC22-0XA8 supports conveyor load monitoring, crusher motor current feedback, and slurry flow measurement. These applications involve heavy vibration, dust ingress, and wide temperature swings — conditions under which inferior analog modules exhibit accelerated connector degradation and calibration drift. The module’s industrial-grade construction and IP20 enclosure provide a baseline level of environmental protection suitable for well-maintained control room enclosures in these settings.

In water and wastewater treatment plants, the module acquires flow, pH, turbidity, and dissolved oxygen sensor signals for process control and regulatory compliance monitoring. Continuous, uninterrupted analog data acquisition is required for both process optimization and environmental reporting, making module reliability a compliance issue as well as an operational one.

In metallurgical and steel production environments, the module supports furnace temperature profiling, cooling water flow monitoring, and rolling mill tension control — applications where analog signal accuracy directly affects product quality and energy efficiency. High ambient temperatures and strong magnetic fields from induction furnaces make EMI-resistant analog input hardware essential.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7231-0HC22-0XA8?
The support terms confirmed by quotation provided by KNMKS covers manufacturing defects, functional failures under normal operating conditions, and channel performance deviations from published specifications. If a module fails within the confirmed support period under normal use, KNMKS will arrange replacement or repair. The confirmed support period begins from the date of shipment confirmation.

Q2: How is the module tested before shipment?
Every 6ES7231-0HC22-0XA8 unit undergoes pre-shipment functional verification, including power-on testing, analog channel signal acquisition checks across the specified input ranges, and communication handshake validation with an S7-200 SMART CPU. This process ensures that modules arrive at site in verified working condition, reducing the risk of installation failures during planned maintenance or emergency replacement scenarios.

Q3: Is this module compatible with all S7-200 SMART CPU variants?
The 6ES7231-0HC22-0XA8 is designed for use with the Siemens S7-200 SMART PLC platform and is compatible with standard SMART CPU models including the ST20, ST30, ST40, ST60, SR20, SR30, SR40, and SR60. It connects via the direct expansion bus on the right side of the CPU or existing expansion modules. Compatibility with specific firmware versions should be confirmed against the Siemens S7-200 SMART system manual for the target installation.

Q4: Can KNMKS support long-term supply and emergency replacement for this module?
Yes. KNMKS maintains stock of the 6ES7231-0HC22-0XA8 and related S7-200 SMART expansion modules to support both planned procurement and emergency replacement requirements. For critical production facilities where unplanned downtime carries significant cost, we recommend maintaining at least one spare unit on-site. KNMKS can provide expedited shipping for urgent replacement orders. Contact our technical sales team to discuss consignment stock arrangements or long-term supply agreements for your facility.
