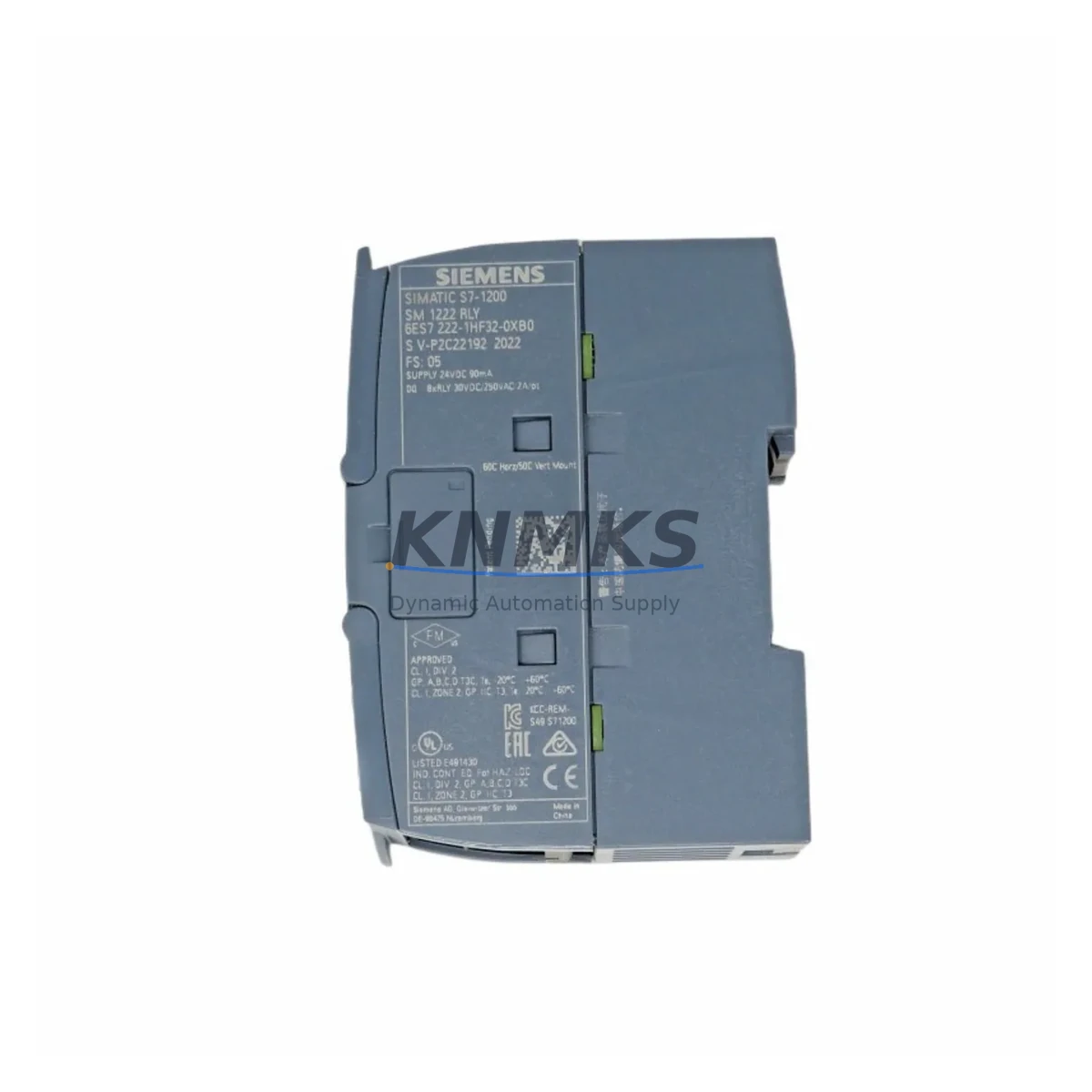

Siemens 6ES7222-1HF32-0XB0 Migration-Ready DO for Legacy PLC

Overview

Siemens 6ES7222-1HF32-0XB0 Migration-Ready Digital Output Module for Legacy Control System Upgrades

The Siemens 6ES7222-1HF32-0XB0 is a Signal Module SM 1222 with 8 relay digital outputs, designed for the SIMATIC S7-1200 controller platform. As legacy S7-200 and S7-300 installations reach end-of-life, this module serves as a proven migration target for engineers modernizing discrete output control in existing control cabinets. Its compact form factor, standard DIN rail mounting, and relay contact outputs make it directly applicable to retrofit projects where the original wiring infrastructure must be preserved and downtime kept to an absolute minimum.

When planning a migration from an S7-200 CPU 224 or CPU 226 system, engineers frequently encounter the challenge of matching existing relay output capacity without rewiring field devices. The 6ES7222-1HF32-0XB0 provides 8 relay contacts rated at 2 A per output, which aligns with the output capacity of legacy EM 222 expansion modules. This compatibility allows the control cabinet wiring to remain largely intact, reducing the risk of miswiring during cutover and shortening the commissioning window significantly.

Integration into the S7-1200 platform requires pairing this module with a compatible CPU — typically a CPU 1214C or CPU 1212C — mounted on the same rail segment. The module connects via the integrated I/O bus on the left side of the CPU, eliminating the need for a separate backplane or rack. Engineers migrating from rack-based S7-300 systems should confirm available rail space and cabinet depth, as the S7-1200 system profile differs from the S7-300 rack assembly. A CM 1241 RS485 communication module or CB 1241 communication board may also be required if the legacy system used Modbus RTU or USS protocol links to drives or HMI panels.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6ES7222-1HF32-0XB0 begins with a thorough audit of the existing control cabinet. Engineers should document the current output load per channel, verify that the relay contact ratings are sufficient for the connected actuators, and confirm that the 24 V DC logic supply from the existing PM 1207 power module or equivalent can support the additional module current draw. In many S7-200 to S7-1200 migrations, the existing 24 V DC rail supply is retained, which simplifies the power budget calculation.

The removable terminal block on the SM 1222 is a significant advantage during retrofit. Field wiring can be pre-terminated on the new terminal block before the cutover window, allowing the engineer to swap the block onto the new module during the planned outage rather than re-terminating individual conductors under time pressure. This approach is particularly effective when replacing an EM 222 module where the wiring layout is similar.

For systems that include a TP700 Comfort HMI or KTP700 Basic panel communicating with the legacy CPU, the HMI project must be migrated or re-configured in TIA Portal to reference the new S7-1200 CPU. Output tag addresses will change from the S7-200 Q-byte format to the S7-1200 memory model, requiring a systematic tag remap. Engineers should export the existing HMI tag table and cross-reference it against the new hardware configuration before the cutover to avoid runtime errors on first power-up.

Where the legacy system used a CP 243-1 Ethernet module for SCADA connectivity, the S7-1200 CPU’s integrated PROFINET port replaces this function natively, eliminating one module slot and reducing cabinet wiring complexity. If the system included analog I/O via an EM 235 module, a corresponding SM 1234 analog I/O module should be added to the S7-1200 configuration to maintain signal continuity for process variables such as temperature or pressure feedback.

All units are pre-shipment tested prior to dispatch. Each 6ES7222-1HF32-0XB0 is verified for relay contact continuity, logic supply acceptance, and bus communication handshake before packaging. Stock is maintained for immediate dispatch to support unplanned outage recovery scenarios where lead time is critical.

Downtime Control During System Migration

Minimizing control system downtime during a relay output module replacement requires a structured cutover plan. The recommended approach is to complete all TIA Portal hardware configuration, program adaptation, and HMI tag remapping offline before the maintenance window begins. The new S7-1200 CPU and SM 1222 module should be mounted, wired, and powered on a bench or in a staging area where the program can be downloaded and I/O forcing verified against a test load before the unit is installed in the live cabinet.

During the cutover, the sequence should follow: isolate the legacy CPU, remove the EM 222 or equivalent module, install the pre-wired SM 1222 terminal block, connect the S7-1200 bus, restore 24 V DC logic power, and download the verified program. Output forcing in TIA Portal allows individual relay channels to be exercised before releasing control to the program, confirming that field device wiring is correct without running the full process sequence.

Where the process cannot tolerate a full stop, a parallel run strategy can be employed: the new S7-1200 system is installed alongside the legacy CPU with outputs wired in parallel through isolation relays. This allows the new system to shadow the legacy outputs before the final switchover, reducing the risk of unexpected behavior on first live run. The 6ES7222-1HF32-0XB0’s relay outputs are inherently isolated per channel, which supports this parallel wiring approach without risk of back-feed between the two systems.

Firmware compatibility should be confirmed before deployment. The SM 1222 firmware version must be compatible with the TIA Portal version and CPU firmware in use. Siemens publishes firmware compatibility matrices in the product support portal; engineers should verify this before ordering if the target CPU is running a non-current firmware version.

Retrofit Support FAQ

Q: Is the 6ES7222-1HF32-0XB0 a direct replacement for the S7-200 EM 222 relay output module?
A: Functionally yes — both provide 8 relay digital outputs at 2 A per channel. However, the SM 1222 connects to an S7-1200 CPU via the integrated I/O bus rather than the S7-200 expansion cable. The field wiring terminal layout is similar, allowing the removable terminal block to be pre-wired before cutover. Program logic must be re-written in TIA Portal as STEP 7 Micro/WIN projects are not directly importable.

Q: What wiring changes are required when installing this module in an existing cabinet?
A: The SM 1222 uses a removable screw terminal block. Field wiring from the legacy module can be transferred to the new terminal block with minimal modification. Confirm load voltage compatibility (the relay contacts support 5–250 V AC/DC) and verify that the common terminal grouping matches the existing wiring scheme. No additional signal isolators are required for standard 24 V DC or 230 V AC load circuits.

Q: Does the module ship with pre-shipment testing, and what is the support terms coverage?
A: Yes. Every unit undergoes relay contact continuity verification, logic supply acceptance testing, and bus communication handshake confirmation before dispatch. The module is covered by a support terms confirmed by quotation from the date of shipment. Support requests are supported via [email protected] with a target response within one business day.

Q: Is stock available for immediate dispatch to support emergency outage recovery?
A: Stock is maintained for priority dispatch. Orders placed before the daily cut-off are processed same day. For urgent outage recovery requirements, contact the sales team directly at +86 18359268345 to confirm availability and arrange expedited shipping.
