Siemens 6ES7221-1BH32-0XB0 Migration-Ready 16DI for Legacy Control Systems

Overview

Siemens 6ES7221-1BH32-0XB0 Migration-Ready 16DI for Legacy Control Systems

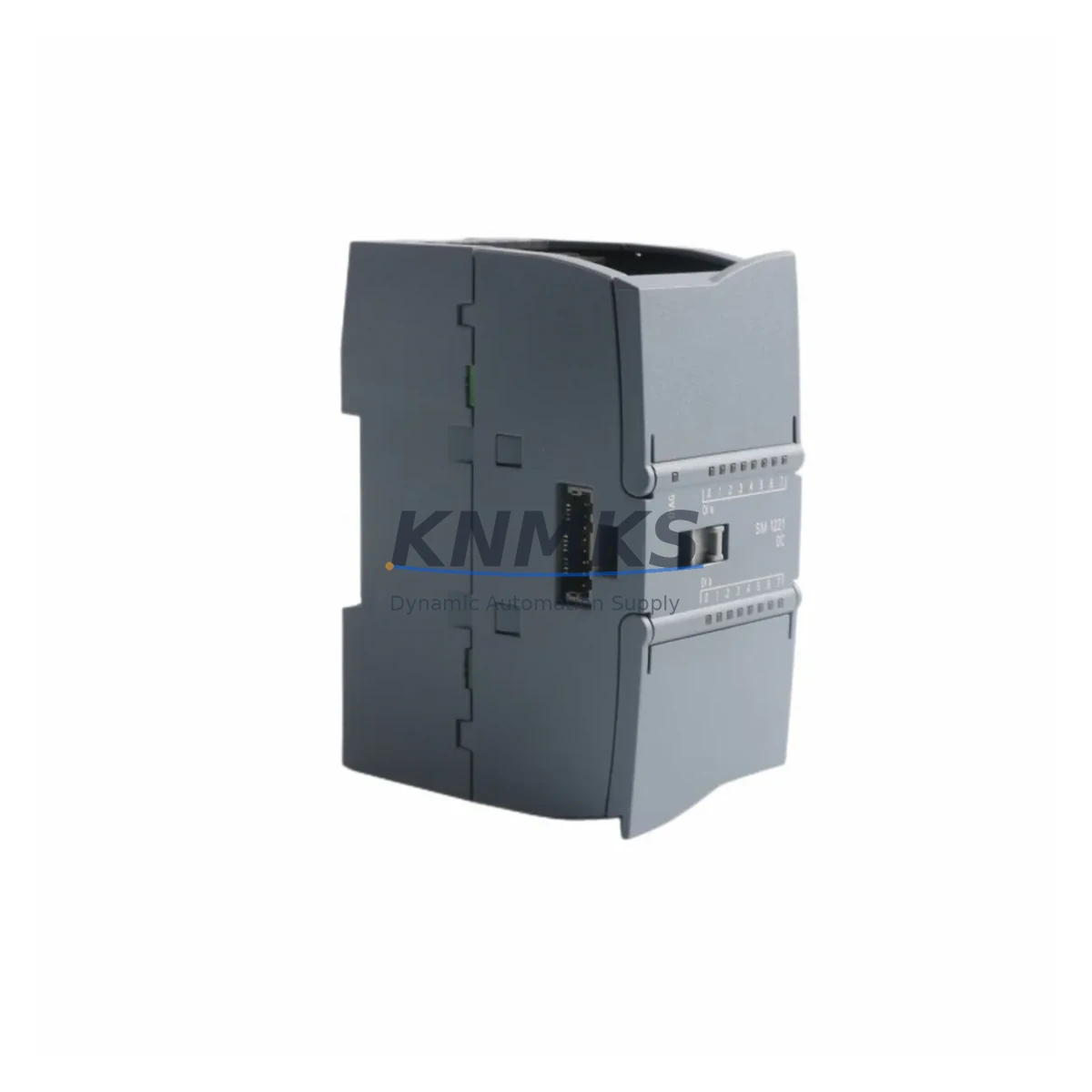

The Siemens 6ES7221-1BH32-0XB0 is a 16-channel digital input signal module (SM 1221) designed for the S7-1200 series PLC platform. With 16 × 24 VDC sink/source inputs, this module is a direct drop-in replacement for aging or discontinued digital input modules in legacy S7-200, S7-300, and early S7-1200 installations. It is fully compatible with the S7-1200 CPU backplane and integrates seamlessly into PROFINET-based control architectures without requiring hardware redesign.

For maintenance engineers managing aging automation lines, the 6ES7221-1BH32-0XB0 addresses one of the most common retrofit challenges: replacing end-of-life digital input modules without disrupting existing wiring harnesses, terminal block layouts, or PLC program logic. The module’s 40-pin front connector accepts standard 0.2–0.75 mm² field wiring, and its compact 45 mm housing fits directly into existing S7-1200 rail-mount configurations without requiring additional mounting hardware or cabinet modifications.

Before installation, engineers should verify the CPU’s total I/O power budget. The SM 1221 draws 5 VDC bus current from the CPU module; when combined with other signal modules such as the SM 1222 digital output module or SM 1231 analog input module on the same backplane, the aggregate current draw must remain within the CPU’s rated 5 VDC supply capacity. For high-density I/O configurations, a PM 1207 power module may be required to supplement the CPU’s internal supply.

Terminal wiring should be mapped against the original I/O assignment table before removal of the legacy module. Input addresses are assigned automatically by TIA Portal based on slot position; if the replacement module occupies a different slot than the original, the program’s symbolic I/O mapping must be updated accordingly in the hardware configuration. This is particularly relevant when migrating from S7-200 systems using STEP 7 Micro/WIN, where absolute I/O addressing was common and must be re-mapped to the S7-1200’s tag-based addressing model.

Communication link continuity is maintained through the CPU’s integrated PROFINET port. No additional CP communication processor is required for standard PROFINET IO configurations. However, if the legacy system used PROFIBUS DP for field device communication, a CM 1243-5 PROFIBUS master module should be added to the S7-1200 rack to preserve connectivity with existing PROFIBUS slaves such as ET 200S distributed I/O stations or third-party variable frequency drives.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6ES7221-1BH32-0XB0 into an existing control system requires a structured pre-retrofit assessment. Begin by auditing the current cabinet layout to confirm available rail space adjacent to the CPU module. The SM 1221 must be installed immediately to the right of the CPU or the last installed signal module; it cannot be mounted remotely or in a separate enclosure without an expansion interface.

For systems where the original digital input module was an 8-channel SM 1221 (6ES7221-1BF32-0XB0), the 16-channel variant provides a direct upgrade path with doubled I/O capacity. The additional 8 input channels can be assigned to spare field sensors, safety interlocks, or process feedback signals that were previously handled by a separate I/O module, potentially eliminating one module slot and reducing overall cabinet footprint.

When the retrofit involves replacing a legacy S7-200 EM 221 digital input expansion module, engineers must account for the architectural difference between the S7-200’s fixed I/O model and the S7-1200’s modular signal module approach. The EM 221’s I/O addresses were fixed at compile time in STEP 7 Micro/WIN; in TIA Portal, addresses are assigned by slot position and can be adjusted in the device configuration. A full I/O cross-reference table should be prepared before migration to ensure no field signal is lost or misaddressed during the transition.

Power supply sizing is a critical step often overlooked during module replacement. The 6ES7221-1BH32-0XB0 draws 5 VDC bus current from the CPU’s internal supply. In racks that also include an SM 1222 digital output module, SM 1231 analog input module, and a CM 1241 RS-485 communication module, the combined bus current may approach or exceed the CPU’s rated output. In such cases, a PM 1207 stabilized power supply should be added to the panel to provide supplemental 24 VDC to the field I/O circuit, ensuring stable operation under full load conditions.

For systems requiring serial communication with legacy HMI panels or third-party controllers, the CM 1241 RS-485/RS-232 communication module can be added to the S7-1200 rack alongside the SM 1221 to maintain existing Modbus RTU or USS protocol links without requiring HMI screen redesign or communication parameter reconfiguration.

Downtime Control During System Migration

Minimizing production downtime during a digital input module replacement requires careful pre-staging and a disciplined cutover procedure. Before the maintenance window begins, the replacement 6ES7221-1BH32-0XB0 should be pre-configured offline in TIA Portal using a project backup of the existing CPU configuration. The hardware configuration should be updated to reflect the new module’s slot position and I/O address assignments, and the updated project should be compiled and verified for errors before the physical swap begins.

During the cutover, the CPU should be placed in STOP mode before removing the legacy module. Field wiring should be documented with photographs or a terminal strip label map before disconnection. The 40-pin front connector of the SM 1221 allows the wiring harness to be pre-assembled on the replacement module before installation, reducing the time the field circuits are de-energized. Once the module is seated and the front connector is attached, the CPU can be returned to RUN mode and the I/O status verified against the pre-migration baseline.

For critical processes where even brief interruptions are unacceptable, a parallel run strategy can be employed: the replacement module is installed in an adjacent slot with a duplicate wiring harness, and the program logic is temporarily modified to read from both the old and new module addresses simultaneously. Once the new module’s inputs are verified to match the legacy module’s readings under live process conditions, the legacy module can be removed and the program logic updated to reference only the new addresses. This approach eliminates the risk of undetected wiring errors causing process upsets during the final cutover.

All units are pre-tested prior to shipment to confirm channel-level functionality, input threshold response, and bus communication integrity. A functional test report is available on request. This pre-shipment verification step is designed to eliminate the risk of receiving a non-functional module during a time-critical maintenance window, protecting both production continuity and the integrity of the retrofit project schedule.

Retrofit Support FAQ

Q: Is the 6ES7221-1BH32-0XB0 a direct replacement for the 6ES7221-1BF32-0XB0 (8DI)?
A: Yes, the 16-channel SM 1221 is physically and electrically compatible with the 8-channel variant and installs in the same slot position. The I/O address range will expand to cover 16 inputs; the TIA Portal hardware configuration must be updated to reflect the new module type before downloading to the CPU. Existing program logic referencing the original 8 input addresses will continue to function without modification.

Q: What firmware version is required on the S7-1200 CPU?
A: The SM 1221 16DI requires CPU firmware version V2.0 or higher. Firmware version can be verified in TIA Portal under the device properties or via the CPU’s web server interface. If the CPU is running an earlier firmware version, a firmware update should be performed before installing the new module to ensure full compatibility and access to all diagnostic functions.

Q: How is wiring adapted when replacing a legacy module with different terminal assignments?
A: The SM 1221 uses a 40-pin removable front connector. If the legacy module used a different connector pitch or terminal numbering, a wiring adapter or re-termination of the field cable is required. Terminal assignments for the SM 1221 are documented in the Siemens S7-1200 System Manual (6ES7298-8FA30-8BH0). It is recommended to prepare a terminal cross-reference table before the maintenance window to minimize re-wiring time during the cutover.

Q: What support terms and supply terms apply to this module?
A: All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Pre-shipment functional testing is performed on every unit. Inventory is maintained for immediate dispatch; lead times and stock availability can be confirmed at the time of order. For long-term supply commitments or project-quantity pricing, contact the sales team directly.
