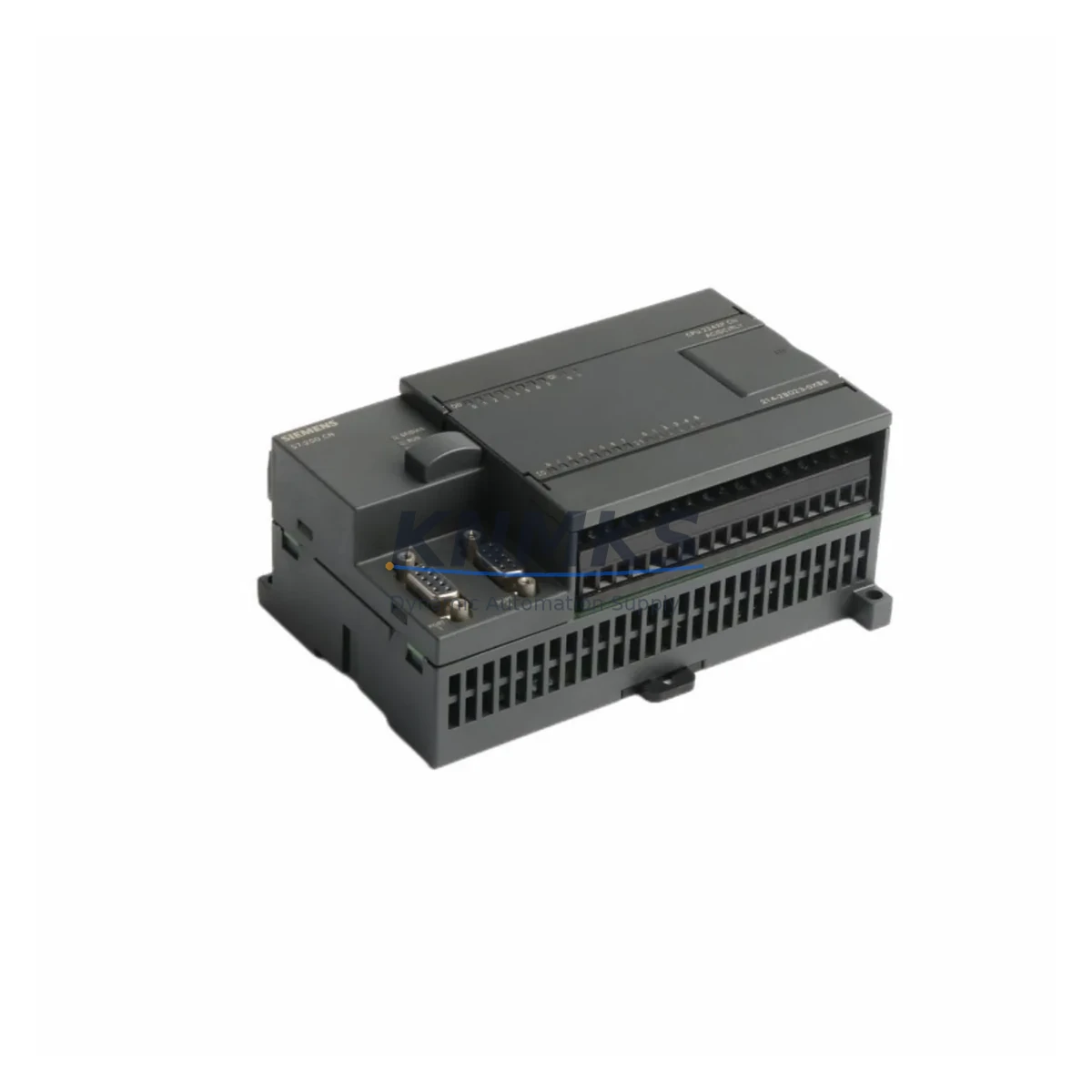

Siemens 6ES7214-2BD23-0XB8 Migration-Ready CPU for Legacy S7-200

Overview

Siemens 6ES7214-2BD23-0XB8 Migration-Ready CPU for Legacy S7-200 Control Systems

The Siemens 6ES7214-2BD23-0XB8 is a CPU 224 XP module designed for the S7-200 Micro PLC platform — one of the most widely deployed compact controllers in legacy industrial automation environments. As the S7-200 series has reached end-of-life, facilities running aging production lines, packaging equipment, HVAC control panels, and material handling systems increasingly require verified replacement units to extend operational continuity without committing to a full platform migration.

This unit provides 14 digital inputs and 10 digital outputs (DC 24V), 2 analog inputs and 1 analog output onboard, 12 KB program memory, and 8 KB data memory. It supports PPI, MPI, and Freeport communication protocols via two independent RS-485 ports, making it directly compatible with existing HMI panels, STEP 7-Micro/WIN programming environments, and field device networks without protocol conversion hardware.

For retrofit engineers, the 6ES7214-2BD23-0XB8 is a drop-in replacement for earlier CPU 224 XP variants. Before installation, confirm the following: power supply rail capacity (DC 24V, minimum 1.2A for CPU alone), terminal block wiring compatibility (0.5–1.5 mm² conductors), backplane slot assignment if installed in an EM expansion rack, module address configuration in STEP 7-Micro/WIN, and firmware version compatibility with existing program blocks. If the legacy system uses the EM 277 PROFIBUS-DP module or EM 241 modem module alongside the CPU, verify that the expansion bus connector alignment and EM address settings are preserved during swap-out.

When upgrading control cabinets that previously housed CPU 222 or CPU 224 (non-XP) units, the additional analog I/O channels on the 6ES7214-2BD23-0XB8 can eliminate the need for a separate EM 235 analog expansion module, reducing panel footprint and wiring complexity. This is particularly relevant in retrofit projects where installation space is constrained and minimizing downtime is a priority.

Communication link continuity is critical during migration. The dual RS-485 ports allow simultaneous PPI connection to a programming terminal (via PC/PPI cable or USB-PPI adapter) and Freeport connection to a serial HMI or barcode reader — preserving the original control logic and HMI screen mapping without reprogramming. If the existing HMI is a TP 177 or OP 77 panel communicating over PPI, no driver reconfiguration is required after CPU replacement.

For systems requiring I/O expansion beyond the onboard capacity, the 6ES7214-2BD23-0XB8 supports up to 7 expansion modules. Compatible expansion units include the EM 221 digital input module, EM 222 digital output module, EM 223 combined DI/DO module, and EM 231/EM 235 analog modules. When planning the retrofit, document the existing EM chain order and address assignments before removal to ensure the replacement CPU initializes the expansion bus correctly on first power-up.

All units supplied by KNMKS undergo pre-shipment functional testing covering power-on self-test, I/O channel verification, and communication port handshake confirmation. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Inventory is maintained availability confirmed by RFQ for immediate dispatch, supporting urgent maintenance scenarios and unplanned downtime recovery.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 6ES7214-2BD23-0XB8 into an existing S7-200 control system requires systematic pre-installation planning. Begin by auditing the current EM expansion chain: record the order and address of each connected module — such as EM 221, EM 222, EM 223, EM 231, or EM 235 — since the replacement CPU must initialize the same expansion bus topology to avoid I/O mapping errors on first boot.

If the control cabinet includes a CP 243-1 Ethernet module for remote monitoring or SCADA integration, verify that the IP configuration and S7 communication parameters stored in the module are backed up before the CPU is removed. The CP 243-1 retains its configuration independently, but the CPU program must reference the correct module slot address after reinstallation.

For systems using a TD 400C text display or a third-party HMI communicating over PPI on Port 0, Port 1 can be reserved for programming access during commissioning — allowing live program upload and monitoring without disconnecting the HMI. This dual-port architecture significantly reduces commissioning time in field environments where physical access to the panel is limited.

Power supply sizing is a common oversight in CPU retrofit projects. The 6ES7214-2BD23-0XB8 draws up to 1.2A from the 24V DC rail under full I/O load. When combined with expansion modules and field device sensor power, confirm that the existing power supply module — whether a SITOP PSU100S or equivalent — has sufficient headroom. Undersized power supplies are a leading cause of intermittent CPU faults after retrofit.

If the legacy system uses a PC/PPI cable for programming, confirm USB-to-RS-485 adapter compatibility with the installed version of STEP 7-Micro/WIN before the maintenance window. Using an incompatible adapter can prevent program upload and extend unplanned downtime. A USB-PPI Multi-Master cable is the recommended interface for modern workstations.

Downtime Control During System Migration

Minimizing downtime during a CPU swap on an active production line requires preparation before the maintenance window begins. Export and archive the full project from STEP 7-Micro/WIN — including program blocks (OB1, SBRs, INTs), data blocks, system block (I/O configuration, communication parameters, password), and symbol table — before removing the original CPU. Verify the exported project compiles without errors on the programming workstation.

During physical replacement, label all terminal block wiring before disconnection. The 6ES7214-2BD23-0XB8 uses the same terminal layout as predecessor CPU 224 XP variants, so direct rewiring is straightforward. However, confirm that the 24V DC input polarity and the sensor/actuator commons are correctly identified, particularly in panels where wire labeling has degraded over years of operation.

After installation, download the archived program to the replacement CPU before powering field devices. Run the CPU in STOP mode first to verify I/O mapping and expansion module recognition. Switch to RUN mode only after confirming that all EM modules are detected and the system block parameters — including PPI baud rate, station address, and analog scaling — match the original configuration. This staged commissioning approach protects the original control logic and prevents unintended actuator activation during the transition.

For facilities with strict uptime requirements, consider staging the replacement CPU on a bench test rig with equivalent I/O simulation before the live swap. Pre-loading and verifying the program offline reduces in-panel commissioning time to under 30 minutes in most cases, keeping production interruption within a single planned maintenance shift.

Retrofit Support FAQ

Q1: Is the 6ES7214-2BD23-0XB8 a direct replacement for the 6ES7214-2BD22-0XB8?
Yes. The -0XB8 suffix denotes the current production revision of the CPU 224 XP DC/DC/DC. It is hardware and software compatible with earlier -0XB0 and -0XB2 revisions. Existing programs compiled under STEP 7-Micro/WIN can be downloaded without modification. Verify the system block settings after download to confirm communication parameters are preserved.

Q2: What pre-shipment testing is performed on each unit?
Each 6ES7214-2BD23-0XB8 unit undergoes power-on self-test, digital I/O channel verification, analog I/O signal check, and RS-485 communication port handshake testing before dispatch. A functional test record is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: Can this CPU communicate with a PROFIBUS-DP network?
The 6ES7214-2BD23-0XB8 does not have native PROFIBUS-DP support. PROFIBUS-DP connectivity requires the addition of an EM 277 PROFIBUS-DP expansion module connected to the CPU’s expansion bus. The EM 277 supports DP slave operation and is compatible with this CPU when configured correctly in the master PLC’s hardware configuration.

Q4: Is stock available for immediate shipment?
Yes. KNMKS maintains inventory of the 6ES7214-2BD23-0XB8 for immediate dispatch to support urgent maintenance and unplanned downtime recovery. Contact [email protected] or call +86 18359268345 to confirm current stock levels and lead time for your region.
