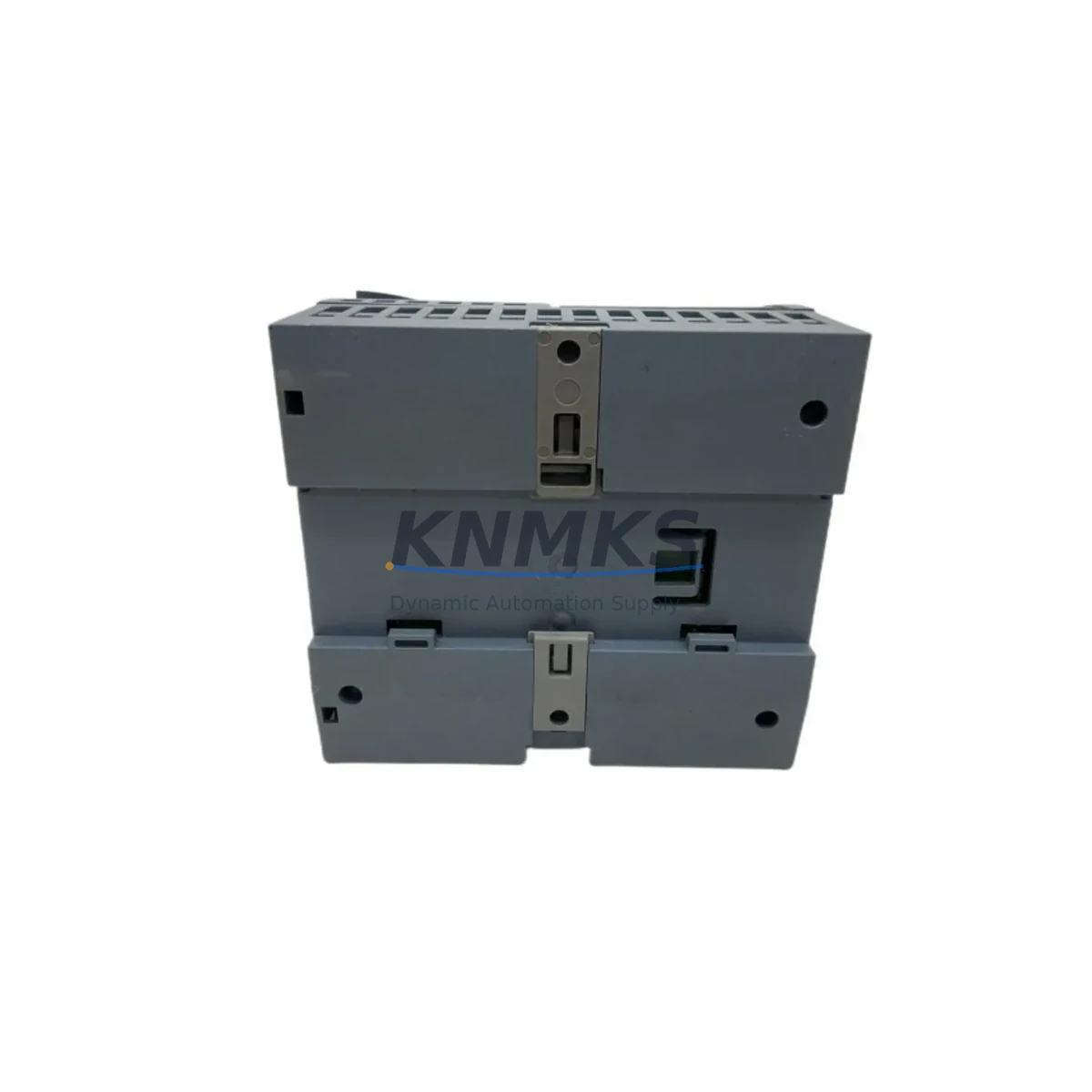

Siemens 6ES7214-1HG40-0XB0 Migration-Ready CPU for Legacy Systems

Overview

Siemens 6ES7214-1HG40-0XB0 Migration-Ready CPU for Legacy Control Systems

The Siemens 6ES7214-1HG40-0XB0 CPU 1214C DC/DC/DC is a high-performance programmable logic controller from the SIMATIC S7-1200 series, purpose-built to serve as a direct migration target for aging S7-200 and S7-300 control platforms. With 14 digital inputs, 10 digital outputs, 2 analog inputs, integrated PROFINET port, and onboard signal board expansion capability, this CPU delivers the processing power and I/O density required to sustain continuous production while legacy infrastructure is phased out. For industrial facilities managing end-of-life automation equipment, the 6ES7214-1HG40-0XB0 represents a validated, cost-effective upgrade path that minimizes engineering risk and reduces total downtime during cutover.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful migration from a legacy S7-200 or S7-300 platform to the 6ES7214-1HG40-0XB0 requires systematic pre-engineering across multiple subsystems. The first step is a full audit of the existing control cabinet: verify available DIN rail space (the CPU 1214C occupies 110 mm), confirm that the 24 VDC power supply — such as a SITOP PSU100S or equivalent — can deliver sufficient current for the new CPU plus all attached signal modules. If the legacy system used a 6ES7307-1BA01-0AA0 power supply module from the S7-300 rack, a standalone 24 VDC SITOP unit will be required for the S7-1200 installation.

Terminal wiring adaptation is a critical step. The S7-1200 uses removable screw-terminal connectors, and field wiring from the legacy system must be re-terminated to match the new I/O pinout. For applications requiring additional discrete I/O beyond the onboard 14 DI/10 DO, SM 1221 digital input modules and SM 1222 digital output modules can be added to the left expansion bus — up to 8 signal modules total. Where analog signals are involved, the SM 1231 analog input module or SM 1232 analog output module should be planned into the rack layout before installation begins.

Communication migration is equally important. If the legacy system communicated via MPI or PROFIBUS DP — common in S7-300 installations — the 6ES7214-1HG40-0XB0 natively supports PROFINET. For sites that must retain PROFIBUS DP connectivity to existing field devices or remote I/O stations, a CM 1243-5 PROFIBUS DP master communication module can be added to the CPU’s left expansion bus. For serial communication requirements (RS485 Modbus RTU to drives, meters, or barcode readers), a CB 1241 RS485 signal board can be installed in the CPU’s onboard signal board slot without consuming an SM slot.

HMI integration should be validated before cutover. Existing SIMATIC HMI panels — such as KTP700 Basic or TP1200 Comfort — communicate with the S7-1200 via PROFINET using S7 protocol, and tag addresses must be remapped in WinCC or TIA Portal HMI configuration to reflect the new CPU’s data block and I/O address structure. Where legacy HMI screens reference S7-200 V-memory or S7-300 DB structures, a full tag migration exercise is required.

Module addressing in TIA Portal must be configured to match the physical slot arrangement of the new rack. Unlike the S7-300’s fixed slot-based addressing, the S7-1200 uses a flexible I/O address assignment that must be explicitly defined in the hardware configuration. This step is often overlooked and can cause commissioning delays if not completed before the first program download.

Downtime Control During System Migration

Minimizing production downtime during a control system cutover requires a structured parallel-run strategy. Before decommissioning the legacy CPU, the replacement 6ES7214-1HG40-0XB0 should be fully configured, programmed, and bench-tested offline using TIA Portal simulation or a hardware test rig. The original ladder logic or function block diagram from the S7-200 (exported via STEP 7 Micro/WIN) or S7-300 (exported via STEP 7 Classic) must be converted and validated in TIA Portal before the cutover window opens.

During the cutover, the recommended sequence is: power down the legacy CPU, remove the old rack or CPU module, install the 6ES7214-1HG40-0XB0 on the DIN rail, re-terminate field wiring to the new terminal connectors, connect the PROFINET cable to the plant network switch, download the pre-validated program, and perform a controlled power-up with all outputs in safe state. The entire physical swap and initial power-up can typically be completed within 30–60 minutes for a well-prepared team.

To protect original program logic, always retain a backup copy of the legacy program in its native format before beginning any migration work. The converted TIA Portal project should be version-controlled and stored separately. If the plant operates 24/7, schedule the cutover during a planned maintenance window and coordinate with operations to ensure a safe process state before removing power from the legacy controller. Post-cutover, a 2–4 hour supervised run period is recommended to verify all I/O, interlocks, and communication links before returning the system to full production.

Retrofit Support FAQ

Q1: Is the 6ES7214-1HG40-0XB0 a direct drop-in replacement for the S7-200 CPU 226?
Not mechanically — the S7-1200 uses a different form factor and DIN rail footprint than the S7-200. However, it is the recommended functional replacement. The program must be converted using TIA Portal’s migration tools, and field wiring must be re-terminated to the new connector layout. I/O counts are compatible for most CPU 226 applications.

Q2: What firmware version should be loaded before commissioning?
We recommend updating to the latest V4.x firmware via TIA Portal before first use. Firmware updates are performed online through the PROFINET interface. Ensure TIA Portal version compatibility — V13 SP1 minimum, V16 or above recommended for full V4.x feature support.

Q3: Does each unit ship with pre-delivery testing?
Yes. Every 6ES7214-1HG40-0XB0 unit undergoes functional verification prior to shipment, including power-on test, I/O channel check, and communication port validation. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and do you maintain stock?
We maintain in-stock inventory of the 6ES7214-1HG40-0XB0 to support urgent retrofit and breakdown replacement requirements. Standard orders ship within 1–3 business days. For large-quantity or project-based procurement, contact our sales team for availability confirmation and project pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7214-1HG40-0XB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7214-1HG40-0XB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
