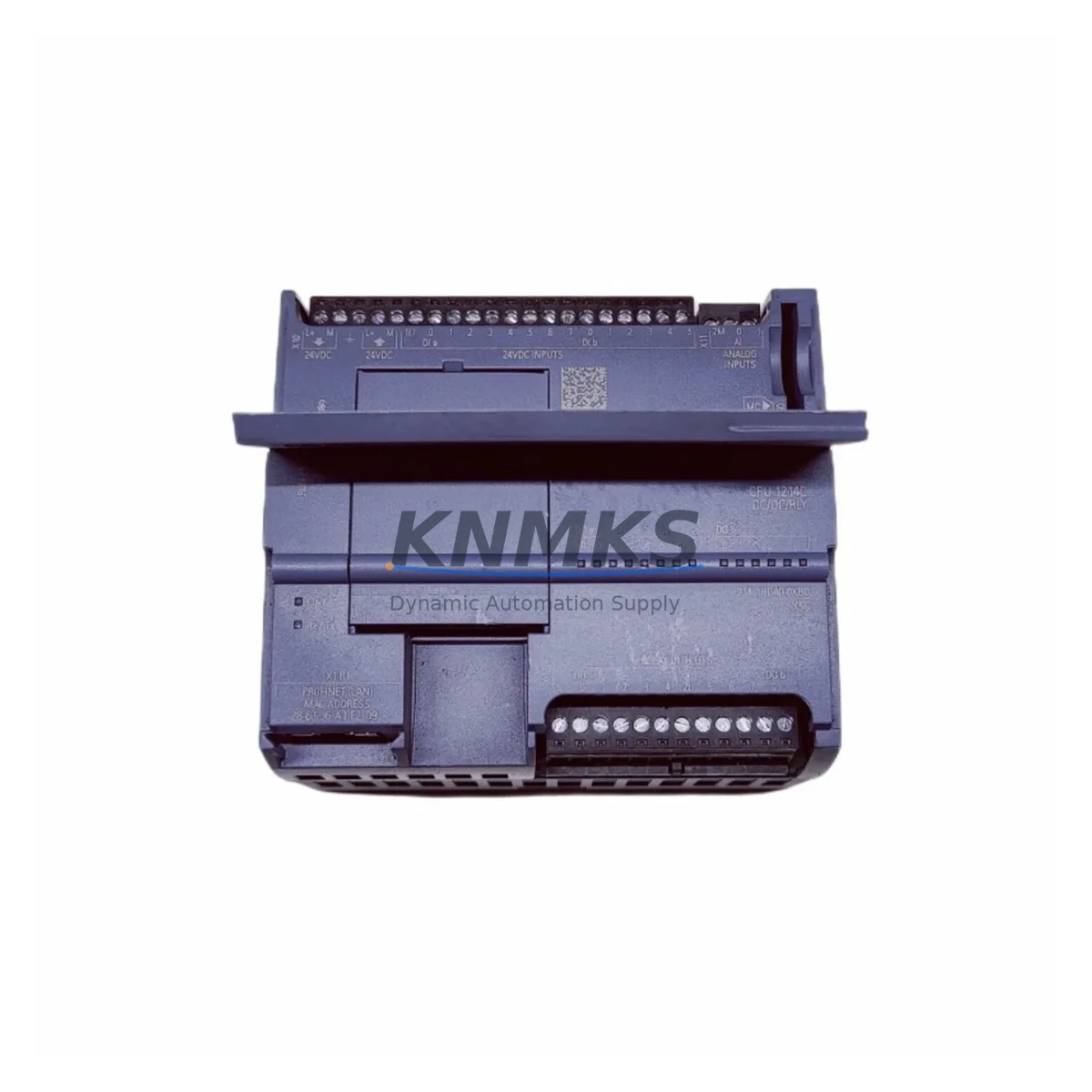

Siemens 6ES7214-1HG31-0XB0 Fail-Safe CPU S7-1200

Overview

Siemens 6ES7214-1HG31-0XB0 Fail-Safe CPU S7-1200: Uncompromising Control Reliability for Critical Industrial Sites

The Siemens 6ES7214-1HG31-0XB0 is a high-performance CPU 1214C DC/DC/DC module from the S7-1200 series, engineered for continuous, fail-safe operation in demanding industrial environments. Designed to meet the rigorous requirements of IEC 61131-3 and CE certification standards, this PLC CPU delivers deterministic scan-cycle execution, robust EMI immunity, and wide-range power tolerance — making it the backbone of reliable control architectures in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics systems, and continuous manufacturing processes.

Where control interruptions carry safety and financial consequences, the 6ES7214-1HG31-0XB0 provides the fault-tolerance and signal integrity that mission-critical applications demand. Its compact DIN-rail form factor integrates seamlessly into standard control cabinets, while its extended operating temperature range and vibration resistance ensure stable performance in high-temperature, high-humidity, and high-vibration field conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 6ES7214-1HG31-0XB0 CPU is most effective when deployed as part of a coordinated control cabinet architecture. In high-EMI environments such as variable-frequency drive (VFD) panels and heavy motor control centers, pairing this CPU with Siemens SIMATIC SM 1221 digital input signal modules ensures clean signal acquisition without cross-talk or noise-induced false triggers. For analog process variables — pressure, temperature, and flow — the SM 1231 analog input module extends the CPU’s sensing capability with 13-bit resolution and hardware filtering, reducing signal drift in thermally unstable cabinets.

Power supply integrity is foundational to fail-safe operation. The Siemens SITOP PSU100S 24 VDC stabilized power supply provides regulated, surge-protected DC power to the CPU and I/O bus, absorbing upstream voltage transients that would otherwise cause CPU resets or watchdog faults. In safety interlock circuits, the Siemens SIRIUS 3SK1 safety relay module works in tandem with the S7-1200 CPU to enforce hardwired emergency-stop and door-guard logic, providing a redundant safety layer independent of software execution.

For PROFINET-based distributed I/O architectures, the Siemens ET 200SP distributed I/O station extends the control reach of the 6ES7214-1HG31-0XB0 across large plant floors without sacrificing deterministic communication latency. In cabinet environments prone to overheating, supplementing the installation with Siemens SIMATIC IPC cabinet cooling units or third-party DIN-rail-mounted thermostat-controlled fans maintains the CPU within its rated thermal envelope, preventing thermal throttling and unplanned shutdowns.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 6ES7214-1HG31-0XB0 is deployed in burner management systems, compressor interlock panels, and emergency shutdown (ESD) pre-logic controllers where deterministic scan cycles and fail-safe output behavior are non-negotiable. Its CE and UL certifications satisfy plant safety audits, and its PROFINET port enables integration with SCADA and DCS supervisory layers.

Power Generation & Substation Automation: In coal-fired, gas turbine, and hydroelectric generation facilities, this CPU manages auxiliary control loops — cooling water pumps, lube oil systems, and generator excitation auxiliaries — where a single control fault can cascade into forced outage. Its wide DC supply tolerance (20.4–28.8 VDC) absorbs battery-backed UPS voltage fluctuations common in substation environments.

Mining & Mineral Processing: Underground and open-pit mining operations subject control hardware to extreme vibration, coal dust ingress, and wide temperature swings. The 6ES7214-1HG31-0XB0’s IEC 60068-2-6 vibration compliance and IP20 enclosure rating, when installed in sealed NEMA 4X or IP65 control enclosures, deliver reliable conveyor drive sequencing, crusher interlock control, and ventilation fan management.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on this CPU for pump station automation, chlorination dosing control, and SCADA-integrated remote monitoring. Its PROFINET connectivity supports integration with HMI panels such as the Siemens SIMATIC KTP700 Basic, enabling operators to monitor process variables and acknowledge alarms without entering hazardous chemical areas.

Metallurgy & Steel Mills: Rolling mill auxiliary drives, furnace temperature control loops, and ladle transfer car sequencing demand CPUs that maintain program execution integrity under intense electromagnetic interference from high-current bus bars and induction heating equipment. The S7-1200 CPU 1214C’s hardware-filtered digital inputs and shielded PROFINET port suppress common-mode noise that would corrupt I/O data in lesser controllers.

Port Logistics & Ship-to-Shore Cranes: Container crane PLC panels operating in marine environments face salt-air corrosion, high humidity, and shock loads from crane travel. The 6ES7214-1HG31-0XB0, housed in climate-controlled crane cab panels, manages hoist, trolley, and gantry motion sequencing with the scan-cycle consistency required for safe load handling.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7214-1HG31-0XB0?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and component-level faults identified under normal operating conditions within the module’s rated specifications. Support requests are processed with priority dispatch — replacement units are shipped within 3 business days of fault confirmation, minimizing production downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every 6ES7214-1HG31-0XB0 unit undergoes a multi-point outgoing quality inspection: power-on functional test, I/O channel verification across all 14 DI and 10 DO points, PROFINET communication handshake test, firmware version confirmation, and visual inspection for physical damage. Units are shipped in anti-static packaging with inspection records available on request.

Q3: Is this CPU compatible with existing S7-1200 expansion modules and TIA Portal projects?
Yes. The 6ES7214-1HG31-0XB0 is fully compatible with the Siemens SIMATIC S7-1200 signal board and signal module ecosystem, including SM 1221, SM 1222, SM 1223, SM 1231, and SM 1232 series modules. It is programmable via TIA Portal V13 SP1 and later versions, allowing direct migration of existing CPU 1214C projects without hardware redesign.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts planning?
Yes. We maintain dedicated safety stock of the 6ES7214-1HG31-0XB0 to support planned maintenance cycles, emergency replacements, and multi-unit project procurement. Orders are confirmed with lead-time commitments, and we support blanket purchase orders for customers requiring guaranteed annual supply volumes. Contact our technical sales team for spare parts planning consultation.
