Siemens 6ES7214-1BG40-0XB0 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6ES7214-1BG40-0XB0 Maintenance-Proven Spare Part for Factory Uptime

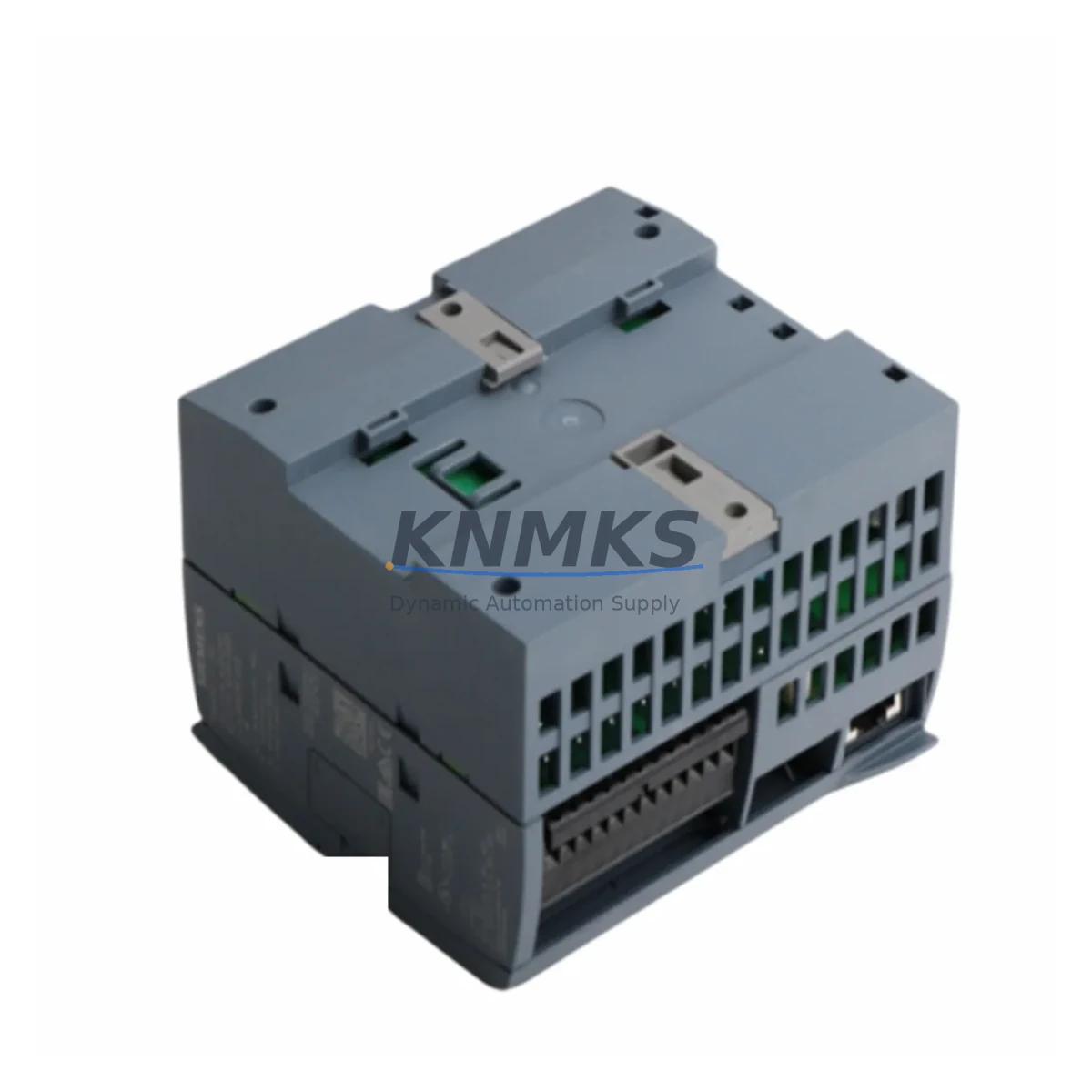

The Siemens 6ES7214-1BG40-0XB0 is a CPU 1214C DC/DC/DC module from the SIMATIC S7-1200 series — one of the most widely deployed compact PLCs in global industrial automation. Designed for discrete and process control applications, this CPU integrates onboard I/O, high-speed counters, and PROFINET communication in a compact DIN-rail form factor. For maintenance engineers managing aging or active S7-1200 installations, maintaining a verified spare of the 6ES7214-1BG40-0XB0 is a critical element of any uptime strategy.

Whether you are responding to an unplanned CPU fault, executing a scheduled annual overhaul, or building a resilient spare parts inventory for a multi-line facility, the 6ES7214-1BG40-0XB0 provides a direct, firmware-compatible replacement path. Each unit supplied through KNMKS undergoes pre-shipment functional verification and ships with a support terms confirmed by quotation, supporting both emergency procurement and long-term supply planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7214-1BG40-0XB0 CPU fault is identified during routine control cabinet inspection or triggered by a system alarm, the replacement scope should extend beyond the CPU itself. A thorough site assessment reduces the risk of repeat failures and ensures the restored system meets its original design specification.

Begin with the 24 V DC power supply feeding the CPU and I/O bus — units such as the Siemens SITOP PSU100S or equivalent 24 V regulated supplies should be load-tested and inspected for output ripple before the new CPU is commissioned. Verify that the 6ES7221-1BF32-0XB0 SM 1221 digital input module and any installed 6ES7222-1BF32-0XB0 SM 1222 digital output modules are free of wiring faults and that terminal blocks are torqued to specification.

For installations using analog process signals, inspect the 6ES7231-4HD32-0XB0 SM 1231 analog input module for correct shielding and grounding. Signal integrity issues at the analog layer are a common source of intermittent CPU faults that are misdiagnosed as CPU hardware failures. If a 6ES7241-1CH32-0XB0 CM 1241 RS485 communication module is installed for Modbus RTU or USS protocol communication, verify termination resistors and cable continuity before restoring the network.

Check the PROFINET network switch port connected to the CPU for link errors and replace patch cables if degradation is suspected. Where a KTP700 Basic or KTP900 Basic HMI panel is connected via PROFINET, confirm that the HMI project firmware version is compatible with the replacement CPU firmware to avoid communication faults on first power-up. Finally, inspect all 24 V DC fuse holders and miniature circuit breakers in the control cabinet — a blown fuse upstream of the CPU is frequently the root cause of apparent CPU failures and must be ruled out before the spare is installed.

Site Replacement Workflow

Step 1 — Isolation and backup: Place the machine in a safe state, isolate the control cabinet from mains power, and export the current PLC program from TIA Portal if a recent backup is not available. Note the CPU firmware version displayed in TIA Portal’s device properties before removal.

Step 2 — Physical replacement: Remove the faulty 6ES7214-1BG40-0XB0 by releasing the DIN rail latch and disconnecting the PROFINET cable, power connector, and I/O wiring connectors. Install the replacement CPU, reconnect all connectors in reverse order, and verify that the memory card (if used) is correctly seated.

Step 3 — Firmware and program restore: Power on the cabinet and connect TIA Portal. If the replacement CPU firmware differs from the original, update via TIA Portal’s firmware update function before downloading the project. Download the full project including hardware configuration to ensure I/O addressing and PROFINET device names are correctly assigned.

Step 4 — Functional verification: Execute a controlled I/O force test to confirm all onboard inputs and outputs respond correctly. Verify PROFINET communication with connected devices, check HSC and PTO configurations if motion control is involved, and confirm HMI connectivity before releasing the machine to production.

Step 5 — Documentation: Record the replacement date, new CPU serial number, firmware version, and any configuration changes in the site maintenance log. Update the spare parts inventory to trigger reorder of a replacement unit, maintaining minimum stock levels for critical production lines.

Spare Parts Support FAQ

Q1: Is the 6ES7214-1BG40-0XB0 a direct replacement for earlier S7-1200 CPU 1214C variants?
The 6ES7214-1BG40-0XB0 (firmware V4.x) is the current production variant of the CPU 1214C DC/DC/DC. It is hardware-compatible with the S7-1200 backplane and signal module ecosystem. When replacing an earlier firmware variant, a TIA Portal project update may be required to match the new CPU’s firmware version. KNMKS recommends confirming the installed TIA Portal version before procurement to ensure a smooth upgrade path.

Q2: What pre-shipment testing is performed on each unit?
Each 6ES7214-1BG40-0XB0 supplied by KNMKS undergoes a functional power-on test, onboard I/O verification, and PROFINET link check prior to dispatch. Units that do not pass verification are not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover hardware defects and functional failures under normal operating conditions as defined by Siemens’ published specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated environmental parameters. Support requests are processed directly through KNMKS with a target response time of 2 business days.

Q4: Can KNMKS support long-term supply agreements for this SKU?
Yes. KNMKS maintains ongoing sourcing relationships to support long-term supply commitments for the 6ES7214-1BG40-0XB0 and related S7-1200 components. For facilities managing multiple S7-1200 installations or planning multi-year maintenance contracts, framework supply agreements with defined lead times and pricing are available. Contact the KNMKS sales team to discuss volume and scheduling requirements.
