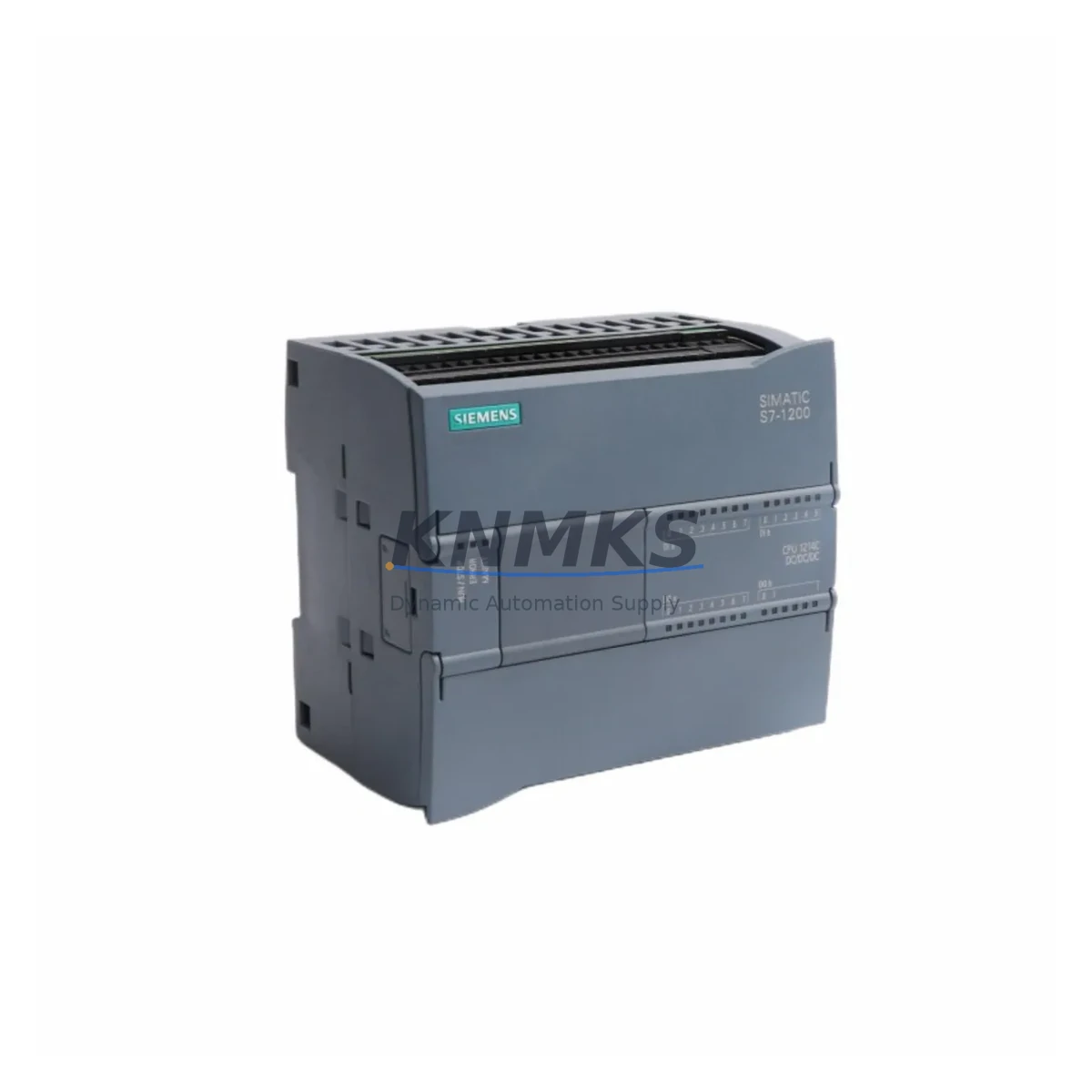

Siemens 6ES7214-1AG40-0XB0 Migration-Ready CPU

Overview

Siemens 6ES7214-1AG40-0XB0 Migration-Ready CPU: Legacy System Retrofit and Compatibility Upgrade

The Siemens 6ES7214-1AG40-0XB0 is a CPU 1214C DC/DC/DC module from the SIMATIC S7-1200 series, designed for compact automation tasks in manufacturing, process control, and building automation. As legacy S7-200 and early S7-1200 installations approach end-of-life, the 6ES7214-1AG40-0XB0 has become a primary migration target for engineers managing control cabinet upgrades, I/O expansion, and communication protocol transitions. This unit ships pre-tested and is backed by a support terms confirmed by quotation, making it a reliable choice for both emergency spare part replacement and planned system modernization.

When replacing a discontinued CPU — such as an older 6ES7214-1BD23-0XB0 or 6ES7214-1AE30-0XB0 — engineers must verify several critical parameters before commissioning. Power supply capacity is the first checkpoint: the 6ES7214-1AG40-0XB0 draws 24 VDC and requires a stable supply capable of supporting the CPU load plus any connected signal modules. If the existing cabinet uses a legacy SITOP PSU100S or similar 24 V rail, verify that the total current budget accommodates the new CPU alongside any SM 1221, SM 1222, or SM 1231 signal expansion modules already installed on the rail.

Terminal wiring compatibility is the next concern. The 6ES7214-1AG40-0XB0 uses a standard 40-pin front connector layout consistent with the S7-1200 V4.x generation. If migrating from an earlier V2 or V3 CPU, the physical connector pinout is retained, but engineers should cross-reference the I/O address mapping in the TIA Portal project to confirm that digital input and output byte assignments have not shifted. Any remapping required should be documented before the cutover window begins.

Backplane interface and module addressing are equally important. The 6ES7214-1AG40-0XB0 supports up to three signal board slots and eight signal module slots on the right-side expansion rail. If the existing rack includes a CM 1241 RS485 communication module or a CM 1243-5 PROFIBUS DP master, these modules retain their slot addresses after CPU replacement, provided the TIA Portal hardware configuration is updated to reflect the new CPU firmware version. Firmware compatibility between the CPU and any installed communication modules should be confirmed in the TIA Portal device catalog before download.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window. When planning a control cabinet upgrade around the 6ES7214-1AG40-0XB0, the engineering team should audit the full module inventory currently installed. In a typical S7-1200 cabinet, this includes the CPU itself, one or more SM 1221 digital input modules, SM 1222 digital output modules, and potentially an SM 1231 analog input module for process signal acquisition. If the legacy system uses a CP 1242-7 GPRS communication processor for remote monitoring, verify that the new CPU firmware supports the existing CP module version before scheduling the cutover.

HMI panel compatibility is another area that requires advance planning. If the control system drives a SIMATIC KTP700 Basic or KTP900 Basic panel via PROFINET, the HMI project in TIA Portal must be re-compiled against the updated CPU hardware configuration. Screen tag bindings, alarm definitions, and recipe data blocks should be validated in simulation mode before the live download to avoid unexpected runtime errors during commissioning.

For systems that include a CM 1241 RS232 or CM 1241 RS485 serial communication module — commonly used for Modbus RTU links to drives, meters, or third-party controllers — the communication parameters (baud rate, parity, stop bits, and Modbus station address) must be preserved in the new CPU program. If the original program was developed under an earlier TIA Portal version, a project migration step is required, and the engineer should confirm that all FB and FC block interfaces remain consistent after migration.

Installation space confirmation is often overlooked. The 6ES7214-1AG40-0XB0 shares the same DIN rail footprint as its predecessors, but if the cabinet was originally designed around an S7-200 CPU226 or a third-party compact PLC, the mounting depth and terminal clearance must be re-measured. A minimum of 25 mm clearance above and below the module is recommended for adequate ventilation and cable routing.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU replacement requires a structured cutover plan. The recommended approach is to export the full TIA Portal project from the existing CPU before removal, verify the program backup against the as-built documentation, and perform a dry-run download to a bench-tested unit — such as the 6ES7214-1AG40-0XB0 supplied by KNMKS — before the live cutover begins.

During the physical swap, label all field wiring at the terminal block level before disconnection. The 6ES7214-1AG40-0XB0 uses the same terminal connector style as the V3 and V4 generation S7-1200 CPUs, so the existing wiring harness can typically be transferred directly. After reconnection, perform a forced I/O test on all digital inputs and outputs before enabling automatic mode to confirm that field devices respond correctly to CPU commands.

To protect original program logic, always retain a copy of the last known-good project file on a local engineering laptop and on a network backup location. If the system uses a SIMATIC Memory Card (6ES7954-8LF03-0AA0 or equivalent) for program storage, clone the card before the cutover and keep the original as a fallback. This ensures that if the new CPU encounters a firmware incompatibility or a hardware fault during commissioning, the original program can be restored to a replacement unit within minutes rather than hours.

Communication link continuity is critical in networked installations. If the 6ES7214-1AG40-0XB0 is part of a PROFINET ring or a star topology with a managed switch, confirm that the CPU’s IP address, device name, and subnet mask are pre-configured in the TIA Portal project before download. This prevents the PROFINET controller from losing its I/O device assignments during the restart sequence and eliminates the need for manual re-addressing on the plant floor.

Retrofit Support FAQ

Q1: Is the 6ES7214-1AG40-0XB0 a direct replacement for the 6ES7214-1AE30-0XB0?
Yes, the 6ES7214-1AG40-0XB0 (V4.x firmware) is the current production successor to the 6ES7214-1AE30-0XB0 (V3.x). The physical form factor, terminal connector, and I/O count are identical. A TIA Portal project migration from V3 to V4 hardware is required, and all function block interfaces should be validated after migration. No wiring changes are needed in most standard installations.

Q2: What pre-shipment testing is performed on units supplied by KNMKS?
Every 6ES7214-1AG40-0XB0 unit shipped by KNMKS undergoes a functional power-on test to verify CPU boot, LED status, and basic I/O response before dispatch. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Test records are available upon request for quality-critical procurement.

Q3: Can the existing SM 1221 and SM 1222 signal modules be reused after CPU replacement?
Yes. Signal modules from the S7-1200 SM 1200 family are fully compatible with the 6ES7214-1AG40-0XB0. Module slot assignments and I/O addresses are preserved provided the TIA Portal hardware configuration is updated to reflect the new CPU. No firmware update is required on the signal modules themselves unless the TIA Portal project targets a firmware version higher than what is currently installed on the SMs.

Q4: What is the lead time and stock availability for the 6ES7214-1AG40-0XB0?
KNMKS maintains stock of the 6ES7214-1AG40-0XB0 for immediate dispatch. For volume procurement or long-term supply agreements (12–36 months), contact the sales team directly to discuss reserved inventory arrangements. All units are sourced from verified supply channels and are covered by the standard support terms confirmed by quotation from the date of shipment.
