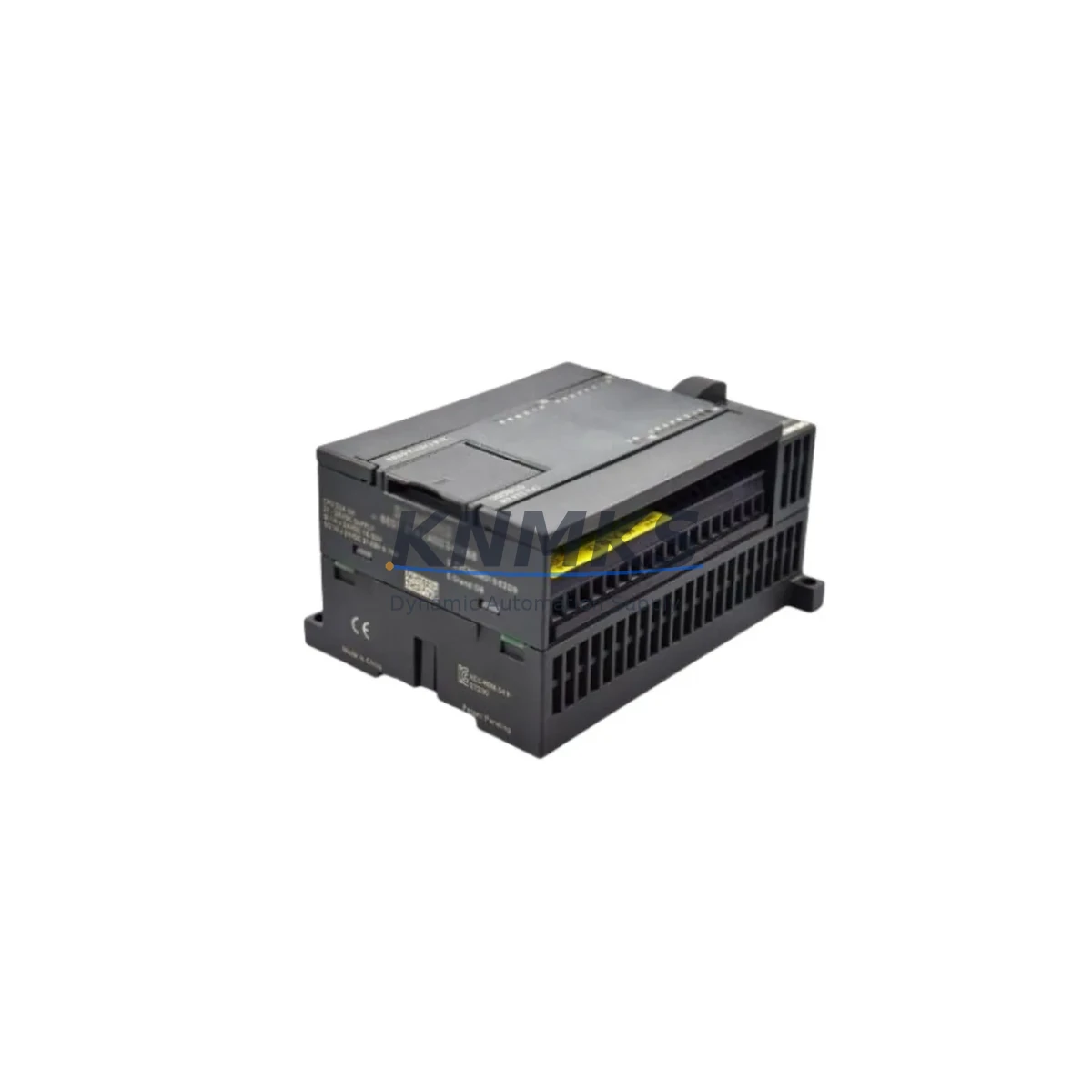

Siemens 6ES7214-1AD23-0XB8 Fail-Safe CPU for Industrial Control

Overview

Siemens 6ES7214-1AD23-0XB8 Fail-Safe CPU for Industrial Control Reliability

The Siemens 6ES7214-1AD23-0XB8 is a CPU SR40 module from the S7-200 SMART series, engineered to deliver fail-safe, uninterrupted control in the most demanding industrial environments. Designed for continuous production lines, critical interlock circuits, and heavy-duty control cabinets, this CPU module addresses the full spectrum of field-level hazards — from high electromagnetic interference and power surges to dust ingress, humidity, elevated temperatures, and mechanical vibration. Its robust architecture ensures that control loops remain stable and responsive even when surrounding conditions deteriorate, dramatically reducing the risk of unplanned shutdowns, signal drift, and spurious trip events.

In industries where a single control interruption can cascade into safety incidents or costly production losses, the 6ES7214-1AD23-0XB8 provides the processing reliability and I/O integrity that plant engineers depend on. With 24 digital inputs and 16 relay outputs integrated into a compact DIN-rail form factor, this CPU SR40 eliminates the need for additional expansion in many standard machine configurations, reducing cabinet wiring complexity and potential failure points. Its onboard Ethernet port supports PROFINET-compatible communication, enabling seamless integration into modern distributed control architectures without sacrificing the deterministic scan cycle performance required for safety-critical sequences.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7214-1AD23-0XB8 as the central processing unit in a control cabinet demands a coordinated protection strategy across all cabinet subsystems. For stable 24 VDC auxiliary power, the Siemens SITOP PSU100S 6EP1334-2BA20 power supply module provides regulated, short-circuit-protected DC output that prevents voltage sag from propagating into the CPU’s logic circuits during motor starts or contactor switching events. On the communication backbone, the Siemens SCALANCE X005 unmanaged Ethernet switch ensures that PROFINET traffic between the CPU SR40 and remote I/O panels remains latency-stable even under high cabinet temperatures.

For signal conditioning and isolation, the Siemens S7-200 SMART EM AM06 analog expansion module — when paired with the 6ES7214-1AD23-0XB8 — provides galvanically isolated analog input channels that suppress common-mode noise from variable frequency drives and high-current bus bars running in adjacent cabinet sections. Where relay output longevity is a concern in high-cycle interlock applications, supplementing the CPU’s onboard relay outputs with a Siemens S7-200 SMART EM DR16 digital relay expansion module distributes switching load and extends overall cabinet service life. Additionally, installing a Phoenix Contact TRABTECH surge protection device on incoming 24 VDC lines shields the CPU and its connected I/O from transient overvoltages caused by nearby lightning strikes or large inductive load switching — a critical safeguard in outdoor substations and port crane control panels. For cabinet thermal management, a Rittal SK 3105 thermostat-controlled fan unit maintains internal air circulation within the CPU’s rated operating range, preventing thermal throttling or premature component aging in high-ambient-temperature installations.

Critical Industrial Safety Applications

The Siemens 6ES7214-1AD23-0XB8 CPU SR40 has established a strong operational record across high-consequence industrial sectors where control system failure is not an option. In petrochemical and refinery facilities, it manages burner management sequences and emergency shutdown interlock logic, where its deterministic scan cycle and relay output reliability prevent hazardous process deviations. In electric power generation and substation automation, the CPU SR40 handles transformer protection relay coordination and auxiliary equipment sequencing, benefiting from its wide AC power input range that tolerates grid voltage fluctuations common in utility environments.

In underground mining operations, the 6ES7214-1AD23-0XB8 controls conveyor belt safety interlocks and ventilation fan sequencing in environments characterized by coal dust, high humidity, and vibration — conditions that its sealed housing and EMC-hardened design are specifically rated to withstand. Water and wastewater treatment plants rely on this CPU for pump station automation and dosing control, where continuous 24/7 operation and resistance to chemical vapor ingress are non-negotiable. In metallurgical and steel mill applications, it manages rolling mill drive interlocks and cooling water control loops, where high electromagnetic interference from large AC drives demands the CPU’s robust noise immunity. Port and marine terminal crane control systems deploy the CPU SR40 for hoist and travel motion sequencing, where its compact form factor and DIN-rail mounting simplify integration into space-constrained shipboard or quayside control panels. Across all these sectors, the 6ES7214-1AD23-0XB8 delivers the scan-cycle consistency and I/O reliability that safety engineers specify for critical machine control.

Safety and Quality FAQ

Q1: What support terms coverage does KNMKS provide for the Siemens 6ES7214-1AD23-0XB8?
Every unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers functional defects under normal operating conditions. Each module undergoes pre-shipment functional testing — including power-on verification, I/O channel checks, and communication port validation — before dispatch, ensuring that the unit arrives in confirmed working condition.

Q2: How is compatibility with existing S7-200 SMART systems verified before shipment?
The 6ES7214-1AD23-0XB8 is fully compatible with the S7-200 SMART programming environment (STEP 7-Micro/WIN SMART) and all standard S7-200 SMART expansion modules. KNMKS technical staff cross-reference the customer’s existing hardware configuration against Siemens compatibility matrices prior to shipment. For retrofit or replacement scenarios, customers are encouraged to provide their existing CPU firmware version and expansion module list to confirm seamless drop-in compatibility.

Q3: Can KNMKS support long-term or scheduled spare parts supply for this CPU module?
Yes. KNMKS maintains standing inventory of the 6ES7214-1AD23-0XB8 and can support scheduled supply agreements ranging from 12 to 36 months, with agreed delivery windows aligned to planned maintenance shutdowns or annual MRO procurement cycles. This is particularly valuable for multi-site operators in mining, power, and process industries who require guaranteed spare parts availability to meet their plant reliability KPIs.

Q4: What should be checked when replacing a failed CPU SR40 in a live control cabinet?
Before replacing the 6ES7214-1AD23-0XB8 in a live cabinet, isolate the CPU power supply and verify that all connected field devices are in a safe state. Back up the existing program from the failed CPU if possible using STEP 7-Micro/WIN SMART’s memory card or PC upload function. After installing the replacement unit, verify firmware version compatibility, restore the program, and perform a full I/O channel test before returning the system to automatic mode. KNMKS can provide remote technical guidance during the replacement process upon request.
