Siemens 6ES7195-7HD10-0XA0 Fail-Safe Bus Module ET 200M

Overview

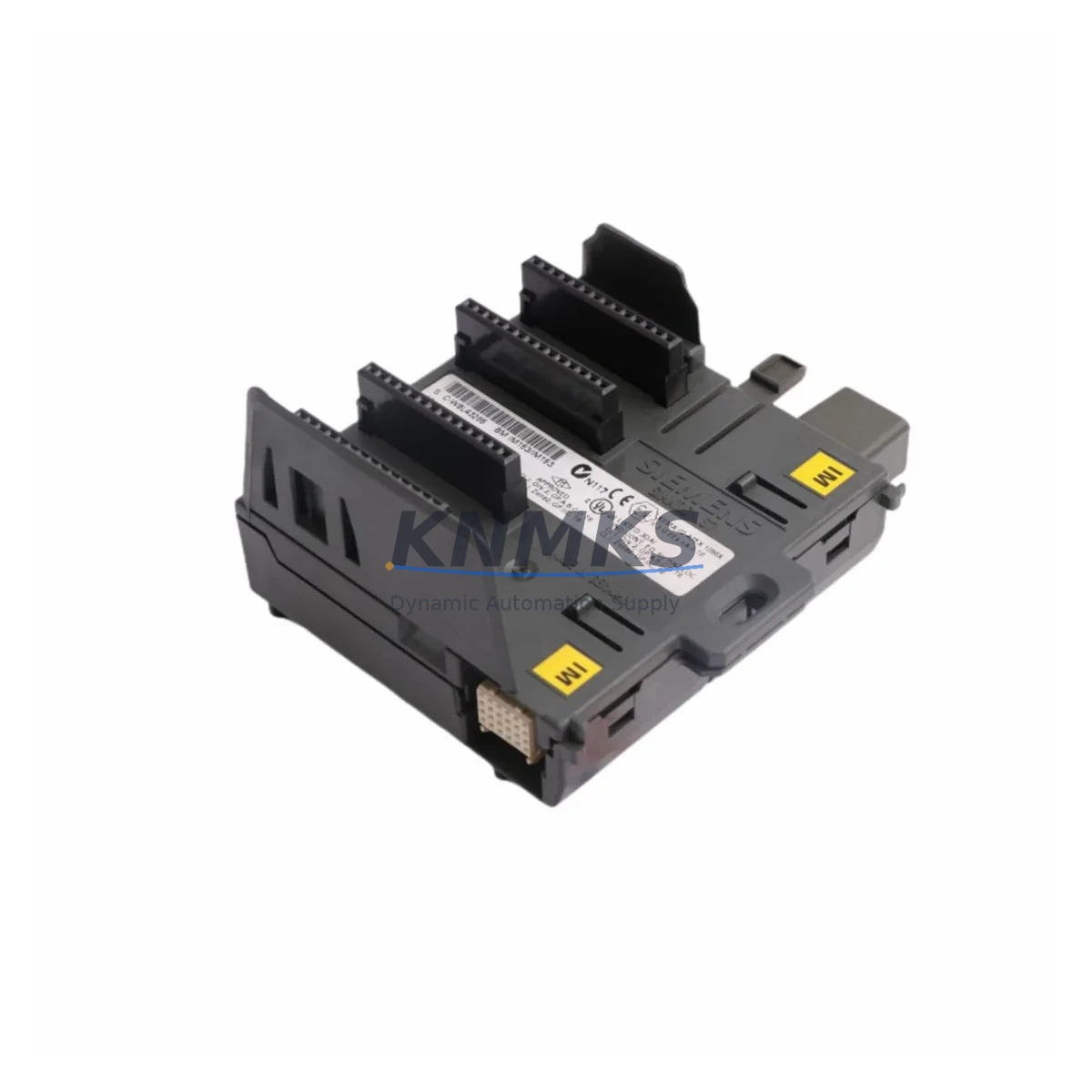

Siemens 6ES7195-7HD10-0XA0 Fail-Safe Bus Module ET 200M: Fault-Protected Control for Critical Industrial Sites

The Siemens 6ES7195-7HD10-0XA0 is a fail-safe PROFIBUS DP bus module engineered for the ET 200M distributed I/O station, purpose-built to sustain uninterrupted control integrity in the most demanding industrial environments. Where continuous production, critical safety interlocks, and high-availability automation are non-negotiable, this module delivers the structural reliability that field engineers and plant safety managers depend on.

Designed to operate within Siemens SIMATIC S7-300 and S7-400 safety architectures, the 6ES7195-7HD10-0XA0 provides the bus backbone that connects fail-safe I/O modules — including F-DI and F-DO signal modules — to the PROFIBUS DP network. Its role is foundational: without a stable, surge-protected bus interface, even the most sophisticated safety PLC cannot guarantee deterministic signal transmission. This module eliminates that vulnerability.

In heavy-load control cabinets operating under high electromagnetic interference — common in arc furnace facilities, variable frequency drive environments, and high-voltage switchgear rooms — the 6ES7195-7HD10-0XA0 maintains signal fidelity across the PROFIBUS segment. Its shielded bus connector architecture and robust PCB design suppress transient noise, preventing the signal drift and spurious trip conditions that cause unplanned shutdowns and false safety activations.

For sites where dust ingress, condensation, and thermal cycling are daily realities — including cement plants, mining headframes, port crane control rooms, and offshore processing platforms — this module’s industrial-grade construction ensures long-term mechanical and electrical stability. When paired with the Siemens IM 153-2 interface module and F-CPU safety controllers such as the CPU 315F-2 PN/DP or CPU 317F-2 DP, the 6ES7195-7HD10-0XA0 forms a complete, certified fail-safe I/O backbone capable of meeting SIL 2 and SIL 3 application requirements.

Surge protection within the bus segment is further reinforced when the control cabinet integrates coordinated power supply filtering — for example, using the Siemens SITOP PSU100S 24 V DC power supply alongside surge arresters on the PROFIBUS cable entry points. This layered approach prevents voltage spikes from propagating into the bus module and corrupting safety-critical communication frames. Similarly, the use of Siemens ET 200M active bus modules in redundant configurations ensures that a single bus segment fault does not cascade into a full station dropout.

In petrochemical and water treatment facilities where safety instrumented systems (SIS) govern emergency shutdown (ESD) sequences, the 6ES7195-7HD10-0XA0 supports the deterministic response times required by IEC 61511 functional safety standards. Its compatibility with Siemens F-SM signal modules — including the SM 326 F-DI 24×24VDC and SM 326 F-DO 10×24VDC/2A — allows plant engineers to build modular, scalable safety I/O racks without compromising bus integrity or safety certification.

Every unit supplied by KNMKS undergoes pre-shipment functional testing, including bus communication verification and insulation resistance checks, before dispatch. Stock is maintained in our global warehouse network to support rapid replacement in breakdown scenarios, minimizing mean time to repair (MTTR) for critical safety loops. All units are covered by a support terms confirmed by quotation from the date of shipment.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust ET 200M safety rack built around the 6ES7195-7HD10-0XA0 bus module requires a coordinated selection of complementary components to achieve full cabinet-level fault protection. The Siemens IM 153-2 DP interface module serves as the primary PROFIBUS master connection point, and its redundant variant supports hot-standby configurations in high-availability plants. Fail-safe signal modules — particularly the SM 326 F-DI 24×24VDC for digital input acquisition and the SM 326 F-DO 10×24VDC/2A for actuator control — connect directly through the bus module’s backplane, ensuring that all safety-relevant I/O data is transmitted with the diagnostic coverage required by functional safety standards.

Power integrity is maintained through the Siemens SITOP PSU100S 24 V DC regulated power supply, which provides stable bus voltage even under load transients caused by simultaneous actuator switching. For cabinet thermal management in high-ambient-temperature installations, the Siemens SIMATIC S7 fan/filter units prevent the thermal accumulation that degrades bus module PCB longevity. On the communication side, PROFIBUS DP repeaters extend segment reach in large plant layouts, maintaining signal quality across long cable runs without introducing latency that could affect safety response times. Together, these components form a layered protection architecture that addresses power, signal, thermal, and communication failure modes simultaneously.

Critical Industrial Safety Applications

The 6ES7195-7HD10-0XA0 is deployed across a broad spectrum of safety-critical industries where control interruption carries severe operational and safety consequences. In petrochemical refineries and LNG terminals, it supports emergency shutdown (ESD) and fire-and-gas (F&G) interlock systems where SIL 2 response integrity is mandated by process safety management regulations. In electric power generation and grid substation automation, it provides the fail-safe I/O backbone for turbine protection and transformer differential relay interfaces.

In underground and open-cut mining operations, the module sustains conveyor interlock, ventilation control, and winder safety systems in environments characterized by vibration, dust, and wide temperature swings. Water and wastewater treatment facilities rely on it for pump station safety interlocks and chemical dosing control loops where a spurious trip or missed shutdown signal can result in environmental non-compliance. In metallurgical plants — including steel rolling mills and aluminum smelters — it maintains the high-current drive interlock chains that protect both personnel and capital equipment from runaway conditions. Port and marine terminal automation systems use it to coordinate crane anti-collision, load monitoring, and emergency stop circuits across distributed control cabinets exposed to salt-laden, high-humidity air.

Safety and Quality FAQ

Q: What support terms coverage applies to the 6ES7195-7HD10-0XA0?
A: All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Support terms replacement or repair is supported with priority dispatch to minimize site downtime.

Q: What pre-shipment testing is performed before dispatch?
A: Each 6ES7195-7HD10-0XA0 unit undergoes functional bus communication verification and insulation resistance testing prior to shipment. Units that do not meet specification thresholds are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q: Is the 6ES7195-7HD10-0XA0 compatible with both S7-300F and S7-400F safety controllers?
A: Yes. The module is designed for the ET 200M station, which is compatible with SIMATIC S7-300F and S7-400F fail-safe CPUs via PROFIBUS DP. It supports standard and fail-safe I/O module combinations within the same rack, subject to Siemens configuration rules for mixed F and standard modules.

Q: Can long-term supply and scheduled restocking be arranged for this part?
A: Yes. KNMKS supports long-term supply agreements and buffer stock programs for high-demand safety-critical parts including the 6ES7195-7HD10-0XA0. Contact our sales team to discuss forward stock arrangements, scheduled delivery programs, and volume pricing for maintenance and capital spares planning.
