Siemens 6ES7195-7HB00-0XA0 Spare Part for ET 200M Uptime

Overview

Siemens 6ES7195-7HB00-0XA0 Spare Part for ET 200M Uptime

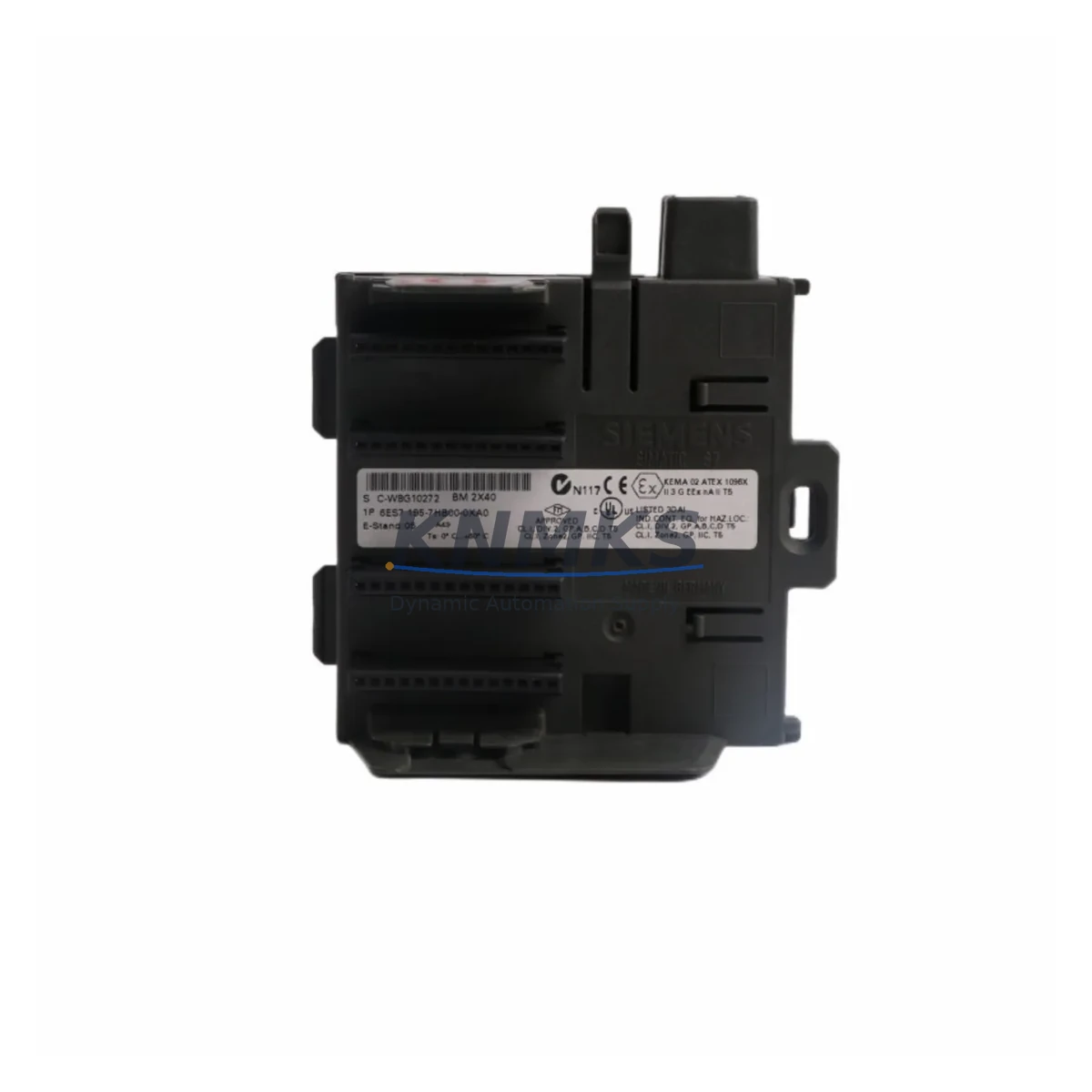

The Siemens 6ES7195-7HB00-0XA0 is an original backplane bus module designed for the SIMATIC ET 200M distributed I/O station. As a core structural and electrical component of the ET 200M rack assembly, this module provides the mechanical mounting interface and internal bus connectivity that links I/O modules to the IM 153 interface module. In high-availability production environments — from automotive assembly lines to chemical process plants — maintaining a verified spare of the 6ES7195-7HB00-0XA0 is a fundamental element of any serious maintenance strategy. A failed or damaged backplane bus module can take an entire ET 200M station offline, halting production until a replacement is sourced and installed. Stocking this part eliminates that risk.

At KNMKS, every 6ES7195-7HB00-0XA0 unit is sourced from authorized supply chains, individually inspected, and tested prior to dispatch. We support maintenance engineers and procurement teams with verified original Siemens spare parts, fast international shipping, and a support terms confirmed by quotation on all components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault in an ET 200M station, the backplane bus module is often overlooked in favor of the more visible I/O modules or the IM 153 interface module. However, physical damage to the 6ES7195-7HB00-0XA0 — caused by vibration, thermal cycling, or improper module insertion — can produce intermittent bus errors that are difficult to diagnose and catastrophic when they escalate to a full station fault.

A structured maintenance plan for any ET 200M installation should include the following checks whenever the 6ES7195-7HB00-0XA0 is inspected or replaced:

IM 153 Interface Module: The Siemens IM 153-2 or IM 153-4 is the communication gateway between the ET 200M station and the PROFIBUS DP or PROFINET network. If the backplane bus module shows signs of wear or damage, the IM 153 connector pins and bus termination should be inspected simultaneously, as mechanical stress on the rack often affects both components.

SM 321 / SM 322 Digital I/O Modules: Digital input modules (SM 321) and digital output modules (SM 322) seat directly onto the backplane bus. After replacing the 6ES7195-7HB00-0XA0, verify that all I/O modules are fully seated and that their front connectors are correctly wired. A loose module can cause sporadic channel faults that mimic field wiring problems.

SM 331 / SM 332 Analog I/O Modules: Analog signal modules are particularly sensitive to grounding and shielding integrity. When servicing the backplane, inspect the shielding clamps and verify that analog signal cables are properly terminated. Noise introduced through a poorly seated analog module can corrupt process values across the entire station.

Power Supply Module (PS 307): The ET 200M station draws its 24 VDC supply from a dedicated power supply, typically a Siemens PS 307. During any backplane service, verify the supply voltage at the rack terminals and check for signs of overload or thermal stress on the PS 307. An undersized or aging power supply is a common root cause of intermittent ET 200M faults.

PROFIBUS DP Connector and Termination Resistor: If the ET 200M station is connected via PROFIBUS DP, inspect the bus connector on the IM 153 for pin damage and verify that the termination resistor is correctly set on the last station in the segment. A missing or incorrect termination is a frequent cause of communication errors that are incorrectly attributed to hardware faults.

Rack Mounting Hardware and DIN Rail: The mechanical integrity of the DIN rail and rack mounting screws directly affects the long-term reliability of the backplane bus connection. During annual maintenance, verify that all mounting screws are torqued to specification and that the DIN rail shows no signs of corrosion or deformation.

Procurement engineers should note that the 6ES7195-7HB00-0XA0 is a long-lifecycle Siemens component, but availability from standard distribution channels can be inconsistent for older ET 200M installations. Maintaining a minimum stock of one spare unit per ET 200M station — particularly in facilities with multiple distributed I/O racks — is a low-cost insurance policy against extended downtime.

Site Replacement Workflow

Replacing the 6ES7195-7HB00-0XA0 in a live ET 200M installation requires careful preparation to minimize downtime and avoid configuration errors. The following workflow is recommended for maintenance engineers performing an on-site replacement:

Step 1 — Pre-replacement preparation: Before removing any modules from the rack, document the current slot assignments of all I/O modules using STEP 7 or TIA Portal. Export the hardware configuration and save it to a local backup. Verify that a replacement 6ES7195-7HB00-0XA0 is on hand and has been visually inspected for shipping damage.

Step 2 — Safe station shutdown: Place the ET 200M station in a safe state by switching the IM 153 to STOP mode via the CPU or engineering station. Confirm that all outputs are de-energized and that field devices are in a safe condition before proceeding. Isolate the 24 VDC supply to the rack.

Step 3 — Module removal: Remove all I/O modules from the rack in sequence, labeling each module with its slot number. Disconnect the IM 153 PROFIBUS or PROFINET connector. Remove the IM 153 and any power supply modules. The backplane bus module can then be unclipped from the DIN rail and removed.

Step 4 — Replacement and reassembly: Mount the new 6ES7195-7HB00-0XA0 onto the DIN rail and verify that it is fully engaged. Reinstall the IM 153, power supply, and all I/O modules in their original slot positions. Reconnect all front connectors and the PROFIBUS/PROFINET cable.

Step 5 — Commissioning and verification: Restore the 24 VDC supply and power up the station. Use STEP 7 or TIA Portal to perform a hardware comparison and verify that the station configuration matches the saved backup. Check the diagnostic buffer for any residual faults and confirm that all I/O channels are operating correctly before returning the station to automatic mode.

This workflow is compatible with all ET 200M configurations using the 6ES7195-7HB00-0XA0 backplane bus module and is applicable to both PROFIBUS DP and PROFINET variants of the IM 153 interface module.

Spare Parts Support FAQ

Q: Is the 6ES7195-7HB00-0XA0 compatible with all ET 200M rack configurations?
A: Yes. The 6ES7195-7HB00-0XA0 is the standard backplane bus module for the SIMATIC ET 200M distributed I/O station and is compatible with all IM 153 interface module variants, including IM 153-1, IM 153-2, and IM 153-4. It supports the full range of SM 300-series I/O modules used in ET 200M installations.

Q: How is each unit tested before shipment?
A: Every 6ES7195-7HB00-0XA0 supplied by KNMKS undergoes a pre-shipment functional inspection that includes visual examination for physical damage, connector pin integrity check, and verification of bus contact condition. Units that do not meet our quality standard are not dispatched. All shipments include a support terms confirmed by quotation from the date of delivery.

Q: Can KNMKS support long-term supply for facilities with multiple ET 200M stations?
A: Yes. KNMKS maintains ongoing stock of the 6ES7195-7HB00-0XA0 and can support scheduled procurement programs for facilities requiring regular replenishment of spare parts inventories. Contact our sales team at [email protected] to discuss volume pricing, lead time commitments, and consignment stock arrangements.

Q: What should I do if the replacement module does not resolve the ET 200M station fault?
A: If replacing the 6ES7195-7HB00-0XA0 does not restore normal station operation, the fault is likely located in an adjacent component. The most common secondary fault sources are the IM 153 interface module (check for PROFIBUS/PROFINET communication errors), the PS 307 power supply (verify output voltage under load), or a damaged I/O module (check individual channel diagnostics in STEP 7 or TIA Portal). KNMKS can supply replacement units for all of these components. Contact [email protected] for availability.
