Siemens 6ES7195-1GG30-0XA0 Fail-Safe Bus Module Rail

Overview

Siemens 6ES7195-1GG30-0XA0 Fail-Safe Bus Module Rail: Critical Industrial Control Reliability

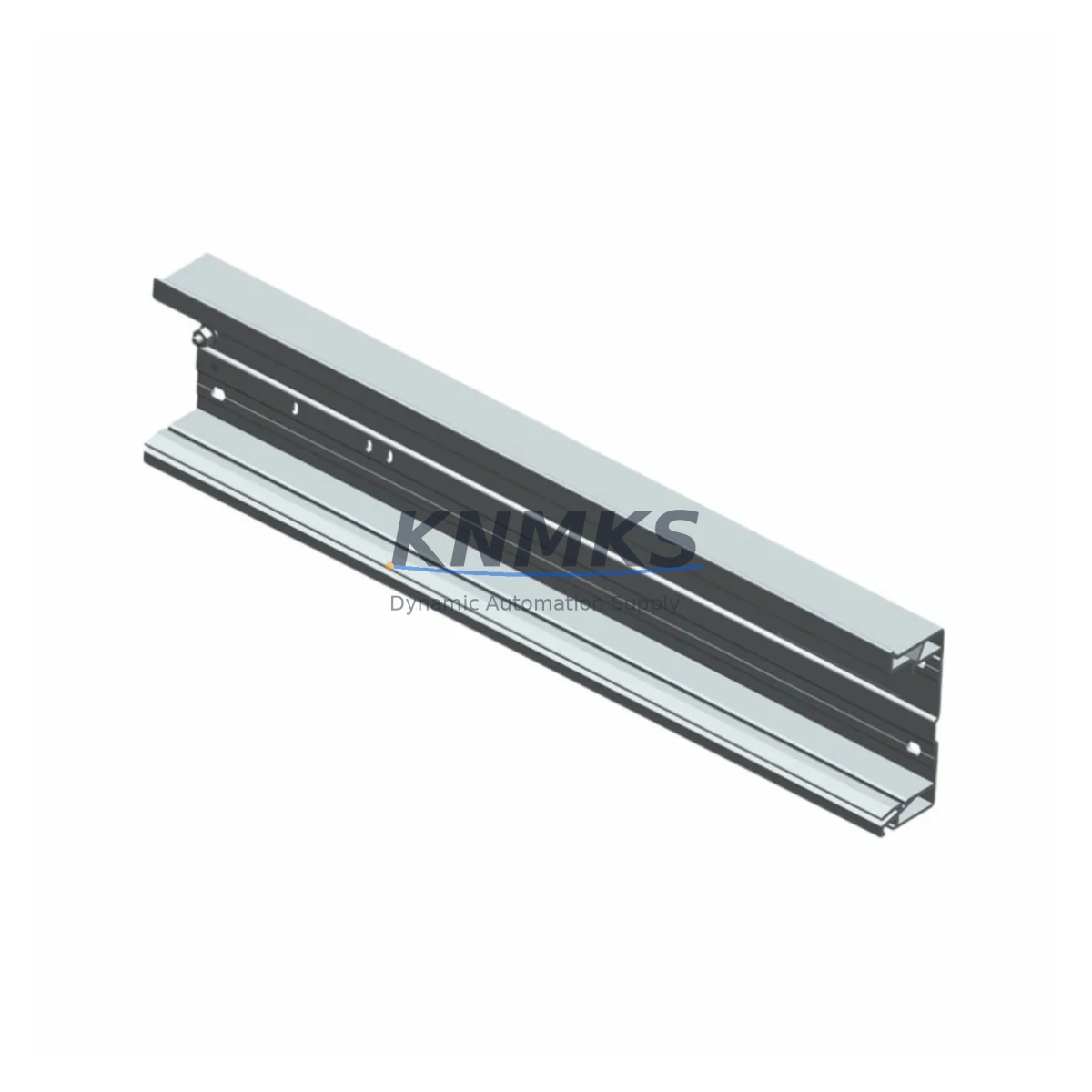

The Siemens 6ES7195-1GG30-0XA0 is a 620 mm bus module mounting rail engineered for the ET 200M distributed I/O station — one of Siemens’ most widely deployed field-level automation platforms. Designed to serve as the structural and electrical backbone of the ET 200M rack assembly, this rail provides the mechanical mounting interface and internal bus connectivity for interface modules such as the IM 153-2 and all associated I/O signal modules. In demanding industrial environments where control interruption is not an option, the 6ES7195-1GG30-0XA0 delivers the structural rigidity, electrical continuity, and fail-safe mechanical integrity that critical automation systems require.

Industrial control cabinets in sectors such as petrochemical processing, electric power generation, metallurgy, and continuous manufacturing are subject to persistent mechanical stress — vibration from rotating machinery, thermal cycling from high-load switching, and electromagnetic interference from variable frequency drives, contactors, and high-current bus bars. The 6ES7195-1GG30-0XA0 is built to maintain stable module seating and reliable backplane bus contact under all of these conditions. Its robust rail profile ensures that I/O modules remain firmly locked in position, preventing the micro-movement and contact degradation that can cause intermittent signal faults, spurious outputs, or undetected input failures in safety-critical interlocks.

When integrated with the Siemens IM 153-2 (6ES7153-2BA02-0XB0) interface module, the 6ES7195-1GG30-0XA0 forms a complete PROFIBUS DP communication node capable of supporting up to 8 signal modules per station. This architecture is widely used in distributed control systems where the ET 200M station must maintain deterministic cycle times and fault-tolerant communication even under high bus load. Pairing the rail with Siemens SM 321 digital input modules or SM 331 analog input modules allows engineers to build dense, high-channel-count I/O stations that remain mechanically stable and electrically reliable across the full service life of the installation.

In high-electromagnetic-interference environments — common in arc furnace control rooms, large motor control centers, and port crane electrical houses — the grounded rail structure of the 6ES7195-1GG30-0XA0 contributes to the overall EMC shielding strategy of the control cabinet. Proper rail grounding, combined with the use of Siemens SITOP power supply modules for regulated 24 VDC distribution, significantly reduces the risk of signal drift, communication timeouts, and nuisance trips caused by conducted or radiated interference. The rail’s role in this protective architecture is foundational: without a mechanically sound and properly grounded mounting rail, even the most sophisticated I/O modules cannot deliver their rated EMC performance.

For installations in dusty, humid, or high-temperature environments — such as cement plants, water treatment facilities, mining headframes, and offshore platforms — the 6ES7195-1GG30-0XA0 supports the use of conformal-coated I/O modules and sealed enclosure designs. The rail’s standard DIN profile is compatible with the full range of ET 200M accessories, including end brackets, bus connectors, and module locking clips, enabling integrators to build fully enclosed, IP54-rated or higher control assemblies. When combined with Siemens SM 374 simulation modules for pre-commissioning I/O verification, the complete ET 200M assembly can be factory-tested and validated before shipment to site, reducing commissioning risk and unplanned downtime during startup.

Surge protection is a critical consideration in any field-level automation installation. The 6ES7195-1GG30-0XA0, when used as part of a properly designed ET 200M station, supports the integration of external surge protection devices on all field wiring terminals. This is particularly important in outdoor substations, pipeline pump stations, and wind farm control buildings where lightning-induced transients can propagate along cable runs and damage unprotected I/O modules. The mechanical stability of the mounting rail ensures that surge protection terminal blocks and signal conditioners remain securely mounted adjacent to the I/O modules they protect, maintaining the integrity of the protection scheme over the long term.

Spare parts availability and long-term supply continuity are essential for operators running ET 200M-based systems in critical infrastructure. The 6ES7195-1GG30-0XA0 is a standard catalog item with broad availability across the Siemens SIMATIC S7 ecosystem. KNMKS maintains verified stock of this rail and related ET 200M components, supporting both planned maintenance programs and emergency replacement scenarios. All units are subject to pre-shipment functional inspection and are supplied with a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable ET 200M station begins with a mechanically sound mounting rail, but cabinet-level protection requires a coordinated system approach. The 6ES7195-1GG30-0XA0 is typically deployed alongside the Siemens IM 153-2 (6ES7153-2BA02-0XB0) for redundant PROFIBUS DP communication, ensuring that a single cable fault or bus segment failure does not interrupt the entire I/O station. Power distribution within the cabinet is handled by Siemens SITOP PSU100S 24V/10A (6EP1334-2BA20) regulated power supplies, which provide stable 24 VDC with integrated overload protection and diagnostic output — critical for preventing voltage sag-induced module resets during high-load switching events.

For analog signal integrity in high-EMI environments, Siemens SM 331 AI 8×13Bit (6ES7331-7KF02-0AB0) analog input modules mounted on the 6ES7195-1GG30-0XA0 rail benefit from the rail’s grounded structure to minimize common-mode noise on 4–20 mA current loops. Digital output modules such as the Siemens SM 322 DO 16×DC24V/0.5A (6ES7322-1BH01-0AA0) provide the switching capacity needed for solenoid valve control and motor starter commands in process interlocks, with the rail ensuring consistent module-to-backplane contact that prevents spurious output activation. Where fail-safe digital I/O is required for SIL 2 safety loops, the Siemens SM 326 F-DI 24×DC24V (6ES7326-1BK02-0AB0) fail-safe input module integrates directly onto the same rail, enabling a mixed standard and safety I/O architecture within a single ET 200M station.

Critical Industrial Safety Applications

The 6ES7195-1GG30-0XA0 is deployed across a wide range of critical industrial sectors where control system reliability directly impacts process safety and production continuity. In petrochemical and refinery environments, ET 200M stations built on this rail serve as the field I/O nodes for emergency shutdown (ESD) systems, monitoring valve position feedback, pressure transmitter inputs, and motor run status signals that feed into the safety instrumented system (SIS). The rail’s vibration resistance and wide operating temperature range make it suitable for installation in field junction boxes located near rotating equipment such as compressors and pumps.

In electric power generation and substation automation, the 6ES7195-1GG30-0XA0 supports ET 200M stations used for generator excitation control, transformer protection relay I/O, and switchgear status monitoring. The grounded rail structure contributes to the EMC robustness required in high-voltage switchyards where induced voltages on control cables can cause false signals in unprotected I/O systems. Mining and mineral processing operations rely on ET 200M assemblies for conveyor interlock control, crusher load monitoring, and ventilation fan status — all applications where an unexpected I/O station failure can trigger a full production stoppage and create hazardous conditions for personnel.

In water and wastewater treatment facilities, the 6ES7195-1GG30-0XA0 is used in pump station control panels and chemical dosing systems where the combination of high humidity, chemical vapors, and continuous 24/7 operation demands the highest levels of mechanical and electrical reliability. Port and terminal automation systems — including ship-to-shore crane controls and automated stacking crane (ASC) systems — use ET 200M stations for distributed I/O in environments subject to salt air corrosion, high wind-induced vibration, and frequent power fluctuations from large crane drives. The 6ES7195-1GG30-0XA0’s robust construction ensures that these stations maintain reliable operation throughout the demanding duty cycles of port operations.

Safety and Quality FAQ

Q1: What support terms does the 6ES7195-1GG30-0XA0 carry, and what does it cover?
All 6ES7195-1GG30-0XA0 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, premature mechanical failure, and any functional non-conformance identified under normal operating conditions consistent with Siemens’ published specifications. Support requests are supported by our technical team with replacement or repair at no additional cost.

Q2: What pre-shipment testing is performed on each unit?
Each unit undergoes a pre-shipment inspection that includes visual examination for mechanical damage, verification of rail profile dimensions and module locking mechanism function, and confirmation of part number and revision markings against the order specification. Units that do not pass inspection are quarantined and not shipped. Test records are available upon request for quality-critical procurement programs.

Q3: Is the 6ES7195-1GG30-0XA0 compatible with all ET 200M interface modules and I/O signal modules?
Yes. The 6ES7195-1GG30-0XA0 620 mm rail is compatible with the full range of Siemens ET 200M interface modules (IM 153-1, IM 153-2, IM 153-4) and all standard and fail-safe SIMATIC S7-300 format signal modules, including SM 321, SM 322, SM 331, SM 332, SM 326 F-DI, and SM 336 F-AI series. It is also compatible with function modules (FM) and communication processors (CP) in the ET 200M form factor.

Q4: Can KNMKS support long-term and emergency spare parts supply for ET 200M systems?
Yes. KNMKS maintains ongoing stock of the 6ES7195-1GG30-0XA0 and a broad range of complementary ET 200M components to support both planned maintenance schedules and unplanned emergency replacement requirements. For critical infrastructure operators, we recommend establishing a consignment or blanket order arrangement to ensure guaranteed availability. Contact our sales team at [email protected] or +86 18359268345 to discuss supply agreements tailored to your maintenance program.
