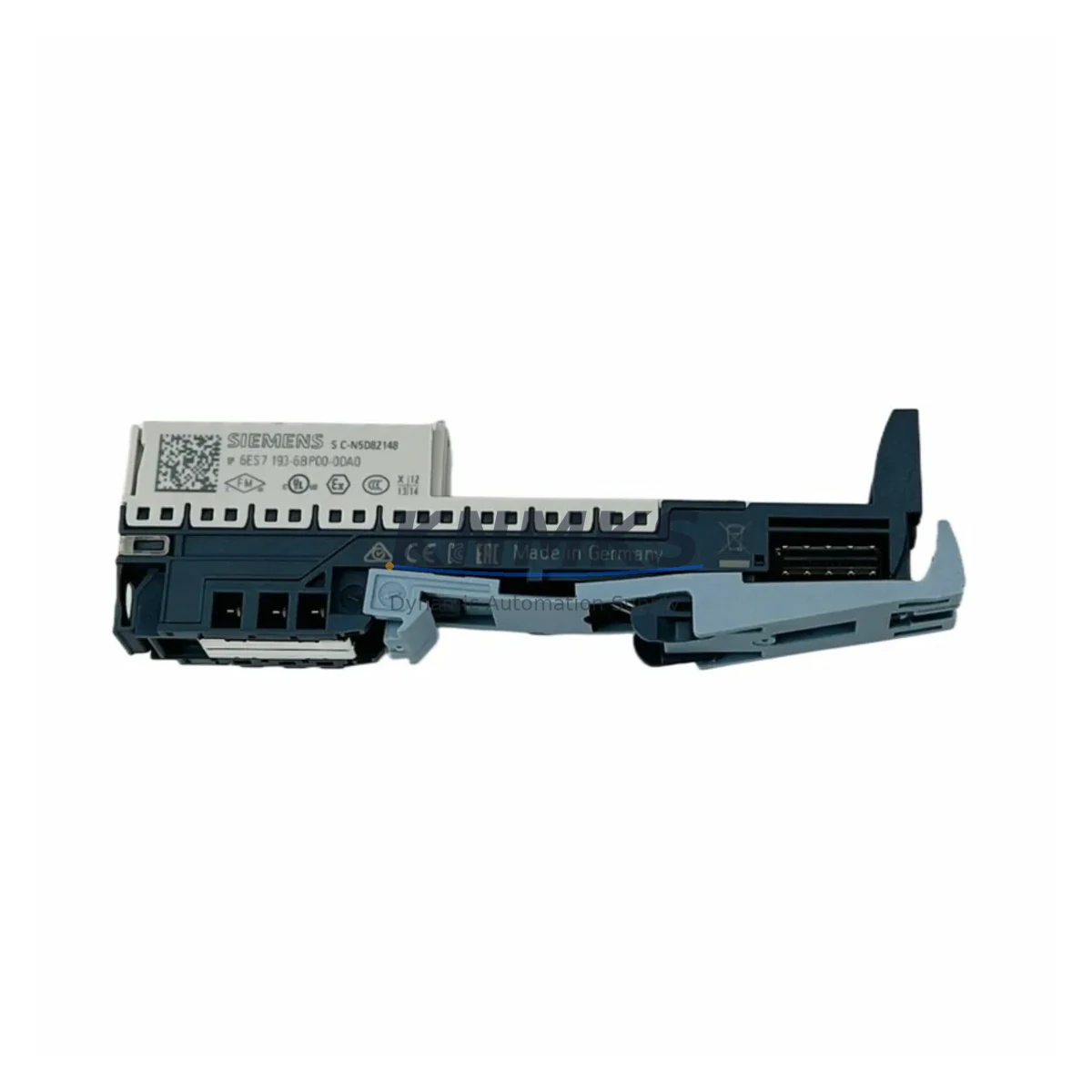

Siemens 6ES7193-6BP00-0DA0 Migration-Ready ET 200SP Base Unit

Overview

Siemens 6ES7193-6BP00-0DA0 Migration-Ready ET 200SP Base Unit: Legacy System Retrofit & Compatibility Upgrade

The Siemens 6ES7193-6BP00-0DA0 is a Base Unit designed for the ET 200SP distributed I/O system, engineered to serve as a direct migration-ready replacement for legacy Siemens I/O platforms including discontinued ET 200S and early ET 200SP configurations. For automation engineers managing aging control cabinets, this base unit provides a reliable, in-stock solution to extend system life, restore discontinued spare parts, and execute controlled upgrades without full system redesign.

When integrating the 6ES7193-6BP00-0DA0 into an existing control architecture, engineers must verify several critical parameters before commissioning. Power supply capacity is the first checkpoint: confirm that the existing 24 VDC rail can support the cumulative load of the new base unit alongside adjacent I/O modules such as the 6ES7131-6BF01-0AA0 (digital input) or 6ES7132-6BF01-0AA0 (digital output) modules already installed on the same rack segment. Terminal wiring compatibility must also be confirmed — the push-in terminal design of the ET 200SP series differs from the screw-terminal layout found on older ET 200S modules, requiring field wiring adaptation during the retrofit window.

Backplane interface alignment is essential. The 6ES7193-6BP00-0DA0 uses the standard ET 200SP backplane bus, which is compatible with the SIMATIC S7-1500 CPU interface modules such as the 6ES7155-6AU01-0BN0 IM 155-6 PN ST. If the existing system uses an older IM 151 interface module from the ET 200S family, a full interface module swap is required, and the associated GSD/GSDML device description files must be updated in TIA Portal or STEP 7 to reflect the new hardware configuration. Module addressing must be re-mapped in the hardware configuration to avoid I/O address conflicts that could cause program faults on first power-up.

Program compatibility review is a mandatory step in any ET 200SP retrofit. While the physical I/O channel count may match the legacy module, symbolic addressing in TIA Portal must be validated against the new module’s data block structure. HMI screen tag bindings linked to the replaced I/O addresses should be audited in WinCC or any connected SCADA layer to prevent display errors or alarm suppression after cutover. Communication link integrity — particularly PROFINET device names and IP address assignments — must be preserved or systematically reassigned to avoid network topology conflicts during the migration window.

Installation space confirmation is often overlooked in retrofit planning. The ET 200SP base unit footprint is compact, but cabinet rail space, DIN rail load capacity, and minimum clearance for heat dissipation must be verified against the original cabinet layout. Firmware version compatibility between the 6ES7193-6BP00-0DA0 and the connected interface module should be checked against the Siemens compatibility matrix prior to ordering, particularly for systems running TIA Portal V15 or earlier. On-site commissioning should include a full I/O force test, PROFINET diagnostic check, and a 30-minute burn-in cycle before returning the line to production.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6ES7193-6BP00-0DA0 typically involves coordinating several interdependent components across the control cabinet. The base unit itself is the mechanical and electrical foundation for the I/O module stack — it must be paired with the correct I/O module type (digital, analog, or technology) and the appropriate color-coded server module or BU-Cover to complete the slot. For systems undergoing a full ET 200S to ET 200SP migration, the 6ES7155-6AU01-0BN0 IM 155-6 PN ST interface module is the standard head station replacement, providing PROFINET connectivity and supporting up to 32 I/O modules per station.

Power budget planning must account for the 6ES7138-6AA01-0AA0 PM-E power module if the cabinet segment requires isolated power zones or if the existing 24 VDC supply cannot support the full I/O load without segmentation. For analog signal chains, the 6ES7134-6GD01-0BA1 analog input module paired with the 6ES7193-6BP00-0DA0 base unit provides a direct upgrade path from legacy analog I/O cards, preserving signal scaling parameters with minimal PLC program modification. Where communication protocol migration from PROFIBUS to PROFINET is required, the 6ES7972-0BB52-0XA0 PROFIBUS connector and associated network topology changes must be planned in parallel with the hardware swap to avoid extended downtime.

For cabinet installations where space is constrained, the compact 15 mm footprint of each ET 200SP base unit offers significant density advantages over legacy 30 mm ET 200S terminal modules. This allows engineers to expand I/O capacity within the existing cabinet envelope without structural modification. Signal isolators or potential distributors may be required at the field wiring interface if the legacy system used isolated signal commons that are not replicated in the new base unit layout.

Downtime Control During System Migration

Minimizing production downtime during a control system retrofit requires a structured cutover strategy. For the 6ES7193-6BP00-0DA0 installation, the recommended approach is to pre-configure and bench-test the complete ET 200SP station — including the interface module, base units, and I/O modules — before the scheduled maintenance window. Upload and archive the existing PLC program from the live system using TIA Portal’s “Upload from Device” function to preserve the current logic state, including any online modifications that may not be reflected in the offline project.

During the physical swap, label all field wiring before disconnection and photograph the terminal layout for reference. Re-terminate wiring to the new push-in terminals systematically, channel by channel, using the archived wiring diagram. After mechanical installation, restore the PROFINET device name and IP address to match the original configuration — this prevents the CPU from generating “Device not found” faults on first power-up. Perform a full I/O force test from the TIA Portal online diagnostic view before releasing control to the PLC program. Validate HMI screen updates and alarm states before returning the system to automatic mode. A controlled, documented cutover of this type typically achieves full restoration within a 4–8 hour planned maintenance window, significantly reducing unplanned downtime risk.

Retrofit Support FAQ

Q: Is the 6ES7193-6BP00-0DA0 a direct drop-in replacement for ET 200S terminal modules?
A: No. While the 6ES7193-6BP00-0DA0 serves the same functional role as a base/terminal module in the ET 200SP system, it is not physically or electrically interchangeable with ET 200S terminal modules. A full slot-by-slot replacement of base units, I/O modules, and the interface module is required when migrating from ET 200S to ET 200SP.

Q: What commissioning steps are required after installation?
A: After physical installation and wiring, assign the correct PROFINET device name via TIA Portal, download the updated hardware configuration to the CPU, perform a full I/O force test on all channels, verify PROFINET diagnostic status (no red X on the device), and conduct a 30-minute operational burn-in before returning to production. All units supplied by KNMKS are pre-tested with a functional power-on and I/O channel verification prior to shipment.

Q: Can this base unit be used with both digital and analog I/O modules?
A: The 6ES7193-6BP00-0DA0 is a universal base unit compatible with a range of ET 200SP I/O modules. Compatibility depends on the specific I/O module type — confirm the base unit color code and module pairing requirements in the ET 200SP system manual (Siemens document A5E03576848) before ordering the I/O module.

Q: What support terms and stock availability does KNMKS provide?
A: All 6ES7193-6BP00-0DA0 units are covered by a support terms confirmed by quotation from the date of shipment. Units are in-stock and ship within 1–3 business days. Each unit undergoes functional power-on and I/O channel verification testing before dispatch. For volume orders or urgent retrofit requirements, contact [email protected] or call +86 18359268345.
