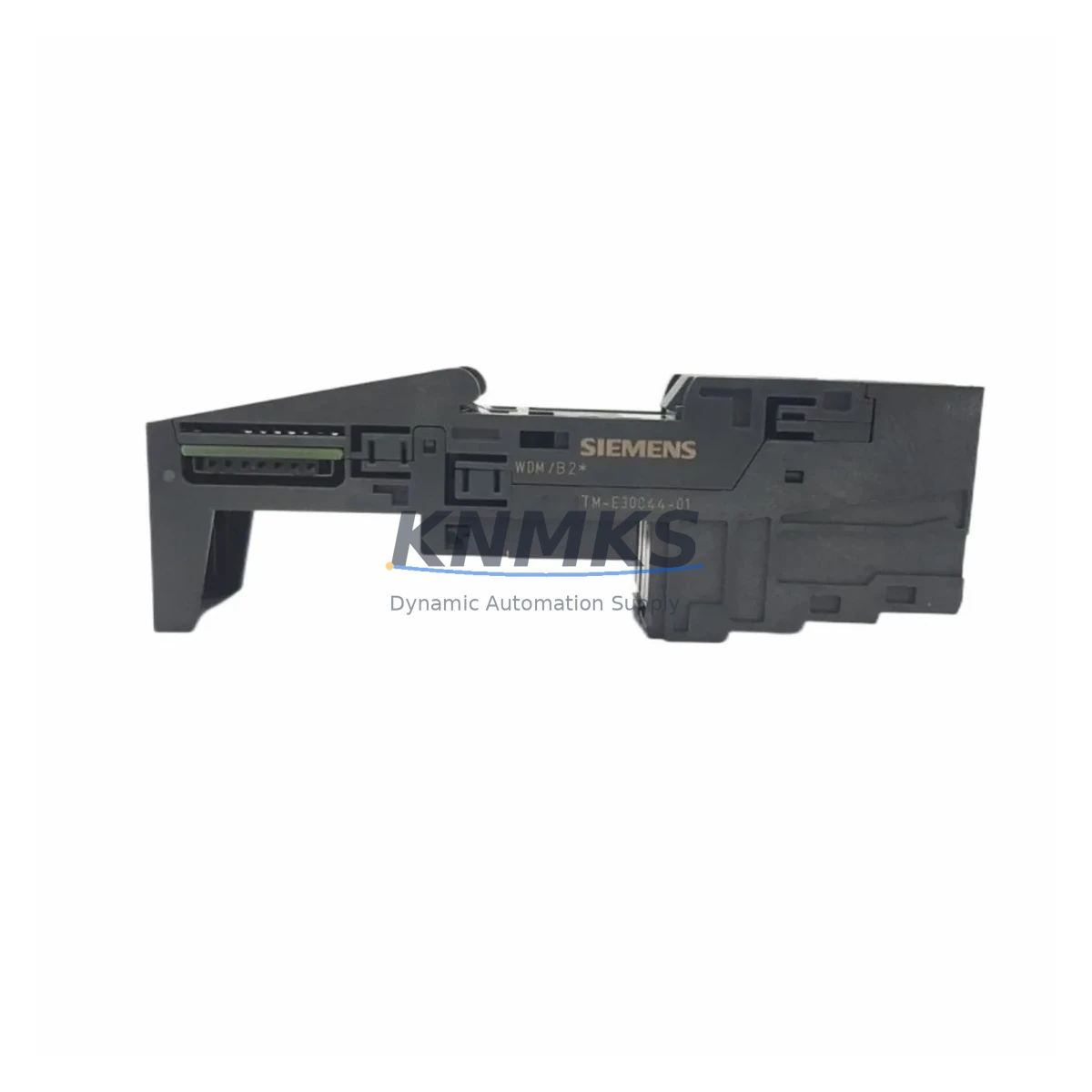

Siemens 6ES7193-4CG30-0AA0 Maintenance-Proven Spare Part

Overview

Siemens 6ES7193-4CG30-0AA0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7193-4CG30-0AA0 is a terminal module (TM-E) designed for the SIMATIC ET 200M distributed I/O system, fully compatible with the S7-300 series signal modules. In industrial maintenance environments, this component serves as a critical interface between the field wiring and the pluggable signal module, enabling hot-swap replacement without disturbing the existing field cable terminations. For maintenance engineers managing continuous production lines, having a verified original 6ES7193-4CG30-0AA0 in the spare parts inventory is a direct investment in minimizing unplanned downtime.

This terminal module supports the standard 40-pin connector layout used across the ET 200M rack system. When a signal module fails during operation, the 6ES7193-4CG30-0AA0 allows the defective module to be removed and replaced without rewiring — a workflow that reduces mean time to repair (MTTR) from hours to minutes. For procurement engineers, sourcing this part from a verified supplier with documented origin (Germany) and a support terms confirmed by quotation eliminates the risk of counterfeit components entering the control cabinet.

In aging S7-300 and ET 200M installations — many of which have been in service for 10 to 20 years — the terminal module is often overlooked during annual maintenance inspections. Corrosion on the connector pins, mechanical wear on the locking mechanism, and thermal stress from adjacent power modules can degrade contact reliability over time. Proactive replacement of suspect terminal modules during scheduled shutdowns, rather than waiting for a field fault, is a recognized best practice in industrial reliability engineering.

When replacing the 6ES7193-4CG30-0AA0 on-site, maintenance teams should simultaneously inspect the adjacent IM 153-2 interface module (such as the 6ES7153-2BA02-0XB0) for firmware currency and communication integrity. The 24 VDC bus power supply feeding the ET 200M rack — typically a SITOP PSU100S or equivalent — should be verified for output voltage stability and ripple within specification. Signal modules installed on the same rack, including digital input modules (e.g., 6ES7321-1BL00-0AA0) and digital output modules (e.g., 6ES7322-1BL00-0AA0), should be checked for diagnostic alarms in the STEP 7 or TIA Portal hardware configuration.

For control cabinets with mixed I/O, the analog input modules (such as 6ES7331-7KF02-0AB0) sharing the same ET 200M rack should be tested for signal drift, particularly in high-temperature or high-vibration environments. Terminal block condition, cable ferrule integrity, and shield grounding continuity are additional checkpoints that experienced maintenance engineers include in the replacement workflow. Where PROFIBUS DP communication is involved, the bus termination resistors and cable shielding at the IM 153 connector should be confirmed before returning the system to service.

For procurement teams managing multi-site spare parts programs, the 6ES7193-4CG30-0AA0 is a high-turnover consumable in any facility running ET 200M-based distributed I/O. Stocking a minimum of two to four units per active ET 200M rack is a standard recommendation for facilities with SLA-driven uptime requirements. All units shipped from KNMKS are tested prior to dispatch, packaged in anti-static protection, and covered by a support terms confirmed by quotation from the date of shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for ET 200M installations requires a systems-level view of the control cabinet. The 6ES7193-4CG30-0AA0 terminal module does not operate in isolation — its reliability depends on the health of the surrounding components. During annual shutdowns or scheduled preventive maintenance windows, the following components should be inspected or replaced alongside the terminal module:

The IM 153-2 interface module (6ES7153-2BA02-0XB0) is the PROFIBUS DP master for the ET 200M rack. Any communication faults logged against this module — including bus timeouts, parity errors, or watchdog trips — should be investigated before assuming the terminal module is the root cause of a field fault. The SITOP PSU100S 24 VDC power supply feeding the rack should be load-tested and its output capacitors assessed for end-of-life if the unit has been in service for more than seven years.

Digital output modules such as the 6ES7322-1BL00-0AA0 (32-channel DO, 24 VDC) are high-wear items in relay-intensive applications and should be checked for channel failures using the STEP 7 diagnostic buffer. Analog input modules like the 6ES7331-7KF02-0AB0 should be calibrated annually in precision measurement applications. Where signal isolation is required between field devices and the PLC rack, PHOENIX CONTACT or Pepperl+Fuchs signal isolators in the same cabinet loop should be inspected for drift and output linearity.

Fuse protection for the 24 VDC field supply — typically implemented with SIEMENS 3NW or 3NA fuse holders or equivalent miniature circuit breakers — should be verified for correct rating and replaced if any signs of thermal discoloration are present. Terminal blocks (e.g., Weidmüller or Phoenix Contact feed-through terminals) adjacent to the ET 200M rack should be torque-checked and inspected for oxidation, particularly in humid or coastal industrial environments.

Site Replacement Workflow

Step 1 — Preparation: Before beginning replacement, download the current hardware configuration from the PLC using STEP 7 or TIA Portal and save a backup. Note the slot address of the terminal module to be replaced and confirm the replacement 6ES7193-4CG30-0AA0 matches the existing variant (TM-E 40-pin, spring-type or screw-type terminals as applicable).

Step 2 — Field Wiring Retention: The primary advantage of the TM-E terminal module design is that field wiring remains connected to the terminal module during signal module removal. Confirm that the signal module (SM) is removed from the terminal module without disturbing any field cables. Label all wiring before any work if labels are missing or illegible.

Step 3 — Terminal Module Removal: Release the locking mechanism on the existing 6ES7193-4CG30-0AA0 and slide it off the ET 200M rack rail. Inspect the 40-pin connector on the rack for bent pins or contamination before installing the replacement unit.

Step 4 — Installation and Verification: Snap the new terminal module onto the rack rail, confirm the locking tab is engaged, and reinstall the signal module. Power up the rack and verify that the IM 153 reports the slot as active with no diagnostic alarms in STEP 7 or TIA Portal. Perform a functional I/O test before returning the system to automatic operation.

Step 5 — Documentation: Record the replacement in the maintenance log with the date, technician ID, part serial number, and post-replacement test results. Update the spare parts inventory to trigger reorder of the consumed unit.

Spare Parts Support FAQ

Q1: Is the 6ES7193-4CG30-0AA0 compatible with all S7-300 signal modules?
The 6ES7193-4CG30-0AA0 (TM-E 40-pin) is compatible with the standard 40-pin S7-300 SM series signal modules used in ET 200M racks, including digital input, digital output, analog input, and analog output modules. Always verify the pin count and terminal type (spring vs. screw) against your existing installation before ordering.

Q2: What is the support terms coverage and what does it include?
All 6ES7193-4CG30-0AA0 units supplied by KNMKS carry a support terms confirmed by quotation from the shipment date. Coverage includes manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing. Support requests are supported by our technical team at [email protected].

Q3: Can this terminal module be replaced without shutting down the entire ET 200M rack?
In many ET 200M configurations with IM 153-2 and appropriate PLC programming, individual signal modules can be removed and replaced during operation (hot-swap) without shutting down the entire rack. However, the terminal module itself — as the fixed wiring carrier — is typically replaced during a planned maintenance window. Consult your system’s PROFIBUS configuration and PLC program logic before attempting live replacement.

Q4: How should I store spare 6ES7193-4CG30-0AA0 units for long-term inventory?
Store units in their original anti-static packaging in a dry environment between 0 °C and +40 °C, away from direct sunlight and corrosive atmospheres. For long-term storage exceeding 24 months, inspect connector contacts for oxidation before installation. KNMKS recommends maintaining a minimum stock of 2–4 units per active ET 200M rack for facilities with high-uptime SLA requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7193-4CG30-0AA0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7193-4CG30-0AA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
