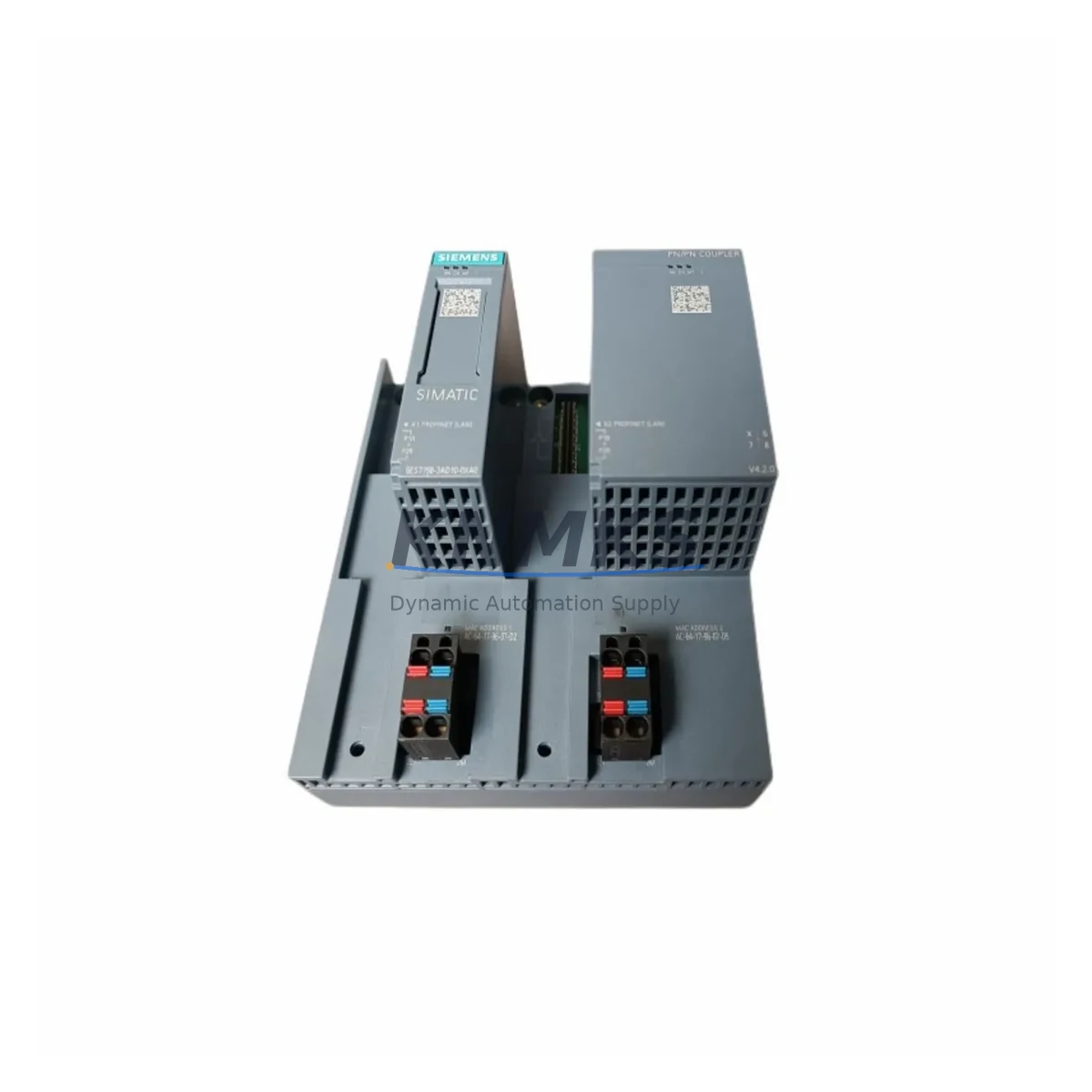

Siemens 6ES7158-3AD10-0XA0 Fail-Safe PROFIBUS Coupler Industrial

Overview

Siemens 6ES7158-3AD10-0XA0 Fail-Safe PROFIBUS Coupler Industrial: Fault-Protected Gateway for Critical Industrial Control Reliability

The Siemens 6ES7158-3AD10-0XA0 is a high-integrity PROFIBUS DP/DP Coupler engineered for mission-critical industrial automation environments where control interruption is not an option. Designed as a transparent gateway between two independent PROFIBUS DP networks, this coupler enables seamless data exchange across segmented control architectures — preserving signal integrity, eliminating single-point-of-failure risks, and maintaining deterministic communication even under severe electromagnetic interference, voltage fluctuation, and harsh ambient conditions.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical smelters, water treatment works, mining operations, and port logistics systems — the 6ES7158-3AD10-0XA0 serves as the backbone of distributed safety interlocks and process control loops. Its galvanic isolation between PROFIBUS segments prevents ground loop faults and surge propagation from cascading across the control network, protecting upstream SIMATIC S7-300 and S7-400 CPUs, as well as downstream ET 200M and ET 200S distributed I/O stations from transient damage.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7158-3AD10-0XA0 within a heavy-duty control cabinet demands a coordinated protection strategy across power, communication, and I/O layers. In high-EMI environments — such as variable frequency drive (VFD) cabinets, arc furnace control rooms, or high-voltage switchgear panels — the coupler’s galvanic isolation prevents noise from the drive network from corrupting the safety PLC segment.

For robust power supply architecture, the Siemens SITOP PSU100S 24V/10A (6EP1334-2BA20) provides regulated, filtered DC power with diagnostic output, ensuring the coupler and adjacent modules receive stable voltage even during mains disturbances. Upstream surge protection using a Siemens SIPROTEC 5 surge arrester module or equivalent Type 2 SPD device shields the 24 V DC bus from lightning-induced transients entering through field cable runs.

On the PROFIBUS network itself, proper cable termination using Siemens PROFIBUS bus connectors (6ES7972-0BA52-0XA0) with integrated termination resistors eliminates signal reflection that can cause communication timeouts and spurious fault trips in safety interlocks. For extended cable runs in large plants, PROFIBUS repeaters (RS 485-IS, 6ES7972-0AA02-0XA0) regenerate signal levels and extend segment reach without introducing latency that could compromise time-critical process responses.

Where the control architecture includes fail-safe I/O, the 6ES7158-3AD10-0XA0 bridges the standard DP master (e.g., a SIMATIC S7-300 CPU 315-2 DP) with a safety-rated DP slave segment hosting ET 200S fail-safe modules (F-DI, F-DO), enabling SIL 2 / SIL 3 safety loop integrity across physically separated network segments. This architecture is particularly valuable in emergency shutdown (ESD) systems, burner management systems (BMS), and safety instrumented systems (SIS) where network segmentation is mandated by IEC 61511.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process units — distillation columns, reactor vessels, compressor trains — the 6ES7158-3AD10-0XA0 connects the DCS PROFIBUS master to local safety PLC segments controlling pressure relief interlocks, emergency isolation valves (EIV), and flare system controls. Network segmentation ensures that a fault on the field device segment does not propagate to the safety logic controller, maintaining SIL integrity.

Power Generation & Substation Automation: Thermal and hydroelectric power stations deploy this coupler to bridge turbine control PROFIBUS networks with protection relay segments. The galvanic isolation is critical in high-voltage environments where ground potential differences between control rooms and switchgear buildings can reach hundreds of volts, posing both equipment damage and personnel safety risks.

Mining & Mineral Processing: Underground and open-cut mining operations subject control equipment to extreme vibration, dust ingress, and humidity. The 6ES7158-3AD10-0XA0, installed in sealed IP54 or IP65 enclosures with appropriate cable glands, maintains reliable PROFIBUS communication between surface control rooms and underground conveyor, ventilation fan, and pump station PLCs — environments where communication loss can trigger unplanned production stoppages or safety system failures.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on this coupler to segment PROFIBUS networks between SCADA master stations and field instrument clusters — flow meters, level transmitters, dosing pump controllers — in chemically aggressive, high-humidity environments. Reliable coupler operation prevents false alarms and ensures continuous dosing control critical to water quality compliance.

Metallurgy & Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate extreme electromagnetic interference. The 6ES7158-3AD10-0XA0’s EMC-hardened design and galvanic isolation protect the PROFIBUS network from conducted and radiated interference, preventing signal drift and communication errors that could cause misoperation of hydraulic press controls or cooling water interlocks.

Port & Marine Logistics: Ship-to-shore crane control systems and automated container terminal PLCs operate in salt-laden, high-humidity coastal environments. This coupler enables reliable PROFIBUS communication between quayside control cabinets and crane drive systems, supporting safe load handling and anti-collision interlock functions.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7158-3AD10-0XA0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform its specified PROFIBUS DP/DP coupling function within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed within 5 business days of fault confirmation.

Q2: What pre-shipment testing is performed before dispatch?
Every 6ES7158-3AD10-0XA0 unit undergoes a full functional communication test prior to shipment. This includes verification of bidirectional PROFIBUS DP data exchange at multiple baud rates, galvanic isolation integrity check, power consumption measurement, and visual inspection for physical damage. A test report is available upon request.

Q3: Is this coupler compatible with third-party PROFIBUS masters and non-Siemens PLCs?
Yes. The 6ES7158-3AD10-0XA0 is fully compliant with the PROFIBUS DP standard (IEC 61158 / EN 50170) and operates transparently with any certified PROFIBUS DP master, including those from ABB, Schneider Electric, Rockwell Automation, and Yokogawa. No proprietary configuration is required for basic coupling operation.

Q4: Can long-term supply and replacement support be guaranteed for this model?
We maintain dedicated stock of the 6ES7158-3AD10-0XA0 to support ongoing maintenance, spare parts programs, and emergency replacement requirements. For customers with critical infrastructure dependencies, we recommend establishing a consignment stock arrangement. Contact our sales team to discuss volume pricing, lead time commitments, and long-term supply agreements tailored to your maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7158-3AD10-0XA0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7158-3AD10-0XA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
