Siemens 6ES7158-0AD00-0XA0 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6ES7158-0AD00-0XA0 Maintenance-Proven Spare Part for Factory Uptime

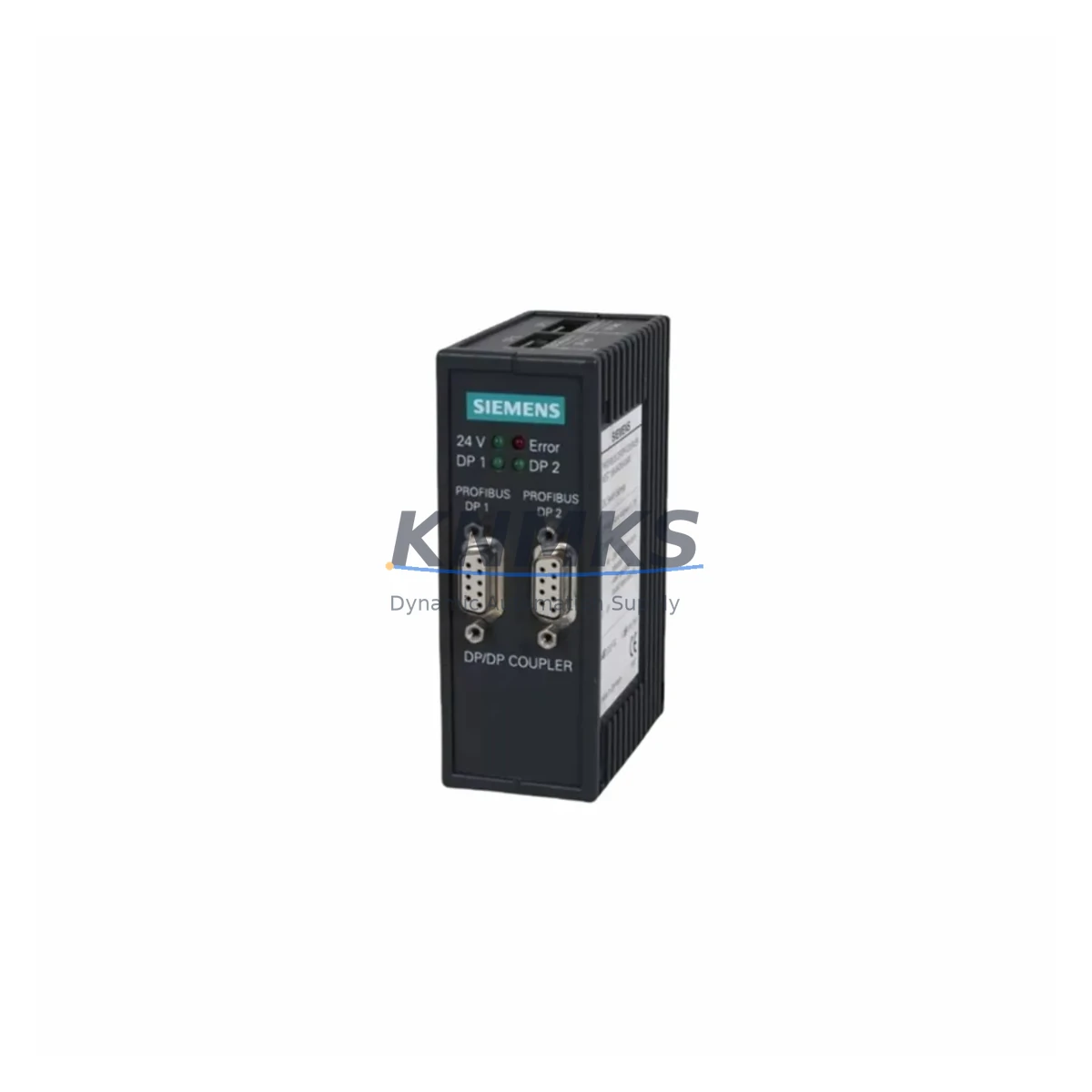

The Siemens 6ES7158-0AD00-0XA0 is an original PROFIBUS DP/DP Coupler Module designed for SIMATIC S7-300 and S7-400 automation systems. In industrial environments where PROFIBUS networks form the backbone of process control, a failed coupler can cascade into full line shutdowns within minutes. This spare part is stocked, pre-tested, and dispatched globally to support maintenance engineers and procurement teams who cannot afford extended downtime during fault isolation or scheduled outages.

Whether you are managing a routine annual inspection, responding to an emergency fault alarm, or building a strategic spare parts inventory for aging S7-300 infrastructure, the 6ES7158-0AD00-0XA0 is a direct, plug-compatible replacement that restores PROFIBUS segment coupling without firmware reconfiguration or hardware adaptation. Each unit ships with a support terms confirmed by quotation and a pre-shipment functional test report, giving procurement engineers the confidence to approve purchase orders without on-site verification delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7158-0AD00-0XA0 in a live control cabinet, experienced maintenance engineers treat the coupler swap as a trigger for a broader system health check. The PROFIBUS DP/DP Coupler bridges two independent PROFIBUS segments, meaning any degradation in the coupler directly affects I/O response times across both segments. Before and after replacement, technicians should verify the integrity of the PROFIBUS cable termination resistors and check for signal reflections using a PROFIBUS tester.

In the same cabinet inspection cycle, it is standard practice to audit the Siemens 6ES7307-1EA01-0AA0 PS 307 power supply module that feeds the S7-300 rack — a marginal 24 V DC supply is a common root cause of intermittent coupler faults that are misdiagnosed as coupler failures. Similarly, the 6ES7321-1BL00-0AA0 SM 321 digital input module and 6ES7322-1BL00-0AA0 SM 322 digital output module on the same rack should be inspected for loose terminal connections and blown fuse inserts, as these share the backplane bus with the coupler.

For systems running ET 200M distributed I/O on the secondary PROFIBUS segment, the 6ES7153-2BA02-0XB0 IM 153-2 interface module is a critical companion spare — if the coupler is replaced but the IM 153-2 has accumulated hours beyond its recommended service interval, the segment may still exhibit communication errors. Procurement teams managing aging S7-300 infrastructure should also consider stocking the 6ES7390-1AE80-0AA0 profile rail and 6ES7492-1AL00-0AA0 front connector as part of a complete cabinet restoration kit, ensuring that a single maintenance visit can address all wear-prone components without a second dispatch.

For facilities running STEP 7 or TIA Portal with legacy S7-300 hardware, maintaining a documented spare parts list that includes the 6ES7158-0AD00-0XA0 alongside power supplies, I/O modules, and interface modules is a recognized best practice for ISO 55001-aligned asset management programs.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the fault is isolated to the PROFIBUS DP/DP Coupler by checking the BF LED status on the 6ES7158-0AD00-0XA0 and reviewing the diagnostic buffer in STEP 7 or TIA Portal. Document the current PROFIBUS address assignments on both segments before powering down.

Step 2 — Safe Shutdown: Follow your site’s lockout/tagout (LOTO) procedure. Remove the 24 V DC supply to the S7-300 rack. The 6ES7158-0AD00-0XA0 is a hot-swap-capable module on some rack configurations, but a controlled shutdown is always recommended for first-time replacements.

Step 3 — Module Swap: Slide the faulty coupler off the DIN rail profile. Install the replacement 6ES7158-0AD00-0XA0 — no address switches or firmware downloads are required. The module is plug-and-play compatible with all S7-300 and S7-400 racks using the standard backplane bus connector.

Step 4 — Verification: Restore power and confirm both PROFIBUS segments return to RUN state. Check the diagnostic buffer for any residual fault entries. Verify I/O response on both segments using your SCADA or HMI display — Siemens TP700 or TP1200 comfort panels are commonly used for this verification step in S7-300 environments.

Step 5 — Documentation: Log the replacement in your CMMS with the serial number of the removed module and the replacement unit. Update your spare parts inventory to trigger a reorder for the next unit, maintaining a minimum stock of one coupler per PROFIBUS segment pair in critical production lines.

Spare Parts Support FAQ

Q1: Is the 6ES7158-0AD00-0XA0 still available as a new original part?
Yes. We maintain multi-region stock of original Siemens 6ES7158-0AD00-0XA0 units sourced through authorized industrial distribution channels. Each unit is supplied with original Siemens packaging and a pre-shipment functional test certificate. Long-term supply agreements are available for facilities requiring guaranteed annual allocation.

Q2: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the date of dispatch. Coverage includes functional failure under normal operating conditions. Each unit undergoes pre-shipment testing to verify PROFIBUS communication on both DP ports before leaving our warehouse. Support requests are processed within 5 business days with advance replacement available for critical production environments.

Q3: Can this coupler replace older Siemens PROFIBUS coupler variants in existing S7-300 racks?
The 6ES7158-0AD00-0XA0 is backward compatible with earlier PROFIBUS DP/DP coupler variants used in S7-300 and S7-400 systems. No hardware modification or firmware update is required for direct substitution. Compatibility should be confirmed against your specific rack configuration and STEP 7 hardware catalog version before installation in safety-instrumented systems.

Q4: How quickly can emergency orders be dispatched?
Emergency orders are prioritized for same-day dispatch from our nearest regional stock location. Global delivery is supported with DHL Express, FedEx International Priority, and UPS Worldwide Express options. Contact our team at [email protected] or +86 18359268345 to confirm stock availability and arrange expedited shipping for unplanned outages.
