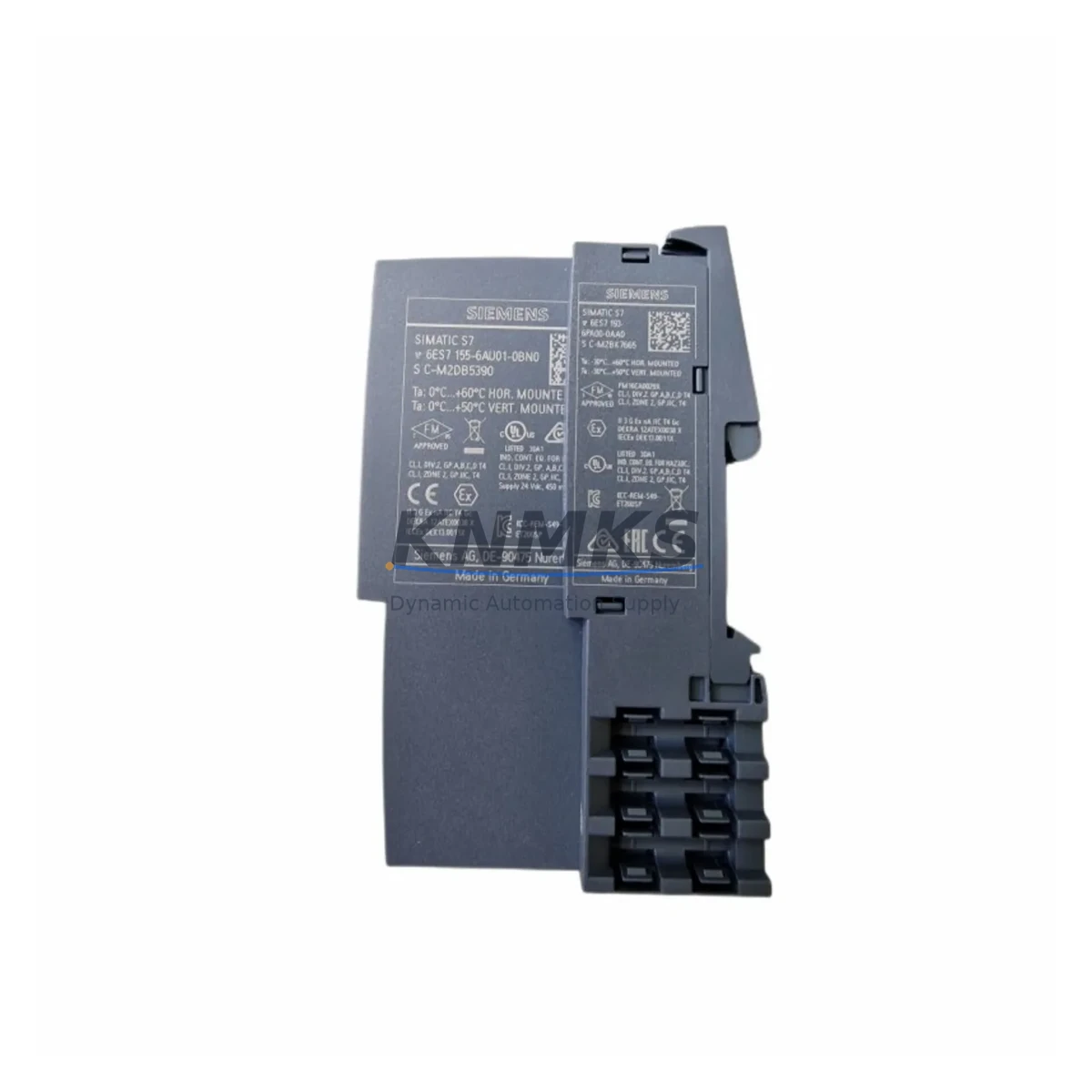

The Siemens 6ES7155-6AU01-0CN0 is the IM155-6PN/2 HF (High Feature) PROFINET Interface Module for the ET 200SP distributed I/O system, fully integrated with SIMATIC S7-1500 and TIA Portal engineering environments. As a critical communication gateway between the PROFINET network and the ET 200SP station, this interface module is a high-priority spare part for any maintenance engineer managing continuous process lines, automated assembly systems, or safety-instrumented control cabinets.

At KNMKS, every 6ES7155-6AU01-0CN0 unit is sourced as an original Siemens component, subjected to pre-shipment functional verification, and dispatched with a support terms confirmed by quotation. Our global logistics infrastructure supports urgent replacement orders for petrochemical plants, automotive production lines, water treatment facilities, and port automation systems where unplanned downtime carries significant operational cost.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7155-6AU01-0CN0 interface module fails or is flagged during a scheduled control cabinet inspection, the scope of the maintenance intervention should extend beyond the module itself. The IM155-6PN/2 HF sits at the heart of the ET 200SP station’s communication architecture — any degradation in its PROFINET link directly impacts all downstream I/O modules in the station.

Maintenance engineers should simultaneously inspect the ET 200SP BaseUnit BU15-P16+A10+2D (6ES7193-6BP20-0DA0) on which the interface module is seated, as contact wear or contamination on the BaseUnit can cause intermittent communication faults that are misdiagnosed as interface module failures. The 24 V DC power supply module feeding the ET 200SP rail — typically a SITOP PSU100S (6EP1334-2BA20) or equivalent — should be load-tested and output voltage verified under full I/O load, since voltage sag below 20.4 V DC will trigger station dropouts.

For stations running digital and analog I/O, inspect the installed ET 200SP digital input modules (e.g., 6ES7131-6BF01-0BA0) and analog input modules (e.g., 6ES7134-6GD01-0BA1) for channel-level faults logged in the TIA Portal diagnostics buffer. These modules share the backplane bus with the interface module and can generate misleading PROFINET alarms if their BaseUnits have loose terminal connections.

The PROFINET cable infrastructure connecting the 6ES7155-6AU01-0CN0 to the upstream S7-1500 CPU or managed switch should be inspected for bend radius violations, connector corrosion, and shield continuity — particularly in environments with high vibration or chemical exposure. Siemens IE FC RJ45 Plug 180 (6GK1901-1BB10-2AA0) connectors are the recommended field-terminable option for replacement runs. Where the ET 200SP station is part of a ring topology using the integrated 2-port switch, verify that the Media Redundancy Protocol (MRP) role assignments remain consistent after module replacement.

For stations in safety-instrumented systems, confirm that any co-installed F-I/O modules (e.g., 6ES7136-6DC00-0CA0 F-DQ 4x24VDC/2A PM HF) are re-validated and their F-addresses re-acknowledged in the safety program after the interface module swap, as the F-address assignment is tied to the station configuration stored in the IM module.

Site Replacement Workflow

Replacing the 6ES7155-6AU01-0CN0 on a live ET 200SP station requires a structured approach to minimize downtime and avoid configuration loss. The following workflow is recommended for maintenance and commissioning engineers:

Step 1 — Pre-Replacement Preparation: Export the current TIA Portal project and back up the interface module’s configuration, including PROFINET device name, IP address, and I/O module assignment. Note the firmware version currently running on the module (visible in TIA Portal → Online → Module Information).

Step 2 — Safe Isolation: Place the S7-1500 CPU in STOP mode or isolate the ET 200SP station from the PROFINET network using the managed switch port. De-energize the 24 V DC supply to the ET 200SP rail. For safety-rated stations, follow the site-specific LOTO (Lockout/Tagout) procedure before proceeding.

Step 3 — Module Removal and Inspection: Slide the IM155-6PN/2 HF module off the BaseUnit. Inspect the BaseUnit contacts and the backplane bus connector for debris or oxidation. Clean with isopropyl alcohol if required. Do not reuse a BaseUnit with visibly damaged contacts.

Step 4 — Replacement Module Installation: Insert the new 6ES7155-6AU01-0CN0 onto the BaseUnit. Restore 24 V DC power. The module will automatically receive its PROFINET device name and IP address from the IO controller on first connection if the “Assign IP address via IO controller” option is enabled in TIA Portal.

Step 5 — Firmware Alignment: If the replacement module ships with a different firmware version than the original, update via TIA Portal’s firmware update function to match the project’s hardware catalog version. Mismatched firmware can cause GSD compatibility warnings.

Step 6 — Functional Verification: Bring the CPU back to RUN mode. Verify all I/O modules in the station report “OK” status in TIA Portal diagnostics. Confirm process signals are live and within expected ranges before releasing the line to production.

This structured replacement approach, combined with a pre-stocked spare 6ES7155-6AU01-0CN0, reduces mean time to repair (MTTR) for ET 200SP station failures from several hours to under 30 minutes in most plant environments.

Spare Parts Support FAQ

Q1: Is the 6ES7155-6AU01-0CN0 compatible with both S7-1500 and S7-1200 controllers?
The IM155-6PN/2 HF is primarily designed and optimized for use with SIMATIC S7-1500 as the IO controller, leveraging IRT and shared device features. It is also compatible with S7-1200 controllers operating as PROFINET IO controllers in standard RT mode, though IRT and shared device functionality require S7-1500. Always verify the TIA Portal hardware catalog version matches the module’s firmware before commissioning.

Q2: How does KNMKS verify the authenticity and functionality of this spare part before shipment?
Every 6ES7155-6AU01-0CN0 unit undergoes a pre-shipment inspection that includes visual examination of the housing, connector pins, and labeling for authenticity markers consistent with Siemens manufacturing standards. Functional power-on testing confirms the module initializes correctly and its PROFINET ports are active. Units are packed in ESD-safe anti-static bags with foam cushioning to prevent transit damage. A support terms confirmed by quotation covers any defects in materials or workmanship from the date of delivery.

Q3: What is the recommended inventory strategy for ET 200SP interface modules in a multi-site plant?
For facilities operating more than five ET 200SP stations, maintaining a minimum of one 6ES7155-6AU01-0CN0 spare per ten stations is a practical baseline. Plants with 24/7 continuous process requirements — such as petrochemical or power generation facilities — should hold at least two units on-site given the module’s role as a single point of failure for the entire ET 200SP station. Coordinate with your procurement team to establish a long-term supply agreement to ensure availability as the ET 200SP platform matures through its product lifecycle.

Q4: Can this module replace older IM155-6PN/2 ST or BA variants in an existing ET 200SP station?
The 6ES7155-6AU01-0CN0 (HF variant) is mechanically compatible with the same ET 200SP BaseUnit form factor used by ST and BA variants. However, the TIA Portal hardware configuration must be updated to reflect the HF module’s GSD file and feature set — a direct slot-for-slot swap without reconfiguration is not supported. The HF variant offers additional features (IRT, shared device, PROFIenergy) that may require project adjustments. KNMKS recommends confirming the target TIA Portal project version and hardware catalog compatibility before ordering as a cross-variant replacement.
