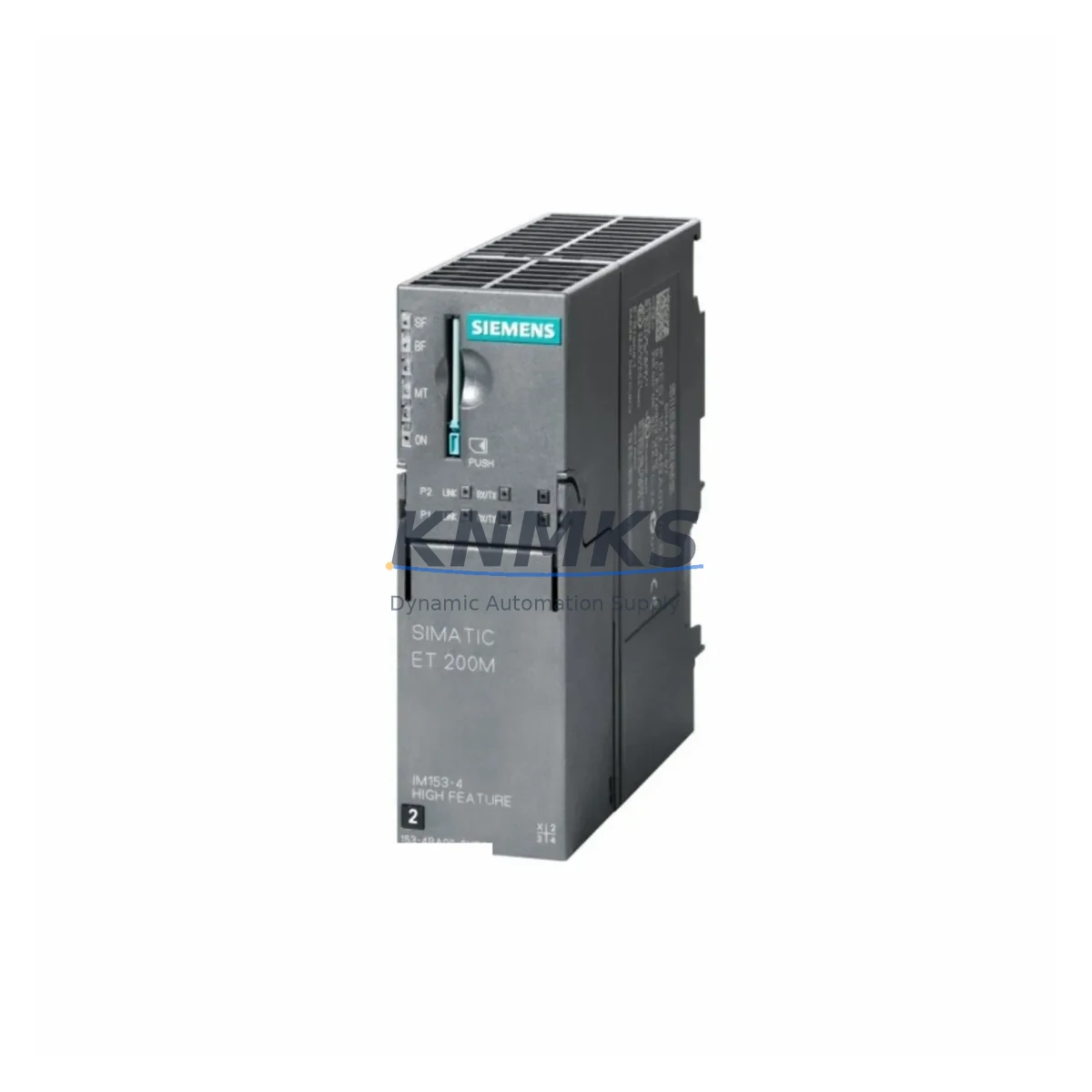

Siemens 6ES7153-4BA00-0XB0 Fail-Safe DP Interface Module

Overview

Siemens 6ES7153-4BA00-0XB0 Fail-Safe DP Interface Module: Fault Protection and Critical Industrial Field Reliability

The Siemens 6ES7153-4BA00-0XB0 is the IM 153-4 DP High Feature Interface Module designed for the ET 200M distributed I/O station, operating within the SIMATIC S7-300 and S7-400 automation architecture. In continuous production environments where unplanned downtime carries severe operational and safety consequences, this module delivers the communication backbone that keeps field devices reliably connected to the central controller. Its PROFIBUS DP interface supports data rates up to 12 Mbit/s, ensuring deterministic, low-latency signal exchange even in electrically noisy industrial environments.

Engineered for deployment in heavy-duty control cabinets, the 6ES7153-4BA00-0XB0 provides robust protection against the electromagnetic interference (EMI) that is endemic to motor drive panels, high-current switching gear, and variable frequency drive (VFD) enclosures. Signal drift and communication anomalies — common failure modes in lesser interface modules — are systematically suppressed through Siemens’ proven shielding and filtering design. This makes the module a dependable choice for applications where a single communication fault can trigger a process interlock, halt a production line, or compromise a safety instrumented function.

The module supports redundant PROFIBUS DP configurations when paired with a second IM 153-4 unit, enabling hot-standby communication paths that eliminate single points of failure in critical control loops. In petrochemical plants, power generation facilities, and metallurgical operations, this redundancy capability is not optional — it is a fundamental requirement for achieving the process availability targets mandated by IEC 61511 and IEC 62061 safety standards. The 6ES7153-4BA00-0XB0 integrates seamlessly with the SM 326 F-DI and SM 326 F-DO fail-safe signal modules, forming a complete safety-rated I/O subsystem within the ET 200M rack.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable operation of the 6ES7153-4BA00-0XB0 depends on a well-engineered control cabinet ecosystem. In high-density automation panels, the module is typically installed alongside the PS 307 24V DC power supply module, which provides stable, regulated power to the ET 200M backplane and protects against voltage surges and transient spikes that can corrupt PROFIBUS communication frames. Where power quality is a concern — particularly in facilities with large motor loads or frequent switching events — the addition of a SITOP PSU100S power supply unit upstream of the ET 200M rack provides an additional layer of surge suppression and load buffering.

For safety-critical applications, the 6ES7153-4BA00-0XB0 is paired with the SM 326 F-DI 24 × 24V DC fail-safe digital input module and the SM 326 F-DO 10 × 24V DC / 2A fail-safe digital output module. Together, these components form a certified safety I/O subsystem capable of executing emergency shutdown (ESD) functions, safety interlock logic, and process protection sequences in accordance with SIL 2 / SIL 3 requirements. The CP 342-5 PROFIBUS communication processor is often deployed in the same cabinet to manage additional DP segments, ensuring that the primary IM 153-4 interface is not overloaded in large distributed I/O configurations.

In environments with high vibration — such as compressor houses, pump stations, and heavy press lines — the mechanical integrity of the ET 200M rack assembly is reinforced by correct DIN rail mounting torque and the use of bus connectors with locking levers. The IM 153-4 module’s robust connector design resists the micro-vibration-induced contact degradation that causes intermittent faults in less ruggedized interface hardware. Thermal management within the cabinet is equally important: maintaining airflow clearances around the ET 200M station prevents the module from operating near its upper temperature limit, preserving long-term communication reliability and reducing the risk of thermally induced resets.

Critical Industrial Safety Applications

The Siemens 6ES7153-4BA00-0XB0 is deployed across a broad spectrum of safety-critical industrial sectors. In petrochemical and refinery operations, it serves as the distributed I/O interface for emergency shutdown systems, fire and gas detection panels, and burner management systems where fail-safe signal integrity is non-negotiable. A communication fault at this level can trigger a spurious trip, halting production and incurring significant restart costs, or — more critically — fail to execute a required safety action during a process upset.

In electric power generation and transmission substations, the module provides the PROFIBUS DP link between the central SIMATIC S7-400H redundant controller and field-level protection relays, circuit breaker control panels, and transformer monitoring systems. The deterministic communication timing of PROFIBUS DP ensures that protection commands are executed within the millisecond response windows required by grid protection standards.

Mining and mineral processing operations rely on the IM 153-4 to maintain control over conveyor drive systems, crusher interlocks, and ventilation safety circuits in environments characterized by heavy dust loading, high humidity, and persistent mechanical vibration. Water and wastewater treatment facilities deploy the module in pump station control panels and chemical dosing systems, where continuous operation is mandated by public health regulations and where any control interruption must be managed through fail-safe logic that defaults to a safe process state.

Port and maritime terminal automation systems use the 6ES7153-4BA00-0XB0 in crane control cabinets and ship-to-shore loader panels, where the combination of salt air corrosion risk, high-cycle mechanical loading, and safety-critical load handling demands the highest levels of communication reliability. Metallurgical plants — including steel mills and aluminum smelters — deploy the module in rolling mill control systems and furnace automation panels, where thermal cycling and electromagnetic interference from high-current bus bars create one of the most demanding environments for industrial control hardware.

Safety and Quality FAQ

Q: Does the 6ES7153-4BA00-0XB0 come with a support terms?
A: Yes. Every unit is covered by a support terms confirmed by quotation from the date of shipment. This covers functional failures under normal operating conditions and includes technical support for installation and commissioning issues.

Q: Is pre-shipment testing performed on each unit?
A: Yes. Each 6ES7153-4BA00-0XB0 module undergoes functional verification testing before dispatch, including PROFIBUS DP communication checks and power supply integrity tests. A test record is available upon request.

Q: Is this module compatible with both S7-300 and S7-400 systems?
A: Yes. The IM 153-4 DP High Feature module is compatible with SIMATIC S7-300 and S7-400 controllers via PROFIBUS DP. It also supports redundant IM configurations for high-availability applications. Compatibility with specific CPU firmware versions should be verified against the Siemens hardware compatibility matrix for your project.

Q: What is the long-term supply availability for this part?
A: We maintain in-stock inventory of the 6ES7153-4BA00-0XB0 to support both planned maintenance schedules and emergency replacement requirements. Global dispatch is available within 24–48 hours of order confirmation. For large-quantity or scheduled procurement requirements, contact our sales team to discuss dedicated stock reservation.
