Siemens 6ES7153-2BA10-0XB0 Maintenance-Proven Spare Part

Overview

Siemens 6ES7153-2BA10-0XB0 Maintenance-Proven Spare Part for Factory Uptime

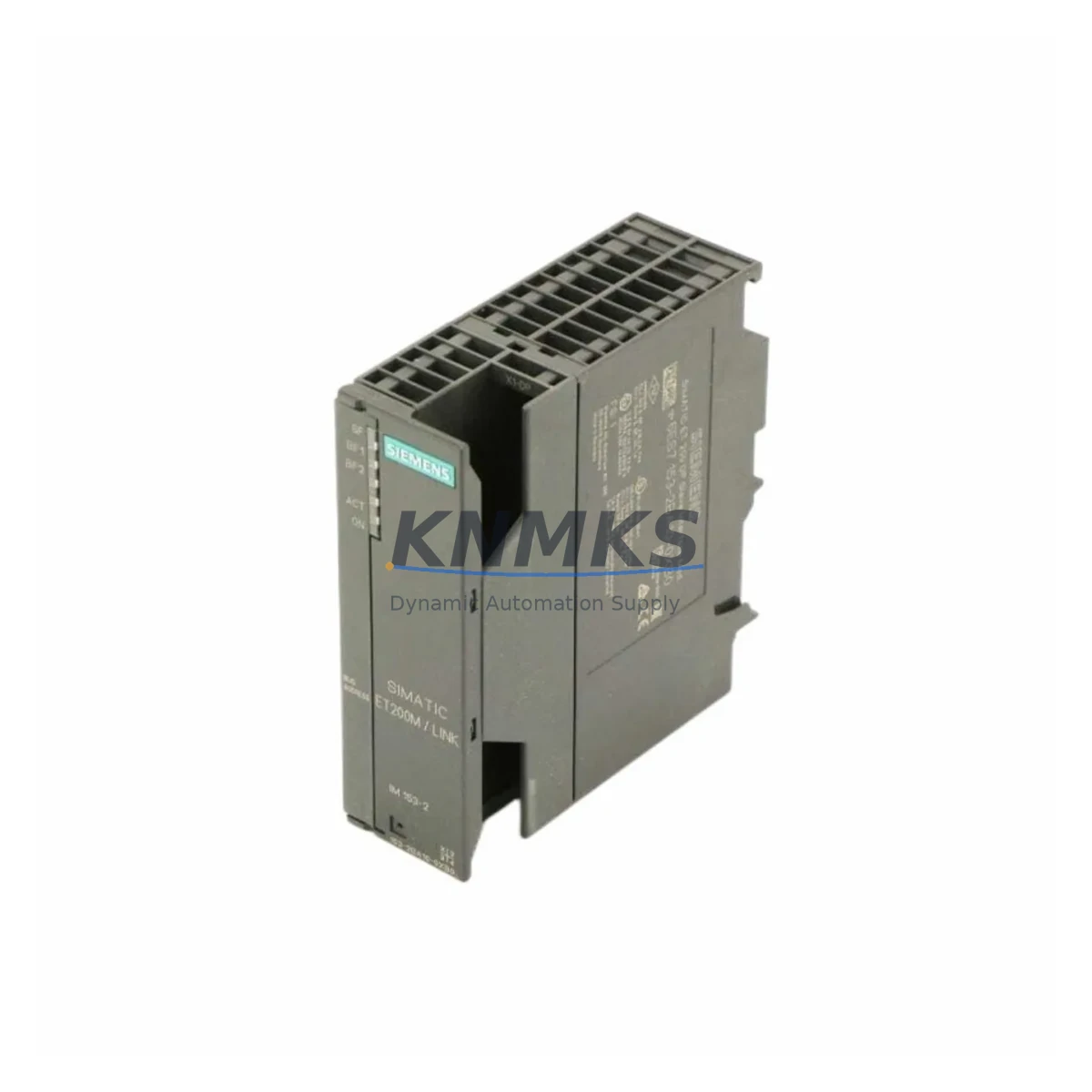

The Siemens 6ES7153-2BA10-0XB0 (IM153-2 HF) is a high-feature PROFIBUS DP interface module designed for the ET 200M distributed I/O station, fully compatible with Siemens S7-300 and S7-400 control architectures. As a critical communication bridge between the PROFIBUS DP master and the ET 200M rack, this module is a cornerstone component in distributed control cabinets across process automation, discrete manufacturing, and utility infrastructure. Maintaining a verified spare of the 6ES7153-2BA10-0XB0 in your parts inventory is a proven strategy for minimizing unplanned downtime and protecting production continuity.

At KNMKS, every 6ES7153-2BA10-0XB0 unit is sourced from authorized supply chains, individually inspected, and function-tested prior to shipment. Each unit ships with a support terms confirmed by quotation and full traceability documentation, giving maintenance engineers and procurement teams the confidence to stock and deploy with zero compromise on quality.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7153-2BA10-0XB0 interface module fails or is flagged during a scheduled inspection, the impact extends beyond the module itself. The IM153-2 HF sits at the heart of the ET 200M station’s communication chain, and a thorough replacement procedure should include a systematic check of all adjacent components to prevent repeat failures and ensure full system restoration.

Begin with the PROFIBUS DP cable and termination resistors — degraded shielding or missing bus termination is a leading cause of intermittent IM153-2 faults. Inspect the 24 VDC power supply module feeding the ET 200M rack (such as the Siemens PS307 or equivalent) for voltage stability and ripple, as undervoltage events can corrupt module firmware states. Check the ET 200M backplane bus connector for oxidation or mechanical damage, particularly in high-vibration or high-humidity environments.

Review the SM321 / SM322 digital I/O modules and SM331 / SM334 analog I/O modules installed in the same rack — a failing IM153-2 can mask downstream I/O faults that only surface after the interface module is replaced. If the station is part of a redundant PROFIBUS ring using a Y-Link coupler (6ES7158-0AD01-0XA0), verify both DP lines and the Y-Link configuration before returning the station to service.

For cabinets with CP343-1 or CP443-1 communication processors on the same S7 rack, confirm that PROFIBUS address assignments have not shifted after the module swap. Finally, inspect fuse holders and 24 V distribution terminals (such as Phoenix Contact or Weidmüller terminal blocks) within the control cabinet to rule out supply-side issues that may have contributed to the original failure.

Stocking a spare 6ES7153-2BA10-0XB0 alongside a backup SM321 digital input module and a spare 24 VDC SITOP power supply represents a minimal but highly effective emergency kit for ET 200M-based control cabinets, covering the most common failure points in a single procurement action.

Site Replacement Workflow

The IM153-2 HF supports active module replacement (hot-swap) without powering down the ET 200M rack, a critical advantage in continuous-process environments where a full cabinet shutdown is not operationally acceptable. To execute a controlled replacement on site:

Step 1 — Pre-replacement verification: Confirm the PROFIBUS DP address set on the replacement 6ES7153-2BA10-0XB0 matches the failed unit (address is set via rotary switches on the module face). Mismatched addresses will prevent the station from coming online after swap.

Step 2 — Backup configuration: If the module stores a local dataset (for isochronous mode or specific HF parameters), upload the current configuration from the S7 project in STEP 7 or TIA Portal before removal. This ensures the replacement module receives the correct parameter set on first power-up.

Step 3 — Physical swap: Disengage the PROFIBUS DP connector, release the module locking lever, and slide the 6ES7153-2BA10-0XB0 out of the ET 200M base unit. Insert the replacement module, reconnect the DP bus, and observe the module’s SF/BF LEDs for fault-free initialization (green RUN LED, no BF/SF).

Step 4 — Post-swap validation: From the PLC CPU or SCADA system, verify that all I/O modules in the ET 200M station report correctly and that no diagnostic alarms are active. Run a short functional test cycle on the connected field devices before returning the line to production.

This workflow is compatible with legacy S7-300 systems running STEP 7 v5.x and modern TIA Portal V15+ environments, making the 6ES7153-2BA10-0XB0 a reliable long-term replacement for aging IM153-1 or early IM153-2 variants in installed base systems.

Spare Parts Support FAQ

Q1: Is the 6ES7153-2BA10-0XB0 compatible with both S7-300 and S7-400 PROFIBUS DP masters?
Yes. The IM153-2 HF operates as a DP slave and is compatible with any PROFIBUS DP master that conforms to IEC 61158 / EN 50170, including Siemens S7-300 CPUs with integrated DP interface, S7-400 DP master modules, and third-party DP masters. Confirm the GSD file version matches your master configuration in STEP 7 or TIA Portal for full parameter compatibility.

Q2: How is each unit tested before shipment?
Every 6ES7153-2BA10-0XB0 supplied by KNMKS undergoes power-on functional verification and PROFIBUS communication testing on a live ET 200M test bench. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for critical procurement or incoming inspection requirements.

Q3: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the date of shipment. The support terms covers hardware defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications. Support requests are processed with priority turnaround to minimize your downtime exposure.

Q4: Can KNMKS support long-term or recurring procurement for this SKU?
Yes. KNMKS maintains standing inventory and supplier relationships for the 6ES7153-2BA10-0XB0 and related ET 200M components. For maintenance contracts, annual blanket orders, or emergency stock programs, contact our team directly to discuss lead times, volume pricing, and consignment options tailored to your plant’s spare parts strategy.
