Siemens 6ES7153-2BA02-0XB0 Fail-Safe PROFIBUS-DP Module

Overview

Siemens 6ES7153-2BA02-0XB0 Fail-Safe PROFIBUS-DP Module: Fault Protection and Critical Industrial Field Reliability

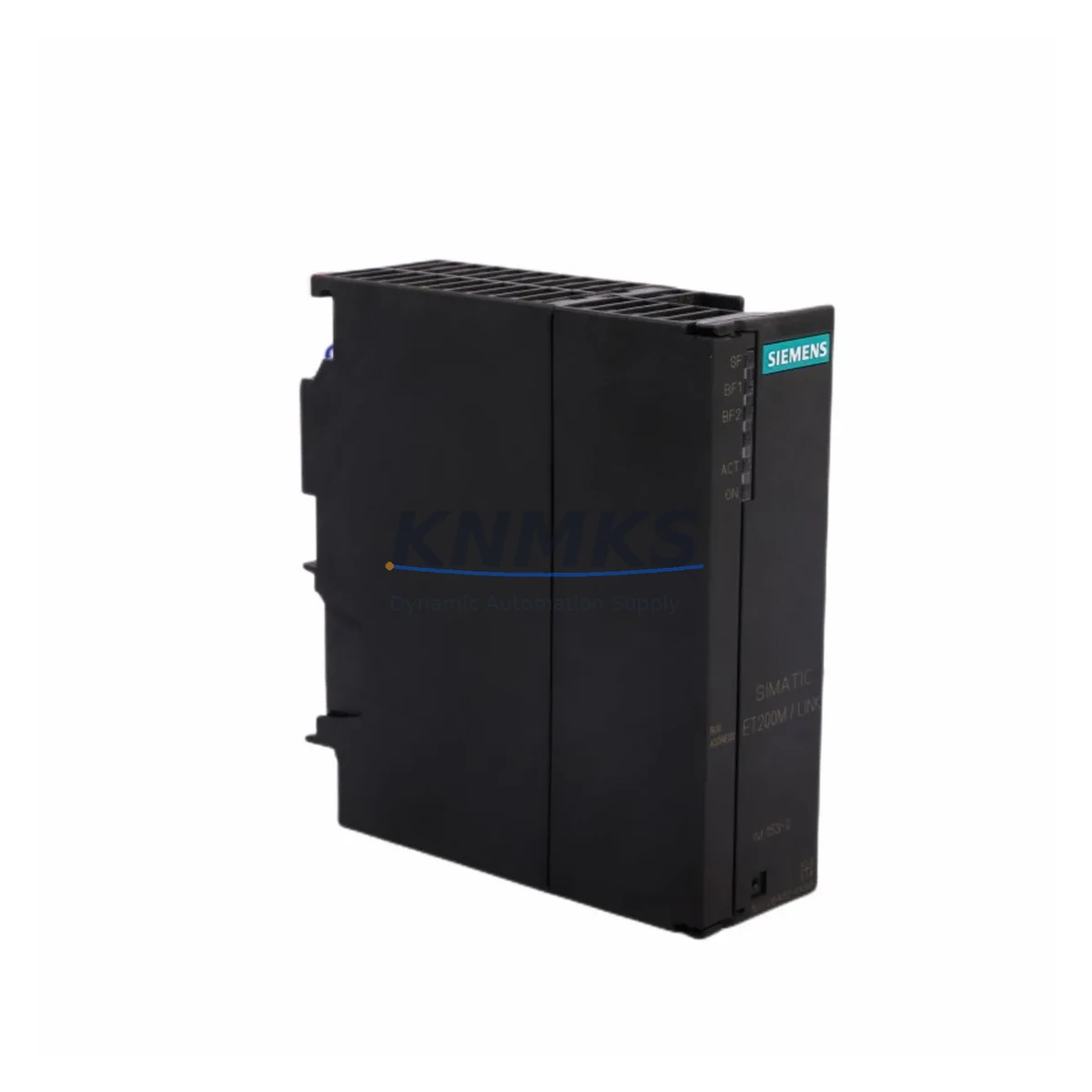

The Siemens 6ES7153-2BA02-0XB0 is the IM153-2 interface module designed for the ET 200M distributed I/O station, enabling seamless PROFIBUS-DP communication between field-level devices and the central SIMATIC S7-300 or S7-400 controller. In continuous production environments where unplanned downtime carries severe operational and safety consequences, this module delivers the fault-tolerant architecture and robust signal integrity that critical industrial control systems demand.

Engineered for deployment in heavy-duty control cabinets, the 6ES7153-2BA02-0XB0 supports redundant PROFIBUS-DP configurations, allowing the system to maintain communication continuity even when one bus segment experiences a fault. This redundancy is essential in safety interlock loops found in petrochemical processing, power generation, and metallurgical plants, where a single communication dropout can trigger emergency shutdowns or, worse, uncontrolled process deviations. The module’s active bus termination and integrated diagnostic functions continuously monitor bus health, flagging signal drift or impedance anomalies before they escalate into hard failures.

In high electromagnetic interference environments — common in variable-frequency drive cabinets, arc furnace control rooms, and port crane electrical houses — the 6ES7153-2BA02-0XB0 maintains stable PROFIBUS-DP communication through its shielded backplane interface and noise-immune signal processing. Paired with a properly grounded Siemens SITOP PSU100S 24 V DC power supply module, the ET 200M station achieves the clean, regulated power baseline that prevents voltage fluctuation-induced communication resets and module lockups. For surge protection at the cabinet entry point, integrating a Siemens 5SD7 series surge protection device further shields the PROFIBUS segment from transient overvoltages caused by nearby switching operations or lightning coupling.

The module’s wide operating temperature range and vibration-rated mechanical design make it suitable for installation in outdoor substations, shipboard automation panels, and mining conveyor control stations where thermal cycling and mechanical stress are constant. In dusty or humid environments such as cement plants or water treatment facilities, the ET 200M enclosure combined with the 6ES7153-2BA02-0XB0’s sealed connector interface maintains reliable I/O communication without signal degradation. When deployed alongside Siemens SM321 digital input modules and SM322 digital output modules within the same ET 200M rack, the interface module provides centralized diagnostic visibility across all I/O channels, enabling maintenance teams to isolate faults to the specific module or channel without interrupting the broader control loop.

For applications requiring functional safety compliance, the 6ES7153-2BA02-0XB0 supports integration with Siemens F-modules (Fail-Safe I/O) within the ET 200M station, enabling SIL 2 / SIL 3 safety loops to share the same distributed I/O infrastructure as standard process I/O. This architecture reduces cabinet footprint, simplifies wiring, and lowers the total installed cost of safety-instrumented systems in continuous manufacturing and hazardous area applications. Communication with the safety controller is handled transparently over the standard PROFIBUS-DP segment, with PROFIsafe protocol encapsulation ensuring data integrity for safety-critical signals.

Replacement and spare parts availability is a critical consideration for long-lifecycle industrial installations. The 6ES7153-2BA02-0XB0 is stocked and available for immediate shipment, supporting both planned maintenance cycles and emergency replacement scenarios. Each unit undergoes pre-shipment functional testing to verify PROFIBUS-DP communication establishment, diagnostic response, and power-up sequencing before leaving our facility. Compatibility with existing ET 200M racks, Siemens IM153-1 and IM153-4 PN interface modules, and the full range of S7-300 signal modules is verified as part of our quality assurance process.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable ET 200M station built around the 6ES7153-2BA02-0XB0 requires a layered protection strategy across power, communication, and I/O subsystems. At the power layer, the Siemens SITOP PSU100S 24 V DC power supply provides regulated, low-ripple DC power with built-in overload and short-circuit protection, ensuring the interface module and connected I/O modules receive stable operating voltage even during load transients caused by actuator switching. For cabinets installed in areas with frequent grid disturbances, a Siemens SITOP UPS1600 uninterruptible power supply module can be integrated to bridge power interruptions of up to several seconds, preventing communication loss and allowing the controller to execute a controlled shutdown sequence.

At the PROFIBUS-DP segment level, proper bus termination using active termination resistors and the use of shielded PROFIBUS cables (Siemens recommended Type A cable) are essential for maintaining signal integrity at baud rates up to 12 Mbit/s. In cabinets where the ET 200M station shares space with high-power drives or contactors, installing Siemens 5SD7 series surge protection devices on incoming power lines and signal cables prevents transient overvoltages from coupling into the PROFIBUS segment. The 6ES7153-2BA02-0XB0’s onboard diagnostics will report bus errors in real time to the S7 CPU, enabling the control program to trigger alarms or safe-state transitions before a communication fault causes a process upset.

For I/O expansion within the ET 200M rack, Siemens SM331 analog input modules handling 4–20 mA process signals and SM332 analog output modules driving control valves and positioners benefit directly from the interface module’s stable PROFIBUS-DP connection. Any signal drift or module fault detected at the I/O level is reported upstream through the IM153-2 diagnostic channel, giving operators full visibility into field device health from the SIMATIC S7 engineering station.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units such as distillation columns, reactor feed systems, and compressor trains, the 6ES7153-2BA02-0XB0 supports the distributed I/O architecture of emergency shutdown systems (ESD) and process safety management (PSM) loops. Its redundant PROFIBUS-DP capability ensures that a single bus cable fault does not disable the safety interlock, maintaining SIL-rated protection for high-consequence process equipment.

Power Generation and Substation Automation: In thermal power plants and grid substations, the ET 200M station with IM153-2 interface module handles turbine control I/O, protection relay status monitoring, and switchgear position feedback. The module’s EMC immunity and wide temperature tolerance allow installation in outdoor relay houses and GIS substation control panels where environmental conditions are demanding.

Mining and Mineral Processing: Conveyor drive control, crusher protection, and slurry pump management systems in underground and open-pit mining operations rely on distributed I/O with high vibration and dust resistance. The 6ES7153-2BA02-0XB0 maintains communication integrity in these harsh environments, supporting safe torque-off and emergency stop functions for heavy machinery.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use ET 200M stations for pump station automation, chemical dosing control, and filtration system management. The interface module’s diagnostic transparency allows remote monitoring of field device status, reducing the need for on-site inspection in unmanned pump stations.

Metallurgy and Steel Production: In electric arc furnace control, rolling mill automation, and continuous casting systems, the high EMI environment generated by large power electronics demands robust PROFIBUS-DP communication. The 6ES7153-2BA02-0XB0’s noise-immune design and redundant bus support ensure uninterrupted I/O communication during high-current switching events.

Port and Maritime Automation: Ship-to-shore crane control systems, automated stacking cranes, and vessel automation panels operate in salt-air, high-humidity environments with significant vibration from mechanical operations. The ET 200M platform with IM153-2 interface module provides the environmental robustness and communication reliability required for safe load handling and positioning control.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7153-2BA02-0XB0?
All units are covered by a support terms confirmed by quotation from the date of shipment. In the event of a verified module failure under normal operating conditions, we provide full replacement or repair at no additional cost. Support requests are processed promptly to minimize impact on your production schedule.

Q2: What pre-shipment testing is performed on each module?
Each 6ES7153-2BA02-0XB0 undergoes functional testing prior to shipment, including PROFIBUS-DP communication establishment verification, power-up diagnostic check, and visual inspection for physical integrity. This ensures that the module arrives ready for installation and commissioning without requiring additional bench testing on your end.

Q3: Is this module compatible with existing ET 200M racks and S7-300/S7-400 systems?
Yes. The 6ES7153-2BA02-0XB0 is fully compatible with standard ET 200M IM153-2 rack positions and integrates directly with SIMATIC S7-300 and S7-400 CPUs via PROFIBUS-DP. It supports DP-V1 services and is backward compatible with DP-V0 masters, making it suitable for both new installations and replacement of existing IM153-2 modules in legacy systems.

Q4: Can long-term supply and replacement support be guaranteed for critical installations?
We maintain dedicated stock of the 6ES7153-2BA02-0XB0 to support both planned maintenance programs and emergency replacement requirements. For critical infrastructure operators managing long-lifecycle control systems, we recommend establishing a spare parts agreement to ensure guaranteed availability. Contact our technical sales team to discuss volume pricing and reserved stock arrangements.
