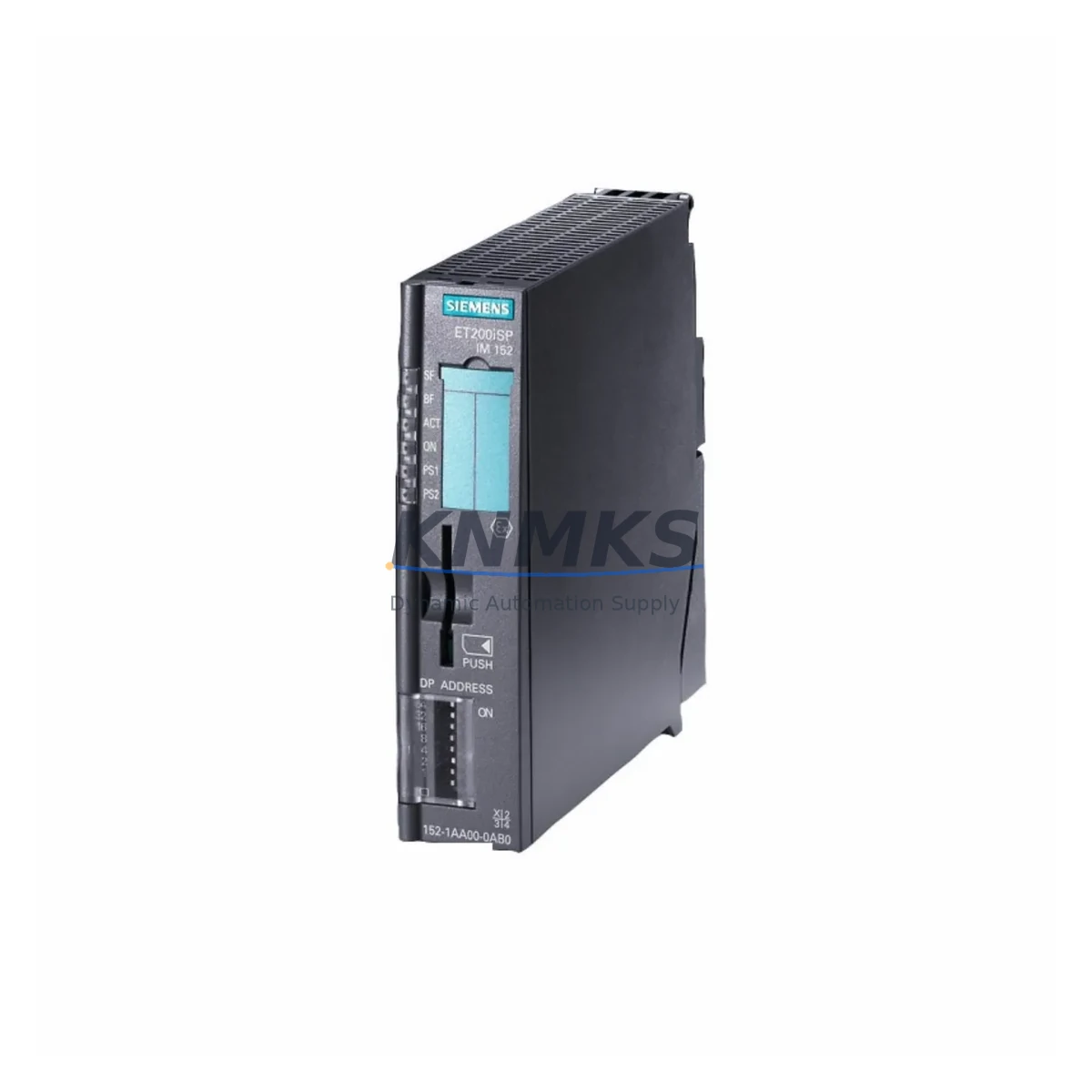

Siemens 6ES7152-1AA00-0AB0 Maintenance-Proven Spare Part

Overview

Siemens 6ES7152-1AA00-0AB0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7152-1AA00-0AB0 is the IM152-1 Interface Module for the ET 200X distributed I/O station, designed to connect field-level devices to a PROFIBUS DP network in demanding industrial environments. As a maintenance-proven spare part, this module is essential for facilities running Siemens SIMATIC S7 automation systems where unplanned downtime carries significant operational and financial risk. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a strategic spare parts buffer, the 6ES7152-1AA00-0AB0 is a critical line item in any responsible maintenance plan.

Sourced from verified supply channels and tested prior to dispatch, each unit is backed by a support terms confirmed by quotation and ships with full documentation support. Our global logistics network ensures delivery details confirmed by RFQ to maintenance teams across Europe, Asia-Pacific, and North America — minimizing the gap between fault detection and system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7152-1AA00-0AB0 IM152-1 interface module, a thorough site inspection of the surrounding electrical system is essential to prevent repeat failures and ensure a clean restoration. Maintenance engineers should begin by verifying the 24 V DC power supply feeding the ET 200X station — a failing or undersized power module such as the 6ES7138-4CA01-0AA0 PM-E power module is a common root cause of interface module faults and should be tested or replaced concurrently.

PROFIBUS DP cable integrity is equally critical. Inspect the bus connector, termination resistors, and cable shielding at both ends of the segment. A degraded bus cable or improperly terminated segment can cause intermittent communication errors that mimic interface module failure. If the ET 200X station includes digital or analog I/O modules — such as the 6ES7141-1BF00-0XB0 4DI module or the 6ES7142-1BD00-0XB0 4DO module — verify that each module’s status LEDs indicate normal operation after the IM152-1 is replaced and the PROFIBUS segment is re-established.

For facilities using SIMATIC S7-300 or S7-400 PLCs as the PROFIBUS DP master, confirm that the CPU’s DP master configuration in STEP 7 or TIA Portal still matches the physical station layout. A GSD file mismatch after module replacement is a frequent commissioning error. Additionally, check the 24 V DC fuse or circuit breaker protecting the ET 200X station — fuse holders and miniature circuit breakers in the control cabinet should be inspected as part of the same maintenance window.

Where the ET 200X station interfaces with an HMI panel — such as a Siemens TP700 or OP77B — verify that the HMI communication path through the PROFIBUS segment is restored and that no alarm suppression masks an underlying fault. For sites with signal isolators or intrinsic safety barriers between the ET 200X and field instruments, confirm that isolator output signals are within specification after the bus is re-energized.

Procurement engineers building annual spare parts kits for ET 200X-based lines should consider stocking the IM152-1 interface module alongside the PM-E power module, at least one digital I/O module matched to the station configuration, a set of PROFIBUS bus connectors with integrated termination, and a spare 24 V DC fuse set. This combination covers the most common failure modes and supports rapid restoration without waiting for emergency procurement lead times.

Site Replacement Workflow

Replacing the 6ES7152-1AA00-0AB0 on a live production line requires a structured approach to minimize downtime and avoid configuration errors. Begin by placing the PROFIBUS DP master CPU into STOP mode and isolating the ET 200X station from its 24 V DC supply. Document the existing PROFIBUS address setting on the IM152-1 — this is configured via the address switch on the module face and must be replicated exactly on the replacement unit before installation.

Remove the faulty IM152-1 by releasing the module locking mechanism and sliding it clear of the ET 200X base unit. Inspect the base unit connector for corrosion, bent pins, or moisture ingress — particularly important in IP65/IP67 installations where condensation can accumulate over time. Install the replacement 6ES7152-1AA00-0AB0, confirm the PROFIBUS address switch matches the original setting, and reconnect the 24 V DC supply.

Restore the PROFIBUS DP master to RUN mode and monitor the diagnostic buffer in STEP 7 or TIA Portal for any residual faults. Confirm that all I/O modules on the ET 200X station are recognized and that process signals are within expected ranges before releasing the line to production. For legacy S7-300 systems approaching end-of-life, this replacement window is also an appropriate time to assess migration readiness and identify additional modules that may require stocking for long-term system extension.

Spare Parts Support FAQ

Q1: Is the 6ES7152-1AA00-0AB0 still available as a new original spare?
Yes. We maintain stock of the 6ES7152-1AA00-0AB0 IM152-1 interface module sourced from verified supply channels. Each unit is tested prior to shipment and covered by a support terms confirmed by quotation. Contact our team for current availability and lead time confirmation.

Q2: How do I verify compatibility with my existing ET 200X station before ordering?
The 6ES7152-1AA00-0AB0 is the standard IM152-1 interface module for the ET 200X distributed I/O platform and is compatible with all standard ET 200X base units and expansion modules. Confirm your PROFIBUS DP master CPU model and GSD file version in STEP 7 or TIA Portal to ensure the station configuration is current before replacement.

Q3: What is your recommended spare parts stocking strategy for ET 200X-based lines?
For lines with more than two ET 200X stations, we recommend holding a minimum of one IM152-1 interface module and one PM-E power module per line as on-site hot spares. For critical production lines, a full station spare — including base unit, interface module, and matched I/O modules — provides the fastest possible restoration path in the event of a catastrophic station failure.

Q4: What pre-shipment checks are performed on each unit?
Every 6ES7152-1AA00-0AB0 unit undergoes functional testing before dispatch, including power-on verification and communication interface checks. Units are packaged in anti-static protective packaging with inspection documentation. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7152-1AA00-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7152-1AA00-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
