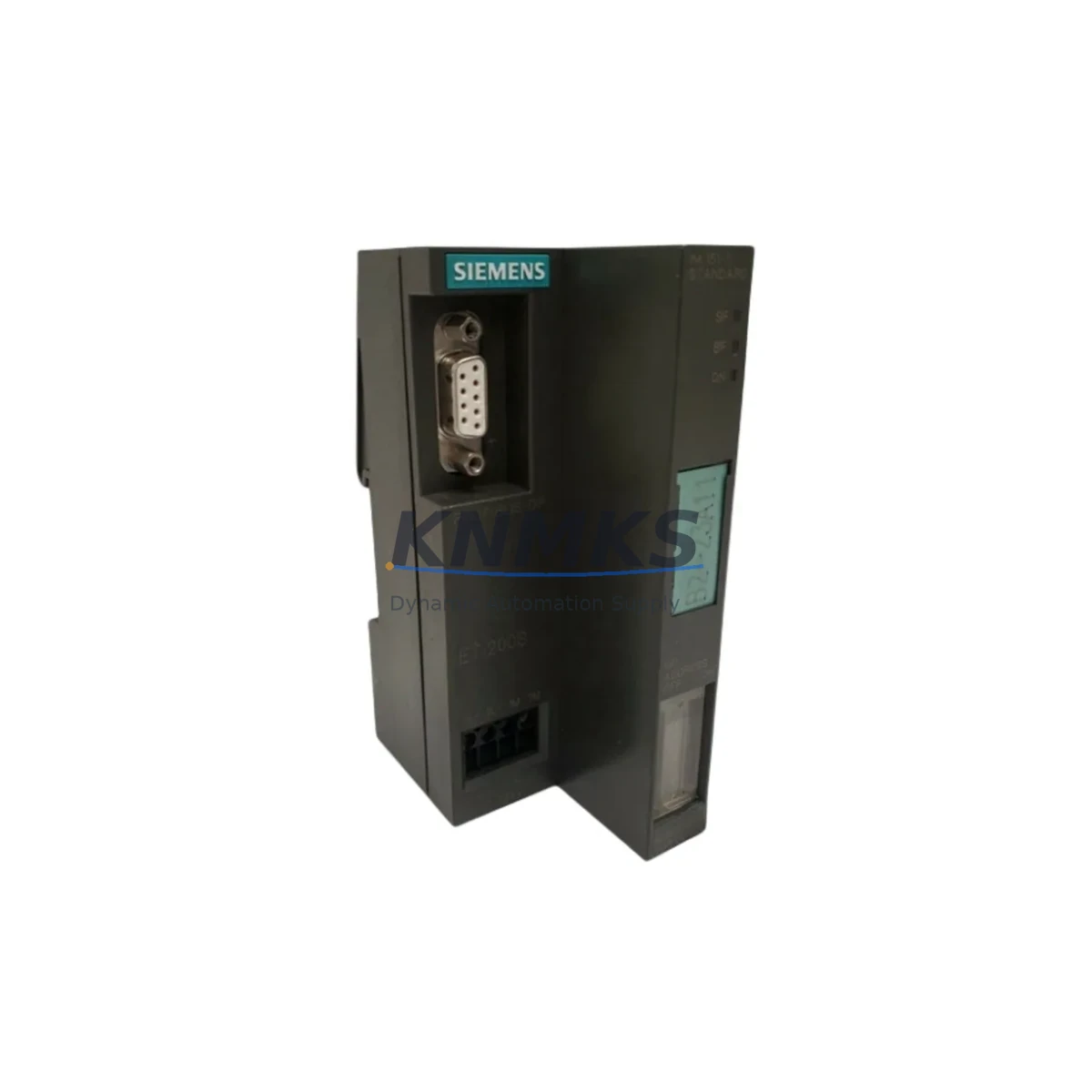

The Siemens 6ES7151-1AA03-0AB0 is the IM 151-1 Standard interface module for the ET 200S distributed I/O system, communicating via PROFIBUS DP at up to 12 Mbit/s. Designed for demanding industrial environments — petrochemical plants, power generation facilities, water treatment stations, and automotive assembly lines — this module serves as the backbone of decentralized field-level control. When this interface module fails or degrades, the entire ET 200S station loses communication with the SIMATIC S7 PLC host, triggering unplanned downtime that can cascade across production lines. Stocking a validated replacement is the single most effective measure a maintenance team can take to protect uptime.

At KNMKS, every 6ES7151-1AA03-0AB0 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Our global logistics network ensures rapid dispatch to sites across Asia, Europe, the Middle East, and the Americas — critical when a line-down situation demands same-week resolution.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A field replacement of the 6ES7151-1AA03-0AB0 is rarely an isolated event. Maintenance engineers and procurement teams should treat this module as the trigger for a broader cabinet inspection. When the IM 151-1 interface module is pulled for replacement, the following components in the same ET 200S station and PROFIBUS segment warrant simultaneous inspection or pre-emptive stocking:

PM-E Power Module (e.g., 6ES7138-4CA01-0AA0): The ET 200S PM-E power module supplies 24 V DC to the I/O tier. A degraded power module can cause intermittent IM 151-1 faults that mimic communication errors. Verify output voltage stability and check for capacitor aging before concluding the interface module is the root cause.

ET 200S Digital I/O Modules (e.g., 6ES7131-4BF00-0AA0 / 6ES7132-4BF00-0AA0): After restoring PROFIBUS DP communication, validate all digital input and output modules in the station. A single shorted output channel can cause the IM 151-1 to report bus errors, masking the true fault source.

PROFIBUS DP Bus Connector and Cable (e.g., 6ES7972-0BA52-0XA0): Inspect the PROFIBUS bus connector at the IM 151-1 port for pin corrosion, loose termination resistors, and cable shielding continuity. A high-impedance connection at this point is a common cause of intermittent DP communication loss in humid or vibration-prone environments.

SIMATIC S7-300 CP 342-5 Communications Processor (e.g., 6GK7342-5DA02-0XE0): If the ET 200S station is connected to an S7-300 host via a CP 342-5 PROFIBUS master, verify the CP module’s firmware version and diagnostic buffer. Incompatible firmware between the CP and the IM 151-1 can prevent station initialization after a module swap.

Terminal Module TM-IM/IM (e.g., 6ES7193-4CA40-0AA0): The IM 151-1 mounts onto a dedicated terminal module. Inspect the backplane connector for oxidation or mechanical damage. A faulty terminal module will prevent the new IM 151-1 from making reliable electrical contact, causing the replacement to appear defective.

24 V DC Industrial Power Supply (e.g., SITOP PSU100S 6EP1334-2BA20): Measure the 24 V DC rail supplying the ET 200S station under load. Voltage dips below 20.4 V will cause the IM 151-1 to reset. If the power supply is more than five years old or shows output ripple above specification, include it in the annual maintenance replacement cycle.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the 6ES7151-1AA03-0AB0, export the current PROFIBUS DP configuration from STEP 7 or TIA Portal. Record the station address (set via rotary switches on the IM 151-1 front panel) and note the GSD file version in use. This prevents address conflicts and configuration mismatches after the swap.

Step 2 — Power down the ET 200S station: De-energize the PM-E power module feeding the station. Do not rely solely on the PROFIBUS DP bus being inactive — the 24 V DC supply to the IM 151-1 must be removed before module extraction to avoid backplane damage.

Step 3 — Extract and inspect the terminal module: Slide the IM 151-1 off the TM-IM/IM terminal module. Inspect the terminal module’s backplane connector for bent pins or carbon deposits. Clean with isopropyl alcohol if contamination is present. Replace the terminal module if mechanical damage is observed.

Step 4 — Set the station address on the replacement module: The 6ES7151-1AA03-0AB0 uses two rotary switches (×10 and ×1) to set the PROFIBUS DP station address. Match the address recorded in Step 1 before inserting the new module. An address mismatch will prevent the S7 master from recognizing the station.

Step 5 — Restore power and verify: Re-energize the PM-E module and monitor the IM 151-1 BF (Bus Fault) and SF (System Fault) LEDs. Both LEDs should extinguish within 5 seconds of successful DP initialization. Use STEP 7 or TIA Portal online diagnostics to confirm all I/O modules in the station are reporting correctly.

Step 6 — Update maintenance records: Log the replacement date, new module serial number, and station address in the plant CMMS. Schedule the next inspection interval based on the operating environment — 12 months for standard industrial environments, 6 months for high-vibration or high-humidity applications.

The 6ES7151-1AA03-0AB0 is a direct plug-and-play replacement for earlier IM 151-1 revisions, including the -0AA0 and -0AB0 hardware variants, provided the PROFIBUS DP GSD file (SI029700.GSD) is current in the master configuration. No hardware modification or re-wiring is required, making it one of the lowest-risk spare part swaps in the ET 200S family.

Spare Parts Support FAQ

Q1: Is the 6ES7151-1AA03-0AB0 compatible with both STEP 7 Classic and TIA Portal?
Yes. The IM 151-1 Standard is supported in STEP 7 V5.x via the GSD file and in TIA Portal V13 and later via the HSP (Hardware Support Package) for ET 200S. Ensure the HSP is installed before performing online configuration in TIA Portal to avoid unrecognized module warnings.

Q2: What is the recommended spare parts inventory strategy for the ET 200S IM 151-1?
For facilities with more than three ET 200S stations on a single PROFIBUS DP segment, we recommend holding a minimum of one 6ES7151-1AA03-0AB0 per segment as a cold standby. For critical processes — continuous chemical reactors, turbine control panels, or safety-instrumented systems — a hot standby strategy with a pre-configured replacement module stored in the control room is advisable. Annual procurement cycles aligned with plant turnaround schedules minimize emergency sourcing costs.

Q3: How do I verify that a replacement 6ES7151-1AA03-0AB0 is genuine and functional before installation?
All units supplied by KNMKS undergo pre-shipment functional testing using a PROFIBUS DP test bench that simulates a live S7 master. The test verifies DP initialization, I/O data exchange, and diagnostic response. Each unit ships with a test report. On-site, verify the firmware version via the module’s diagnostic data in STEP 7 or TIA Portal — genuine Siemens modules report firmware version V3.x or later for the -0AB0 hardware revision.

Q4: What is the long-term supply outlook for the 6ES7151-1AA03-0AB0, and what is the migration path?
Siemens has positioned the ET 200S platform as a mature product with continued spare parts availability through authorized channels. For new installations, Siemens recommends the ET 200SP platform (e.g., IM 155-6 PN ST, 6ES7155-6AU01-0BN0) as the successor. However, for existing ET 200S installations, the 6ES7151-1AA03-0AB0 remains the correct like-for-like replacement. KNMKS maintains stock to support multi-year spare parts programs, and our team can advise on migration planning when the time comes to transition aging ET 200S stations to ET 200SP.
