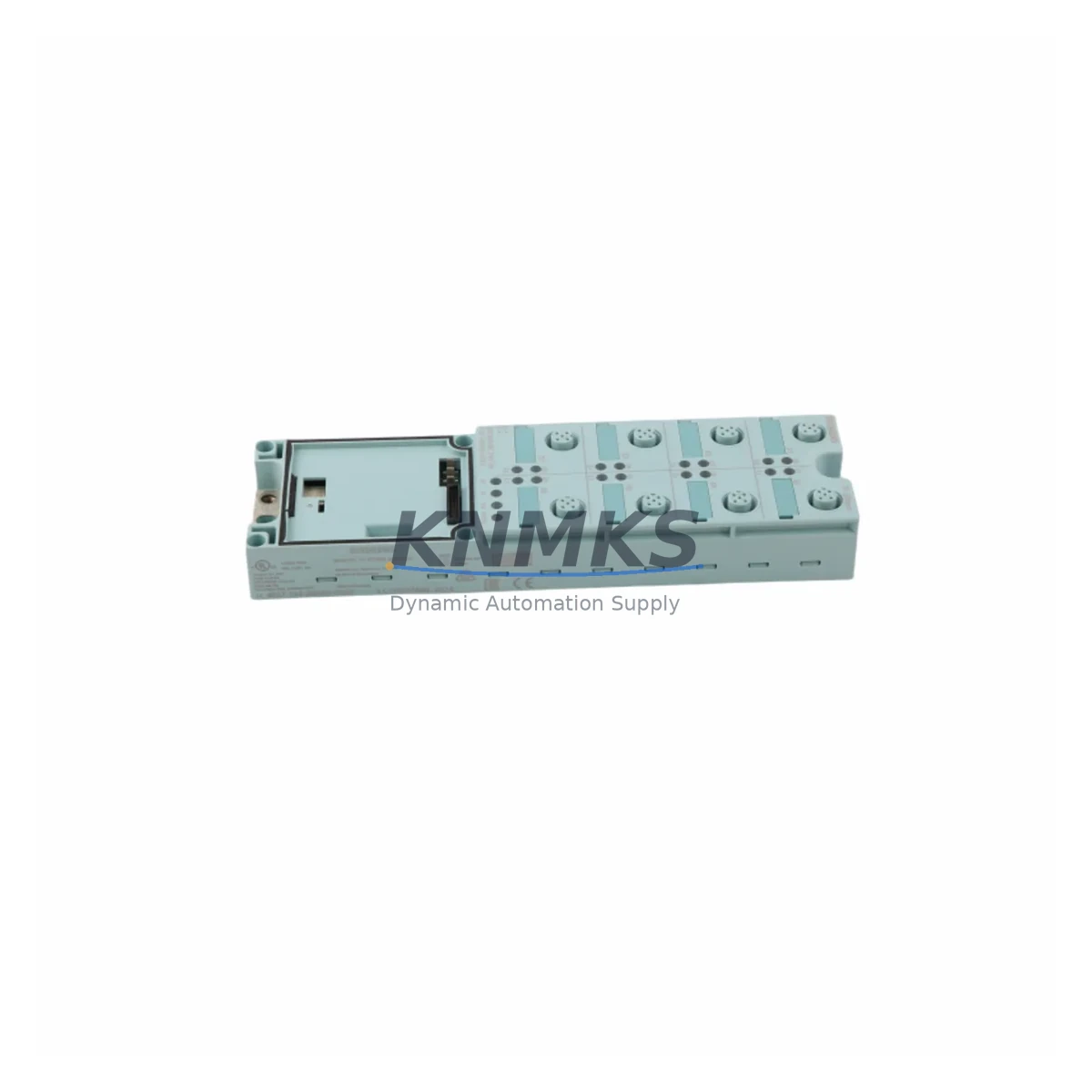

Siemens 6ES7143-3BH00-0XA0 Fail-Safe Digital I/O Module

Overview

Siemens 6ES7143-3BH00-0XA0 Fail-Safe Digital I/O Module: Fault-Tolerant Control for Critical Industrial Sites

The Siemens 6ES7143-3BH00-0XA0 is a ruggedized, IP67-rated fail-safe digital I/O module from the ET 200X distributed I/O family, engineered for deployment in the most demanding industrial environments. With 8 digital inputs and 8 digital outputs in a single compact housing, this module delivers deterministic signal processing and fault-safe behavior that is essential for continuous production lines, critical interlock circuits, and high-availability control cabinets operating under extreme conditions — including high electromagnetic interference, dust, moisture, elevated temperatures, and mechanical vibration.

In industries where unplanned downtime translates directly into production loss, safety incidents, or regulatory non-compliance, the 6ES7143-3BH00-0XA0 provides the hardware foundation for reliable field-level safety. Its IP67 ingress protection rating ensures full resistance to dust ingress and temporary water immersion, making it suitable for outdoor installations, wash-down zones, and exposed field junction boxes without additional enclosure protection.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7143-3BH00-0XA0 as part of a structured control cabinet safety architecture significantly reduces the risk of control interruption, spurious trips, and signal integrity loss. In high-EMI environments — such as those found near variable frequency drives, large motor starters, or arc furnaces — the module’s robust EMC design prevents signal drift and false output activation that could trigger unintended machine states or safety shutdowns.

For complete cabinet-level protection, this module is commonly paired with the Siemens 6ES7138-4CA01-0AA0 power module, which provides regulated 24 V DC supply with integrated diagnostics to protect the ET 200S/ET 200X backplane from voltage transients and surge events. Upstream power conditioning using a Siemens SITOP PSU100S 24V/10A power supply unit ensures stable DC bus voltage even during grid fluctuations, preventing the I/O module from experiencing undervoltage resets that could disrupt active safety interlocks.

In PROFIBUS DP architectures, the 6ES7143-3BH00-0XA0 operates reliably alongside the Siemens 6GK1500-0FC10 PROFIBUS bus connector and termination resistor assemblies, which maintain signal integrity across long cable runs in electrically noisy plant environments. For applications requiring cabinet-level surge protection on field wiring, the Siemens 8WD4408-0AA signal surge arrester modules are recommended on all 24 V DC I/O lines entering the cabinet from the field, protecting both the module inputs and the connected safety sensors from lightning-induced transients and switching surges.

Where thermal management is a concern — particularly in sealed enclosures operating in high-ambient-temperature zones — pairing this module with a Siemens 6SL3255-0AA00-4CA1 cabinet cooling unit or equivalent thermal management solution ensures the module operates within its rated temperature envelope, preventing thermally induced derating or premature failure of output drivers. Together, these components form a layered protection strategy that addresses power quality, EMC immunity, surge protection, thermal stability, and communication reliability in a single integrated cabinet design.

Critical Industrial Safety Applications

The Siemens 6ES7143-3BH00-0XA0 is deployed across a broad range of safety-critical industrial sectors where field-level I/O reliability is non-negotiable:

Petrochemical and Refinery Plants: In continuous process environments handling flammable or toxic media, this module supports emergency shutdown (ESD) interlock circuits and process isolation valve control. Its fail-safe output behavior ensures that in the event of a communication fault or power loss, outputs de-energize to a defined safe state — preventing valve misoperation that could lead to process upsets or hazardous releases.

Electric Power Generation and Substation Automation: In turbine control panels and substation protection relay cabinets, the module’s high EMC immunity prevents false digital input readings caused by high-frequency switching transients from power electronics, ensuring that protection relay trip signals and generator interlock commands are processed accurately and without delay.

Mining and Mineral Processing: In underground and surface mining operations, where conveyor systems, crushers, and hoisting equipment operate in dusty, wet, and vibration-intensive environments, the IP67 rating and wide operating temperature range of the 6ES7143-3BH00-0XA0 make it the preferred choice for distributed I/O nodes mounted directly on machinery frames or in field junction boxes.

Water and Wastewater Treatment: Pump station control panels and chemical dosing systems benefit from the module’s resistance to moisture ingress and its ability to maintain reliable digital I/O communication over PROFIBUS DP networks spanning large treatment plant sites, where cable runs may exceed several hundred meters.

Metallurgy and Steel Production: In rolling mill and continuous casting control systems, where high thermal loads, electromagnetic interference from induction furnaces, and mechanical shock are constant challenges, this module’s industrial-grade construction ensures uninterrupted operation of critical drive interlock and safety gate monitoring circuits.

Port Logistics and Heavy Lifting: Crane and gantry control systems in port environments require I/O modules that can withstand salt-laden air, wide temperature swings, and the mechanical vibration of heavy load cycles. The 6ES7143-3BH00-0XA0 meets these demands while providing the fast digital I/O response times required for precise load positioning and anti-collision interlock functions.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7143-3BH00-0XA0?
All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every unit undergoes full functional verification prior to shipment, including digital input signal response testing, output channel activation and load testing, and communication interface validation. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 6ES7143-3BH00-0XA0 compatible with existing Siemens ET 200X base units and PROFIBUS DP networks?
Yes. The module is designed for direct installation on standard ET 200X base units and integrates natively with PROFIBUS DP master controllers, including Siemens S7-300 and S7-400 CPUs. No additional configuration hardware is required beyond the standard GSD file installation in STEP 7 or TIA Portal.

Q4: Can long-term supply continuity be guaranteed for this module?
We maintain multi-region stock of the 6ES7143-3BH00-0XA0 to support both emergency replacement orders and scheduled maintenance programs. For customers managing planned outages or multi-site maintenance contracts, long-term supply agreements with reserved inventory allocation are available — contact our team to discuss your specific volume and delivery schedule requirements.
