Siemens 6ES7138-4FB03-0AB0 Migration-Ready PM-E DC 24V

Overview

Siemens 6ES7138-4FB03-0AB0 Migration-Ready PM-E DC 24V for Legacy ET 200S Control Systems

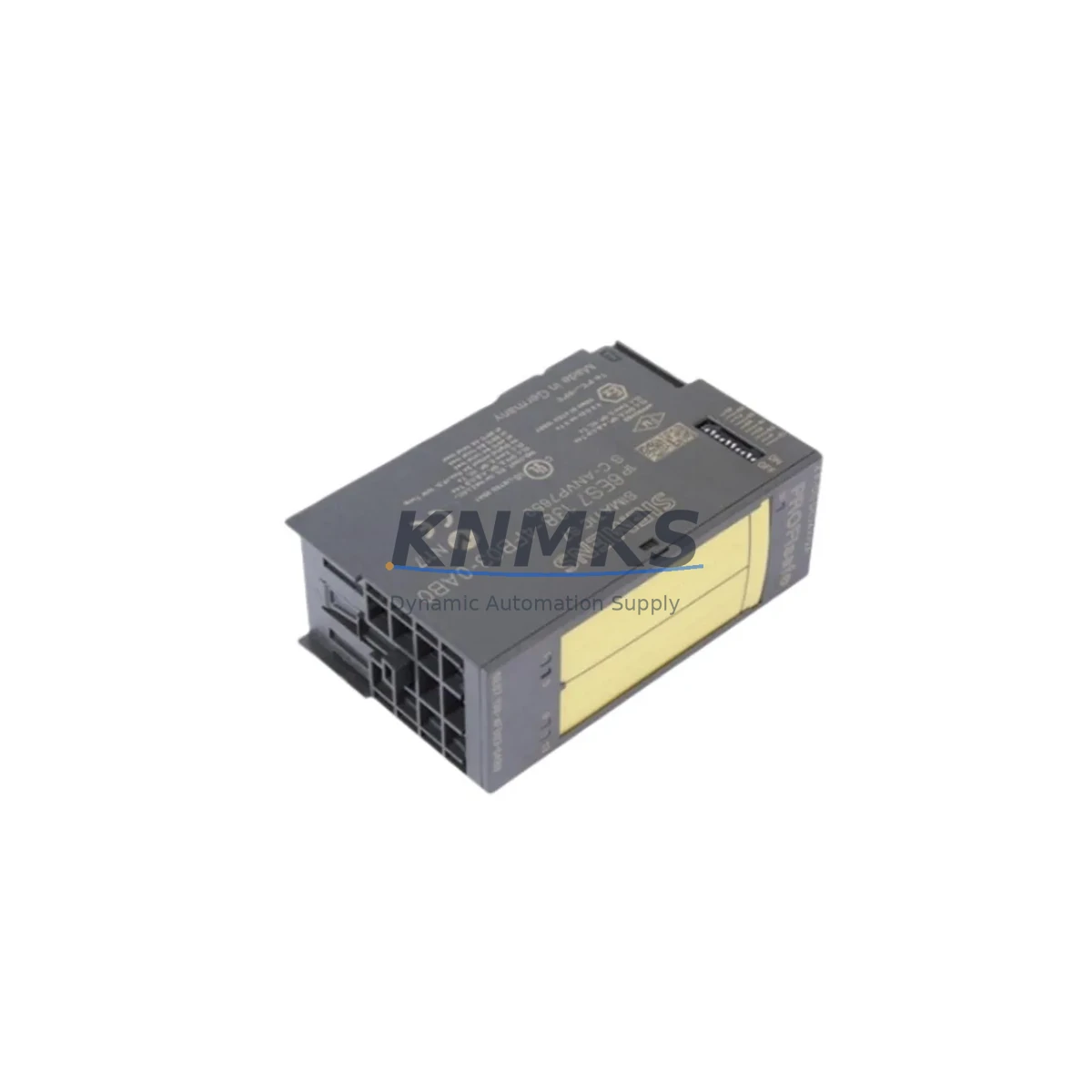

The Siemens 6ES7138-4FB03-0AB0 is a PM-E DC 24V power module designed for the SIMATIC ET 200S distributed I/O system. As legacy automation lines face increasing pressure from discontinued spare parts and aging infrastructure, this module serves as a critical component in retrofit projects, control cabinet upgrades, and distributed I/O system restorations. Whether you are replacing a failed unit on an active production line or planning a phased migration away from an obsolete control architecture, the 6ES7138-4FB03-0AB0 provides a verified, drop-in compatible solution backed by a support terms confirmed by quotation and pre-shipment functional testing.

In distributed I/O applications, the PM-E power module supplies the electronic and load voltage to downstream terminal modules and I/O modules within the ET 200S station. When this module fails or becomes unavailable through standard supply channels, the entire I/O station loses power, halting field signal acquisition and output control. Sourcing a verified replacement quickly — with confirmed firmware compatibility and correct terminal assignment — is essential to minimizing unplanned downtime.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 6ES7138-4FB03-0AB0 requires careful coordination across multiple system layers. The power module does not operate in isolation — it feeds downstream I/O modules such as the 6ES7131-4BF00-0AA0 digital input module and the 6ES7132-4BF00-0AA0 digital output module, both of which are common in legacy ET 200S stations. Before replacement, engineers should audit the full slot configuration of the ET 200S station to confirm that the terminal module type (TM-P15S23-A0 for standard applications or TM-P15C23-A0 for high-feature variants) matches the replacement PM-E module’s mechanical and electrical interface.

In systems where the ET 200S station communicates via PROFIBUS DP through an IM 151-1 head module, the station address set on the IM 151 must be preserved during the swap. If the site is undergoing a broader migration to PROFINET, the IM 151-3 PN head module may already be in place or planned as part of the upgrade path — in which case the PM-E power module remains fully compatible, as the power distribution architecture is independent of the communication protocol used by the head module.

For control cabinets that also house a CPU 315-2 DP or CPU 317-2 DP as the central controller, the ET 200S station’s I/O data is mapped into the CPU’s process image. After replacing the PM-E module, engineers should perform a warm restart of the CPU and verify that all I/O addresses in the STEP 7 hardware configuration or TIA Portal project are correctly assigned. Any mismatch in the hardware configuration — particularly if the GSD file version does not match the installed firmware of the IM 151 — can result in station faults that prevent normal operation.

Where analog signal modules such as the 6ES7134-4FB01-0AB0 analog input module are installed in the same ET 200S station, special attention should be paid to the load voltage segment supplied by the PM-E module. Analog modules are sensitive to supply voltage ripple, and a newly installed PM-E module should be verified for stable output before reconnecting field instruments. Signal isolators or barriers installed upstream of the analog inputs should also be checked for correct loop power supply after the module swap.

In applications where a SIMATIC HMI panel — such as a TP700 Comfort or MP377 — displays process values sourced from the ET 200S station, the HMI project should be reviewed to confirm that tag addresses remain valid after the retrofit. If the station was reconfigured or if slot positions changed during the upgrade, HMI tag mappings may require updating in WinCC Flexible or TIA Portal WinCC.

Downtime Control During System Migration

Minimizing production downtime during a PM-E module replacement on an active ET 200S station requires a structured approach. The first step is to export and archive the current STEP 7 or TIA Portal project, including the hardware configuration and all program blocks (OBs, FBs, FCs, DBs), before any physical work begins. This ensures that the original program logic can be restored immediately if an unexpected fault occurs during commissioning.

Where the production process allows, the ET 200S station should be placed in a safe state — with outputs de-energized and field devices confirmed in their fail-safe positions — before the PM-E module is removed. In PROFIBUS DP systems, the CPU can be set to STOP mode to freeze the process image while the swap is performed. In PROFINET systems with shared device functionality, it may be possible to isolate the affected station without stopping the entire network, preserving control continuity for other stations on the same ring or line topology.

After installing the 6ES7138-4FB03-0AB0, the station should be powered up with the CPU in STOP mode first, allowing the IM 151 head module to establish communication and report the station’s hardware configuration back to the controller. Only after the station is recognized without faults should the CPU be switched to RUN mode. This staged restart approach protects the original program logic and reduces the risk of unintended output activation during the transition.

For sites with strict change management requirements, a pre-shipment test report for the 6ES7138-4FB03-0AB0 is available upon request, confirming that the module has been functionally verified prior to dispatch. Combined with the support terms confirmed by quotation, this provides documented assurance for maintenance records and audit trails.

Retrofit Support FAQ

Q1: Is the 6ES7138-4FB03-0AB0 a direct replacement for the 6ES7138-4FB02-0AB0?
Yes. The -0AB0 suffix indicates the same hardware generation. The FB03 revision supersedes FB02 and is mechanically and electrically compatible with the same TM-P terminal module. No wiring changes are required. Confirm the firmware version of your IM 151 head module is compatible with the installed GSD/GSDML file in your project.

Q2: What commissioning steps are required after installation?
After physical installation, power up the station with the CPU in STOP mode. Verify that the IM 151 head module establishes communication without station faults. Check the hardware configuration in STEP 7 or TIA Portal to confirm the PM-E module is recognized in the correct slot. Switch the CPU to RUN mode only after the station reports a healthy status. Perform an I/O force test on critical digital and analog channels before resuming production.

Q3: How do I confirm terminal wiring compatibility before replacement?
The 6ES7138-4FB03-0AB0 uses the TM-P15S23-A0 or TM-P15C23-A0 terminal module. Check the label on the installed terminal module before ordering. The terminal module remains in place during the PM-E swap — only the electronic module is replaced. Existing field wiring connected to the terminal module does not need to be disturbed, which significantly reduces rewiring risk and commissioning time.

Q4: What support terms and stock availability does KNMKS provide?
All 6ES7138-4FB03-0AB0 units supplied by KNMKS carry a support terms confirmed by quotation and are pre-shipment tested for functional verification. Stock is maintained for immediate dispatch to support urgent maintenance and unplanned breakdown scenarios. Long-term supply agreements for 12–36 month inventory reservation are available for sites with ongoing spare parts requirements. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
