Siemens 6ES7138-4FA05-0AB0 Fail-Safe 4DI Power Module for Industrial Control

Overview

Siemens 6ES7138-4FA05-0AB0 Fail-Safe 4DI Power Module for Industrial Control

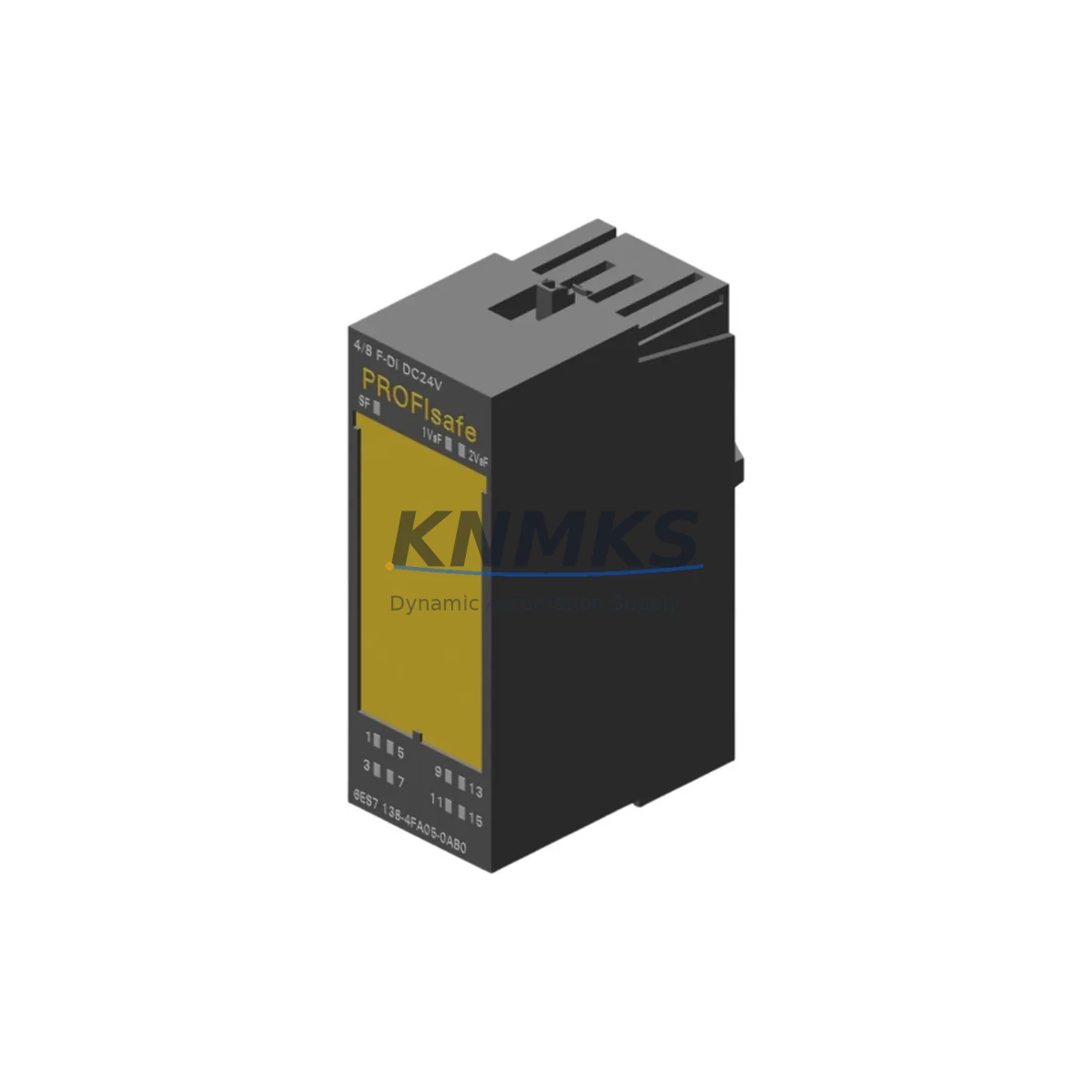

The Siemens 6ES7138-4FA05-0AB0 is a fail-safe 4-channel digital input power module designed for the ET 200S distributed I/O system, engineered to meet the demanding requirements of safety-critical industrial environments. Certified for use in safety instrumented systems up to SIL 3 (IEC 61508) and Category 4 / PLe (EN ISO 13849-1), this module delivers deterministic, fault-tolerant signal acquisition in continuous production facilities where unplanned downtime carries severe operational and safety consequences.

In petrochemical plants, power generation stations, mining operations, water treatment facilities, metallurgical complexes, and port automation systems, the integrity of digital input signals directly governs the reliability of safety interlocks and emergency shutdown sequences. The 6ES7138-4FA05-0AB0 addresses this challenge by integrating internal diagnostic routines that continuously monitor channel status, detect short circuits, wire breaks, and cross-circuit faults, and report discrepancies to the safety CPU — all without interrupting the process. This self-monitoring capability eliminates the risk of silent failures that could otherwise allow a hazardous condition to persist undetected.

The module is rated for operation across a wide temperature range and is designed to withstand the high electromagnetic interference levels common in heavy industrial switchgear cabinets. Its surge-protected input circuitry guards against transient voltage spikes generated by large motor starters, variable frequency drives, and inductive load switching — conditions that routinely cause signal drift or false triggering in standard I/O modules. When deployed alongside the Siemens IM 151-8F PN/DP fail-safe interface module and the ET 200S PM-E F power module, the 6ES7138-4FA05-0AB0 forms a tightly integrated, cabinet-level safety architecture that maintains signal fidelity even under sustained electrical noise.

For facilities operating Siemens S7-300F or S7-400F safety PLCs, the 6ES7138-4FA05-0AB0 communicates over PROFIBUS DP or PROFINET IO with full F-parameter assignment managed through STEP 7 Safety Advanced or TIA Portal Safety. This ensures that safety-relevant parameters — including F-address, F-monitoring time, and passivation behavior — are version-controlled and audit-traceable, a critical requirement for functional safety assessments and SIL verification audits. The module’s compatibility with the ET 200S backplane also allows it to be installed adjacent to standard I/O modules such as the 6ES7131-4BF00-0AA0 digital input module and the 6ES7132-4BF00-0AA0 digital output module, enabling mixed safe and standard I/O within a single station without additional hardware.

In high-dust, high-humidity, or high-vibration environments — such as underground mining conveyors, offshore platform control rooms, or cement plant process lines — the compact DIN-rail form factor and conformal-coating-ready design of the 6ES7138-4FA05-0AB0 support long-term mechanical stability. The module’s hot-swap capability, where supported by the station configuration, minimizes maintenance windows and allows field replacement without full system shutdown, directly reducing mean time to repair (MTTR) in facilities where every minute of downtime translates to measurable production loss.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including channel-level input response testing and diagnostic communication checks, before dispatch. Stock is maintained to support both planned maintenance schedules and emergency spare parts requirements, with same-week shipping available for in-stock units. All modules are covered by a support terms confirmed by quotation against manufacturing defects, with full traceability documentation available on request.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust safety cabinet architecture for continuous process industries requires more than a single fail-safe module. The 6ES7138-4FA05-0AB0 is most effective when integrated as part of a layered protection strategy. The Siemens IM 151-8F PN/DP fail-safe interface module serves as the communication backbone, aggregating fail-safe I/O data and transmitting it to the safety CPU with full F-parameter integrity. The ET 200S PM-E F power module provides regulated, monitored 24 V DC supply to the fail-safe I/O tier, ensuring that power interruptions or voltage sags do not cause uncontrolled passivation of safety channels.

For applications requiring both safe and standard I/O in the same cabinet, the 6ES7131-4BF00-0AA0 standard digital input module and 6ES7132-4BF00-0AA0 standard digital output module can be installed on the same ET 200S backplane, reducing cabinet footprint and wiring complexity. Where analog process values must be monitored alongside digital safety signals, the 6ES7134-4FB01-0AB0 analog input module integrates seamlessly into the same station. For cabinets exposed to severe surge environments — such as those located near high-voltage switchgear or outdoor substations — supplementary surge protection devices on the 24 V DC supply rail further extend the service life of all installed I/O modules, including the 6ES7138-4FA05-0AB0.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: Emergency shutdown (ESD) systems and burner management systems (BMS) rely on fail-safe digital inputs to monitor flame detectors, pressure switches, and valve position feedback. The 6ES7138-4FA05-0AB0 provides the SIL 3-rated input acquisition required for these life-safety interlocks, with diagnostic transparency that supports IEC 61511 functional safety management requirements.

Power Generation: Turbine protection systems and generator excitation control cabinets demand input modules that maintain signal integrity under high-frequency electrical noise from power electronics. The surge-protected, EMI-resistant design of the 6ES7138-4FA05-0AB0 ensures reliable trip signal acquisition even in close proximity to high-voltage busbars and transformer bays.

Mining and Mineral Processing: Conveyor interlock systems, crusher protection circuits, and ventilation safety controls in underground and surface mining operations require modules that operate reliably in high-dust, high-vibration conditions. The compact, DIN-rail-mounted 6ES7138-4FA05-0AB0 supports these environments with its robust mechanical design and continuous self-diagnostics.

Water and Wastewater Treatment: Pump station safety interlocks, chemical dosing system shutdowns, and overflow protection circuits in water treatment facilities benefit from the module’s wire-break detection and cross-circuit fault monitoring, which prevent false safe states that could disrupt treatment continuity.

Metallurgy and Steel Production: Rolling mill emergency stops, ladle transfer safety systems, and furnace atmosphere control interlocks operate in environments with extreme thermal gradients and electromagnetic interference. The 6ES7138-4FA05-0AB0’s wide operating temperature range and EMI resistance make it a reliable choice for these demanding applications.

Port and Maritime Automation: Crane anti-collision systems, ship-to-shore loader interlocks, and mooring winch safety circuits require fail-safe digital input modules that maintain SIL-rated performance in salt-air, high-humidity coastal environments. The 6ES7138-4FA05-0AB0 supports these applications as a validated, stock-backed spare part with documented compatibility.

Safety and Quality FAQ

Q: What support terms does KNMKS provide for the 6ES7138-4FA05-0AB0?
A: All units are covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment. Each module undergoes pre-shipment functional testing, including channel-level input verification and diagnostic communication checks, before dispatch.

Q: Is the 6ES7138-4FA05-0AB0 compatible with both S7-300F and S7-400F safety systems?
A: Yes. The module is compatible with Siemens S7-300F and S7-400F safety CPUs, as well as ET 200S CPU F variants, when configured via STEP 7 Safety Advanced or TIA Portal Safety with correct F-parameter assignment.

Q: Can KNMKS support long-term spare parts supply for this module?
A: KNMKS maintains stock of the 6ES7138-4FA05-0AB0 to support both planned maintenance schedules and emergency replacement requirements. Same-week shipping is available for in-stock units, with full traceability documentation provided on request.

Q: What pre-shipment checks are performed before dispatch?
A: Each unit is functionally verified prior to shipment, including channel input response testing and diagnostic communication validation. This pre-shipment testing protocol ensures that modules arrive ready for installation and reduces on-site commissioning risk in safety-critical applications.
