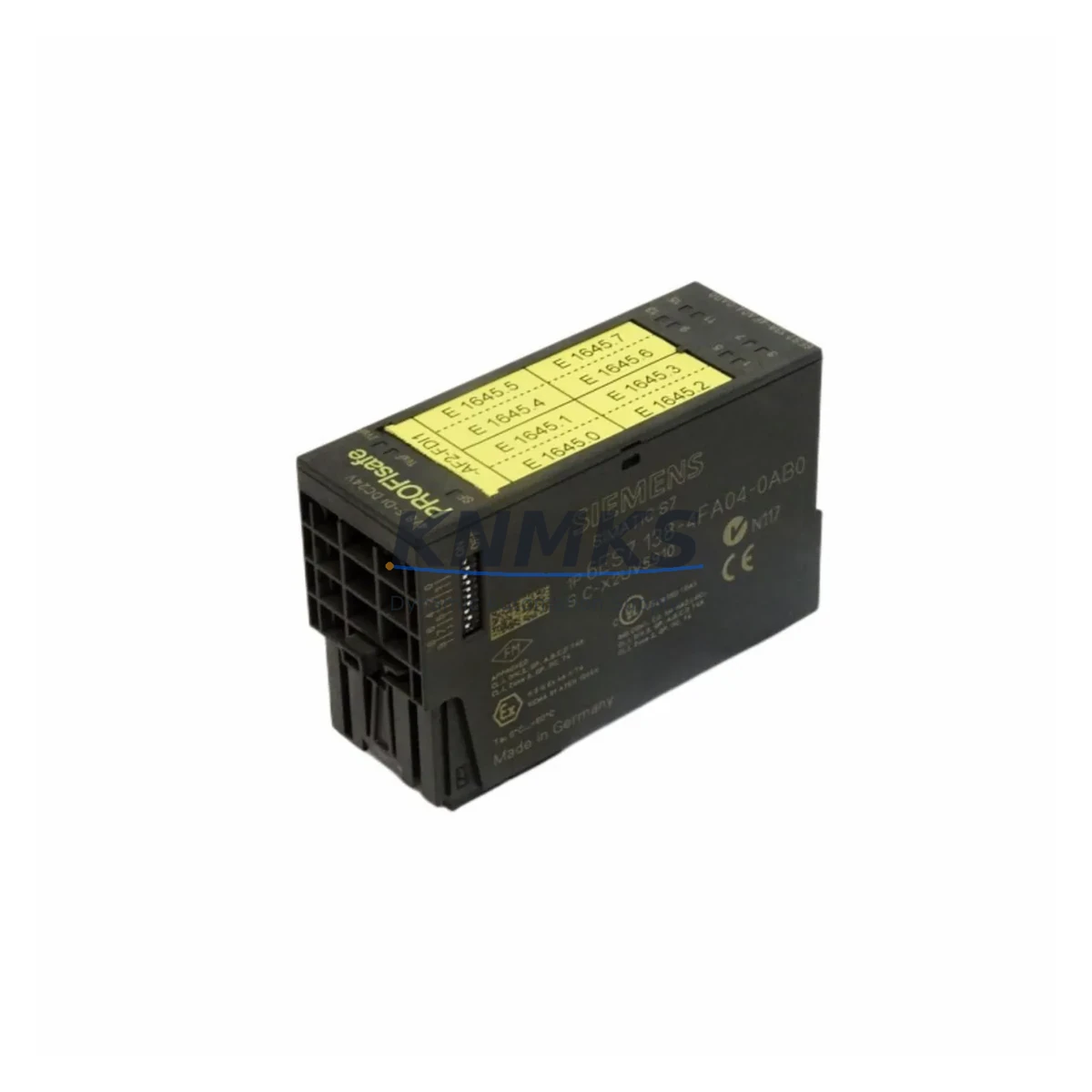

Siemens 6ES7138-4FA04-0AB0 Fail-Safe F-DI Module SIL3

Overview

Siemens 6ES7138-4FA04-0AB0 Fail-Safe F-DI Module SIL3: Fail-Safe Protection for Critical Industrial Control Reliability

The Siemens 6ES7138-4FA04-0AB0 is a high-integrity Fail-Safe Digital Input (F-DI) module designed for the ET 200S distributed I/O system, operating under the ProfiSafe safety communication protocol. Rated to SIL 3 (IEC 61508) and Category 4 / PL e (EN ISO 13849-1), this module is engineered to deliver uncompromising signal integrity in the most demanding industrial environments — from petrochemical plants and power generation facilities to mining operations, water treatment systems, and continuous manufacturing lines.

In safety-critical control architectures, a single point of signal failure can trigger unplanned shutdowns, equipment damage, or personnel hazards. The 6ES7138-4FA04-0AB0 eliminates this risk by providing 4 fail-safe digital input channels at 24 VDC, each independently monitored for wire-break, short-circuit, and cross-circuit faults. When integrated into a Siemens S7-300F or S7-400F safety CPU via PROFIBUS DP with ProfiSafe, the module continuously validates signal plausibility and triggers a defined safe state upon any detected discrepancy — preventing false actuation, signal drift, and control loop interruption.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered safety control cabinet, the 6ES7138-4FA04-0AB0 F-DI module does not operate in isolation — it is one element of a coordinated, layered protection architecture. When mounted on the ET 200S terminal module TM-E30S44-01, it achieves secure backplane connectivity with minimal wiring complexity, reducing the risk of loose connections that could cause intermittent signal faults in high-vibration environments such as compressor stations or heavy press lines.

The module interfaces directly with the Siemens IM 151-3 PN interface module or IM 151-7 F CPU over the ET 200S backplane, enabling deterministic ProfiSafe communication with the upstream safety PLC. In applications where power supply stability is critical — such as offshore platforms or remote substations — pairing this F-DI module with a Siemens SITOP PSU100S 24V/10A power supply ensures that input signal levels remain within the 18–30 VDC operating window even during grid fluctuations or surge events, preventing nuisance trips caused by voltage dips.

For emergency stop and safety door interlock circuits, the 6ES7138-4FA04-0AB0 is commonly deployed alongside the Siemens 3SK1 safety relay or 3RK3 Modular Safety System, forming a redundant, cross-monitored safety loop that satisfies SIL 3 requirements without requiring a dedicated hardwired relay panel. In high-EMI environments — such as those near large variable frequency drives or arc furnaces — the module’s compliance with EN 61000-4-4 (electrical fast transient) and EN 61000-4-5 (surge immunity) standards ensures that transient interference does not corrupt safety-critical input signals.

Where cabinet thermal management is a concern, particularly in enclosed panels operating in tropical or desert climates, the module’s 0–60 °C operating range and low self-heating profile make it compatible with standard cabinet cooling strategies using Siemens SIVACON S8 thermal management accessories, maintaining safe operating temperatures without requiring oversized enclosures.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments handling flammable or toxic media, the 6ES7138-4FA04-0AB0 is deployed in emergency shutdown (ESD) systems to monitor pressure relief valve position, gas detector trip signals, and high-level switch inputs. Its SIL 3 rating satisfies IEC 61511 functional safety requirements for process safety instrumented systems (SIS), ensuring that critical process interlocks respond correctly even after years of continuous operation without spurious trips.

Electric Power Generation & Substation Automation: In turbine protection and generator excitation control panels, this F-DI module captures over-speed trip signals, differential protection relay outputs, and transformer Buchholz relay contacts. The ProfiSafe protocol ensures that these safety-critical signals are transmitted to the safety PLC with end-to-end integrity checking, eliminating the risk of silent data corruption on the PROFIBUS segment.

Mining & Tunneling Operations: Underground conveyor belt systems, longwall shearer controls, and ventilation fan interlocks demand fail-safe input modules that can withstand coal dust ingress, high humidity, and mechanical shock. The 6ES7138-4FA04-0AB0, housed within an IP54-rated control enclosure, provides reliable capture of belt-slip detector signals, methane sensor trip outputs, and emergency pull-cord switch states — all with automatic discrepancy monitoring to detect sensor failures before they cause unsafe conditions.

Water & Wastewater Treatment: In pump station motor protection and chlorination dosing control, this module monitors motor thermal overload relay contacts and chemical dosing interlock signals. Its wire-break detection capability is particularly valuable in outdoor pump stations where cable aging and rodent damage can cause open-circuit faults that would otherwise go undetected in a standard (non-fail-safe) digital input module.

Metallurgy & Steel Production: Rolling mill safety gates, ladle transfer car interlocks, and furnace door position monitoring all rely on fail-safe digital inputs to prevent personnel access to hazardous zones during active production cycles. The module’s Category 4 / PL e rating satisfies the machinery safety requirements of EN ISO 13849-1 for these high-consequence applications.

Port & Marine Applications: Ship-to-shore crane safety systems, hatch cover interlock monitoring, and mooring winch overload protection circuits benefit from the module’s robust EMC performance and wide operating voltage tolerance, which accommodates the voltage fluctuations common in shipboard power distribution systems.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7138-4FA04-0AB0?
The support terms confirmed by quotation cover all functional and safety-related defects from the date of shipment. Each unit undergoes pre-shipment functional verification including channel-level input response testing, ProfiSafe communication parameter validation, and visual inspection for physical integrity. Units that fail any test criterion are not dispatched. Support requests are processed with priority to minimize control system downtime.

Q2: How is the module tested before shipment to ensure safety parameter compliance?
Every 6ES7138-4FA04-0AB0 is subjected to a structured outgoing quality inspection covering: (1) 24 VDC input channel functional response across all 4 channels; (2) fault detection verification for wire-break and short-circuit conditions; (3) ProfiSafe address and F-parameter integrity check; and (4) visual and mechanical inspection per IPC-A-610 workmanship standards. Test records are retained for traceability.

Q3: Is this module compatible with both S7-300F and S7-400F safety CPUs?
Yes. The 6ES7138-4FA04-0AB0 is fully compatible with Siemens S7-300F and S7-400F safety CPUs when configured via STEP 7 with the F-Configuration Pack. It is also compatible with the ET 200S IM 151-7 F CPU for distributed safety applications. ProfiSafe F-address assignment must be performed in STEP 7 Safety or TIA Portal Safety Advanced to ensure correct safety function parameterization.

Q4: Can long-term spare parts supply be guaranteed for this module?
Yes. We maintain dedicated safety module inventory with controlled storage conditions (temperature and humidity regulated) to preserve component integrity for long-term spare parts programs. For customers operating continuous production facilities with multi-year maintenance contracts, we offer reserved stock arrangements and advance shipment agreements to ensure that replacement units are available within agreed lead times, eliminating procurement risk for critical safety spares.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7138-4FA04-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7138-4FA04-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
