Siemens 6ES7138-4DB03-0AB0 Fail-Safe DC Power Module

Overview

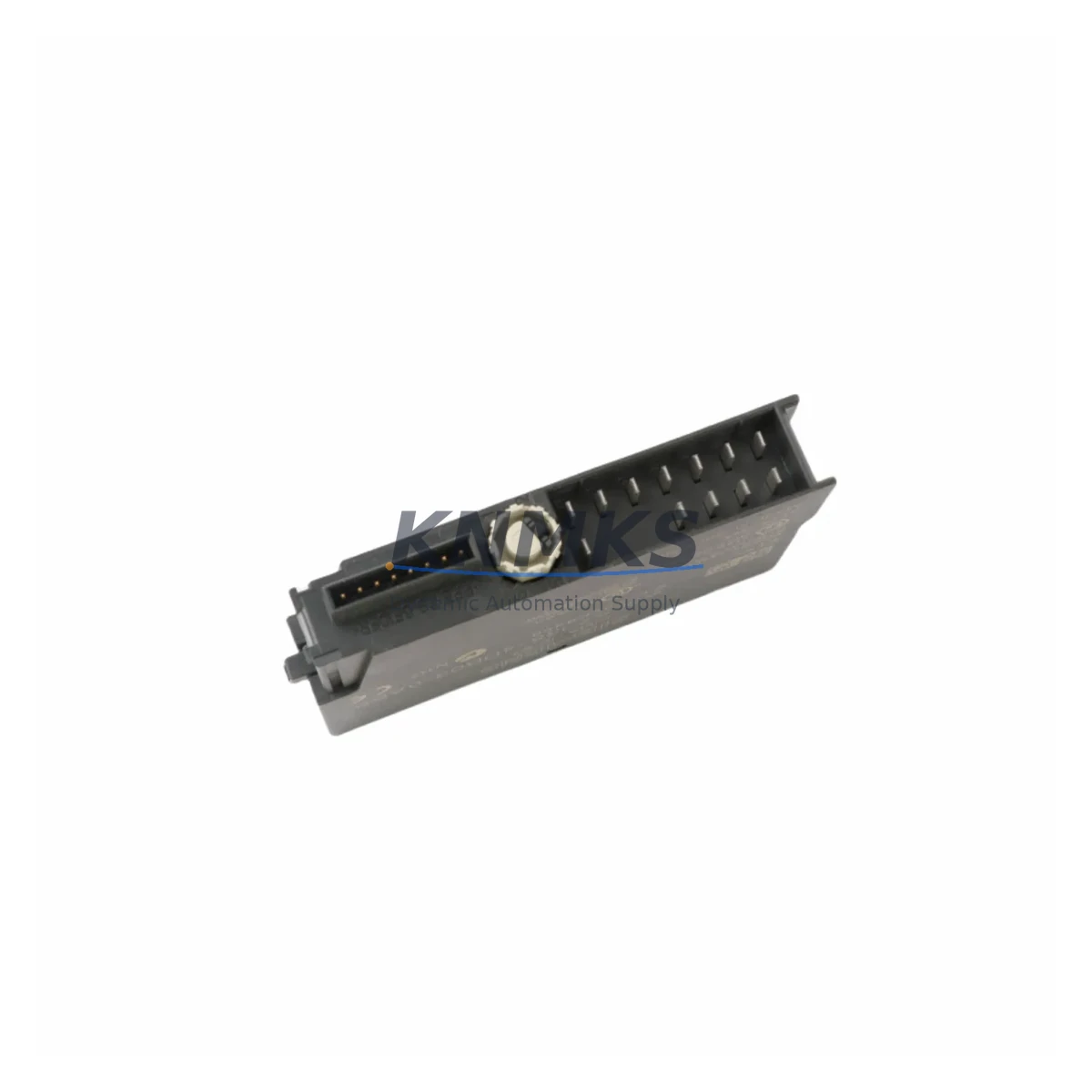

Siemens 6ES7138-4DB03-0AB0 Fail-Safe DC Power Module: Fail-Safe Protection for Critical Industrial Control Reliability

The Siemens 6ES7138-4DB03-0AB0 is a PM-E DC 24V fail-safe power module designed for the ET 200S distributed I/O system. Engineered to meet the stringent demands of continuous production environments, safety-critical interlocks, and heavy-duty control cabinet installations, this module delivers stable, uninterrupted DC 24V power to field devices while maintaining full compliance with IEC 61508 SIL 3 and EN 954-1 Category 4 safety standards. Whether deployed in petrochemical plants, power generation facilities, mining operations, or high-throughput manufacturing lines, the 6ES7138-4DB03-0AB0 is built to keep your safety loops alive when it matters most.

In environments characterized by high electromagnetic interference, airborne dust, condensation, elevated temperatures, and mechanical vibration, conventional power modules often become the weakest link in a control architecture. The 6ES7138-4DB03-0AB0 addresses this directly with robust surge suppression, wide operating temperature tolerance, and a compact DIN-rail form factor that integrates seamlessly into existing ET 200S backplane assemblies. Its fail-safe design ensures that any internal fault triggers a defined safe state rather than an uncontrolled shutdown, dramatically reducing the risk of process upsets, equipment damage, or personnel injury.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable safety power module is only as effective as the broader protection architecture surrounding it. In a well-engineered ET 200S control cabinet, the 6ES7138-4DB03-0AB0 typically operates alongside the Siemens 6ES7138-4CA01-0AA0 4DO DC 24V/0.5A fail-safe digital output module, which handles safety-rated actuator switching in emergency stop and machine guard circuits. Power conditioning upstream is commonly provided by a Siemens SITOP PSU100S 24V/10A (6EP1334-2BA20) regulated power supply, whose active current limiting and diagnostic output prevent voltage collapse during inrush events or partial short circuits.

For communication integrity in high-EMI environments, the ET 200S head station — typically an IM 151-3 PN interface module (6ES7151-3BA23-0AB0) — maintains PROFINET connectivity to the S7-300 or S7-400 safety CPU, ensuring that any power module fault is immediately reported to the safety controller without communication dropout. In cabinets where surge events from motor drives or switching contactors are a concern, a Siemens SIPROTEC surge arrester or equivalent Type 2 SPD installed at the cabinet entry point provides the first line of transient defense, protecting the 6ES7138-4DB03-0AB0 and downstream I/O modules from voltage spikes exceeding 1.5 kV.

For applications requiring safe speed monitoring or position feedback integration, the Siemens 6ES7138-4DF01-0AB0 fail-safe digital input module complements the PM-E power module by providing SIL 3-rated signal acquisition from safety sensors, light curtains, and two-hand control devices. Together, these components form a cohesive, defense-in-depth safety architecture that minimizes single points of failure across the entire control loop.

Critical Industrial Safety Applications

The 6ES7138-4DB03-0AB0 is deployed across a wide spectrum of safety-critical industrial environments where unplanned downtime carries severe operational, financial, and safety consequences.

In petrochemical and refinery operations, this module powers the safety instrumented systems (SIS) that govern emergency shutdown (ESD) valves, burner management systems, and high-integrity pressure protection systems (HIPPS). Its SIL 3 rating satisfies the functional safety requirements of IEC 61511, making it a qualified component in process safety loops where a single failure must not propagate to a hazardous event.

In electric power generation and grid substations, the module supports distributed control of protection relays, transformer cooling systems, and switchgear interlocks. Its wide supply voltage tolerance (20.4V–28.8V) ensures stable operation even when station battery systems experience voltage sag during fault clearing events.

In underground mining and tunneling, where explosive atmospheres, high humidity, and vibration are constant challenges, the 6ES7138-4DB03-0AB0 provides the fail-safe power backbone for conveyor belt safety systems, ventilation interlocks, and personnel access control. Its IP20 enclosure, combined with cabinet-level sealing, meets the environmental protection requirements of these demanding sites.

In water and wastewater treatment facilities, the module ensures continuous, safe operation of pump station controls, chemical dosing systems, and overflow prevention interlocks — applications where a control system failure can result in environmental contamination or regulatory non-compliance.

In port and maritime logistics, crane control systems and ship-to-shore loading equipment rely on fail-safe power distribution to prevent load drops and collision events. The 6ES7138-4DB03-0AB0’s compact form factor and DIN-rail mounting make it well-suited for space-constrained marine control panels.

Safety and Quality FAQ

Q1: What support terms does the 6ES7138-4DB03-0AB0 carry?
Every unit supplied by KNMKS is backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed promptly with replacement or repair turnaround designed to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
All 6ES7138-4DB03-0AB0 modules undergo functional power-on verification and output voltage testing prior to dispatch. Units sourced from authorized distribution channels are inspected for firmware version, label integrity, and physical condition. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with existing S7-300 and S7-400 safety CPU configurations?
Yes. The 6ES7138-4DB03-0AB0 is fully compatible with Siemens SIMATIC S7-300F and S7-400F/FH safety CPUs when used within an ET 200S distributed I/O station. It requires the corresponding terminal module (TM-P15S23-A0) and is configured via STEP 7 with the F-Configuration Pack or TIA Portal Safety Advanced. No hardware modification is required for integration into existing safety-rated architectures.

Q4: Can KNMKS support long-term supply and replacement for this module?
KNMKS maintains stock of the 6ES7138-4DB03-0AB0 and its associated ET 200S safety I/O modules to support both immediate replacement needs and planned maintenance schedules. For critical infrastructure operators requiring guaranteed availability, we offer supply commitment arrangements and can source from multiple authorized channels to protect against obsolescence risk. Contact our team to discuss long-term supply agreements tailored to your maintenance strategy.
