Siemens 6ES7138-4CB11-0AB0 Migration-Ready PM-E for Legacy ET 200S

Overview

Siemens 6ES7138-4CB11-0AB0 Migration-Ready PM-E for Legacy ET 200S Systems

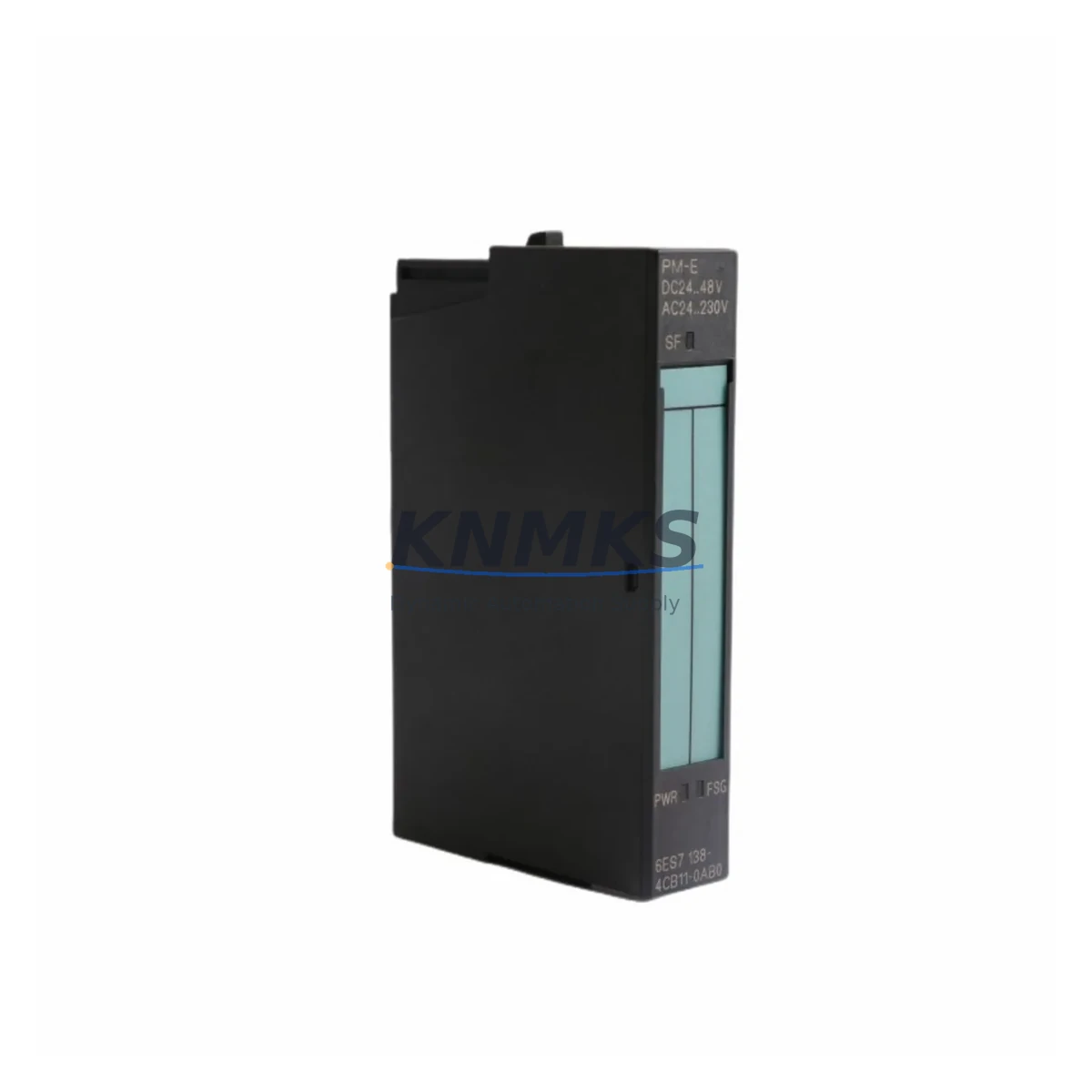

The Siemens 6ES7138-4CB11-0AB0 is a PM-E DC 24V power module designed for the ET 200S distributed I/O system, widely deployed in legacy PROFIBUS and PROFINET automation architectures across manufacturing, process control, and machine tool environments. As original equipment reaches end-of-life and spare parts become increasingly scarce, this module serves as a critical migration-ready replacement for aging power supply segments within existing ET 200S stations.

The 6ES7138-4CB11-0AB0 supplies electronic and load voltage (DC 24V) to downstream terminal modules and I/O modules within the ET 200S rack. It is fully compatible with the standard ET 200S interface module family, including the IM 151-1 and IM 151-3 PN interface modules, enabling direct integration into both PROFIBUS DP and PROFINET IO topologies without requiring controller-side program changes. Engineers retrofitting legacy S7-300 or S7-400 distributed I/O stations will find this module a drop-in power segment replacement, provided terminal module wiring and slot addressing are verified prior to commissioning.

Before installation, retrofit planners should confirm the following: the existing TM-E terminal module type (TM-E15S24-A1 or equivalent) is compatible with the PM-E variant; the 24V DC supply rail capacity meets the aggregate current draw of all downstream I/O modules in the segment; and the backplane slot sequence is preserved to maintain module addressing integrity within the STEP 7 or TIA Portal hardware configuration. Failure to verify slot order can result in diagnostic faults or I/O mapping errors that require re-download of the hardware configuration to the CPU.

For systems running SIMATIC S7-300 CPUs with ET 200S remote stations over PROFIBUS, the 6ES7138-4CB11-0AB0 integrates without firmware dependency — the module is recognized automatically during GSD-based hardware configuration. In PROFINET environments using TIA Portal, the GSDML file for the ET 200S station must reflect the correct power module slot to avoid topology mismatches during online comparison. Where HMI screens reference power module diagnostic bits, screen logic should be validated post-replacement to confirm alarm mapping remains accurate.

Communication link continuity is a key concern during live-system retrofits. When replacing a failed PM-E in a running ET 200S station, the PROFIBUS or PROFINET segment will experience a brief interruption. To minimize impact, pre-stage the replacement module, prepare the terminal module for rapid swap, and coordinate with the control room to place the affected station in a safe state. Where the system supports redundant I/O or hot-swap configurations via IM 151-3 PN F or similar fail-safe interface modules, leverage those capabilities to reduce unplanned downtime.

Physical installation space should be confirmed before ordering: the 6ES7138-4CB11-0AB0 occupies a standard ET 200S power module slot width. Control cabinet depth, DIN rail clearance, and adjacent module spacing must accommodate the module body and wiring harness. Where cabinets are densely packed with 2AI U ST analog input modules, 4DO DC24V/0.5A ST digital output modules, or 4DI DC24V HF high-speed digital input modules, a physical mock-up or dimensional check against the ET 200S system manual is recommended prior to procurement.

All units supplied by KNMKS are sourced from verified industrial channels, undergo pre-shipment functional testing, and are covered by a support terms confirmed by quotation from the date of delivery. Inventory is maintained to support urgent retrofit and emergency replacement requirements. Contact our technical team at [email protected] for compatibility confirmation, lead time, and volume pricing.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ET 200S power module retrofit begins with a complete station audit. Document the current slot layout, including all terminal modules, I/O modules, and the position of each PM-E segment within the station. For stations with mixed digital and analog I/O — such as 4DI DC24V ST digital input modules, 2AO U ST analog output modules, and 1SI RS232/RS485 serial communication modules — the power segment boundary must be clearly identified to ensure the replacement PM-E covers the correct downstream module group.

Where the existing station includes a CP 343-1 communications processor or an IM 151-7 CPU for local processing, verify that the power budget for the entire station — including the CPU or CP module — remains within the PM-E’s rated output current. Overloading a power segment is a common root cause of intermittent faults in aging ET 200S installations and should be ruled out before attributing failures solely to the PM-E module itself.

For legacy lines originally commissioned with STEP 7 Classic, retain a backup of the existing hardware configuration and program before making any physical changes. If the retrofit involves upgrading from a PROFIBUS-based station to a PROFINET-based station using a new IM 151-3 PN interface module, the power module selection remains the same — the 6ES7138-4CB11-0AB0 is compatible across both communication variants — but the TIA Portal project will require a new device definition and IP address assignment.

Downtime Control During System Migration

Minimizing downtime during a PM-E replacement in a live ET 200S station requires preparation at three levels: physical, logical, and procedural. At the physical level, pre-stage the 6ES7138-4CB11-0AB0 alongside the correct TM-E terminal module, have the wiring diagram for the 24V supply terminals ready, and confirm that the replacement module’s slot position matches the failed unit exactly.

At the logical level, place the affected PROFIBUS or PROFINET station in a controlled fault state before removal — where the CPU program supports it, use OB86 (rack failure) or OB122 (I/O access error) handling to prevent uncontrolled process responses during the swap. After physical replacement, perform an online hardware comparison in STEP 7 or TIA Portal to confirm the new module is recognized correctly before returning the station to automatic mode.

At the procedural level, coordinate with operations to identify a planned maintenance window, even if brief. For critical lines where a 24V power interruption to the ET 200S station would trigger safety interlocks or process shutdowns, engage the safety and process control teams to define a safe-state procedure. Where the station includes F-DI or F-DO fail-safe I/O modules, the safety program must be re-validated after any hardware change, per IEC 62061 and EN ISO 13849 requirements. Proper pre-planning consistently reduces actual swap time to under 30 minutes for a single PM-E segment replacement.

Retrofit Support FAQ

Q1: Is the 6ES7138-4CB11-0AB0 a direct replacement for other PM-E variants in the ET 200S family?
The 6ES7138-4CB11-0AB0 (PM-E DC 24V) is the standard power module for DC 24V supply segments. It is not interchangeable with AC-supply PM-E variants or PM-D motor starter power modules. Confirm the supply voltage type and terminal module variant before ordering. Our technical team can assist with cross-reference verification.

Q2: Will I need to modify my STEP 7 or TIA Portal program after replacing the PM-E?
In most cases, no program changes are required. The PM-E is a passive power segment from the CPU’s perspective and does not occupy a logical address in the I/O map. However, if the hardware configuration slot order changes, a re-download of the hardware configuration to the CPU is required. HMI diagnostic screens referencing power module status bits should be tested post-replacement.

Q3: What pre-shipment testing is performed on the 6ES7138-4CB11-0AB0?
All units supplied by KNMKS undergo functional power-on testing and visual inspection prior to dispatch. Units are verified for correct output voltage regulation and module identification response. Each unit is covered by a support terms confirmed by quotation from the date of delivery. Batch test records are available upon request for quality-critical procurement.

Q4: What is the typical lead time and do you maintain stock for emergency replacements?
KNMKS maintains inventory of the 6ES7138-4CB11-0AB0 to support both planned retrofit projects and emergency breakdown replacements. Standard lead time for in-stock units is 1–3 business days for domestic shipments. For urgent requirements, contact [email protected] or call +86 18359268345 to confirm real-time availability and expedited shipping options.
