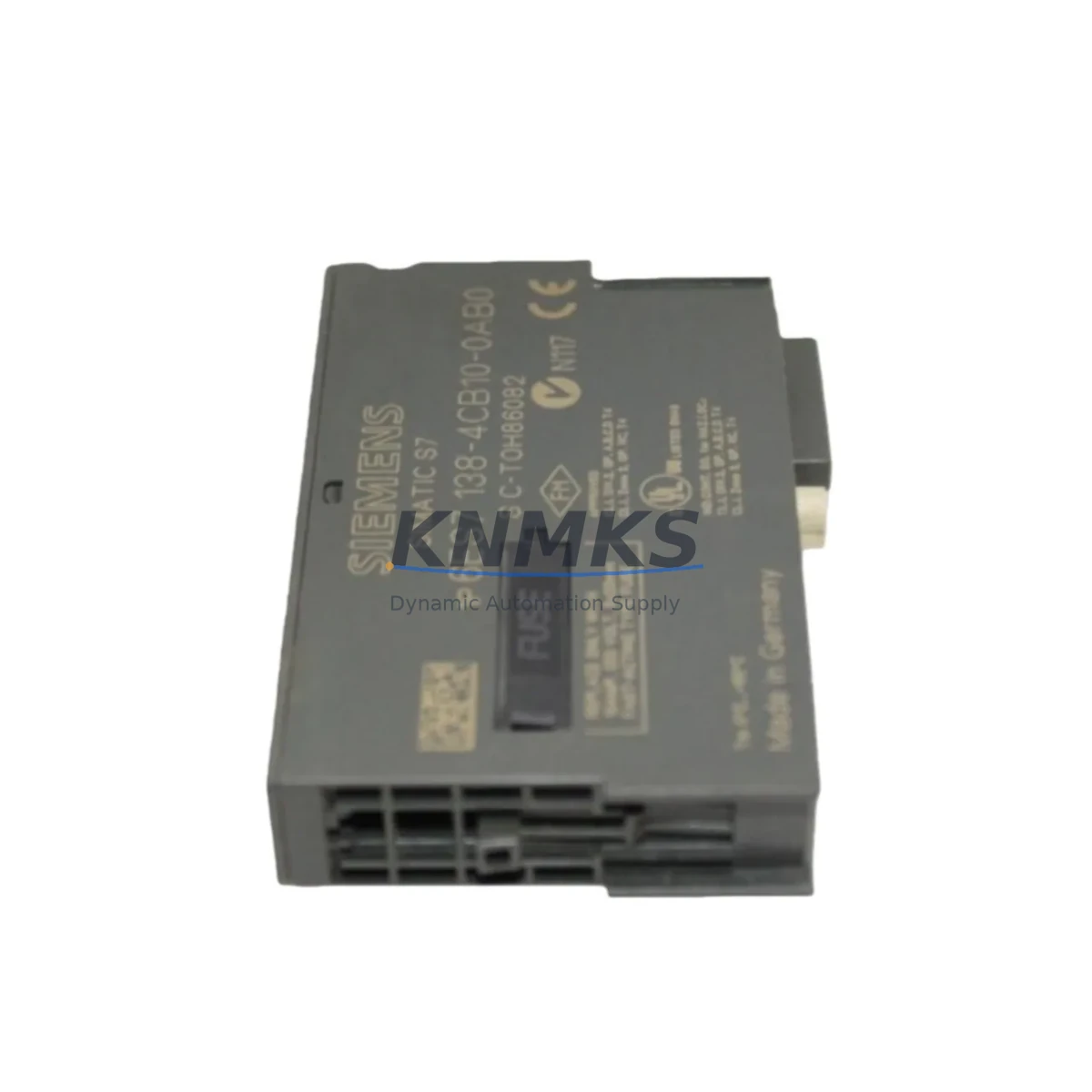

Siemens 6ES7138-4CB10-0AB0 Fail-Safe DC24V Power Module

Overview

Siemens 6ES7138-4CB10-0AB0 Fail-Safe DC24V Power Module: Fault Protection and Critical Industrial Field Reliability

The Siemens 6ES7138-4CB10-0AB0 is a PM-E DC24V power module designed for the ET 200S distributed I/O system, engineered to deliver fail-safe, uninterrupted power distribution across safety-critical control architectures. In continuous production environments — from petrochemical processing lines to high-voltage switchgear panels — power module integrity is the foundation of every interlock, every actuator command, and every emergency shutdown sequence. This module is built to meet that standard without compromise.

Rated for DC 24V supply with a robust operating temperature range of 0°C to +60°C, the 6ES7138-4CB10-0AB0 integrates seamlessly into ET 200S backplane assemblies, providing stable, filtered power to downstream I/O modules including digital input/output slices, analog signal modules, and motor starter modules. Its compact DIN-rail form factor and tool-free terminal design reduce installation time in dense control cabinets while maintaining full compliance with IEC 61131-2 and relevant CE/UL safety directives.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-density control cabinets serving heavy industrial loads — such as those found in mining hoists, port crane drives, or steel mill rolling lines — power quality directly determines control system availability. The 6ES7138-4CB10-0AB0 acts as the power backbone for the ET 200S station, isolating downstream I/O slices from upstream voltage fluctuations and inductive load switching transients generated by variable frequency drives and large contactors.

For comprehensive cabinet-level protection, this module is commonly deployed alongside the Siemens 6ES7138-4CA01-0AA0 PM-E F power module for safety-rated segments, and paired with 6ES7131-4BF00-0AA0 digital input modules to form a complete interlock monitoring chain. In applications requiring analog process feedback — such as pressure, temperature, or flow control — the 6ES7134-4FB01-0AB0 analog input module integrates directly on the same ET 200S rail, sharing the stable DC bus provided by the 6ES7138-4CB10-0AB0.

Where communication reliability is paramount, the ET 200S interface module 6ES7151-1BA02-0AB0 (PROFIBUS DP) or 6ES7151-3BA23-0AB0 (PROFINET IO) serves as the gateway between the field station and the S7-300 or S7-400 PLC host. Any communication dropout or bus fault at the interface level is immediately visible to the CPU, enabling rapid fault isolation without cascading shutdowns. Complementing this architecture, a Siemens SITOP PSU100S 24V/10A regulated power supply upstream of the ET 200S station ensures that the 6ES7138-4CB10-0AB0 always receives clean, within-spec DC voltage — even during grid disturbances or generator switchover events.

In environments with elevated dust ingress, condensation risk, or persistent vibration — such as cement plants, offshore platforms, or underground mining galleries — cabinet thermal management becomes critical. Pairing the ET 200S station with a properly rated cabinet cooling unit and ensuring adequate derating of the power module’s output current prevents thermal-induced nuisance trips and extends the operational lifespan of every module in the assembly.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hazardous area control rooms and remote I/O panels serving process units, the 6ES7138-4CB10-0AB0 supports emergency shutdown (ESD) interlock circuits by providing stable, monitored DC power to safety-rated I/O slices. Its transient suppression capability protects against voltage spikes induced by solenoid valve switching in high-pressure process lines.

Electric Power Generation and Transmission: Substation automation panels and turbine control systems demand zero-tolerance for power module failure. The ET 200S PM-E module’s ability to segment power zones within a single backplane allows operators to isolate faulted I/O groups without interrupting the entire control station — a critical feature during live maintenance on energized switchgear.

Mining and Mineral Processing: Conveyor drive control panels, crusher interlock systems, and ventilation safety circuits in underground mines operate in high-vibration, high-dust environments. The 6ES7138-4CB10-0AB0’s robust terminal design and DIN-rail locking mechanism maintain reliable electrical contact under continuous mechanical stress.

Water and Wastewater Treatment: SCADA-controlled pump stations and chemical dosing systems rely on distributed I/O for remote monitoring and control. The module’s wide supply voltage tolerance (20.4V–28.8V) accommodates the voltage drops common in long cable runs between control rooms and field junction boxes.

Port and Maritime Operations: Ship-to-shore crane control systems and vessel engine room automation panels require components rated for salt-air humidity and continuous vibration. The 6ES7138-4CB10-0AB0, installed within sealed IP54-rated enclosures, delivers consistent performance in these demanding maritime environments.

Continuous Manufacturing and Automotive Assembly: In just-in-time production lines where unplanned downtime carries severe financial penalties, the ability to hot-swap a failed power module — supported by the ET 200S modular architecture — minimizes mean time to repair (MTTR) and keeps production throughput on target.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7138-4CB10-0AB0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures occurring under normal operating conditions as specified in the Siemens datasheet. It includes free replacement or repair of the module. Damage caused by incorrect wiring, overvoltage beyond the rated input range, or physical mishandling is excluded. Support requests are processed with full traceability documentation.

Q2: What outgoing inspection and testing is performed before shipment?
Every 6ES7138-4CB10-0AB0 unit undergoes 100% functional testing prior to dispatch. Tests include DC input voltage acceptance across the full rated range (20.4V–28.8V), output current load verification, and communication handshake validation when tested in an ET 200S bench assembly. Units that fail any test parameter are quarantined and not shipped.

Q3: Is this module compatible with both S7-300 and S7-400 ET 200S configurations?
Yes. The 6ES7138-4CB10-0AB0 is a backplane power module and is compatible with all ET 200S interface module variants, including those used with S7-300, S7-400, and S7-1500 distributed I/O architectures via PROFIBUS DP or PROFINET IO. It does not require firmware and has no CPU dependency — compatibility is determined solely by the ET 200S backplane and interface module selection.

Q4: Can long-term supply and replacement support be guaranteed for critical infrastructure projects?
Yes. We maintain dedicated safety stock of the 6ES7138-4CB10-0AB0 to support long-term maintenance contracts, planned shutdowns, and emergency replacement requirements. For projects requiring guaranteed supply commitments over 12–36 months, framework agreements with reserved inventory allocation are available. Contact our team to discuss project-specific supply planning.
