Siemens 6ES7137-6EA00-0BA0 Maintenance Spare for Factory Uptime

Overview

Siemens 6ES7137-6EA00-0BA0 Maintenance Spare for Factory Uptime

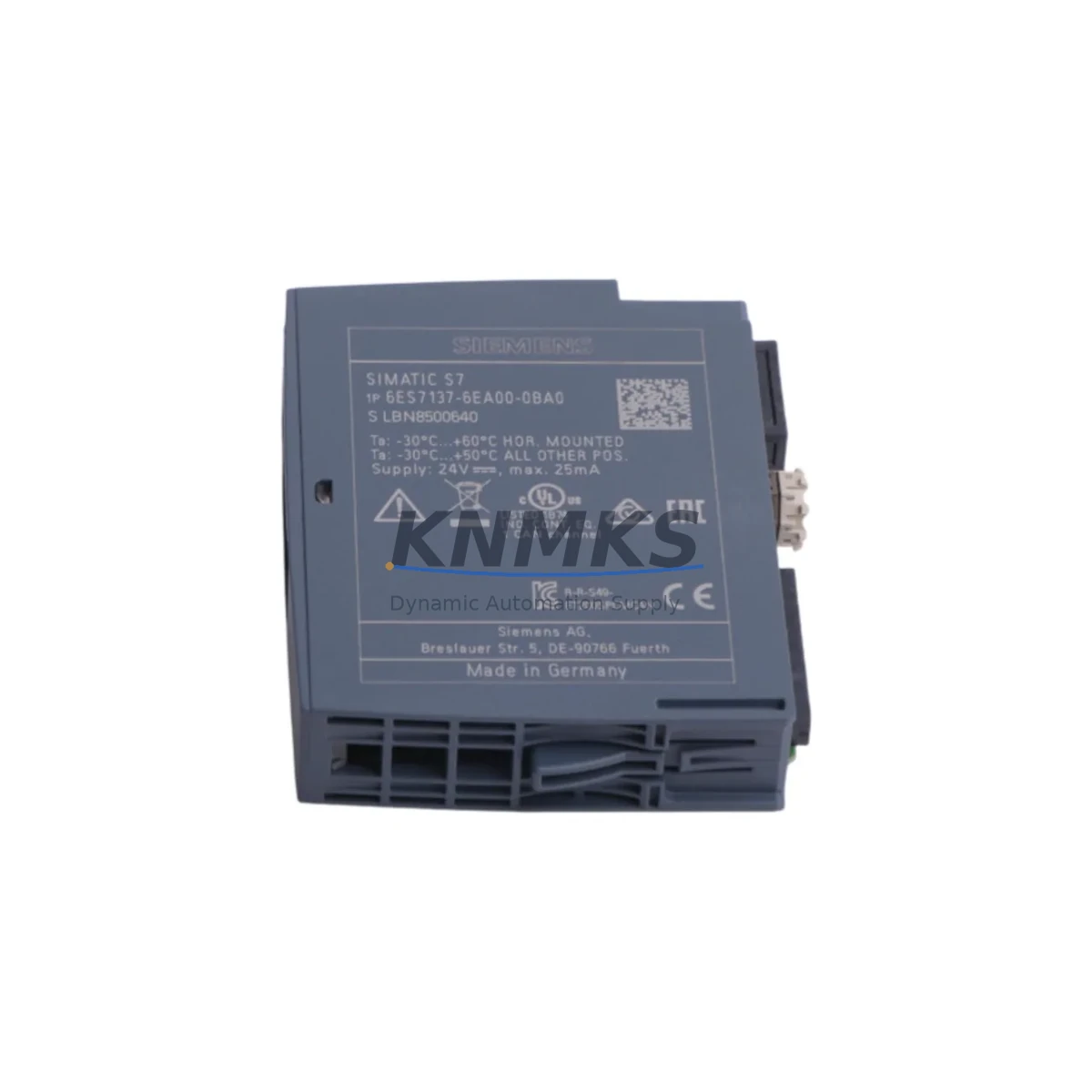

The Siemens 6ES7137-6EA00-0BA0 is an original CM PTP RS-422/485 communication module designed for the ET 200SP distributed I/O system and fully compatible with Siemens S7-1500 PLC architectures. In industrial automation environments where serial communication integrity is critical — connecting field devices, drives, barcode readers, SCADA gateways, and legacy instrumentation — this module serves as the backbone of reliable point-to-point data exchange. Maintaining a verified spare of the 6ES7137-6EA00-0BA0 in your cabinet inventory is a proven strategy for minimizing unplanned downtime and accelerating fault recovery across production lines, process plants, and assembly systems.

For maintenance engineers managing aging ET 200SP stations or expanding S7-1500 control architectures, the 6ES7137-6EA00-0BA0 provides RS-422 and RS-485 protocol support with configurable baud rates, making it adaptable to a wide range of field device communication requirements. Its compact form factor integrates directly into the ET 200SP backplane without additional wiring adapters, reducing replacement time during emergency shutdowns. Procurement engineers sourcing this module should prioritize suppliers offering pre-shipment functional testing, documented firmware compatibility, and a minimum support terms confirmed by quotation to protect capital expenditure and reduce re-procurement risk.

When planning annual maintenance cycles or responding to communication faults, the 6ES7137-6EA00-0BA0 should be evaluated alongside the full communication and power chain of the ET 200SP station. A failed or degraded CM PTP module often presents as intermittent serial timeouts, loss of drive feedback, or SCADA data gaps — symptoms that can cascade into broader process disruptions if not isolated quickly. Stocking this module as part of a structured spare parts program, alongside the BaseUnit BU-type carrier and the ET 200SP power module, ensures that field teams can execute a complete swap within a single maintenance window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for an ET 200SP station equipped with the 6ES7137-6EA00-0BA0 requires a systematic review of all interdependent components within the same control cabinet and communication loop. During scheduled inspections or fault isolation, maintenance engineers should assess the following components in parallel:

The ET 200SP BaseUnit (BU15-P16+A0+2D) or equivalent left-coded BaseUnit is the direct carrier for the 6ES7137-6EA00-0BA0. Damage to the BaseUnit’s backplane connector or coding element will prevent the CM PTP from initializing correctly, even if the module itself is functional. Inspect the BaseUnit for discoloration, bent pins, or mechanical stress during every module swap.

The ET 200SP Power Module (PM-E 24VDC) supplies the 24 V DC rail to the I/O station. Voltage fluctuations or ripple on this rail can cause intermittent CM PTP communication errors that are difficult to distinguish from cable or device faults. Verify supply voltage stability with a calibrated meter before replacing the 6ES7137-6EA00-0BA0.

The Interface Module IM 155-6 PN ST or IM 155-6 PN/2 HF governs PROFINET communication between the ET 200SP station and the S7-1500 CPU. If the IM module reports station faults or loses cyclic communication, the CM PTP sub-module may appear faulty in diagnostics even when it is not. Always confirm IM module health before condemning the CM PTP.

Serial field wiring connected to the RS-422/485 port of the 6ES7137-6EA00-0BA0 should be inspected for correct termination resistors (typically 120 Ω at each end of the RS-485 bus), shielding continuity, and correct polarity. Miswired or unterminated RS-485 buses are a leading cause of CM PTP communication instability. Stocking a set of Siemens SIMATIC terminal blocks and shielding clamps alongside the CM PTP spare ensures rapid field restoration.

For systems integrating SINAMICS G120 or S120 drives via USS or Modbus RTU over the RS-485 port, confirm that drive firmware and parameter sets (P2010, P2011 for USS; P2023 for Modbus) are documented and backed up before replacing the CM PTP module. Drive communication parameters may need to be re-verified after module replacement if the new module initializes with different default settings.

Where signal isolators or surge protection devices are installed on the RS-422/485 line — common in long-distance or electrically noisy environments — inspect these components for degradation. A failed isolator can block communication entirely while the CM PTP module and field device both appear healthy in isolation.

Site Replacement Workflow

Step 1 — Fault Confirmation: Before removing the 6ES7137-6EA00-0BA0, confirm the fault via TIA Portal online diagnostics or the ET 200SP station LED indicators. The CM PTP module will display a red DIAG LED for configuration or communication faults. Document the fault code and timestamp for maintenance records.

Step 2 — Safe Isolation: Place the S7-1500 CPU in STOP mode or isolate the affected ET 200SP station via PROFINET topology if a partial shutdown is permissible. De-energize the 24 V DC supply to the ET 200SP station before removing the module. Do not remove the CM PTP under live power — the BaseUnit coding element is not rated for hot-swap on standard BU types.

Step 3 — Module Removal: Unlock the CM PTP module by pressing the release lever on the BaseUnit and sliding the module upward. Inspect the BaseUnit connector for damage before inserting the replacement 6ES7137-6EA00-0BA0.

Step 4 — Replacement Installation: Insert the new 6ES7137-6EA00-0BA0 into the BaseUnit, ensuring the coding element aligns correctly. The module should click into place without force. Restore 24 V DC power and bring the CPU back online.

Step 5 — Communication Verification: In TIA Portal, perform an online connection to the ET 200SP station and verify that the CM PTP module appears in the device view without fault indicators. Run a short communication test to the connected field device (drive, instrument, or gateway) to confirm data exchange is restored.

Step 6 — Documentation: Record the replacement date, new module serial number, and post-replacement test results in the equipment maintenance log. Update the spare parts inventory to trigger re-procurement of the consumed 6ES7137-6EA00-0BA0 spare.

This workflow is applicable when replacing legacy CM PTP variants or upgrading from older ET 200S communication modules to the ET 200SP platform. The 6ES7137-6EA00-0BA0 is not backward-compatible with ET 200S BaseUnits — confirm the target station is an ET 200SP platform before ordering.

Spare Parts Support FAQ

Q1: Is the 6ES7137-6EA00-0BA0 compatible with all ET 200SP interface modules?
The 6ES7137-6EA00-0BA0 is compatible with ET 200SP IM 155-6 PN ST, IM 155-6 PN/2 HF, and IM 155-6 PN BA interface modules, as well as S7-1500 CPU direct I/O configurations. It requires a left-coded BU-type BaseUnit. Compatibility with specific firmware versions should be verified in TIA Portal’s hardware catalog before deployment. We recommend confirming your IM module firmware version prior to ordering if your station is running TIA Portal below V14.

Q2: What is included in the support terms confirmed by quotation and how does it apply to tested surplus units?
All units supplied — whether new original or tested surplus — carry a support terms confirmed by quotation covering functional defects under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify communication interface integrity, power consumption within specification, and correct module identification. Support requests are supported with replacement dispatch within agreed lead times. Tested surplus units are sourced from decommissioned systems and fully re-tested; they carry the same support terms confirmed by quotation as new units.

Q3: How should I structure my spare parts inventory for the 6ES7137-6EA00-0BA0?
For production environments with one to three ET 200SP stations using CM PTP modules, a minimum buffer of one spare unit per station is recommended, with a review trigger set at consumption of the first spare. For critical lines where serial communication loss causes immediate production stoppage, a two-unit buffer per station is advisable. Annual maintenance cycles should include a functional check of installed CM PTP modules and rotation of long-stored spares (beyond 24 months) back into active use to prevent storage-related degradation.

Q4: Can the 6ES7137-6EA00-0BA0 be used as a long-term replacement for discontinued ET 200S communication modules?
The 6ES7137-6EA00-0BA0 is an ET 200SP platform module and is not a direct drop-in replacement for ET 200S CM PTP variants, which use a different BaseUnit and backplane architecture. Migration from ET 200S to ET 200SP requires BaseUnit and potentially IM module replacement in addition to the CM PTP module. However, for facilities planning a phased modernization of aging ET 200S stations, the ET 200SP platform — including the 6ES7137-6EA00-0BA0 — offers a supported migration path with extended product lifecycle and TIA Portal integration. Long-term supply agreements for the 6ES7137-6EA00-0BA0 are available to support multi-year maintenance programs.
