Siemens 6ES7135-6TD00-0CA1 Fail-Safe HART Analog Output Module

Overview

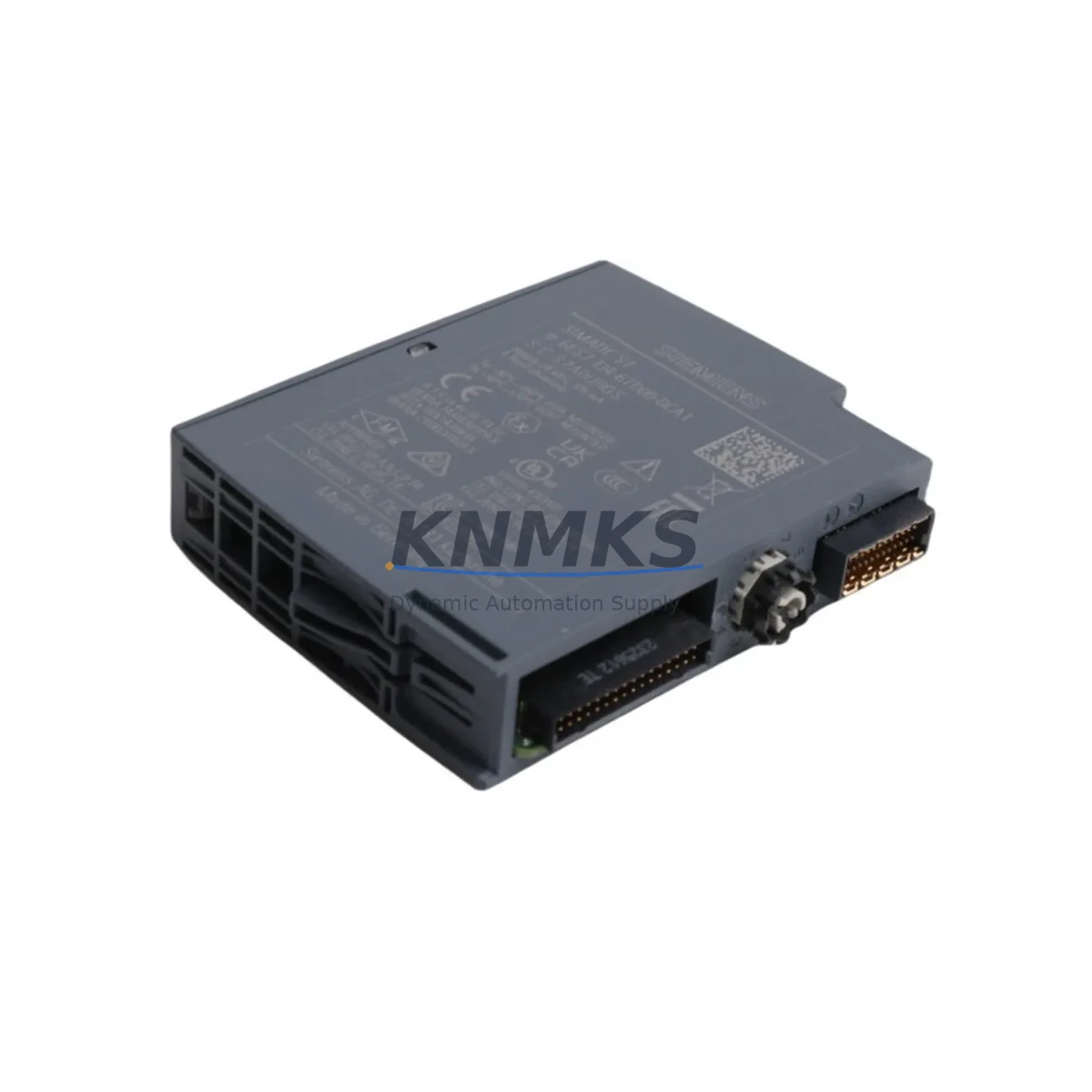

Siemens 6ES7135-6TD00-0CA1 Fail-Safe HART Analog Output Module: Fault-Tolerant Control for Critical Industrial Sites

The Siemens 6ES7135-6TD00-0CA1 is a 4-channel HART-capable analog output module designed for the ET 200SP distributed I/O system. Engineered to meet the demands of continuous production environments, this module delivers precision signal output with integrated fail-safe behavior, making it a cornerstone component in safety instrumented systems (SIS), critical interlock loops, and high-availability control cabinets across petrochemical, power generation, mining, water treatment, metallurgical, and port automation facilities.

In industrial sites where unplanned downtime carries severe operational and safety consequences, the 6ES7135-6TD00-0CA1 provides the signal integrity and fault-response architecture that engineers depend on. Its HART communication capability enables simultaneous process control and device diagnostics over a single 4–20 mA loop, reducing wiring complexity while maintaining full transparency into field device health — a critical advantage in hazardous or hard-to-access installations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7135-6TD00-0CA1 within a safety-rated control cabinet requires a holistic approach to power quality, signal integrity, and communication resilience. In high-load or high-density cabinets, the module is typically paired with the Siemens SITOP PSU8600 power supply series, which provides regulated 24 V DC with integrated diagnostics and selective buffering — ensuring that transient voltage dips or upstream grid disturbances do not propagate into the analog output loop and cause spurious actuator movement or process upsets.

For safety interlock architectures, the 6ES7135-6TD00-0CA1 is commonly integrated alongside the Siemens SIMATIC S7-1500F fail-safe CPU, which manages the safety program and monitors the module’s diagnostic data in real time. When a channel fault, wire break, or out-of-range condition is detected, the CPU triggers a defined safe state — typically driving the output to 0 mA or a pre-configured fallback value — preventing uncontrolled actuator behavior in critical loops such as control valves, variable speed drives, or positioners.

In environments with elevated electromagnetic interference — common in arc furnace facilities, large motor drive rooms, or high-voltage switchgear areas — the module’s shielded backplane connection and isolated channel design work in conjunction with Siemens SIMATIC ET 200SP BaseUnit BU15-P16+A10+2D base units to maintain signal accuracy. Supplementary surge protection devices such as the Siemens SIPROTEC 5 surge arresters or equivalent DIN-rail mounted SPDs are recommended on field cable entries to protect against lightning-induced transients in outdoor or semi-outdoor installations.

Communication continuity is maintained through the PROFINET backbone connecting the ET 200SP station to the S7-1500F controller. In redundant network topologies, Media Redundancy Protocol (MRP) ring configurations using Siemens SCALANCE X managed switches ensure sub-50 ms failover, preventing communication loss from propagating into the analog output state. For legacy HART device integration, the Siemens HART Multiplexer or compatible field device management tools allow centralized asset monitoring without interrupting the live 4–20 mA control signal.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous distillation, reactor temperature control, and pressure relief valve positioning, the 6ES7135-6TD00-0CA1 provides the precise, fail-safe analog output required to maintain process stability within defined safety limits. Its SIL 2-capable architecture supports integration into Safety Instrumented Functions (SIFs) per IEC 61511, enabling compliant shutdown and pressure management loops.

Power Generation and Grid Infrastructure: Turbine governor control, boiler feedwater regulation, and excitation system interfaces demand analog output modules with zero tolerance for signal drift or spurious trips. The 6ES7135-6TD00-0CA1’s diagnostic transparency and defined fault response make it suitable for both conventional and renewable energy control systems, including wind turbine nacelle controllers and hydroelectric gate positioning systems.

Mining and Mineral Processing: In underground conveyor drive control, slurry pump regulation, and crusher load management, the module operates reliably in high-vibration, high-dust environments when installed in properly sealed and ventilated control enclosures. Its robust EMC performance ensures signal accuracy even in proximity to large variable frequency drives and high-current bus systems.

Water and Wastewater Treatment: Dosing pump control, aeration blower speed regulation, and sludge dewatering press management benefit from the module’s HART capability, which allows operators to remotely verify actuator calibration and detect valve wear without process interruption — reducing maintenance downtime in remote or unmanned pump stations.

Metallurgy and Steel Production: Continuous casting mold level control, rolling mill tension regulation, and furnace atmosphere management require analog outputs with sub-millisecond response consistency. The 6ES7135-6TD00-0CA1 supports these demanding cycle times within the ET 200SP distributed architecture, enabling tight integration with high-speed S7-1500 motion and process controllers.

Port Automation and Heavy Lifting: Ship-to-shore crane drive control, automated stacking crane positioning, and bulk material conveyor speed management rely on fail-safe analog outputs to prevent load drops or collision events during communication interruptions. The module’s defined safe-state behavior ensures actuators return to a controlled position rather than freezing at last value during a fault condition.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7135-6TD00-0CA1?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional malfunctions arising under normal operating conditions as specified in the Siemens product datasheet. It does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling. Support requests are processed with full traceability documentation and replacement units are dispatched from verified stock.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7135-6TD00-0CA1 unit undergoes functional verification prior to dispatch, including power-on self-test confirmation, channel output accuracy check across the 4–20 mA range, and HART communication handshake validation. Units sourced from authorized distribution channels include original Siemens factory test records where available.

Q3: Is the 6ES7135-6TD00-0CA1 compatible with existing S7-300 or S7-400 systems?
The 6ES7135-6TD00-0CA1 is designed for the ET 200SP platform and is natively compatible with SIMATIC S7-1500 and S7-1500F controllers via PROFINET. Integration with legacy S7-300 or S7-400 systems is possible through ET 200SP interface modules with appropriate PROFIBUS or PROFINET gateway configuration, though safety function validation must be re-performed for any SIL-rated loop.

Q4: Can long-term supply and replacement support be guaranteed for critical site maintenance?
Yes. We maintain dedicated stock of the 6ES7135-6TD00-0CA1 to support planned maintenance cycles, emergency replacements, and long-term spare parts programs for critical infrastructure operators. Supply commitments for multi-year maintenance contracts are available upon request, with lead time guarantees and priority allocation for registered site accounts. Contact [email protected] or +86 18359268345 to discuss your site’s supply requirements.
