Siemens 6ES7135-4MB02-0AB0 Fail-Safe Analog Output ET 200S

Overview

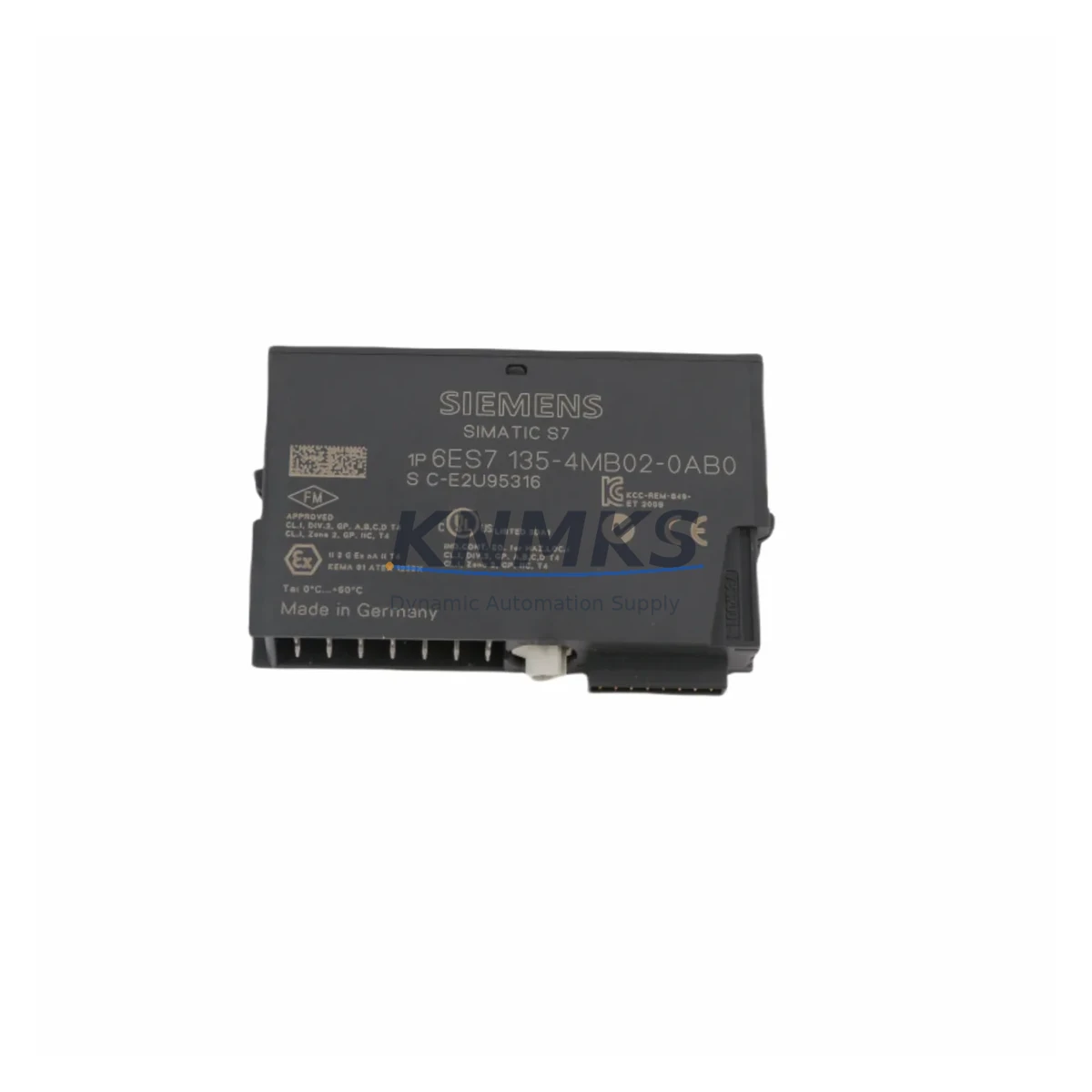

Siemens 6ES7135-4MB02-0AB0 Fail-Safe Analog Output ET 200S: Fail-Safe Reliability for Critical Industrial Control

The Siemens 6ES7135-4MB02-0AB0 is a high-performance analog output module designed for the ET 200S distributed I/O system, engineered to deliver fail-safe, continuous signal output in the most demanding industrial environments. Whether deployed in petrochemical process control, power generation interlocks, mining automation, or continuous manufacturing lines, this module provides the signal integrity and fault-tolerant architecture that safety-critical applications demand. With dual-channel analog output supporting ±10 V voltage and 4–20 mA current modes, it ensures precise actuator control while maintaining full compatibility with Siemens SIMATIC S7-300 and S7-400 safety-rated controllers.

In high-stakes control cabinets where unplanned downtime carries severe operational and safety consequences, the 6ES7135-4MB02-0AB0 stands out for its robust protection against signal drift, electrical surges, and electromagnetic interference. Its integrated surge suppression and shielded signal path minimize the risk of output deviation caused by inductive load switching, variable frequency drives, or high-power contactors operating in the same cabinet. This makes it an ideal analog output solution for control loops where even a momentary signal anomaly could trigger a process upset or safety interlock activation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7135-4MB02-0AB0 within a safety-rated control cabinet requires a coordinated protection architecture. The module is typically paired with the Siemens 6ES7138-4CA01-0AA0 ET 200S power module, which provides stable 24 V DC bus power with integrated short-circuit protection — ensuring that voltage fluctuations from heavy motor starts or capacitor bank switching do not propagate into the analog signal chain. For applications involving high-current actuators or motorized control valves, the 6ES7138-4HA00-0AB0 high-feature motor starter module can be integrated into the same ET 200S rack, allowing coordinated safe-state transitions across both digital and analog output channels.

In environments with significant electromagnetic interference — such as those housing Siemens SINAMICS G120 or S120 variable frequency drives — proper cabinet grounding and shielded cable termination at the 6ES7135-4MB02-0AB0 terminal block are essential. The Siemens 6ES7193-4CA40-0AA0 terminal module provides the mechanical and electrical interface for secure, vibration-resistant wiring, reducing the risk of intermittent contact faults in high-vibration installations such as compressor stations or offshore platforms. For safety interlock circuits requiring redundant analog feedback, the 6ES7135-4MB02-0AB0 can be combined with the Siemens 6ES7134-4MB02-0AB0 analog input module to form a closed-loop verification path, enabling the controller to confirm actuator response against the commanded output signal — a critical requirement in SIL 2 safety loops.

Where communication integrity is paramount, the ET 200S interface module 6ES7151-1BA02-0AB0 provides PROFIBUS DP connectivity with watchdog supervision, ensuring that any communication interruption between the field station and the S7 CPU triggers a defined safe-state output rather than an undefined signal freeze. This fail-safe communication behavior is fundamental to preventing uncontrolled actuator movement during network faults in continuous process plants.

Critical Industrial Safety Applications

The Siemens 6ES7135-4MB02-0AB0 is deployed across a broad spectrum of safety-critical industrial sectors where analog output reliability directly impacts process safety and operational continuity.

In petrochemical and refinery operations, this module controls proportional control valves and positioners in distillation columns, reactor feed systems, and flare gas management circuits. Its ability to maintain a stable 4–20 mA output under high EMI conditions — generated by large transformer banks and high-voltage switchgear — makes it a preferred choice for SIL 2 safety instrumented systems (SIS) managing emergency shutdown (ESD) valve actuation.

In power generation facilities — including thermal, hydroelectric, and wind farm substations — the module provides precise analog control of turbine governor actuators, excitation systems, and cooling water flow regulators. Its surge-protected output channels withstand the transient voltages associated with generator synchronization events and capacitor bank switching, preventing spurious actuator commands that could destabilize grid-connected generation equipment.

In mining and mineral processing environments, where dust ingress, mechanical vibration, and wide temperature swings are constant challenges, the 6ES7135-4MB02-0AB0 controls conveyor speed references, flotation cell reagent dosing pumps, and crusher load management systems. Its robust construction and wide operating temperature range ensure reliable analog output even in underground or open-pit installations subject to extreme environmental stress.

In water and wastewater treatment plants, the module manages pump speed references, chemical dosing actuators, and sluice gate positioners within SCADA-integrated control architectures. Its compatibility with Siemens WinCC and PCS 7 process control systems enables seamless integration into existing plant automation infrastructure, supporting both normal operation and emergency bypass control scenarios.

In port and maritime automation, including ship-to-shore crane control systems and vessel engine management, the module’s vibration resistance and EMI immunity ensure uninterrupted analog output in environments subject to mechanical shock, salt air corrosion, and high-power electrical noise from large drive systems.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7135-4MB02-0AB0?
Every unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and premature component degradation. Support requests are processed with priority support to minimize any impact on your production continuity.

Q2: What pre-shipment testing is performed on each module?
All 6ES7135-4MB02-0AB0 units undergo functional output verification prior to dispatch, including analog signal accuracy testing across both voltage and current output modes, isolation resistance checks, and visual inspection for physical integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with existing Siemens S7-300 and S7-400 safety systems?
Yes. The 6ES7135-4MB02-0AB0 is fully compatible with Siemens SIMATIC S7-300 and S7-400 CPUs operating with the ET 200S distributed I/O platform via standard IM 151 interface modules. It is also compatible with S7-1500 systems using appropriate ET 200S adapter configurations. Compatibility with your specific CPU and safety program version should be confirmed against the Siemens hardware compatibility matrix for your project revision.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
KNMKS maintains dedicated stock of the 6ES7135-4MB02-0AB0 and related ET 200S components to support both planned maintenance schedules and emergency replacement scenarios. We offer expedited shipping for critical breakdowns and can provide supply commitment agreements for customers requiring guaranteed availability over extended maintenance cycles. Contact our technical sales team to discuss your specific inventory and lead-time requirements.
