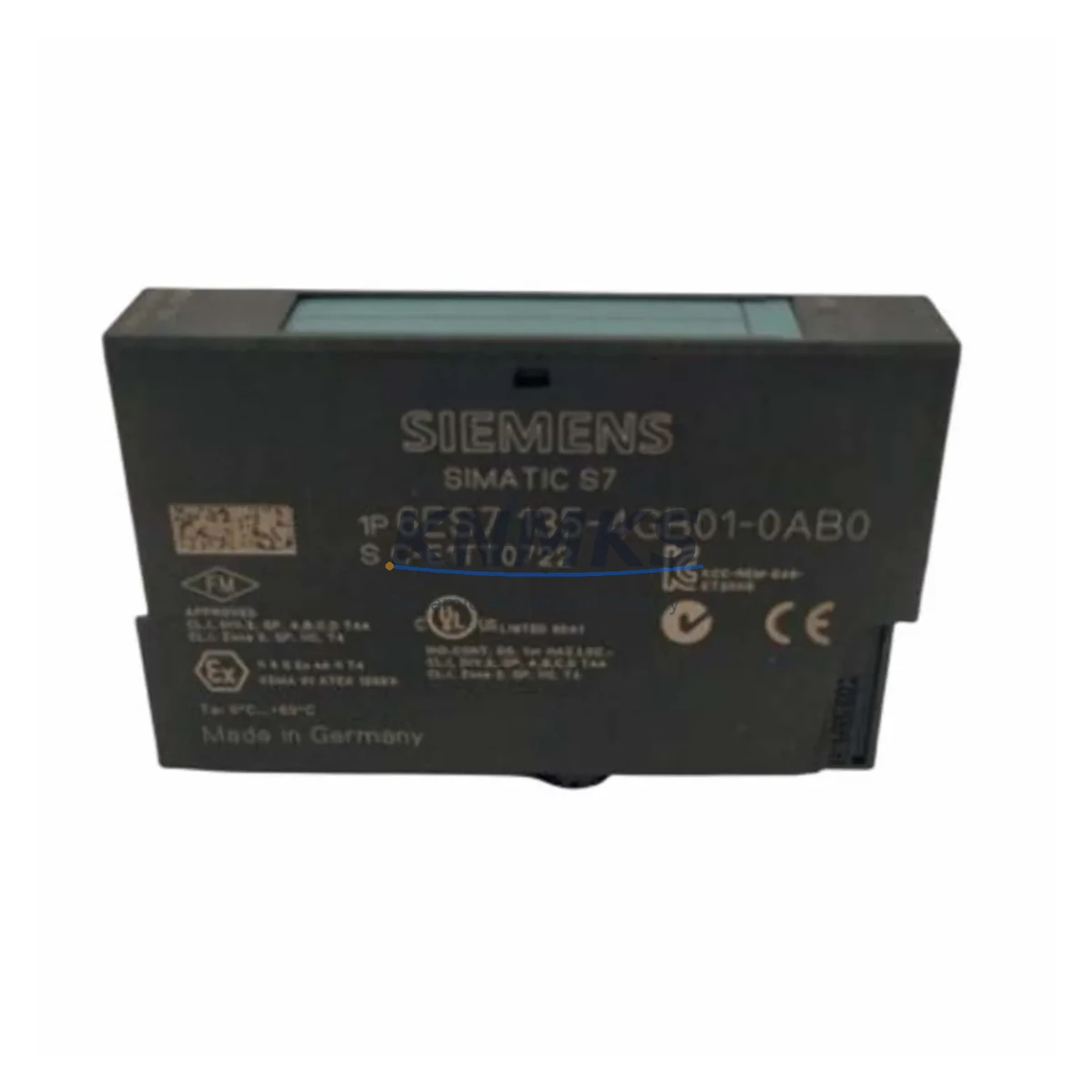

Siemens 6ES7135-4GB01-0AB0 Migration-Ready Analog Output Module

Overview

Siemens 6ES7135-4GB01-0AB0 Migration-Ready Analog Output Module for Legacy Control Systems

The Siemens 6ES7135-4GB01-0AB0 is a 2-channel analog output module designed for the ET 200S distributed I/O system, widely deployed across legacy SIMATIC S7-300 and S7-400 control architectures. As industrial facilities face increasing pressure to modernize aging automation infrastructure, this module serves as a critical bridge component — enabling engineers to extend the operational life of existing control cabinets while planning phased migration toward S7-1500 or ET 200SP platforms. With its compact terminal module footprint and PROFIBUS DP compatibility, the 6ES7135-4GB01-0AB0 supports drop-in replacement scenarios without requiring full rack redesign or PLC program restructuring.

In retrofit projects, the 6ES7135-4GB01-0AB0 is frequently paired with the 6ES7138-4AA10-0AB0 power module to ensure stable 24 VDC supply across the ET 200S station. Engineers replacing end-of-life analog output modules must verify terminal module compatibility — specifically the TM-E15S26-A1 or TM-E15C26-A1 variants — to confirm correct signal wiring and mechanical fit within the existing backplane slot. Failure to match the terminal module type is one of the most common causes of commissioning delays during analog output replacement projects.

For facilities running PROFIBUS DP networks, the 6ES7135-4GB01-0AB0 integrates directly with the 6ES7151-1BA02-0AB0 IM 151-1 interface module, preserving the existing network topology and GSD file configuration. This eliminates the need to reconfigure the PROFIBUS master or update the hardware catalog in STEP 7 beyond a module swap, significantly reducing engineering hours during planned maintenance windows. Where PROFINET migration is underway, the module can coexist within a hybrid station alongside PROFINET-capable interface modules, supporting a staged transition without full cutover.

Output signal configuration — whether 0–10 V, ±10 V, 0–20 mA, or 4–20 mA — must be verified against the existing field wiring and actuator specifications before replacement. The 6ES7135-4GB01-0AB0 supports both voltage and current output modes, selectable via parameter assignment in STEP 7 or TIA Portal. Engineers should confirm that the output range and resolution settings in the existing program blocks (FC/FB) match the replacement module’s parameter set to avoid process deviations at startup. Where HMI screens reference analog output tags, tag address mapping should be validated against the new module’s I/O address assignment in the hardware configuration.

Installation space within the control cabinet should be confirmed prior to ordering. The ET 200S system uses a modular slot-based architecture, and the 6ES7135-4GB01-0AB0 occupies a single slot on the ET 200S rail. If adjacent slots are occupied by 6ES7132-4BD32-0AA0 digital output modules or 6ES7134-4GB11-0AB0 analog input modules, clearance for terminal module removal and reinsertion must be assessed. In high-density cabinets, partial disassembly of neighboring modules may be required to safely extract the terminal module without damaging adjacent wiring.

All units supplied by KNMKS undergo pre-shipment functional testing, including output signal verification across the full configured range, insulation resistance checks, and firmware version confirmation. Stock is maintained for immediate dispatch, supporting urgent breakdown replacement and planned maintenance schedules alike. Each unit is covered by a support terms confirmed by quotation from the date of shipment, with technical support available for commissioning and compatibility verification.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 6ES7135-4GB01-0AB0 into an existing ET 200S station requires a structured pre-replacement checklist. Begin by documenting the current hardware configuration export from STEP 7 or TIA Portal, capturing the module’s slot position, I/O address range, and parameter assignments. This baseline is essential for restoring the configuration if the replacement module requires re-parameterization.

Power budget verification is a mandatory step often overlooked in field replacements. The ET 200S station’s 6ES7138-4AA10-0AB0 power module supplies a defined current budget to downstream I/O modules. Adding or replacing analog output modules may alter the station’s total current draw; engineers should recalculate the power budget using the ET 200S system manual to confirm the existing power module can support the updated configuration without triggering an overload fault.

Where the control system includes a 6ES7315-2AG10-0AB0 CPU 315-2 DP or similar S7-300 controller as the PROFIBUS master, the GSD file for the ET 200S station should be reviewed to confirm the module order matches the physical slot sequence. Any discrepancy between the configured and actual module arrangement will result in a station fault at startup. For systems migrating toward PROFINET, the 6ES7151-3BA23-0AB0 IM 151-3 PN interface module enables PROFINET connectivity while retaining the existing ET 200S I/O modules, including the 6ES7135-4GB01-0AB0, without requiring module replacement.

Signal isolation requirements should also be assessed during retrofit planning. In applications where the analog output drives long cable runs to field actuators or crosses electrical noise zones, a signal isolator or barrier may be required between the module output and the field device. This is particularly relevant in retrofit scenarios where the original installation predates modern EMC practices. Commissioning engineers should verify loop resistance and cable capacitance against the module’s specified load limits before energizing the output channels.

Downtime Control During System Migration

Minimizing unplanned downtime during analog output module replacement requires preparation that begins well before the maintenance window. The most effective approach is to perform a full hardware configuration backup and program export from the PLC prior to any physical intervention. For S7-300 systems, this means uploading the current program blocks, data blocks, and system function blocks from the CPU to the programming device, ensuring that the as-built configuration — not the as-designed version — is preserved.

During the physical swap, the ET 200S terminal module design allows the electronic module to be removed and reinserted without disturbing field wiring, provided the terminal module itself is not being replaced. This hot-swap capability, where supported by the interface module firmware version, can reduce the physical replacement time to under five minutes per module. Engineers should confirm the IM firmware version supports module replacement during operation before relying on this feature in a live production environment.

After reinsertion, the replacement 6ES7135-4GB01-0AB0 should be downloaded with the correct parameter set before the output channels are enabled. Enabling outputs before parameter download can result in the module defaulting to a substitute value — typically 0 V or 0 mA — which may cause unexpected actuator behavior in process-critical applications. A controlled startup sequence, with outputs enabled channel by channel and verified against expected process values, is recommended to confirm correct operation before returning the system to automatic mode.

For systems where continuous control is required, consider implementing a temporary manual bypass or hold strategy at the DCS or SCADA level to maintain process stability during the module swap interval. Document the pre-swap output values so that the process can be restored to the correct setpoints immediately after replacement without relying on operator memory or HMI recall.

Retrofit Support FAQ

Q: Is the 6ES7135-4GB01-0AB0 a direct replacement for older ET 200S analog output modules?
A: Yes, the 6ES7135-4GB01-0AB0 is compatible with the standard ET 200S slot architecture and can replace earlier analog output variants in the same series, provided the terminal module type is matched. Verify the TM-E15S26-A1 or TM-E15C26-A1 terminal module is present before ordering.

Q: What commissioning steps are required after replacing the module?
A: After physical installation, download the hardware configuration to the PLC to transfer the correct parameter set to the replacement module. Verify output signal type, range, and resolution settings match the original configuration. Confirm I/O address assignment in the hardware catalog and validate HMI tag references before enabling outputs.

Q: Can this module be used in a PROFINET-based ET 200S station?
A: Yes. The 6ES7135-4GB01-0AB0 is compatible with PROFINET-capable interface modules such as the IM 151-3 PN series. The module itself communicates via the ET 200S backplane; the interface module handles the network protocol. No changes to the analog output module are required when migrating the station from PROFIBUS to PROFINET.

Q: What support terms and pre-shipment testing does KNMKS provide?
A: All units are functionally tested prior to shipment, including output signal verification across the configured range and firmware version confirmation. Each unit carries a support terms confirmed by quotation from the shipment date. Stock is available for immediate dispatch to support both planned maintenance and emergency breakdown replacement scenarios. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
