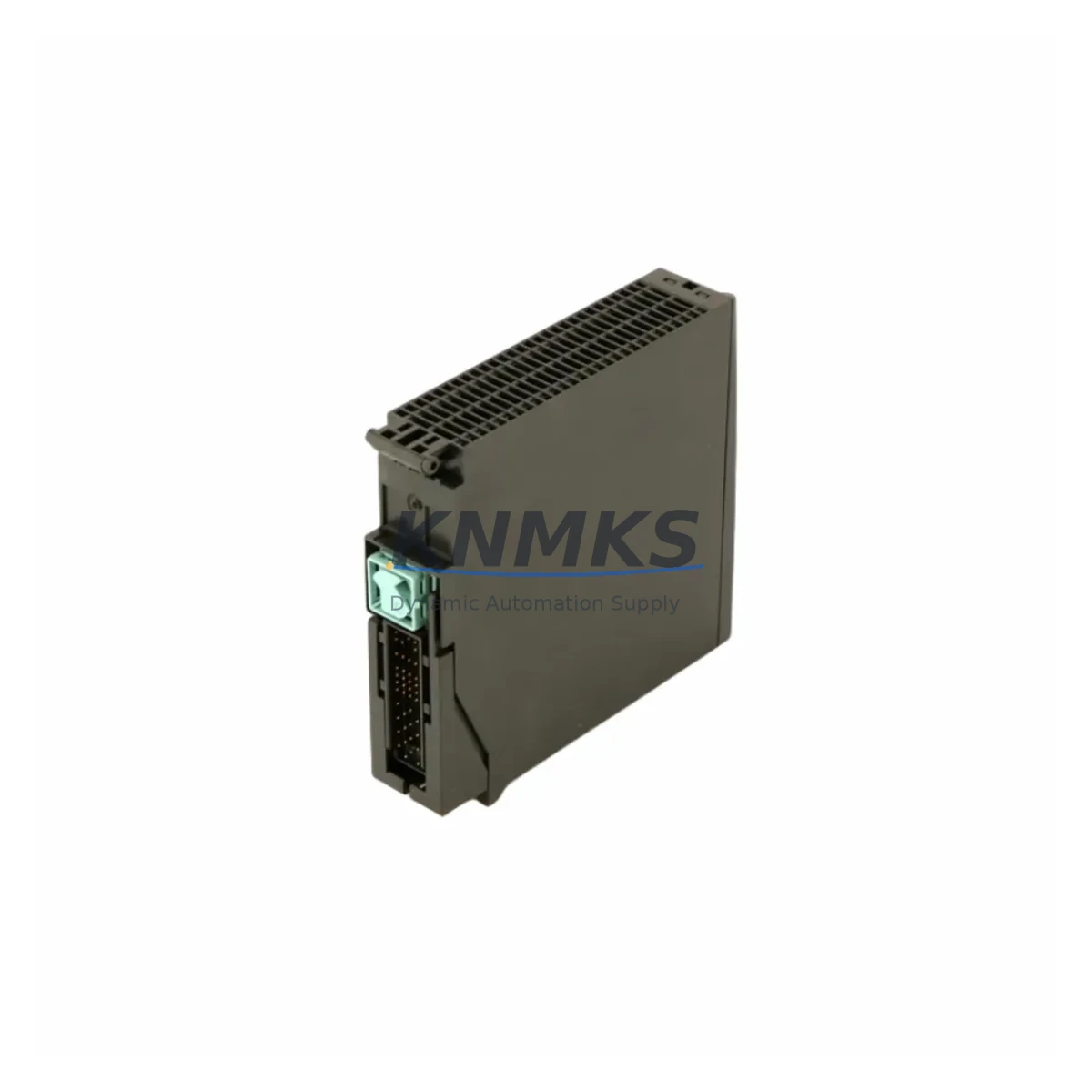

Siemens 6ES7134-7SD00-0AB0 Fail-Safe Analog Input Module

Overview

Siemens 6ES7134-7SD00-0AB0 Fail-Safe Analog Input Module: Fault-Tolerant Precision for Critical Industrial Control

The Siemens 6ES7134-7SD00-0AB0 is a high-integrity, fail-safe analog input module engineered for the ET 200SP distributed I/O platform. Designed to meet the demanding requirements of safety-instrumented systems (SIS) and continuous process control, this module delivers SIL 2-rated signal acquisition for thermocouple (TC) and resistance temperature detector (RTD) inputs across four independent channels. In environments where control interruption, signal drift, or unplanned downtime carry serious operational and safety consequences, the 6ES7134-7SD00-0AB0 provides the measurement accuracy, diagnostic depth, and fault-response speed that modern industrial safety architectures demand.

Whether deployed in petrochemical reactors, power generation switchgear, mining conveyor interlocks, water treatment dosing systems, metallurgical furnace control, port crane load monitoring, or marine propulsion management, this module is built to sustain reliable operation under high electromagnetic interference (EMI), dust ingress, humidity, thermal cycling, and mechanical vibration — conditions that routinely degrade lesser components and trigger costly process shutdowns.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 6ES7134-7SD00-0AB0 is most effective when integrated as part of a coordinated safety and control cabinet architecture. In a typical safety-rated control enclosure, this F-AI module operates alongside the Siemens ET 200SP IM 155-6 PN/2 HF Interface Module (e.g., 6ES7155-6AU01-0BN0), which provides the PROFINET head-end connectivity and synchronizes fail-safe data exchange with the F-CPU. The interface module’s high-speed backplane ensures that fault signals from the 6ES7134-7SD00-0AB0 are transmitted to the safety controller within a single bus cycle, enabling sub-100 ms protective response times in critical interlock loops.

On the power distribution side, a Siemens SITOP PSU8200 24 VDC power supply with integrated diagnostics and redundancy capability ensures that voltage fluctuations, surges, and momentary outages do not propagate into the measurement chain. Pairing the F-AI module with a Siemens 5SD7 series surge protection device on incoming signal lines further guards against transient overvoltage events common in outdoor field installations and long cable runs through electrically noisy environments.

For applications requiring digital safety interlocks alongside analog temperature or process measurement, the Siemens ET 200SP F-DI 8×24VDC HF fail-safe digital input module (6ES7136-6BA01-0CA0) is a natural companion — sharing the same backplane, the same F-CPU safety program, and the same diagnostic framework. This combination allows a single ET 200SP station to handle both analog process variables and discrete safety signals within one compact, DIN-rail-mounted assembly.

Where communication integrity is paramount — particularly in distributed safety architectures spanning multiple control zones — the Siemens SCALANCE X series managed industrial Ethernet switches provide the network redundancy (MRP/RSTP) and port-level diagnostics needed to ensure that PROFINET safety telegrams between the ET 200SP station and the F-CPU are never silently lost. Combined with the 6ES7134-7SD00-0AB0’s internal channel-level diagnostics, this layered approach eliminates single points of failure across both the field device and network layers.

Critical Industrial Safety Applications

Petrochemical & Refinery: In hydrocarbon processing units, precise temperature measurement at reactor inlets, heat exchanger outlets, and distillation column trays is a fundamental safety requirement. The 6ES7134-7SD00-0AB0 provides SIL 2-rated RTD/TC acquisition that feeds directly into the safety instrumented function (SIF) responsible for emergency shutdown (ESD) activation. Its wire-break and short-circuit diagnostics ensure that a sensor failure is immediately detected and reported — preventing a silent dangerous failure from masking an actual process excursion.

Electric Power Generation & Substation Control: Generator stator winding temperature monitoring, transformer oil temperature supervision, and turbine bearing temperature trending all demand measurement modules capable of operating reliably in high-EMI environments adjacent to high-voltage switchgear. The 6ES7134-7SD00-0AB0’s EN 61000-4 EMC compliance and galvanic isolation make it a dependable choice for these applications, where signal drift or measurement dropout could trigger unnecessary trips or, worse, mask developing faults.

Mining & Mineral Processing: Conveyor drive motor temperature monitoring, crusher bearing supervision, and flotation cell process temperature control in underground or open-pit mining environments expose instrumentation to extreme dust, vibration, and humidity. The module’s robust design and IP20-rated panel-mount installation within sealed control cabinets, combined with its high diagnostic coverage, supports continuous operation without manual intervention between planned maintenance intervals.

Water & Wastewater Treatment: Chemical dosing pump motor temperature monitoring and UV disinfection reactor temperature supervision require measurement accuracy and fault transparency that the 6ES7134-7SD00-0AB0 delivers. In facilities operating under 24/7 continuous production mandates, the module’s passivation-on-fault behavior ensures that a sensor or wiring fault triggers a controlled safe state rather than an uncontrolled process deviation.

Metallurgy & Steel Production: Furnace zone temperature control, ladle preheating supervision, and rolling mill roll cooling water temperature monitoring demand thermocouple input modules capable of handling high-temperature sensor types (Type B, R, S) with high resolution and fast update rates. The 6ES7134-7SD00-0AB0 supports all major TC types and delivers 16-bit resolution, making it suitable for tight temperature control loops where ±1 °C accuracy directly impacts product quality and energy efficiency.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7134-7SD00-0AB0?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are supported by our technical team with replacement dispatch within 5 business days upon fault confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7134-7SD00-0AB0 module undergoes functional verification prior to dispatch, including power-on self-test confirmation, channel continuity checks, and visual inspection for physical integrity. Units are shipped in anti-static packaging with individual serial number traceability to support your incoming inspection records.

Q3: Is this module compatible with existing Siemens ET 200SP stations and TIA Portal safety projects?
Yes. The 6ES7134-7SD00-0AB0 is fully compatible with the ET 200SP backplane system and is supported in TIA Portal V15.1 and later with the corresponding F-I/O HSP (Hardware Support Package). It integrates directly into STEP 7 Safety and TIA Safety Advanced projects without requiring custom configuration beyond standard F-address assignment.

Q4: Can KNMKS guarantee long-term supply for ongoing maintenance and spare parts programs?
KNMKS maintains dedicated stock buffers for high-demand Siemens ET 200SP safety modules, including the 6ES7134-7SD00-0AB0, to support customers with planned maintenance schedules, emergency replacement requirements, and multi-year spare parts agreements. Contact our sales team to discuss volume pricing, consignment stock arrangements, or priority allocation for critical infrastructure projects.
