Siemens 6ES7134-6JF00-0CA1 Fail-Safe HART Analog Input ET 200SP

Overview

Siemens 6ES7134-6JF00-0CA1 Fail-Safe HART Analog Input ET 200SP: Fault-Tolerant Signal Acquisition for Critical Industrial Control

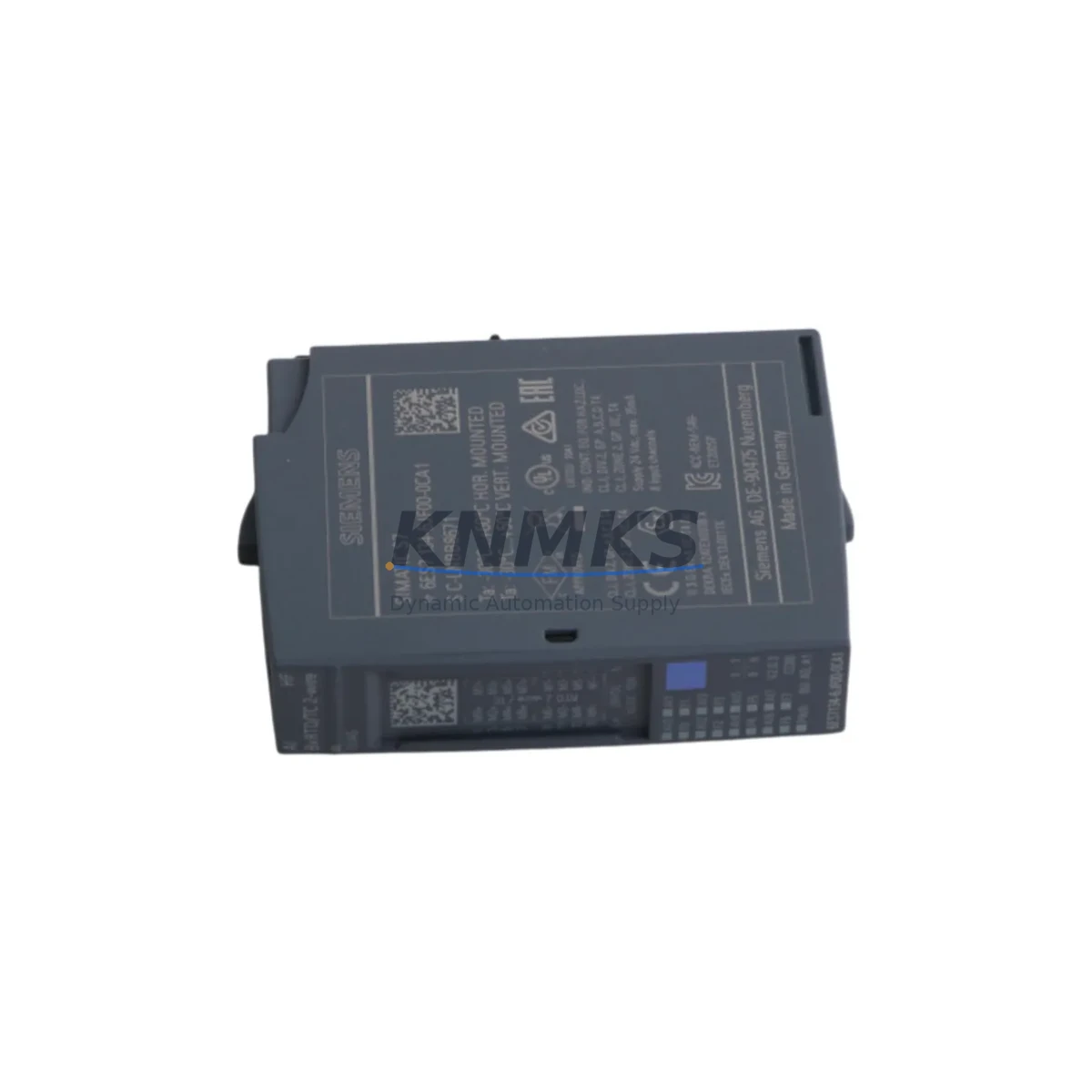

The Siemens 6ES7134-6JF00-0CA1 is a high-integrity HART analog input module designed for the ET 200SP distributed I/O system, engineered to deliver uninterrupted signal acquisition in the most demanding industrial environments. Whether deployed in continuous process plants, safety-instrumented systems (SIS), or high-density control cabinets subject to electrical noise, thermal stress, and mechanical vibration, this module provides the fail-safe performance that modern industrial automation demands.

Certified to IEC 61508 and suitable for use in SIL 2 safety loops, the 6ES7134-6JF00-0CA1 integrates seamlessly with the SIMATIC S7-1500 and ET 200SP architecture, enabling engineers to build robust safety and control strategies without compromising on signal fidelity or system availability. Its HART communication capability allows simultaneous process value transmission and device diagnostics over a single 4–20 mA loop, reducing wiring complexity while enhancing field device visibility.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-density control cabinets serving continuous production lines, signal integrity is non-negotiable. The 6ES7134-6JF00-0CA1 is engineered to operate reliably alongside the full ET 200SP ecosystem, including the Siemens 6ES7155-6AU01-0BN0 ET 200SP Interface Module and 6ES7193-6BP20-0DC0 BaseUnit, forming a tightly integrated I/O station that minimizes inter-module communication latency and eliminates single points of failure in the analog signal chain.

For applications where power quality directly impacts measurement accuracy, pairing this module with a Siemens SITOP PSU8200 24 V DC power supply ensures stable, regulated voltage delivery even during grid transients and inrush events. The SITOP series provides built-in surge buffering and overload protection, preventing the voltage dips that can trigger spurious fault states in sensitive analog input channels.

In environments with elevated electromagnetic interference — such as variable frequency drive (VFD) enclosures, arc furnace control rooms, or high-current motor control centers — the 6ES7134-6JF00-0CA1’s shielded signal architecture works in concert with Siemens SIMATIC S7-1500F fail-safe CPUs to maintain SIL 2 loop integrity. The F-CPU continuously monitors the safety program execution and cross-checks analog input values against configured safe-state thresholds, ensuring that any signal drift or channel fault triggers a controlled, safe shutdown rather than an undetected hazardous condition.

For cabinet thermal management in high-ambient installations, the module’s 0–60 °C operating range pairs well with structured airflow designs and Siemens SIMATIC IPC thermal management accessories. Maintaining cabinet temperature within specification is critical for preserving the long-term calibration stability of HART analog inputs, particularly in outdoor substations, coastal facilities, or foundry environments where ambient conditions fluctuate significantly.

When integrating into safety-instrumented systems requiring IEC 61511 compliance, the 6ES7134-6JF00-0CA1 is commonly deployed alongside Siemens ET 200SP digital output modules (e.g., 6ES7132-6BF01-2AA0) to form complete SIL 2 safety loops — from sensor input through logic solver to final element actuation. This architecture supports proof-test intervals aligned with functional safety management plans, reducing the administrative burden of SIS lifecycle documentation.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous distillation columns and reactor pressure control loops, the 6ES7134-6JF00-0CA1 provides the high-resolution, fault-tolerant analog acquisition needed to monitor temperature, pressure, and flow transmitters simultaneously via HART. Its SIL 2 rating supports integration into Emergency Shutdown (ESD) systems where signal loss or drift must be detected and acted upon within defined response times.

Power Generation and Substation Automation: Thermal and hydroelectric power stations rely on precise analog feedback for turbine governor control, generator excitation regulation, and transformer protection. The module’s EMI-hardened design withstands the high magnetic field environments typical of generator halls and switchgear rooms, maintaining measurement accuracy without requiring additional signal conditioning hardware.

Mining and Mineral Processing: In underground and surface mining operations, control systems face extreme dust ingress, humidity, and vibration. The 6ES7134-6JF00-0CA1’s robust construction and IP20-rated housing, combined with proper cabinet sealing practices, supports reliable operation in conveyor drive control, crusher load monitoring, and ventilation safety interlock systems.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities require continuous monitoring of flow, pH, turbidity, and chemical dosing rates. The HART capability of this module enables operators to perform remote sensor diagnostics and calibration verification without interrupting the process, reducing planned maintenance downtime and supporting regulatory compliance reporting.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and rolling mills generate severe electrical noise and thermal gradients. The 6ES7134-6JF00-0CA1’s differential input architecture and high common-mode rejection ratio ensure that analog signals from pyrometers, load cells, and position transducers remain accurate even in the presence of high-frequency interference from thyristor drives and induction heating equipment.

Port and Marine Automation: Ship-to-shore crane control systems and vessel engine management platforms demand high availability and resistance to salt-laden, humid air. Deployed within sealed ET 200SP cabinets, this module supports the analog feedback loops governing hoist load monitoring, hydraulic pressure control, and propulsion system management, where unplanned downtime carries significant operational and safety consequences.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7134-6JF00-0CA1?
Every unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers functional failures under normal operating conditions and includes technical support for installation and commissioning. Support requests are processed directly through our sales team at [email protected].

Q2: Is the module tested before shipment?
Yes. All units undergo 100% functional verification prior to dispatch. Testing includes channel-level signal integrity checks, HART communication validation, and power supply compatibility confirmation. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 6ES7134-6JF00-0CA1 compatible with existing S7-300/S7-400 installations?
This module is native to the ET 200SP platform and requires an ET 200SP Interface Module and compatible BaseUnit. It is not directly interchangeable with S7-300 or S7-400 analog input cards. For retrofit projects migrating from legacy SIMATIC platforms, KNMKS can advise on compatible migration paths and intermediate adapter solutions to minimize rewiring and re-engineering effort.

Q4: Can long-term supply agreements be arranged for this SKU?
Yes. KNMKS supports blanket order arrangements and scheduled delivery programs for the 6ES7134-6JF00-0CA1, with supply horizons of 12 to 36 months. This is particularly valuable for plant operators managing multi-site spare parts standardization programs or executing phased control system upgrades where consistent component availability is critical to project scheduling.
