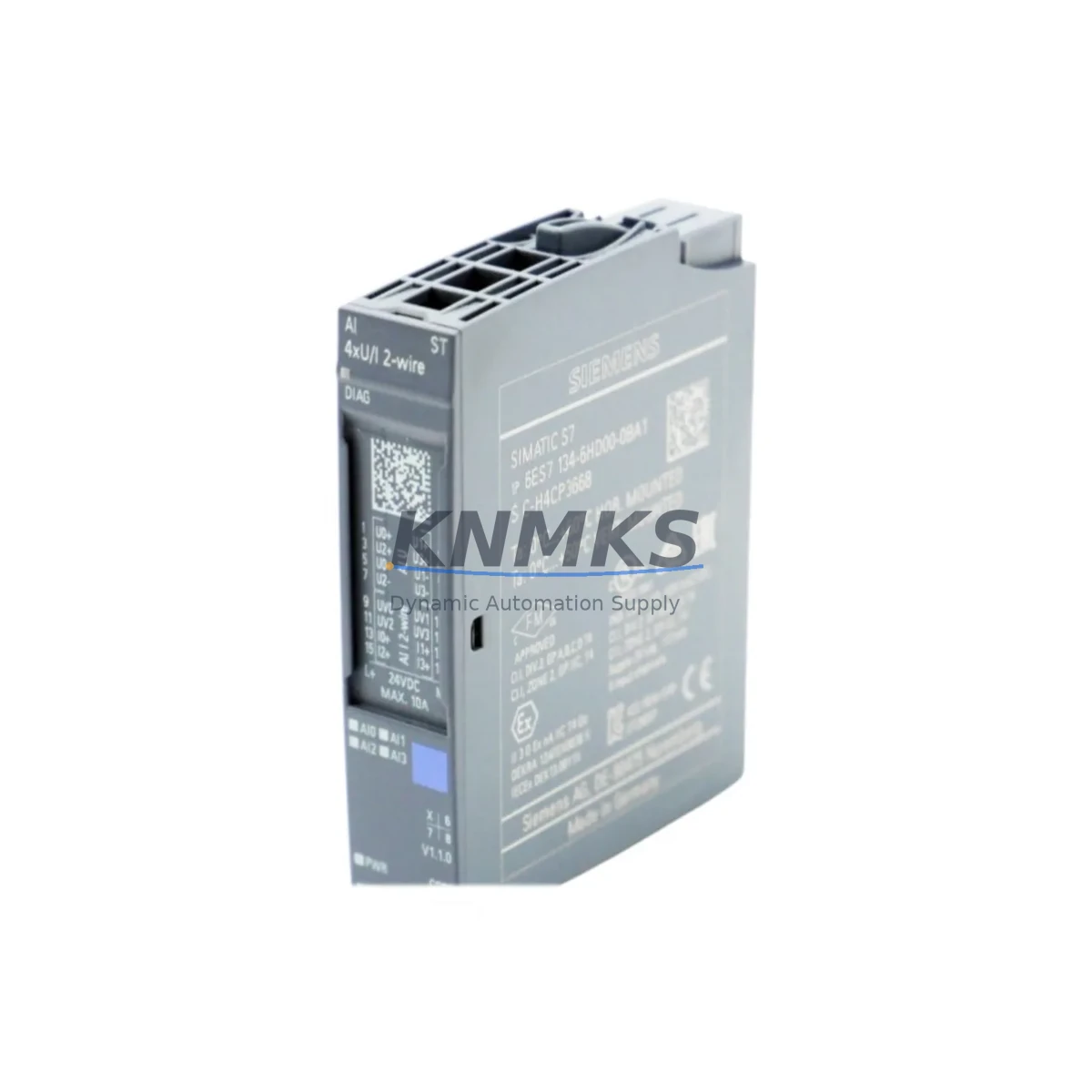

Siemens 6ES7134-6HD00-0BA1 Migration-Ready 4AI Module

Overview

Siemens 6ES7134-6HD00-0BA1 Migration-Ready 4AI Module: Legacy System Migration and Compatible Upgrade

The Siemens 6ES7134-6HD00-0BA1 is a 4-channel analog input module designed for the ET 200SP distributed I/O system, operating within the SIMATIC S7-1500 and S7-1200 control platforms. As legacy automation systems approach end-of-life and spare parts become increasingly difficult to source, the 6ES7134-6HD00-0BA1 has emerged as a critical component in retrofit projects, discontinued model replacements, and control cabinet modernization programs across manufacturing, process, and infrastructure industries. Whether you are migrating from an older ET 200S platform, replacing a failed analog input card in a running production line, or upgrading a distributed I/O rack to meet current communication standards, this module provides a verified, drop-in compatible solution with minimal engineering overhead.

Before initiating a replacement or retrofit, engineers must carefully verify several key parameters. Power supply capacity at the ET 200SP base unit must be confirmed to support the additional load of the 6ES7134-6HD00-0BA1, particularly when multiple analog modules are installed in the same rack. Terminal wiring must be reviewed against the original field device connections — the module supports 2-wire, 3-wire, and 4-wire sensor configurations, and any mismatch in wiring topology will result in measurement errors or open-circuit faults. The backplane interface slot assignment must be confirmed in the hardware configuration within TIA Portal, as incorrect slot addressing will prevent the CPU from recognizing the module during startup. Module addressing in the PROFINET or PROFIBUS DP network must be validated to ensure no address conflicts exist with other I/O devices on the same communication segment.

Program compatibility is another critical checkpoint. Existing ladder logic or function block diagrams referencing the analog input data addresses must be reviewed to confirm that the new module’s channel mapping aligns with the original software structure. If the legacy system used an older analog input module with a different scaling range or resolution, the engineering team must update the normalization and scaling blocks in the PLC program accordingly. HMI screens connected to analog process values — such as temperature trends, pressure displays, or flow rate indicators — must also be verified to ensure that tag addresses and engineering unit conversions remain consistent after the module swap.

Communication link integrity is essential during migration. The ET 200SP station housing the 6ES7134-6HD00-0BA1 communicates via PROFINET IO, and the network topology — including switch port assignments, IP address allocation, and device name configuration — must be documented before any hardware change is made. If the legacy system used PROFIBUS DP, a protocol migration to PROFINET may be required, which involves replacing the ET 200SP interface module with a PROFINET-capable variant such as the IM 155-6 PN series, and reconfiguring the GSD file or GSDML device description in the engineering tool.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6ES7134-6HD00-0BA1 into an existing automation system requires a structured retrofit plan that accounts for all interdependent components in the control architecture. The ET 200SP station must be equipped with a compatible interface module — the IM 155-6 PN ST or IM 155-6 PN HF — to establish the PROFINET IO connection between the distributed I/O rack and the S7-1500 CPU. If the existing installation uses an older interface module, it may need to be replaced as part of the migration to support the full feature set of the analog input module, including isochronous mode and diagnostic interrupt functions.

Power distribution within the control cabinet must be reviewed. The ET 200SP system uses a combination of system power modules and load current supply modules to distribute 24 VDC across the backplane. When adding or replacing analog input modules, the power budget must be recalculated to ensure that the total current draw does not exceed the capacity of the installed power supply module. In many retrofit scenarios, an additional PM-E power module is required to segment the backplane and provide isolated power to the analog section, reducing noise interference on sensitive measurement channels.

Signal isolation is a common requirement in legacy system upgrades. If the field sensors connected to the analog inputs operate in electrically noisy environments — such as motor control centers, variable frequency drive panels, or high-voltage switchgear rooms — signal isolators or barriers may need to be inserted between the field wiring and the module terminals. This is particularly important when migrating from older systems that used galvanically isolated analog cards, as the 6ES7134-6HD00-0BA1 provides channel-to-channel isolation but not full galvanic isolation from the backplane ground.

For projects involving I/O expansion, the 6ES7134-6HD00-0BA1 can be combined with digital input modules such as the 6ES7131-6BH01-0BA0, digital output modules, and thermocouple input modules within the same ET 200SP rack, allowing engineers to consolidate multiple legacy I/O cards into a single, compact distributed station. Programming cables and TIA Portal licenses must be available on-site during commissioning to perform online diagnostics, force channel values during loop testing, and verify analog input readings against calibrated reference instruments.

Downtime Control During System Migration

Minimizing production downtime during a module replacement or system migration is a primary concern for plant engineers and maintenance teams. The 6ES7134-6HD00-0BA1 supports hot-swapping within the ET 200SP system when the base unit is equipped with a locking mechanism and the CPU is configured to allow module replacement without a full station restart. This capability allows maintenance personnel to remove a failed analog input module and install the replacement unit while the remaining I/O channels in the station continue to operate, preserving control continuity for non-affected process loops.

Before performing the swap, the original PLC program and hardware configuration must be backed up using TIA Portal’s project archive function. The CPU memory card should contain the latest compiled project, and the module parameters — including channel enable settings, measurement range selection, smoothing level, and diagnostic alarm configuration — must be documented so they can be verified after the replacement module is inserted and the station performs its automatic parameter download.

Field loop testing should be completed during a scheduled maintenance window rather than during live production. Each analog input channel must be verified using a calibrated loop calibrator or signal generator to confirm that the module is reading the correct engineering value at 0%, 50%, and 100% of the configured measurement range. Any deviation from expected values indicates a wiring error, incorrect range configuration, or a scaling error in the PLC program that must be corrected before returning the system to automatic control mode. Maintaining a pre-tested spare unit of the 6ES7134-6HD00-0BA1 in the site’s critical spare parts inventory is strongly recommended to reduce mean time to repair in the event of an unexpected module failure.

Retrofit Support FAQ

Q: Is the 6ES7134-6HD00-0BA1 a direct replacement for older ET 200S analog input modules?
A: The 6ES7134-6HD00-0BA1 is designed for the ET 200SP platform, which uses a different backplane and base unit system compared to the ET 200S. A direct mechanical swap is not possible without replacing the base units. However, the module is fully compatible within the ET 200SP ecosystem and can replace other ET 200SP analog input variants with the same channel count and signal range, subject to firmware and TIA Portal version compatibility verification.

Q: What commissioning steps are required after installing the replacement module?
A: After physical installation, the ET 200SP station will automatically download the stored module parameters from the CPU if the hardware configuration has been previously compiled and loaded. Engineers should verify the PROFINET device name, confirm that the module appears online in TIA Portal’s device view without diagnostic errors, perform a channel-by-channel loop test using a signal generator, and check that all HMI analog displays are showing correct process values before releasing the system to production.

Q: Can the module be used in systems with PROFIBUS DP communication?
A: The 6ES7134-6HD00-0BA1 communicates via the ET 200SP backplane and connects to the network through the station’s interface module. PROFIBUS DP connectivity requires an IM 155-6 DP interface module. If the existing installation uses a PROFINET interface module, the analog input module itself does not need to change — only the interface module and network configuration require updating for a protocol migration.

Q: What does the support terms confirmed by quotation cover, and how is stock availability managed?
A: All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes pre-shipment functional testing to verify analog input accuracy, channel isolation, and backplane communication integrity. Stock is maintained to support urgent replacement orders, and global shipping is available to minimize lead times for critical maintenance situations.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7134-6HD00-0BA1
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7134-6HD00-0BA1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
