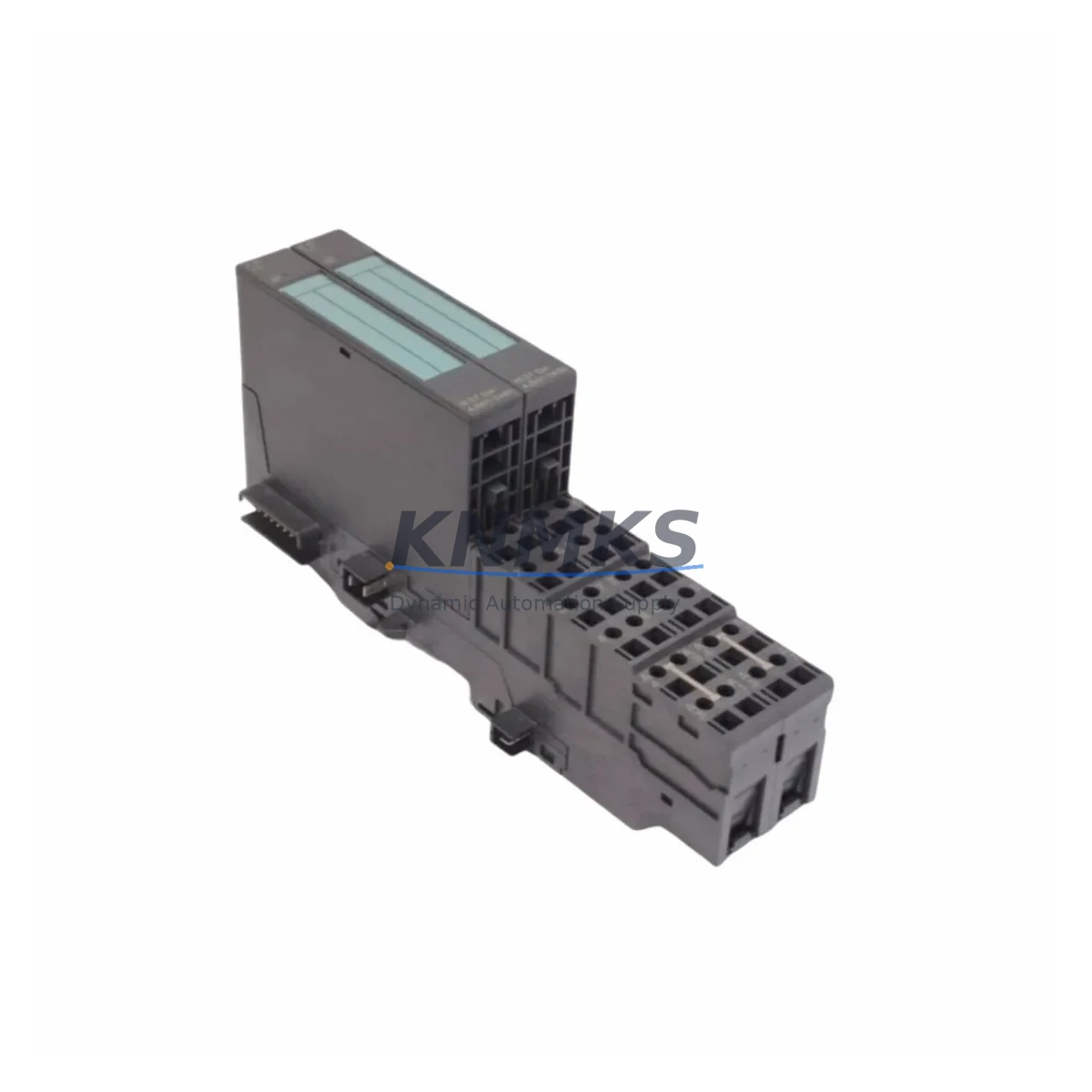

Siemens 6ES7134-4JB00-0AB0 Fail-Safe Analog Input Module

Overview

Siemens 6ES7134-4JB00-0AB0 Fail-Safe Analog Input Module: Fault-Tolerant Reliability for Critical Industrial Control

The Siemens 6ES7134-4JB00-0AB0 is a 2-channel analog input module designed for the ET 200S distributed I/O system, engineered to deliver uncompromising signal integrity and fail-safe performance in the most demanding industrial environments. Whether deployed in continuous process manufacturing, critical safety interlocks, or high-electromagnetic-interference (EMI) control cabinets, this module provides the measurement accuracy and fault-detection capability that modern industrial safety architectures demand.

In industries where unplanned downtime translates directly into production loss, safety incidents, or regulatory non-compliance, the 6ES7134-4JB00-0AB0 serves as a cornerstone component. Its architecture is built around minimizing the risk of signal drift, spurious trips, and measurement errors — the three most common causes of control loop instability in analog-intensive applications. By maintaining stable 4–20 mA or voltage signal acquisition even under fluctuating supply conditions, the module protects the integrity of every PID loop, safety function, and process alarm it feeds.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 6ES7134-4JB00-0AB0 does not operate in isolation — it functions as part of a layered protection architecture. Upstream, a Siemens SITOP PSU100S 24 V DC power supply module provides regulated, surge-protected power to the entire ET 200S rack, ensuring that voltage transients from motor starts, contactor switching, or grid disturbances never reach the sensitive analog measurement circuitry. This is critical: even a 2 V transient on the supply rail can introduce measurement errors exceeding 1% of full scale in unprotected analog modules.

Signal wiring entering the cabinet from field transmitters — pressure sensors, flow meters, temperature probes — should be routed through Siemens SIMATIC S7 surge protection terminal blocks before reaching the 6ES7134-4JB00-0AB0 inputs. These devices clamp inductive and capacitive surges generated by nearby variable frequency drives (VFDs), solenoid valves, and high-current switching equipment, protecting the module’s input stage from damage and drift.

For applications requiring functional safety certification, the 6ES7134-4JB00-0AB0 integrates seamlessly with the Siemens ET 200S IM 151-8 F PN/DP fail-safe interface module, enabling SIL 2 / SIL 3 safety loop construction without additional external safety relays. This combination is widely used in emergency shutdown (ESD) systems, burner management systems (BMS), and safety instrumented systems (SIS) across petrochemical and power generation facilities.

Cabinet thermal management is equally important for long-term analog accuracy. Pairing the ET 200S rack with a Siemens SINAMICS or SIMATIC cabinet fan-and-filter unit maintains internal temperatures below 45 °C even in high-ambient industrial environments, preventing the thermal drift that degrades analog measurement precision over time. For communication redundancy in critical installations, the Siemens SCALANCE X industrial Ethernet switch provides ring-topology PROFINET connectivity, ensuring that a single cable fault does not interrupt the data path between the 6ES7134-4JB00-0AB0 and the SIMATIC S7-300/S7-400 or S7-1500 controller.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous distillation columns and reactor temperature control loops, the 6ES7134-4JB00-0AB0 acquires RTD and thermocouple signals from process vessels operating at elevated temperatures and pressures. Its wire-break and short-circuit diagnostics generate immediate fault alarms to the DCS or safety PLC, enabling operators to initiate controlled shutdowns before a measurement failure escalates into a process safety event. The module’s EMI shielding is essential in these environments, where large motor drives and high-voltage switchgear generate significant electromagnetic noise.

Electric Power Generation and Substation Automation: Turbine control systems and generator protection relays depend on precise analog measurement of current, voltage, and temperature. The 6ES7134-4JB00-0AB0’s 15-bit resolution and fast conversion time support accurate load monitoring and protection setpoint verification, reducing the risk of nuisance trips and missed fault conditions. Its compatibility with PROFIBUS DP ensures reliable integration into legacy substation automation architectures.

Mining and Mineral Processing: Conveyor belt tension monitoring, crusher load measurement, and flotation cell level control all rely on stable 4–20 mA signal acquisition. In underground mining environments characterized by dust, humidity, and mechanical vibration, the 6ES7134-4JB00-0AB0’s robust construction and sealed terminal design maintain measurement integrity where less ruggedized modules fail prematurely.

Water and Wastewater Treatment: Flow, pressure, and pH measurement in water treatment facilities require continuous, drift-free analog acquisition. The module’s diagnostic capabilities allow maintenance teams to detect sensor degradation before it causes dosing errors or regulatory compliance failures, supporting the 24/7 unattended operation typical of modern water utilities.

Metallurgy and Steel Production: Furnace temperature profiling, rolling mill tension control, and cooling water flow monitoring demand analog modules capable of operating reliably in high-temperature, high-vibration environments. The 6ES7134-4JB00-0AB0’s IEC 60068-compliant vibration and shock ratings make it suitable for installation in control panels mounted directly on production equipment.

Port Logistics and Marine Applications: Ship-to-shore crane control systems and vessel engine room automation require analog input modules that maintain accuracy despite the corrosive, high-humidity marine environment. The module’s wide humidity tolerance and robust EMC design support reliable operation in these challenging conditions, reducing unplanned maintenance and vessel downtime.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7134-4JB00-0AB0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform within its specified parameters during the confirmed support period, KNMKS will provide a replacement unit or documented resolution support. Support requests are processed within 5 business days of receiving the returned item, and replacement units are dispatched from in-stock inventory to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7134-4JB00-0AB0 unit undergoes functional verification testing before dispatch, including power-on self-test confirmation, channel-by-channel analog input accuracy verification, and diagnostic output validation. Units sourced from authorized distribution channels are tested against Siemens factory acceptance criteria. A test report is available upon request for quality-critical applications.

Q3: Is this module compatible with both SIMATIC S7-300 and S7-1500 controllers?
Yes. The 6ES7134-4JB00-0AB0 is an ET 200S distributed I/O module that communicates via PROFIBUS DP or PROFINET through the ET 200S head module. It is fully compatible with SIMATIC S7-300, S7-400, and S7-1500 controllers, as well as third-party PROFIBUS/PROFINET masters. Hardware configuration is performed in SIMATIC STEP 7 or TIA Portal without requiring additional GSD file installation.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts planning?
KNMKS maintains dedicated stock of the 6ES7134-4JB00-0AB0 to support ongoing maintenance, planned shutdowns, and emergency spare parts requirements. For facilities with critical spare parts programs, we offer reserved stock agreements and priority dispatch arrangements. Contact our technical sales team to discuss your long-term supply requirements and establish a supply continuity plan tailored to your maintenance schedule.
