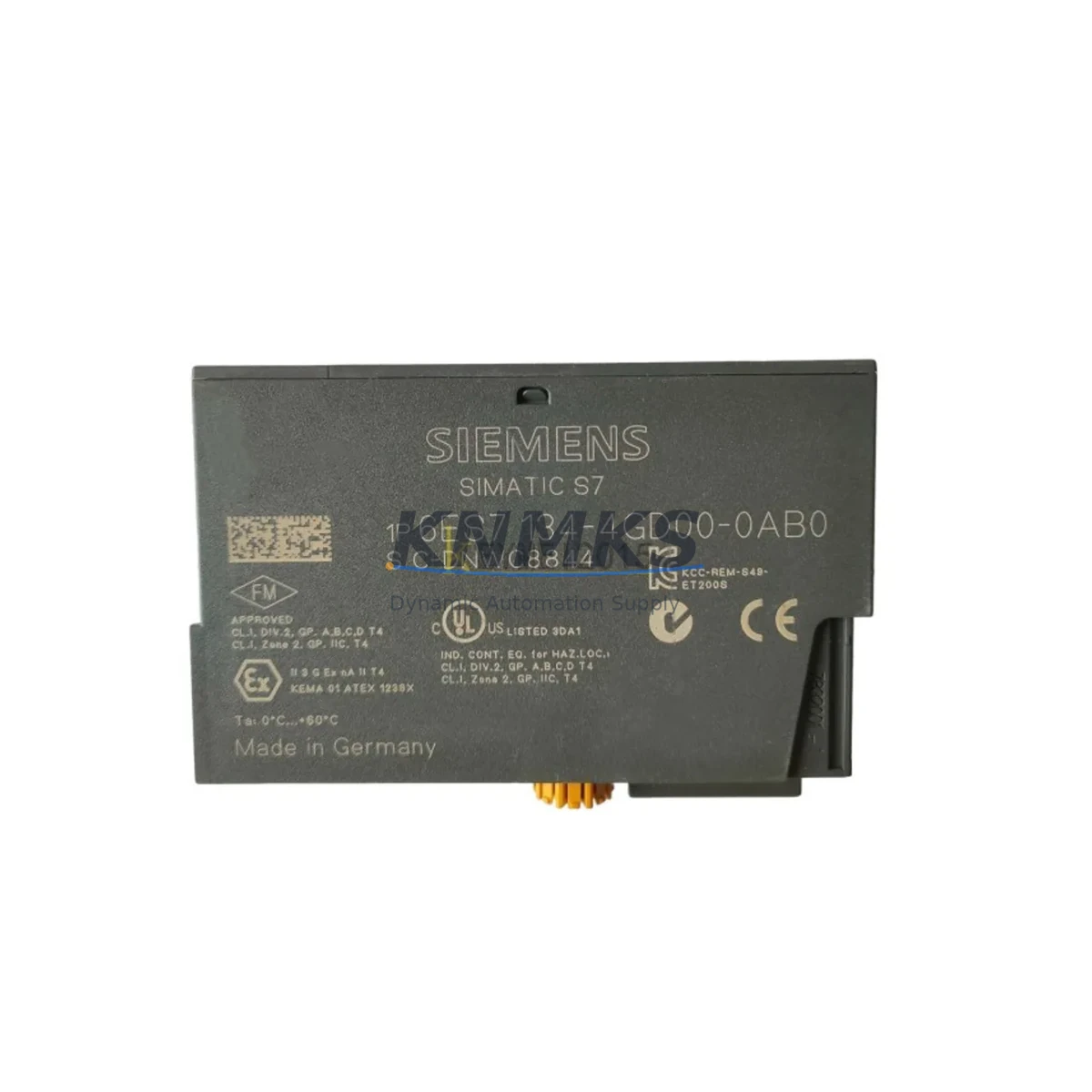

Siemens 6ES7134-4GD00-0AB0 Fail-Safe Analog Input Module

Overview

Siemens 6ES7134-4GD00-0AB0 Fail-Safe Analog Input Module: Fault-Protected Reliability for Critical Industrial Control

The Siemens 6ES7134-4GD00-0AB0 is a 2-channel analog input module designed for the ET 200S distributed I/O system, engineered to deliver fail-safe signal acquisition in demanding industrial environments. With native support for 4–20 mA current loop inputs and compliance with IEC 61508 SIL 2 safety integrity requirements, this module is a cornerstone component for control engineers who cannot afford signal drift, measurement interruption, or undetected sensor faults in continuous production processes.

In high-stakes automation architectures — from petrochemical reactors and power generation switchgear to mining conveyor interlocks and water treatment dosing systems — analog signal integrity is non-negotiable. The 6ES7134-4GD00-0AB0 addresses this directly through its internal diagnostic circuitry, which continuously monitors wire-break conditions, short circuits, and out-of-range signal states. Any fault is immediately reported to the CPU via PROFIBUS DP, enabling the safety PLC to execute a defined safe state before a process deviation escalates into an unplanned shutdown or hazardous event.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 6ES7134-4GD00-0AB0 is most effective when integrated as part of a layered control cabinet protection strategy. In a typical ET 200S safety station, it operates alongside the Siemens IM 151-7 F-CPU (6ES7151-7FA21-0AB0), which serves as the fail-safe CPU processing the safety program and executing safe-state transitions upon fault detection. Power integrity for the entire station is maintained by the Siemens SITOP PSU100S 24V/10A power supply module, which provides regulated, surge-protected DC power with diagnostic output signaling — critical for preventing voltage sag-induced measurement errors in the analog input channels.

For installations in environments with significant conducted or radiated EMI — such as variable frequency drive (VFD) cabinets, arc furnace control rooms, or high-voltage switchgear panels — the addition of Siemens SIMATIC NET PROFIBUS connectors with integrated termination resistors (e.g., 6ES7972-0BB52-0XA0) ensures bus signal integrity and prevents communication timeouts that could trigger spurious safe-state activations. Where surge protection is required at field wiring entry points, Phoenix Contact TRABTECH surge protection terminals are commonly paired with ET 200S analog input modules to clamp transient overvoltages from long cable runs in outdoor or exposed installations.

In safety-critical interlock loops — such as high-pressure relief valve position monitoring or toxic gas detector signal conditioning — the 6ES7134-4GD00-0AB0 is frequently deployed alongside Siemens SIMATIC S7-300 F-DI modules (e.g., 6ES7326-1BK02-0AB0) to create a mixed analog/digital safety input architecture. This combination allows a single F-CPU to supervise both continuous process variables (via the analog module) and discrete safety signals (via the digital fail-safe input module) within a unified safety program, reducing cabinet footprint and simplifying IEC 62061 functional safety validation.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous distillation columns and reactor pressure monitoring loops, the 6ES7134-4GD00-0AB0 acquires 4–20 mA signals from pressure transmitters and temperature sensors feeding directly into the safety instrumented system (SIS). Its wire-break diagnostics ensure that a failed field instrument is detected within one PLC scan cycle, triggering a safe shutdown before process parameters exceed SIL 2 trip thresholds.

Electric Power Generation & Substation Automation: In turbine governor control and generator protection panels, analog input accuracy and EMI immunity are paramount. The module’s compliance with EN 61000-4 electromagnetic compatibility standards makes it suitable for installation in high-voltage substations where induced noise on signal cables is a persistent challenge.

Mining & Mineral Processing: Conveyor belt load monitoring, crusher motor current feedback, and slurry pump flow measurement in dusty, high-vibration environments demand modules rated for mechanical shock and particulate ingress. Cabinet-mounted with IP20 protection, the 6ES7134-4GD00-0AB0 is deployed inside sealed control enclosures with positive-pressure purging to maintain measurement reliability in coal handling and ore processing facilities.

Water & Wastewater Treatment: Dosing pump flow rate control and effluent pH/conductivity monitoring rely on stable 4–20 mA signal chains. The module’s diagnostic transparency allows SCADA operators to distinguish between a genuine process excursion and a field instrument wiring fault — reducing unnecessary process interruptions and operator callouts.

Metallurgy & Steel Production: In electric arc furnace electrode regulation and rolling mill tension control, the combination of high EMI immunity and fast diagnostic reporting makes the 6ES7134-4GD00-0AB0 a preferred analog input solution for safety-rated control loops operating in proximity to high-current bus bars and induction heating equipment.

Port & Marine Automation: Crane load monitoring, mooring winch tension feedback, and ship-to-shore conveyor speed control in salt-air, high-humidity environments require components with proven corrosion resistance and vibration tolerance. Installed within climate-controlled control cabinets, this module supports reliable analog acquisition in port logistics automation systems.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7134-4GD00-0AB0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform within its specified parameters during the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed within 3 business days of fault confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7134-4GD00-0AB0 unit undergoes functional verification prior to dispatch, including power-on self-test confirmation, channel input response verification, and diagnostic output validation. Units sourced from authorized distribution channels are accompanied by original Siemens packaging and traceability documentation where available.

Q3: Is this module compatible with existing SIMATIC ET 200S stations and S7-300/S7-400 F-CPUs?
Yes. The 6ES7134-4GD00-0AB0 is fully compatible with the ET 200S distributed I/O platform and integrates with SIMATIC S7-300 and S7-400 fail-safe CPUs via PROFIBUS DP. It is configured using STEP 7 with the F-Configuration Pack and supports standard GSD-based integration for third-party PROFIBUS masters. Confirm your IM 151 interface module firmware version supports fail-safe I/O before deployment.

Q4: Can long-term supply and replacement support be guaranteed for this module?
We maintain dedicated stock of the 6ES7134-4GD00-0AB0 to support both planned maintenance schedules and emergency replacement requirements. For facilities operating legacy ET 200S safety stations, we offer multi-unit procurement with staggered delivery to support spare parts inventory programs. Contact our technical sales team to discuss volume pricing and reserved stock arrangements for critical site applications.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7134-4GD00-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7134-4GD00-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
