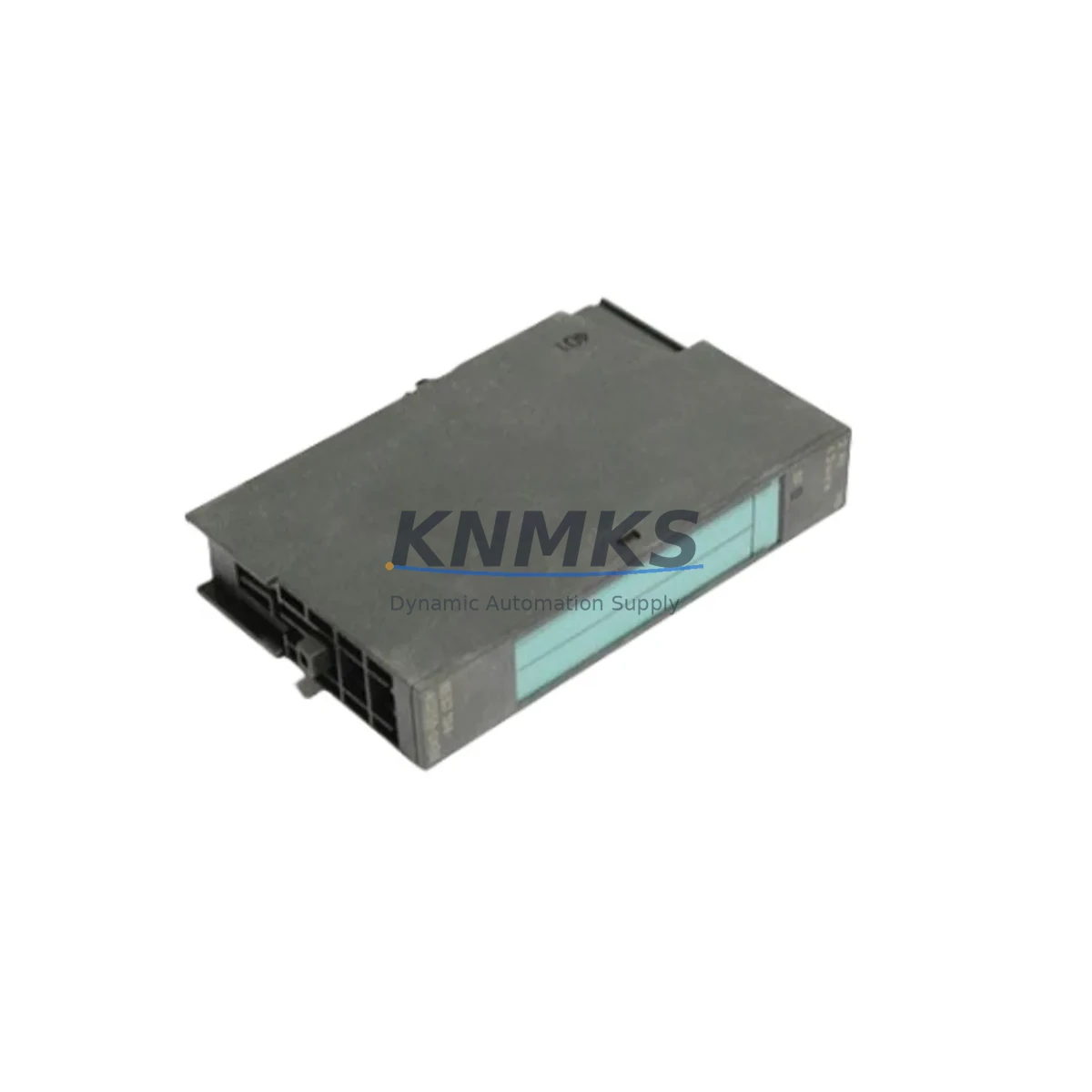

Siemens 6ES7134-4GB50-0AB0 Fail-Safe Analog Input Module

Overview

Siemens 6ES7134-4GB50-0AB0 Fail-Safe Analog Input Module: Fault Protection and Critical Industrial Field Reliability

The Siemens 6ES7134-4GB50-0AB0 is a 2-channel analog input module designed for the ET 200S distributed I/O system, engineered to deliver consistent, interference-resistant signal acquisition in the most demanding industrial control environments. Whether deployed in continuous process plants, safety-critical interlock loops, or high-density control cabinets subject to electromagnetic interference, voltage fluctuations, and thermal stress, this module provides the signal integrity and fault-tolerant performance that modern industrial automation demands.

In petrochemical refineries, power generation facilities, and metallurgical plants, analog signal drift or input module failure can trigger unplanned shutdowns, process upsets, or — in worst-case scenarios — safety system failures. The 6ES7134-4GB50-0AB0 addresses these risks through robust signal conditioning, tight channel isolation, and compatibility with the Siemens SIMATIC S7-300/ET 200S safety architecture. Its compact DIN-rail form factor integrates seamlessly into existing ET 200S stations, reducing retrofit complexity and minimizing cabinet space requirements during system upgrades or spare parts replacements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable analog signal acquisition begins with a well-protected control cabinet architecture. The 6ES7134-4GB50-0AB0 is typically deployed alongside the Siemens 6ES7138-4CA01-0AA0 PM-E power module, which provides stable 24 VDC bus power to the ET 200S station and protects downstream I/O modules from voltage transients and supply interruptions. In safety-critical applications, the module is often paired with the Siemens 6ES7138-4HA00-0AB0 F-PM-E fail-safe power module, enabling SIL-rated power distribution across the safety I/O tier.

For applications requiring digital safety interlocks alongside analog monitoring, the Siemens 6ES7136-4GB00-0AB0 F-DI fail-safe digital input module is commonly installed in the same ET 200S station, allowing both analog process values and discrete safety signals to be processed within a unified distributed I/O node. Communication between the ET 200S station and the central safety PLC — typically a Siemens S7-315F or S7-317F CPU — is handled via PROFIBUS DP or PROFINET, with the Siemens 6ES7151-3BA23-0AB0 IM 151-3 PN interface module serving as the station head for PROFINET-based deployments.

In environments with significant surge risk — such as outdoor substations, port crane control panels, or mining conveyor drives — supplementary surge protection devices (SPDs) rated for 24 VDC signal lines are recommended upstream of the analog inputs to prevent transient-induced channel damage and extend module service life.

Critical Industrial Safety Applications

The 6ES7134-4GB50-0AB0 is field-proven across a broad range of safety-critical and continuous-process industries:

Petrochemical & Refining: Deployed in distributed control systems monitoring pressure transmitters, flow meters, and temperature sensors across reactor loops and pipeline segments. Its galvanic isolation and EMC robustness prevent ground loop interference from corrupting process variable readings in electrically noisy plant environments.

Power Generation: Used in turbine control and boiler management systems where analog feedback from thermocouples and 4–20 mA transducers must remain stable under high-frequency switching noise generated by variable-frequency drives and large transformer banks.

Mining & Mineral Processing: Installed in conveyor drive control panels and crusher automation systems operating in dusty, high-vibration environments. The module’s wide operating temperature range and robust construction support reliable operation in underground and surface mining facilities.

Water & Wastewater Treatment: Integrated into SCADA-connected ET 200S stations monitoring pump discharge pressures, tank levels, and chemical dosing flow rates. Consistent analog accuracy is essential for regulatory compliance and process optimization in water utility operations.

Metallurgy & Steel: Applied in rolling mill and furnace control systems where analog inputs from load cells, pyrometers, and position sensors must maintain accuracy despite intense electromagnetic fields generated by induction heating equipment and large DC drives.

Port & Maritime Operations: Utilized in crane PLC panels and ship-to-shore loader control systems, where the module’s compact form factor and DIN-rail mounting simplify installation in space-constrained electrical enclosures aboard vessels and quayside equipment.

Safety and Quality FAQ

Q1: Does the 6ES7134-4GB50-0AB0 come with a support terms?
Yes. Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. All modules undergo pre-shipment functional testing to verify channel accuracy, isolation integrity, and bus communication before dispatch.

Q2: How is compatibility with existing ET 200S stations verified?
The 6ES7134-4GB50-0AB0 is designed for direct installation into standard ET 200S terminal modules (e.g., 6ES7193-4CA40-0AA0). Compatibility with your specific ET 200S station configuration — including interface module firmware version and STEP 7 / TIA Portal GSD file requirements — should be confirmed against the Siemens hardware configuration documentation for your project. KNMKS technical support can assist with compatibility verification prior to order.

Q3: Is long-term spare parts availability guaranteed?
KNMKS maintains stock of ET 200S analog I/O modules to support long-cycle maintenance programs, planned shutdowns, and emergency replacements. We support 12–36 month spare parts planning horizons for critical infrastructure operators who require assured supply continuity without dependency on spot-market availability.

Q4: What safety certifications are relevant for this module in SIL-rated applications?
The 6ES7134-4GB50-0AB0 is a standard (non-F) analog input module within the ET 200S range. For SIL 2/3 safety instrumented system (SIS) applications requiring IEC 61508-certified analog input, the appropriate fail-safe variant (F-AI module) should be selected. KNMKS can advise on the correct F-series module selection for your safety integrity level requirements and supply both standard and fail-safe ET 200S I/O modules from verified stock.
