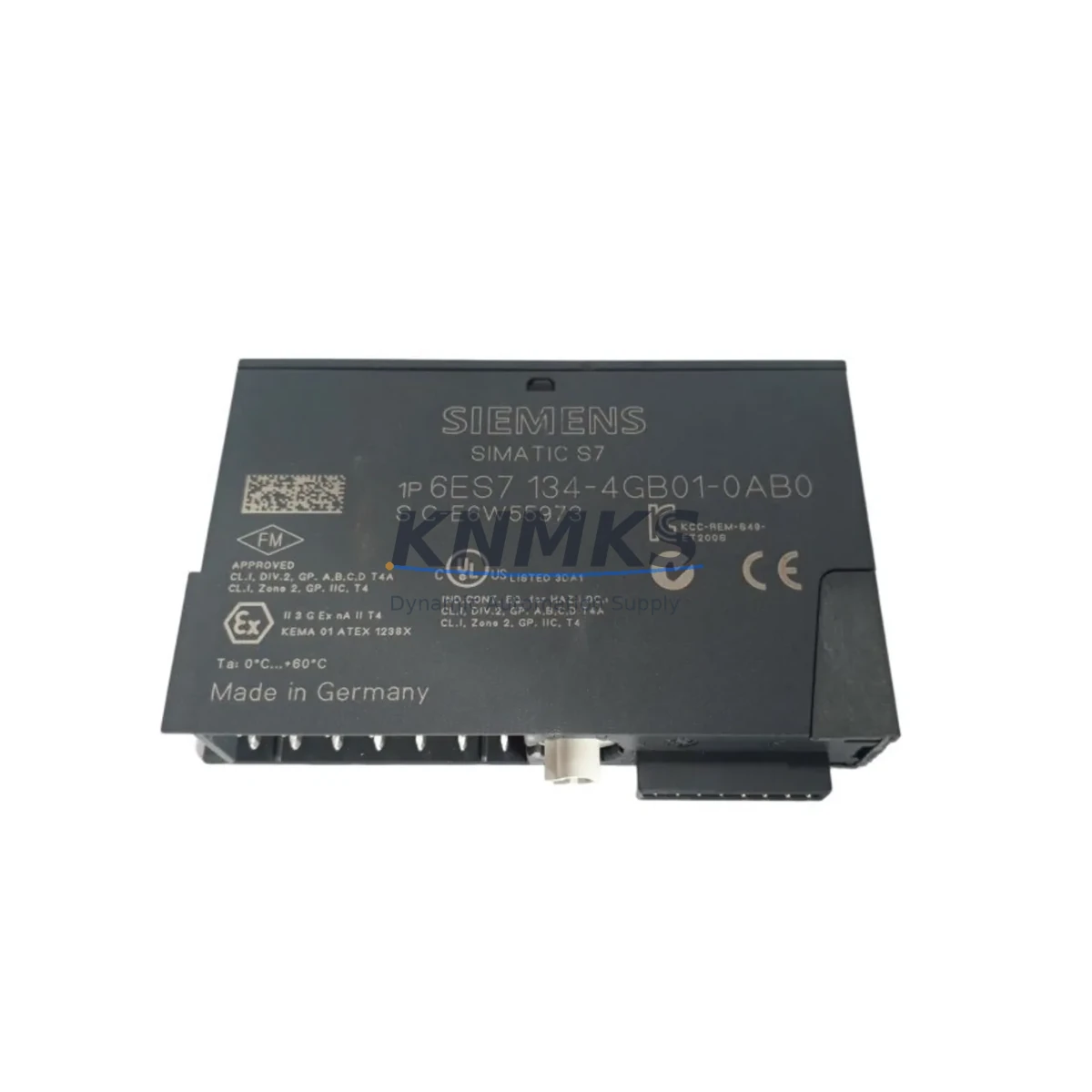

Siemens 6ES7134-4GB01-0AB0 Fail-Safe Analog Input

Overview

Siemens 6ES7134-4GB01-0AB0 Fail-Safe Analog Input: Fault-Tolerant Signal Acquisition for Critical Industrial Control

The Siemens 6ES7134-4GB01-0AB0 is a 2-channel analog input module designed for the ET 200S distributed I/O system, engineered to deliver uncompromising signal integrity in the most demanding industrial environments. Whether deployed in continuous process manufacturing, safety-critical interlock loops, or high-EMI control cabinets, this module provides the fail-safe analog acquisition performance that modern industrial automation demands.

Built to operate within the Siemens SIMATIC S7-300/ET 200S architecture, the 6ES7134-4GB01-0AB0 accepts standard analog signal types and converts them with high resolution and low drift, ensuring that control decisions are always based on accurate, stable process values. In environments where signal drift, electromagnetic interference, power fluctuations, or thermal stress can compromise measurement accuracy, this module’s robust hardware design and tight noise rejection characteristics make it the preferred choice for instrumentation engineers and system integrators alike.

For facilities operating under continuous production schedules — petrochemical plants, power generation stations, metallurgical smelters, water treatment works, mining operations, port logistics systems, and marine vessel automation — unplanned control interruptions carry severe operational and safety consequences. The 6ES7134-4GB01-0AB0 is specifically suited to these environments, where analog signal reliability directly determines process safety and uptime.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 6ES7134-4GB01-0AB0 analog input module does not operate in isolation — it functions as part of a coordinated protection and control architecture. Reliable analog signal acquisition depends on the stability of the surrounding system, and Siemens ET 200S is designed with this integration in mind.

The module mounts directly onto the ET 200S terminal module rail alongside the Siemens 6ES7138-4CA01-0AA0 PM-E power module, which provides regulated 24 V DC bus power and protects downstream I/O modules from supply voltage fluctuations and transient surges. In high-load or multi-segment cabinets, the 6ES7138-4CB11-0AB0 PM-E F power module extends fail-safe power distribution across the ET 200S station, ensuring that analog input channels remain energized even during partial bus faults.

For digital interlock and safety relay coordination, the 6ES7131-4BF00-0AA0 4-channel digital input module and 6ES7132-4BF00-0AA0 4-channel digital output module are commonly deployed in the same ET 200S station, enabling tightly coupled analog-digital control loops within a single distributed I/O node. This architecture is particularly effective in emergency shutdown (ESD) systems, where analog process values must be continuously compared against digital trip thresholds.

Communication integrity between the ET 200S station and the S7-300 or S7-400 CPU is maintained through the 6ES7151-1BA02-0AB0 IM 151-1 PROFIBUS interface module, which handles cyclic data exchange and diagnostic reporting. In environments with severe electromagnetic interference — such as variable frequency drive (VFD) rooms, arc furnace control areas, or high-voltage switchgear bays — the PROFIBUS DP network should be protected with appropriate cable shielding and ferrite suppression to prevent communication anomalies that could mask analog signal faults.

For cabinet thermal management, particularly in enclosed panels operating in high-ambient-temperature locations such as foundry floors or outdoor desert installations, pairing the ET 200S station with a Siemens SITOP PSU100S 24 V power supply provides additional supply stability and thermal derating headroom, reducing the risk of cabinet overheating that could degrade analog measurement accuracy or trigger nuisance faults.

Critical Industrial Safety Applications

The Siemens 6ES7134-4GB01-0AB0 is deployed across a wide range of safety-critical and continuous-process industrial applications where analog signal reliability is non-negotiable.

In petrochemical and refinery operations, this module acquires 4–20 mA signals from pressure transmitters, flow meters, and temperature sensors integrated into process safety instrumented systems (SIS). Accurate analog acquisition is essential for detecting abnormal process conditions before they escalate to hazardous events, supporting SIL-rated interlock functions in compliance with IEC 61511.

In thermal and hydroelectric power generation, the module monitors turbine bearing temperatures, generator excitation currents, and cooling water flow rates. Signal drift or acquisition errors in these loops can lead to equipment damage or forced outages, making the high-resolution, low-noise performance of the 6ES7134-4GB01-0AB0 directly relevant to plant availability and safety.

In mining and mineral processing, where conveyors, crushers, and flotation circuits operate under heavy vibration and dust loading, the module’s robust mechanical design and EMI immunity ensure stable analog acquisition even when installed in proximity to large motor drives and high-current switching equipment.

In municipal and industrial water treatment, the module supports continuous monitoring of pH, dissolved oxygen, turbidity, and chemical dosing flow rates. Reliable analog input performance is critical for maintaining effluent quality compliance and preventing chemical overdose incidents.

In metallurgical and steel production environments — including electric arc furnaces, continuous casting lines, and rolling mills — the module operates under extreme thermal and electromagnetic stress. Its compliance with IEC 60068 environmental standards ensures sustained measurement accuracy across the full production cycle.

In port and marine automation, including ship loading systems, crane control, and vessel engine room automation, the module provides reliable analog acquisition in salt-air, high-humidity environments where corrosion and condensation are persistent threats to control system integrity.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7134-4GB01-0AB0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures arising under normal operating conditions as specified in the Siemens datasheet. If the module fails to perform its specified analog input functions within the confirmed support period, we will arrange replacement or repair at no additional cost. Support requests are processed promptly to minimize your site downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every 6ES7134-4GB01-0AB0 unit undergoes a full functional test prior to dispatch. This includes power-on verification, analog channel response testing, and backplane communication checks. Units that do not meet Siemens performance specifications are quarantined and not shipped. A test record is available upon request for critical-site procurement requirements.

Q3: Is this module compatible with existing S7-300 and ET 200S installations?
Yes. The 6ES7134-4GB01-0AB0 is fully compatible with the ET 200S distributed I/O system and integrates with SIMATIC S7-300, S7-400, and compatible PROFIBUS DP master controllers. It requires the appropriate ET 200S terminal module (TM-E) for installation. Compatibility with specific IM 151-x interface module firmware versions should be verified against the Siemens hardware compatibility matrix for your installation.

Q4: Can long-term supply and replacement support be guaranteed for this module?
We maintain dedicated stock of the 6ES7134-4GB01-0AB0 and key ET 200S companion modules to support ongoing maintenance, planned replacement programs, and emergency spare requirements. For facilities with critical uptime obligations, we recommend establishing a standing spare parts agreement to ensure immediate availability when needed. Contact our technical sales team to discuss volume pricing and reserved stock arrangements.
