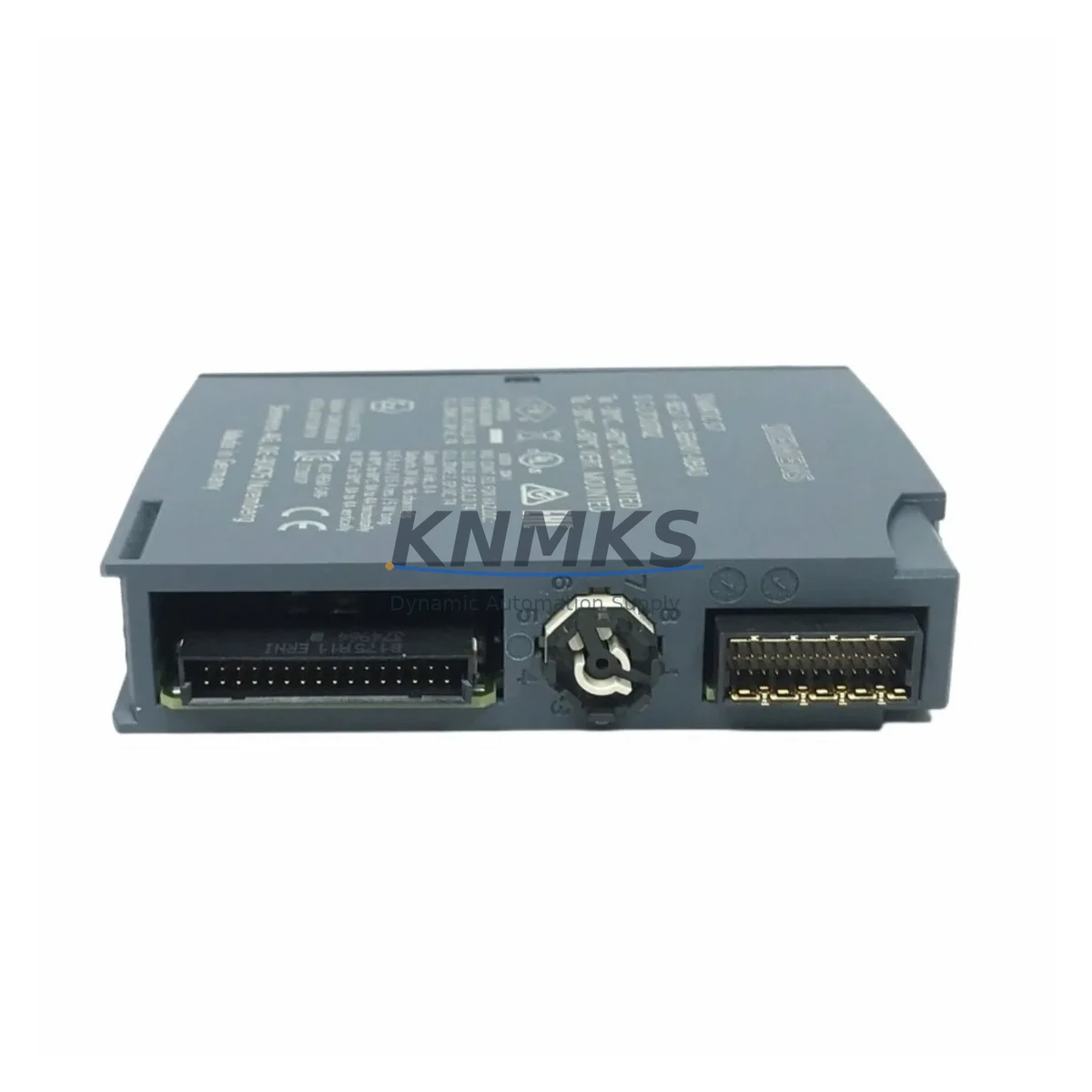

Siemens 6ES7132-6BH01-0BA0 Fail-Safe Digital Output ET 200SP

Overview

Siemens 6ES7132-6BH01-0BA0 Fail-Safe Digital Output ET 200SP: Fail-Safe Protection for Critical Industrial Control Reliability

The Siemens 6ES7132-6BH01-0BA0 is a high-density digital output module from the SIMATIC ET 200SP distributed I/O system, delivering 16 channels of 24 VDC / 0.5 A switching capacity in a compact, DIN-rail-mounted form factor. Engineered for continuous production environments where control interruption is not an option, this module is purpose-built to maintain fail-safe output states under surge events, electromagnetic interference, power fluctuations, and extreme ambient conditions. Whether deployed in a petrochemical interlock loop, a power plant relay cabinet, or a high-cycle discrete manufacturing line, the 6ES7132-6BH01-0BA0 delivers the output integrity that safety-critical applications demand.

In modern industrial control cabinets, digital output modules are the final command layer between the controller and the field device. A single output fault — caused by signal drift, inductive load surge, thermal stress, or communication anomaly — can cascade into unplanned downtime, equipment damage, or a safety incident. The 6ES7132-6BH01-0BA0 addresses these risks through robust channel-level diagnostics, short-circuit and overload protection per output group, and full compatibility with the SIMATIC S7-1500 and ET 200SP CPU safety architectures. Its standard (ST) variant is optimized for high-availability non-safety-rated loops while integrating seamlessly alongside fail-safe (F) variants such as the 6ES7132-6BF01-0CA0 F-DQ module in mixed-safety cabinet designs.

Field installations in mining, metallurgy, water treatment, and port logistics consistently expose output modules to vibration, humidity, conductive dust, and wide temperature swings. The ET 200SP platform’s IP20-rated housing, combined with conformal coating options and the module’s wide operating temperature range of -30 °C to +60 °C, ensures stable switching performance without derating in thermally demanding enclosures. When paired with the SIMATIC ET 200SP BaseUnit BU15-P16+A10+2B (e.g., 6ES7193-6BP20-0DA0), the module’s push-in terminal technology eliminates wiring vibration faults that are a leading cause of intermittent output failures in mobile or high-vibration plant environments.

Surge and transient protection is a non-negotiable requirement in heavy industrial sites. Inductive loads — motor contactors, solenoid valves, relay coils — generate back-EMF spikes that degrade unprotected output stages over time. The 6ES7132-6BH01-0BA0’s output circuitry is rated to handle these transient events within IEC 61131-2 compliance limits, reducing the risk of premature module failure in high-cycle valve or actuator control applications. For cabinet-level surge coordination, this module is routinely deployed alongside SIMATIC S7-1500 power supply modules such as the 6EP1333-4BA00 SITOP PSU100S, which provides regulated 24 VDC with active buffering to prevent output dropout during mains dips — a common cause of nuisance trips in continuous process plants.

Communication integrity between the ET 200SP island and the S7-1500 CPU is maintained over PROFINET IO, with the 6ES7132-6BH01-0BA0 participating in the isochronous real-time (IRT) cycle where deterministic output response is required. In high-EMI environments — arc furnaces, variable frequency drives, large transformer bays — PROFINET’s noise immunity, combined with proper cable shielding and the ET 200SP’s integrated EMC design, prevents communication anomalies that could cause spurious output toggling or watchdog-triggered safe states. For installations requiring additional network redundancy, the SCALANCE X208 managed switch supports media redundancy protocol (MRP) ring topologies that keep the PROFINET segment alive during single cable faults.

Planned maintenance and spare parts availability are critical factors in long-term plant reliability. The 6ES7132-6BH01-0BA0 supports hot-swapping on the ET 200SP BaseUnit without powering down the station, enabling module replacement during live production windows — a key advantage in 24/7 continuous process facilities. Each unit shipped by KNMKS undergoes pre-shipment functional testing covering output switching, diagnostic channel verification, and communication handshake validation. Stocked inventory ensures rapid dispatch for both planned spares replenishment and emergency breakdown replacement, backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet for continuous industrial processes is built around layered protection — from power entry to field output. The 6ES7132-6BH01-0BA0 occupies the output layer of this architecture, but its dependability is directly tied to the quality of the components surrounding it.

At the power supply level, the SITOP PSU100S 6EP1333-4BA00 provides regulated 24 VDC with active buffering, ensuring that brief mains interruptions — common in heavy industrial facilities — do not cause output dropout or controller watchdog faults. Upstream, SIMATIC S7-1500 CPU modules such as the CPU 1515-2 PN (6ES7515-2AM02-0AB0) manage the PROFINET IO cycle and enforce output consistency through integrated diagnostic alarms, flagging any channel-level fault on the 6ES7132-6BH01-0BA0 before it escalates to a process trip.

For safety interlock loops operating alongside standard control, the ET 200SP F-DQ module 6ES7132-6BF01-0CA0 provides SIL 2 / PLd-rated fail-safe outputs in the same station, sharing the BaseUnit infrastructure with the standard DQ module and reducing cabinet footprint. Communication redundancy is addressed by the SCALANCE X208 managed switch, which supports MRP ring topology to maintain PROFINET connectivity during single-point cable faults — critical in large plant layouts where cable runs cross high-interference zones.

Terminal integrity — often overlooked — is maintained through the ET 200SP’s push-in spring terminal technology on the BU15-P16+A10+2B BaseUnit, which eliminates the loosening that screw terminals experience under vibration cycles in compressor rooms, pump stations, and mobile equipment cabinets. Together, these components form a cabinet architecture where the 6ES7132-6BH01-0BA0 can deliver its rated 16-channel output performance across the full service life of the installation.

Critical Industrial Safety Applications

The Siemens 6ES7132-6BH01-0BA0 is deployed across the most demanding sectors of industrial automation, where output module reliability directly affects process safety and production continuity.

Petrochemical & Refinery: In hydrocarbon processing plants, the module drives solenoid valves, shutdown actuators, and alarm annunciators within emergency shutdown (ESD) and process control systems. Its diagnostic output monitoring detects wire-break and short-circuit conditions before they cause a spurious trip or — more critically — a failure to trip on demand.

Power Generation & Substation Automation: Thermal and hydroelectric power plants use the ET 200SP DQ module to control breaker coils, cooling fans, and auxiliary relay panels. The module’s wide operating temperature tolerance and EMC compliance make it suitable for high-voltage switchgear environments where conducted interference is severe.

Mining & Mineral Processing: Conveyor interlock systems, crusher control panels, and ventilation safety circuits in underground and open-pit mining rely on the module’s short-circuit protection and hot-swap capability to minimize downtime during maintenance cycles in remote, dust-laden environments.

Water & Wastewater Treatment: Pump station automation, chemical dosing control, and UV disinfection systems benefit from the module’s stable 24 VDC switching in high-humidity, corrosive-atmosphere installations where output reliability directly affects public health compliance.

Metallurgy & Steel: Rolling mill drive control, furnace atmosphere management, and ladle transfer automation expose output modules to extreme thermal cycling and electromagnetic noise from large induction furnaces. The 6ES7132-6BH01-0BA0’s IEC 61000-4 compliance ensures consistent output state under these conditions.

Port Logistics & Shipbuilding: Crane PLC cabinets, hatch cover automation, and ballast control systems on vessels and port equipment demand modules that withstand vibration, salt-laden air, and wide ambient temperature ranges — all within the ET 200SP platform’s design envelope.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7132-6BH01-0BA0?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions as specified in the Siemens datasheet. This includes output switching failures, diagnostic reporting errors, and communication interface faults. Physical damage caused by incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded. Support requests are processed with a replacement-first policy to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7132-6BH01-0BA0 dispatched by KNMKS undergoes a structured pre-shipment test covering: (1) all 16 output channels switched under load to verify switching integrity; (2) diagnostic channel response verification for short-circuit and overload conditions; and (3) PROFINET communication handshake with an ET 200SP IM interface module to confirm firmware compatibility and data exchange. Test records are available on request.

Q3: Is the 6ES7132-6BH01-0BA0 compatible with existing S7-300/S7-400 systems?
The 6ES7132-6BH01-0BA0 is native to the ET 200SP platform and integrates directly with S7-1500 CPUs and ET 200SP IM interface modules via PROFINET IO. For S7-300 or S7-400 systems, the ET 200SP station can be connected as a PROFINET IO device using a compatible IM module, making it a viable upgrade path for legacy system modernization without replacing the host CPU. Configuration is performed in TIA Portal V15.1 or later.

Q4: Can long-term supply continuity be guaranteed for this module?
KNMKS maintains stocked inventory of the 6ES7132-6BH01-0BA0 to support both planned spares programs and emergency breakdown replacement. For customers running multi-year maintenance contracts or managing critical infrastructure, we recommend establishing a consignment or scheduled replenishment agreement to ensure availability independent of global supply chain fluctuations. Contact our team to discuss volume pricing and long-term supply arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7132-6BH01-0BA0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7132-6BH01-0BA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
