Siemens 6ES7132-6BH00-0BA0 Migration-Ready DQ Module for ET 200SP Legacy Control Systems

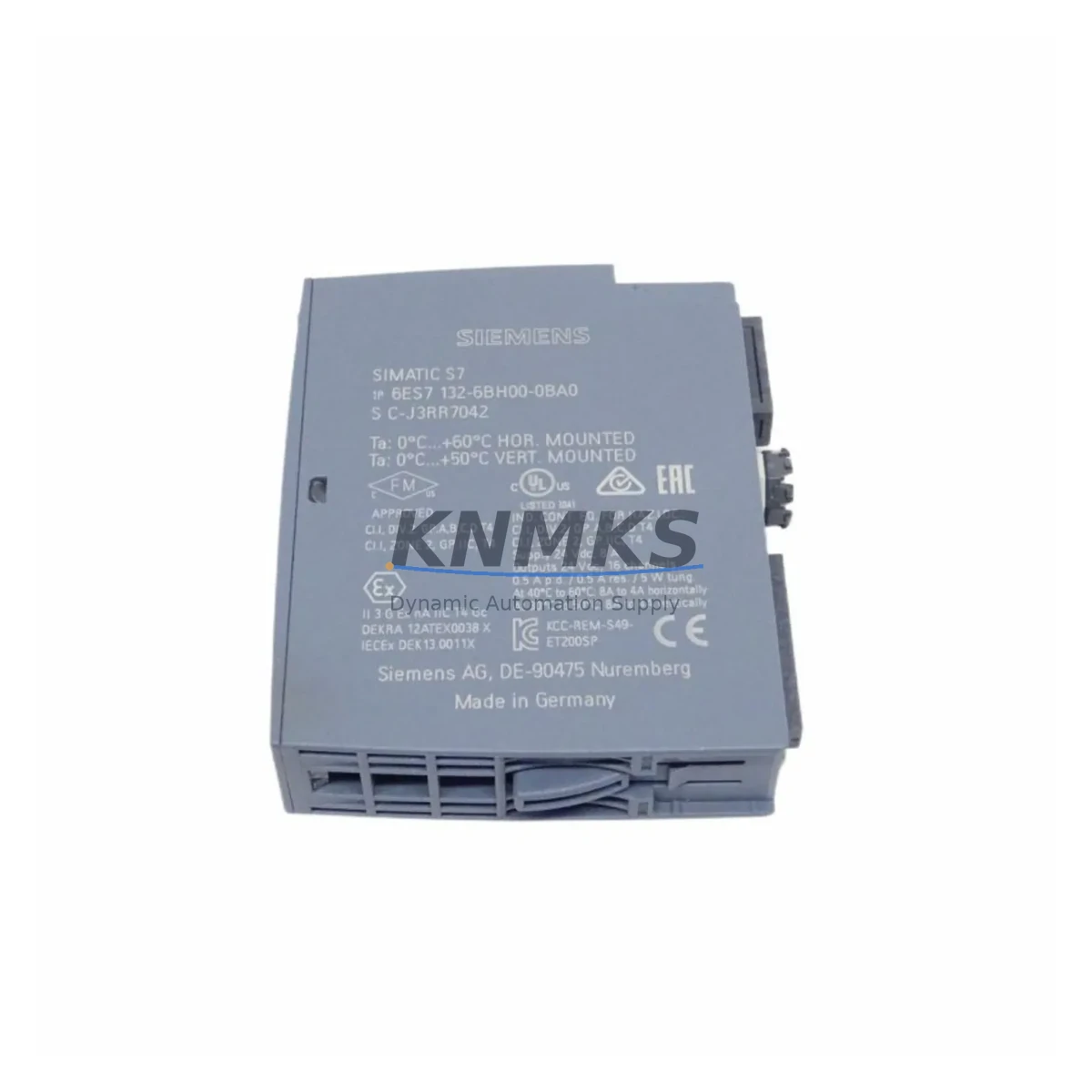

The Siemens 6ES7132-6BH00-0BA0 is a 16-channel digital output module (DQ 16x24VDC/0.5A) designed for the ET 200SP distributed I/O system. As legacy S7-300 and S7-400 control architectures reach end-of-life, this module serves as a critical migration component for engineers upgrading to S7-1500 platforms while preserving existing field wiring, cabinet layouts, and control logic. Its compact BaseUnit-compatible form factor and PROFINET-ready integration make it a preferred choice for retrofit projects across manufacturing, process control, and infrastructure automation environments.

When planning a migration from an older IM 153-x or IM 151-x interface module to the current IM 155-6 PN ST interface module, the 6ES7132-6BH00-0BA0 slots directly into the ET 200SP backplane without requiring additional wiring adapters. Engineers replacing legacy SM 322 digital output modules from S7-300 racks will find that the 24VDC/0.5A per channel rating matches most existing actuator and solenoid valve loads, significantly reducing the scope of field rewiring during cutover.

Before committing to a replacement, it is essential to verify the power budget of the ET 200SP station. The 6ES7132-6BH00-0BA0 draws load current from the BaseUnit’s internal bus, and the total station current must remain within the limits of the installed PM-E 24VDC power module. In high-density cabinets where multiple DQ and DI modules share a single power segment, adding a supplementary 6ES7133-6UF00-0AU0 PM-E F power module may be required to maintain stable operation across all output channels simultaneously.

Terminal wiring compatibility is a primary concern during any retrofit. The 6ES7132-6BH00-0BA0 uses push-in terminal technology via its BaseUnit (BU type A0 or B0), which accepts 0.2–1.5 mm² conductors. If the existing cabinet uses screw-terminal marshalling, a wiring adapter or re-termination plan should be included in the project scope. Confirm that the BaseUnit type matches the module’s electrical isolation requirements — the A0 BaseUnit provides a common potential group, while the B0 BaseUnit allows potential group separation, which is critical when mixing output circuits with different reference potentials.

Module addressing in TIA Portal is handled automatically through the PROFINET device configuration. When replacing a module in an existing S7-1500 + ET 200SP project, the hardware configuration must be updated to reflect the new module GSD file version. If the replacement 6ES7132-6BH00-0BA0 carries a different firmware revision than the original, a firmware update via TIA Portal’s online device management may be required before the CPU accepts the configuration download. Always back up the existing project and perform an offline comparison before going online with the updated hardware configuration.

HMI screen updates are often overlooked during module replacements. If the original system used SIMATIC HMI TP700 Comfort or similar panels with I/O status displays mapped to specific output addresses, verify that the symbolic addressing in TIA Portal correctly resolves to the new module’s channel assignments. Mismatched I/O tags between the PLC program and HMI project are a common source of commissioning delays that extend planned downtime windows.

Communication link integrity must be confirmed after any ET 200SP module change. The PROFINET ring topology used in many production lines requires that the IM 155-6 PN ST interface module maintains its device name and IP address assignment. Use the TIA Portal “Accessible Devices” function to verify that the ET 200SP station is online and all modules report “OK” status before releasing the line. If the station uses MRP (Media Redundancy Protocol), confirm that the ring manager role assignment has not been disrupted by the module swap.

Installation space confirmation is straightforward for this module: the 6ES7132-6BH00-0BA0 occupies a single slot on the ET 200SP rail and requires no additional clearance beyond the standard 35mm DIN rail mounting. However, in retrofit scenarios where the original cabinet was designed for S7-300 SM modules, the physical rail and mounting depth must be re-evaluated. ET 200SP modules are significantly more compact than S7-300 I/O, which may allow consolidation of multiple legacy racks into a single ET 200SP station — reducing cabinet footprint and simplifying cable management.

Every unit supplied by KNMKS undergoes pre-shipment functional testing, including channel-by-channel output verification, bus communication check, and firmware version confirmation. Units are shipped with original Siemens packaging where available, and each module is covered by a support terms confirmed by quotation from the date of delivery. Stock availability is maintained for immediate dispatch, supporting urgent breakdown replacements and planned maintenance windows alike.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete bill of materials audit. For an ET 200SP station replacing a legacy S7-300 distributed I/O rack, the typical component list includes the IM 155-6 PN ST interface module as the PROFINET head, one or more 6ES7132-6BH00-0BA0 DQ modules for digital outputs, complementary 6ES7131-6BH00-0BA0 DI 16x24VDC HF input modules for digital inputs, and a 6ES7193-6BP00-0BA0 BaseUnit BU15-P16+A0+2D for each I/O module slot.

Power distribution planning must account for the total load current across all output channels. In applications driving multiple solenoid valves or relay coils simultaneously, the PM-E 24VDC power module current rating must be verified against the worst-case simultaneous activation scenario. For stations with mixed DQ and analog output modules, a 6ES7134-6GD00-0BA1 AQ analog output module may also be present, adding to the total power budget calculation.

Communication protocol migration from PROFIBUS DP to PROFINET is the most significant architectural change in S7-300 to S7-1500 upgrades. The existing IM 153-2 PROFIBUS interface module must be replaced with the IM 155-6 PN ST, and the network topology must be updated to support Ethernet cabling. In facilities where PROFIBUS trunk cables run long distances, this may require new Ethernet infrastructure — a project element that should be scoped and budgeted separately from the I/O module replacement.

For applications requiring signal isolation between field devices and the control system, a signal isolator or intrinsic safety barrier may be installed between the DQ module output terminals and the field wiring. Confirm that the 0.5A per channel output current of the 6ES7132-6BH00-0BA0 is sufficient to drive the isolator input, and that the isolator output voltage drop does not reduce the signal below the minimum threshold for the connected actuator.

Downtime Control During System Migration

Minimizing production downtime during a control system migration requires a structured cutover plan. For ET 200SP module replacements, the recommended approach is to pre-configure the replacement hardware offline in TIA Portal, perform a full simulation of the I/O mapping, and prepare a tested configuration download package before the maintenance window begins.

Where possible, use TIA Portal’s “Download to Device” with the “Consistent Download” option to ensure that the CPU and all ET 200SP stations receive the updated configuration simultaneously, avoiding partial states where some modules operate on the old configuration while others have been updated. This is particularly important when the 6ES7132-6BH00-0BA0 replacement changes the module’s slot position within the ET 200SP station.

To protect existing program logic, export the current PLC program as a TIA Portal archive before making any hardware changes. If the migration involves converting a STEP 7 Classic project to TIA Portal format, use the Migration Tool included in TIA Portal and perform a thorough review of all converted function blocks, especially those using absolute I/O addressing, which must be updated to symbolic addressing compatible with the new hardware configuration.

Field control continuity can be maintained during phased migrations by keeping the legacy S7-300 system operational on non-migrated I/O points while the ET 200SP station handles the migrated outputs. This parallel operation approach requires careful attention to interlock logic to prevent conflicting commands from both systems during the transition period. Document all parallel operation interlocks and remove them explicitly at the end of the migration to avoid latent logic errors in the final system.

Retrofit Support FAQ

Q1: Is the 6ES7132-6BH00-0BA0 a direct drop-in replacement for the 6ES7132-4BF00-0AB0 (S7-300 SM 322)?
No — the 6ES7132-6BH00-0BA0 is an ET 200SP module and requires an ET 200SP BaseUnit and interface module. It is not physically interchangeable with S7-300 SM 322 modules. However, it is the recommended functional replacement when migrating from S7-300 distributed I/O to an ET 200SP + S7-1500 architecture, as it provides equivalent 16-channel 24VDC digital output capability with improved diagnostics and PROFINET connectivity.

Q2: What pre-shipment testing is performed on each unit?
Each 6ES7132-6BH00-0BA0 supplied by KNMKS undergoes channel-by-channel output activation testing, bus communication verification, and firmware version confirmation prior to dispatch. Units that fail any test parameter are quarantined and not shipped. A support terms confirmed by quotation is provided from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this module be used with an existing PROFIBUS DP network without upgrading to PROFINET?
No. The ET 200SP system communicates exclusively via PROFINET when using the IM 155-6 PN ST interface module. If your existing network is PROFIBUS DP and a full protocol migration is not yet planned, consider the ET 200S series with PROFIBUS interface modules as an interim solution, or evaluate the project timeline for a full PROFINET migration to align with the S7-1500 upgrade roadmap.

Q4: What is the lead time and stock availability for the 6ES7132-6BH00-0BA0?
KNMKS maintains ready stock of the 6ES7132-6BH00-0BA0 for immediate dispatch. Standard orders are processed and shipped within 1–2 business days. For urgent breakdown replacements, contact [email protected] or call +86 18359268345 to confirm same-day dispatch availability. All units are covered by a support terms confirmed by quotation from the date of delivery.
